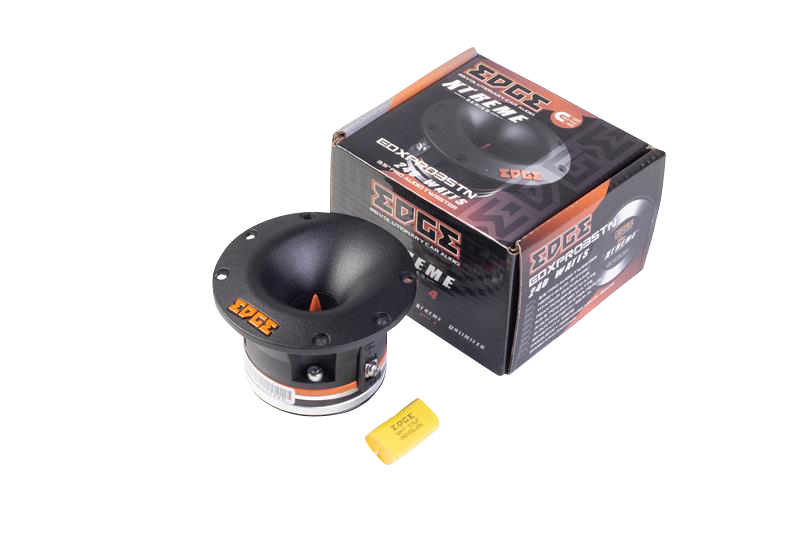

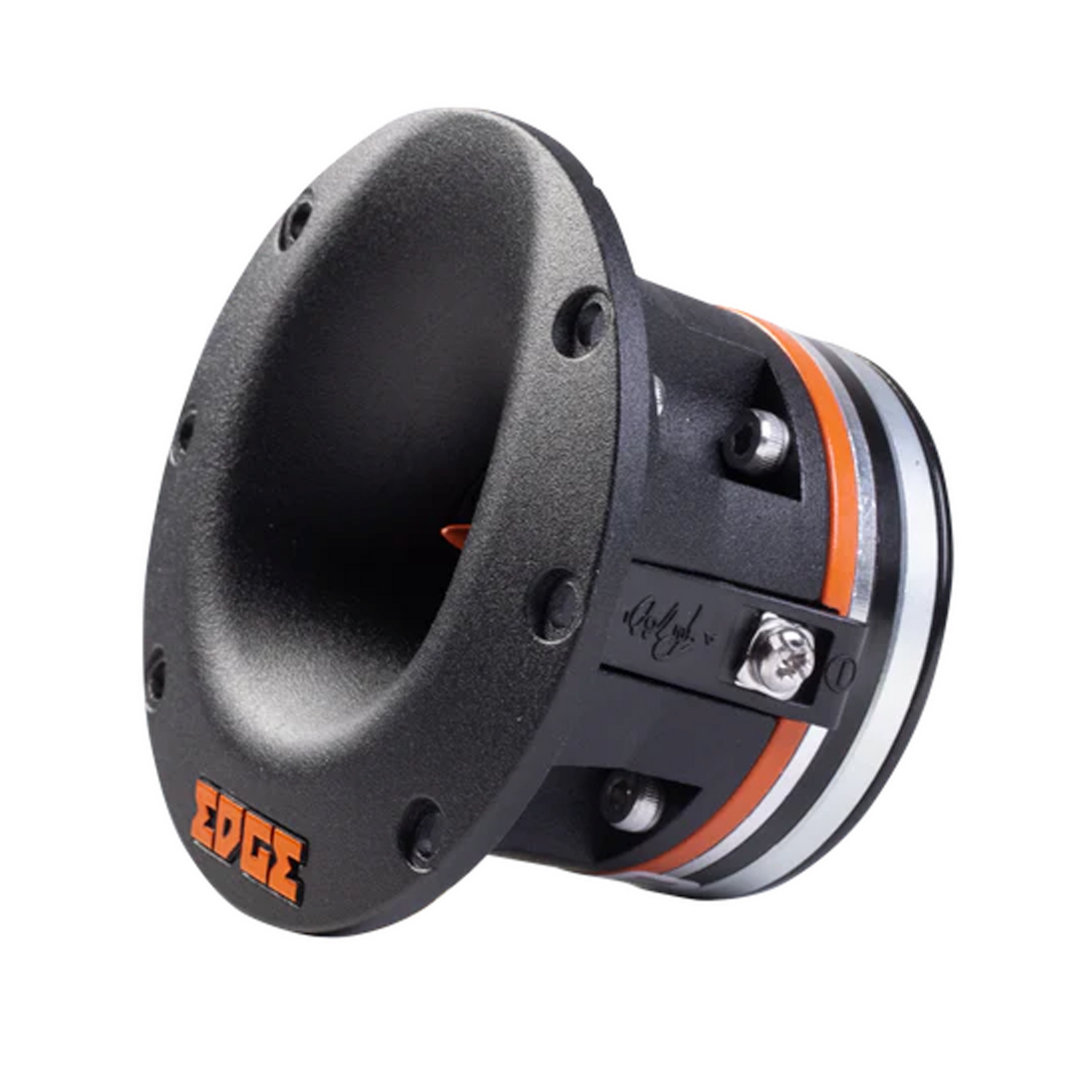

EDXPRO35TN-E4 | EDGE Street Series 3.5 inch 120 watts Pro Audio Tweeters

Xtreme series Pro tweeters

The all new Xtreme series Pro tweeters from EDGE have been designed from the ground up to deliver a loud and detailed sound. The large motor, utilizing neo magnet technology is designed using Finite Element Method Magnetics (FEMM) to deliver maximum magnetic force.

The EDXPRO35TN delivers frequencies as low as 1000Hz which allows more of the directional sound to come from one location. This high frequency driver is something different to a traditional compression tweeter. The driver uses a high power motor to drive the large titanium diaphragm and voice coils with precision. Large flared horn means the pro driver plays significantly lower than other tweeters. The horn itself also allows the sound to be smoother as it has a more progressive dispersion.

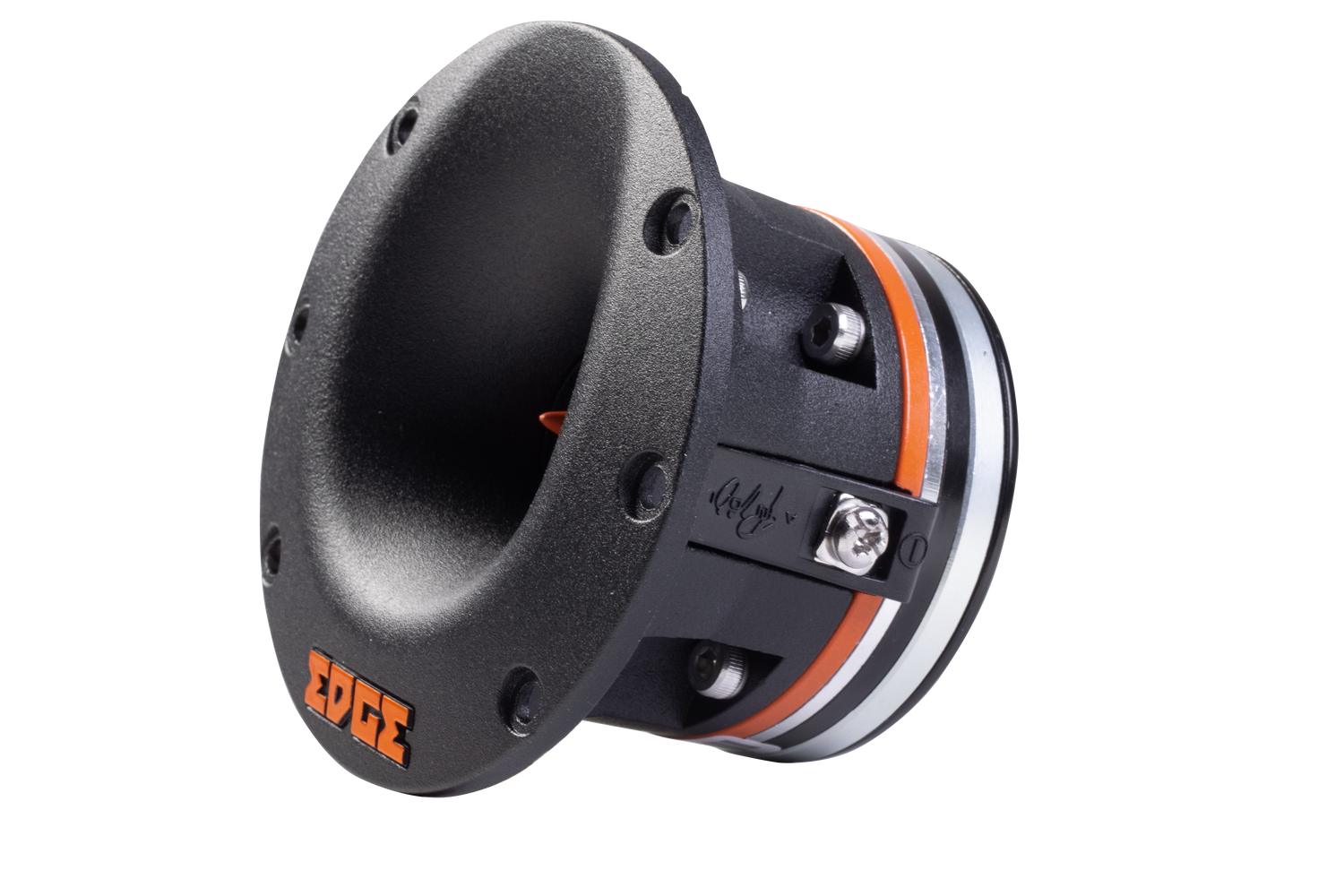

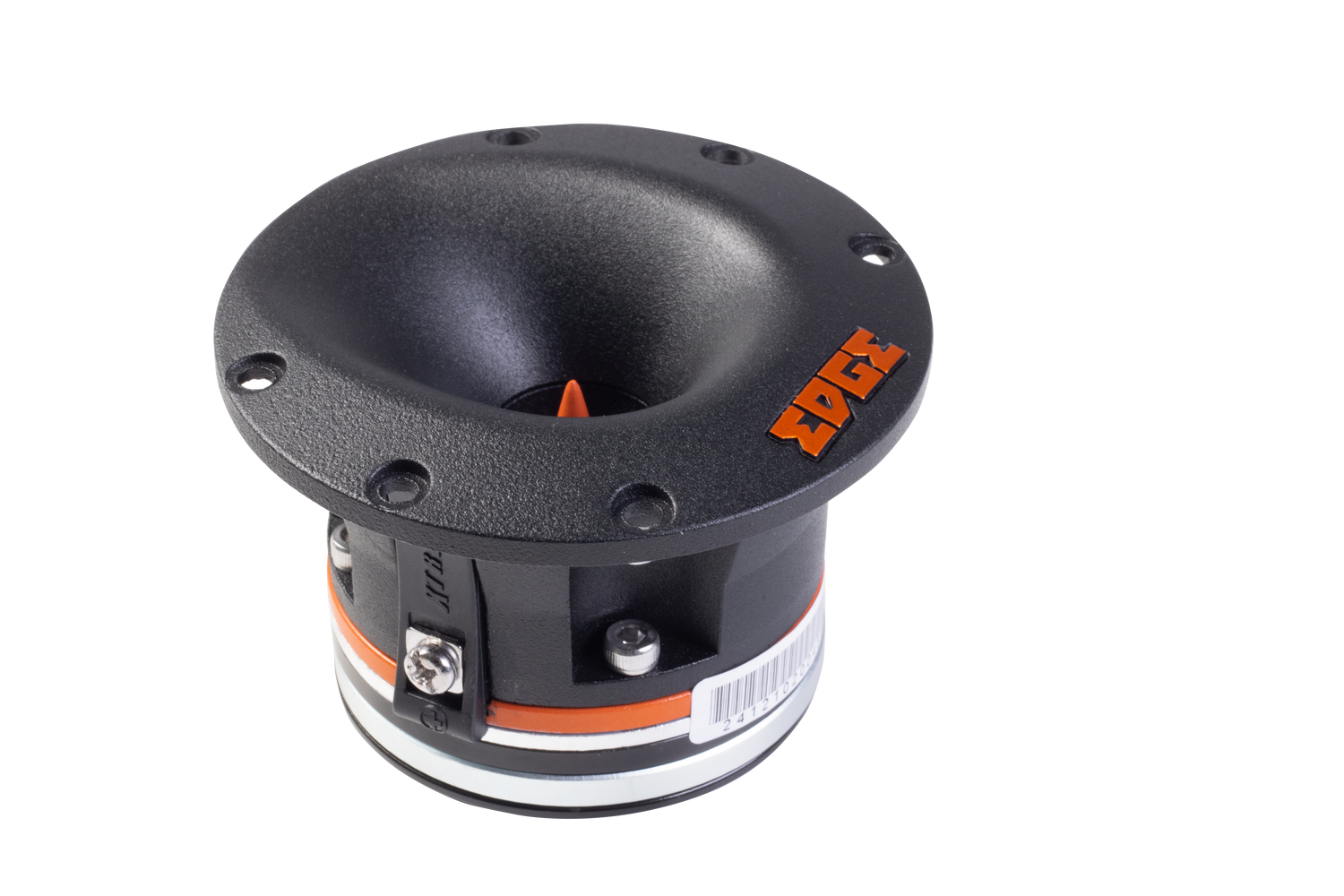

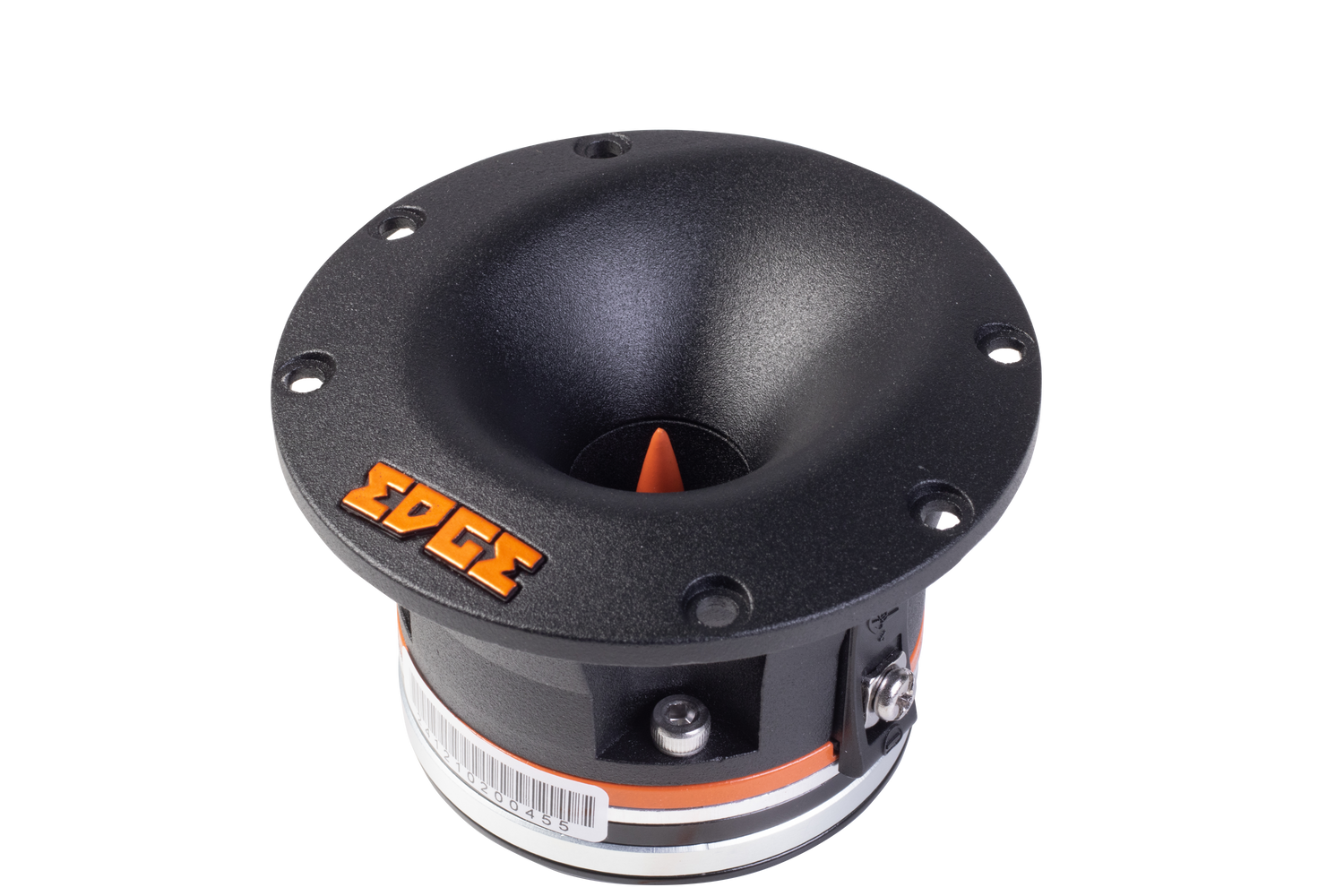

ADVANCED TECHNOLOGY - Featuring an asymmetric tweeter horn that allows the tweeter to have extreme levels of efficiency and allow the tweeters sound to be manipulated by adjusting the positioning of the horn.

HIGH EFFICIENCY - With a sensitivity of 105dB this pro audio tweeter is capable of producing extremely loud concert level sound due to its high efficiency.

PRO AUDIO USE - The EDXPRO35TN features a wide frequency response that allows more of the directional frequencies to be played by the tweeters throwing the sound out further. The tweeter also features an 8Ohm Impedance which is more suitable for larger audio builds when connecting multiple tweeters in parallel. Meaning your amplifier is more likely to see a final impedance it is stable at.

PREMIUM DESIGN - The EDXPRO35TN brings unmatched performance. Featuring many
aspects of custom tooling and design elements our engineers have created the ultimate tweeter.

Features

• HIGH SENSITIVITY - Asymmetric flared horn delivers outstanding sensitivity of up to 105dB
• Titanium tweeter diaphragm delivers outstanding high frequency performance.

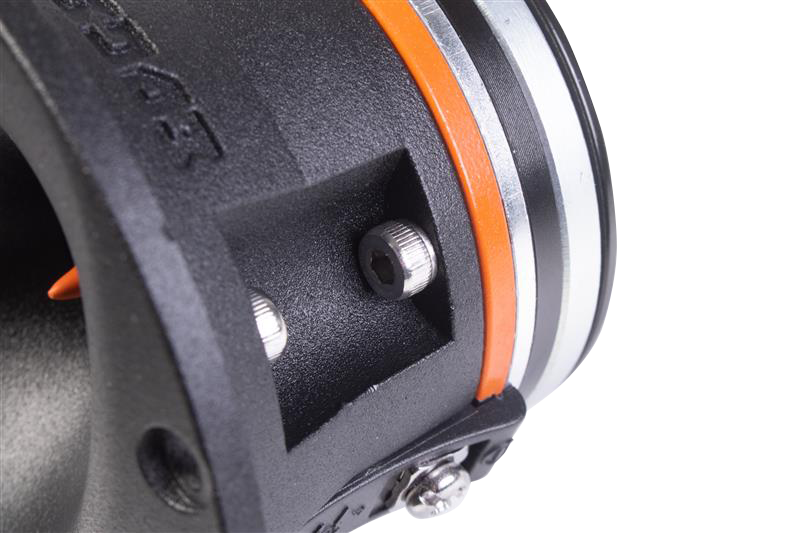

• Built in screw terminal for easy and neat and highly secure connections to the speaker terminals.
• These tweeters are designed to be used in PRO AUDIO applications with a respectable power handling, extreme sensitivity and outstanding clarity.

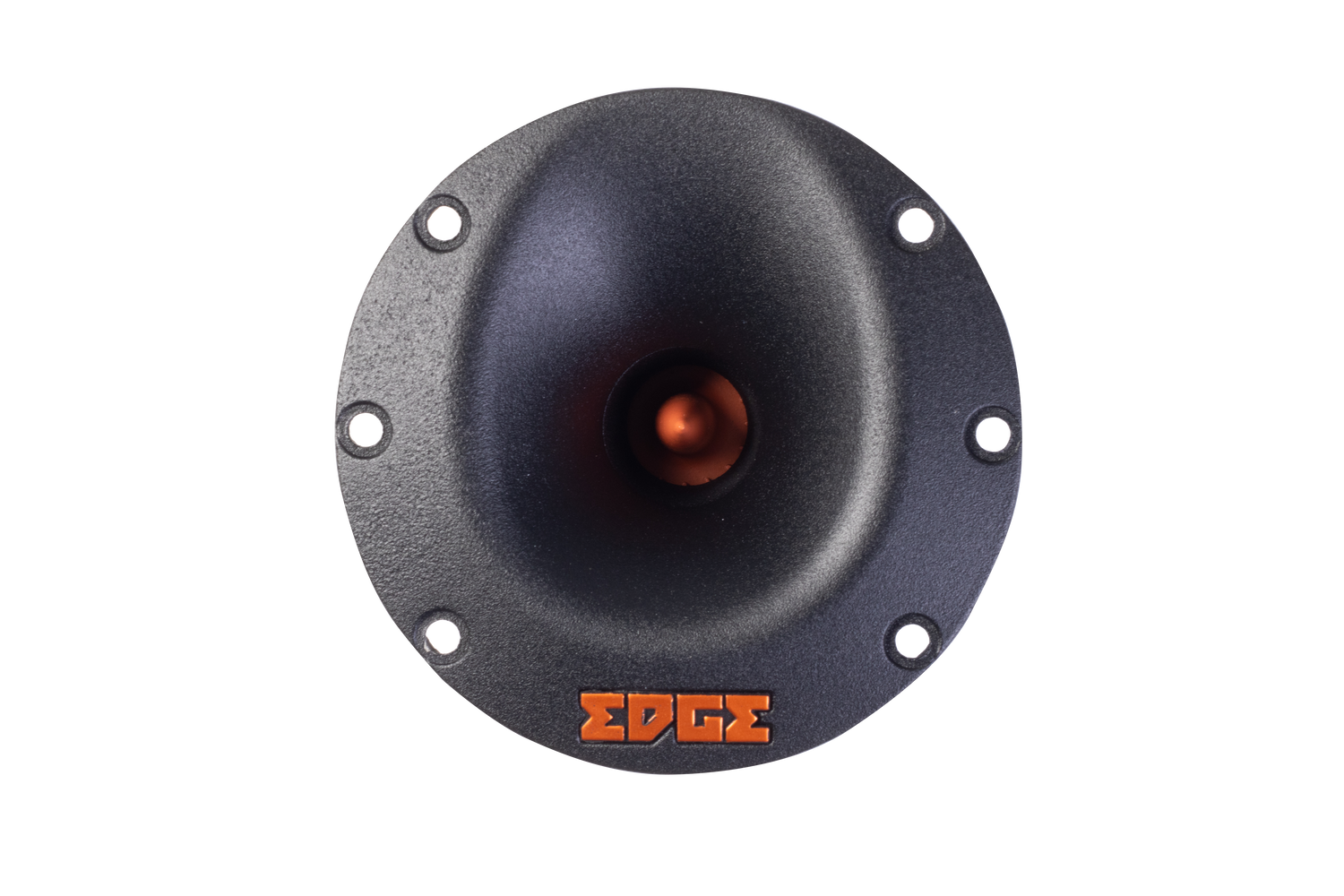

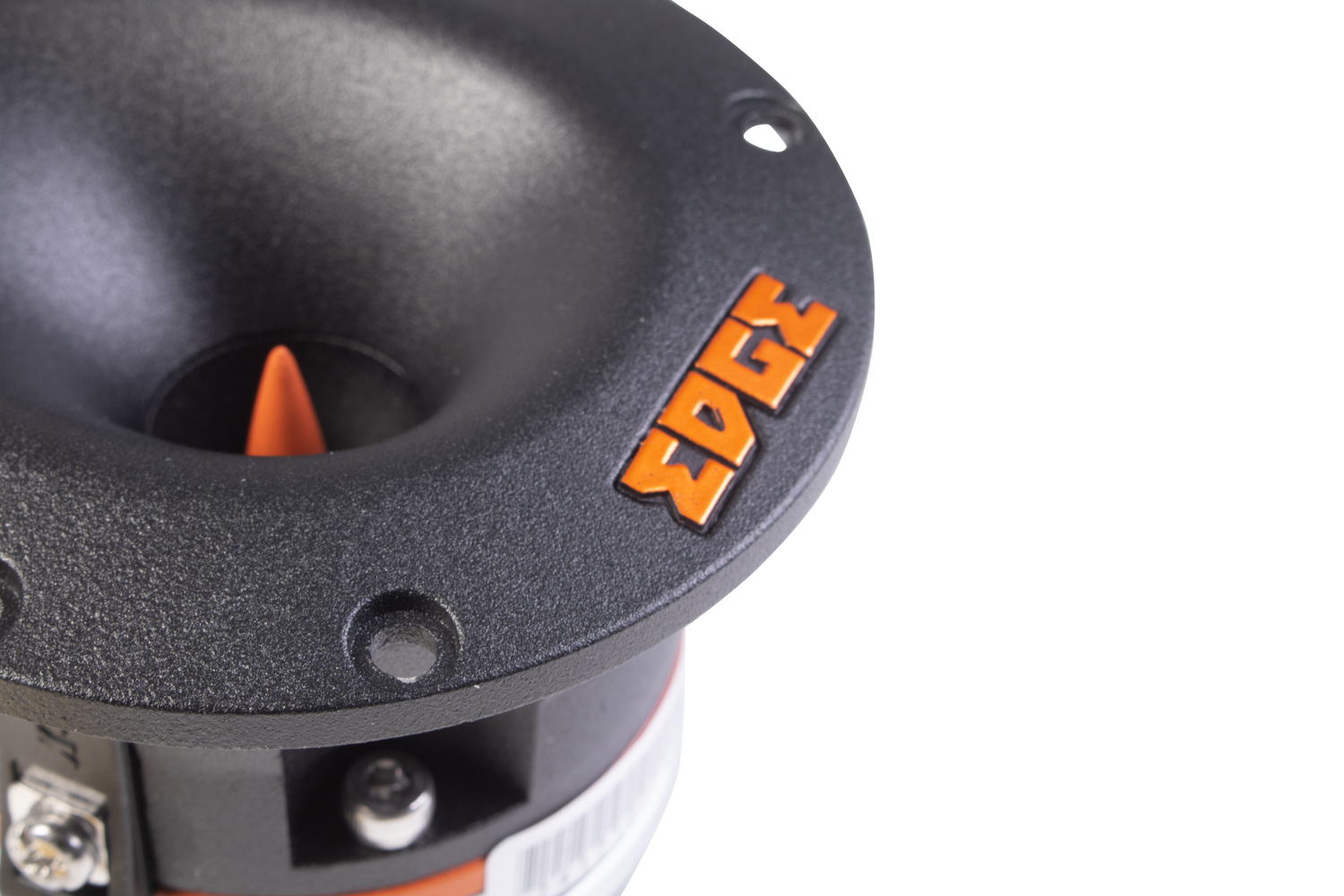

• Custom tooled alloy flange with edge logo detailed on.

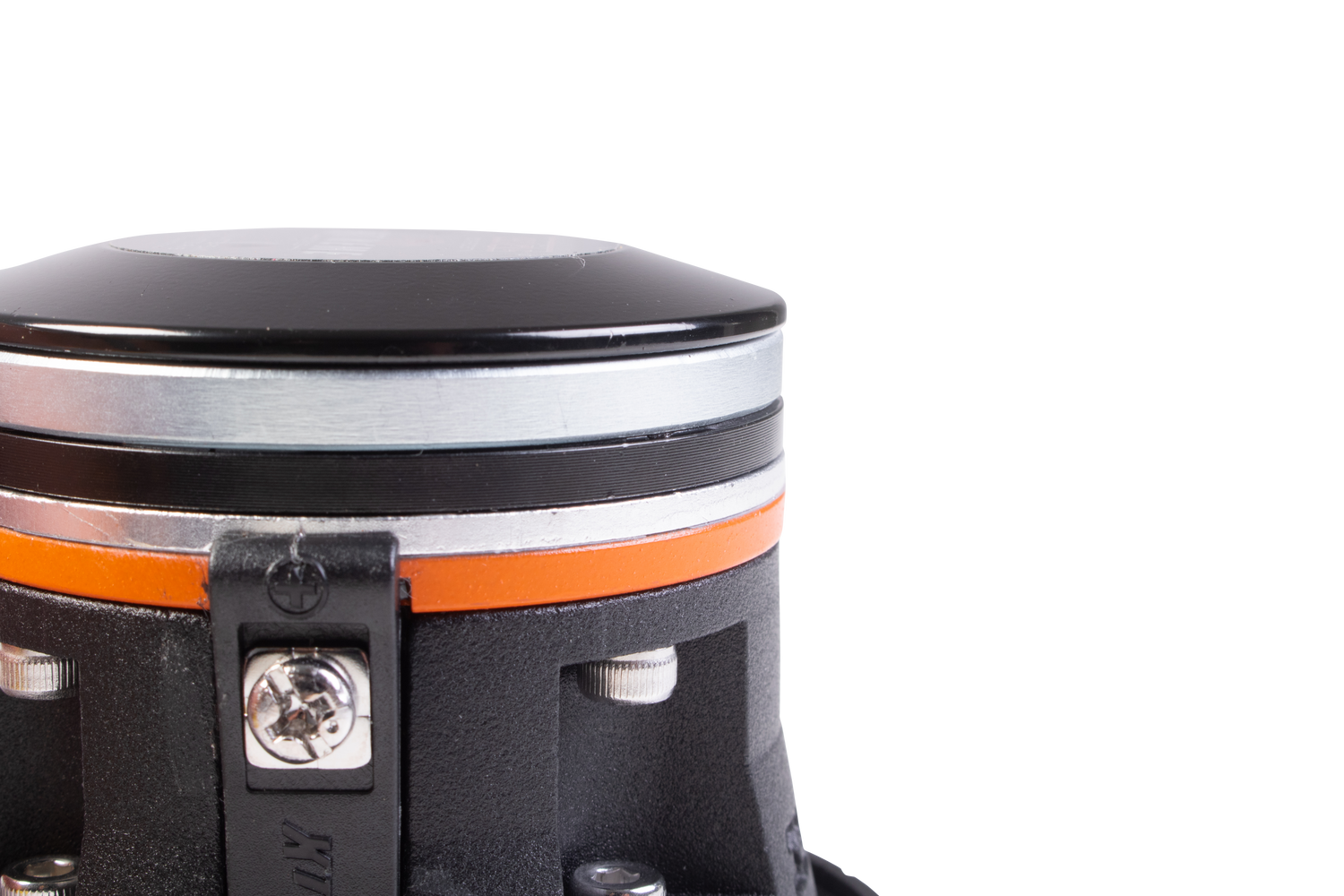

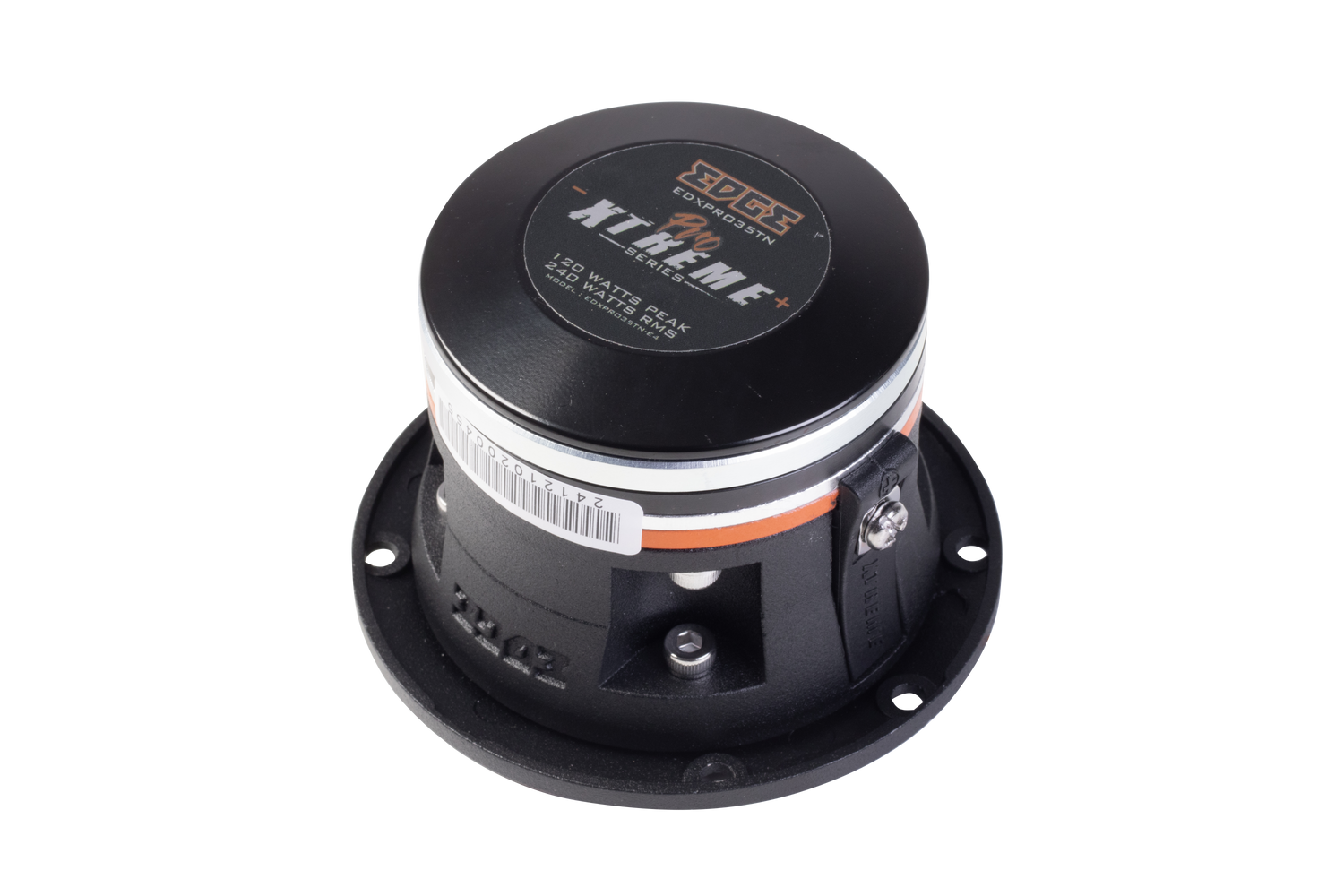

• Powerful NEO (Neodynium) magnet creates a greater magnetic force than that of traditional ferrite magnets, meaning more motor force and volume.




Specification

• Type: Compression driver
• Configuration: 1 way
• Speaker Size: 3.2” (165mm)
• RMS Power: 120 watts
• Peak Power: 240 watts
• Frequency Response: kHz - 20kHz
• Sensitivity: 105dB
• Impedance: 8 Ohms
• Recommended Amplifier: EDBX100.4-E1


Installation

• Mounting Depth: 2.2" (57mm)
• Mounting Diameter: 2.8" (71mm)
