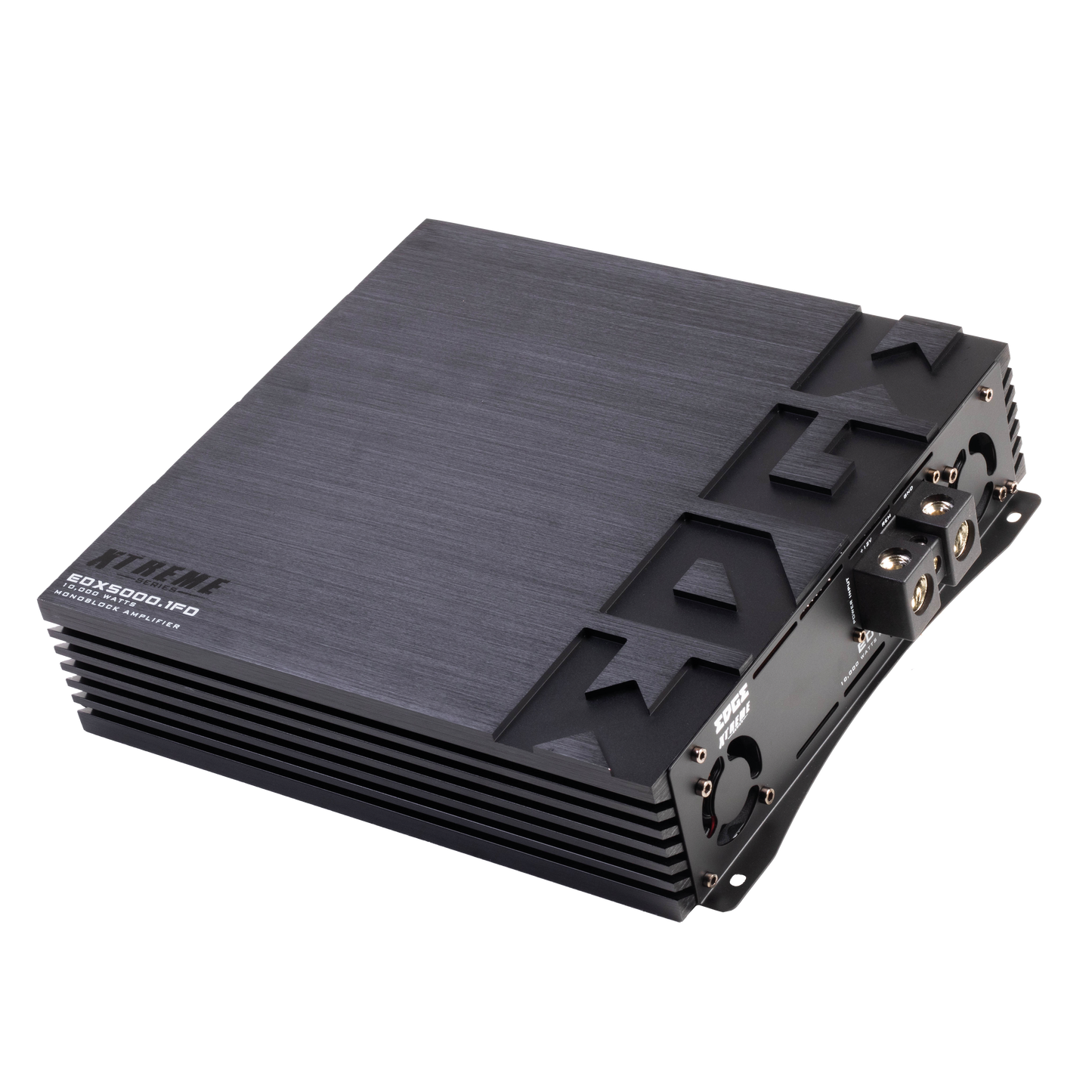

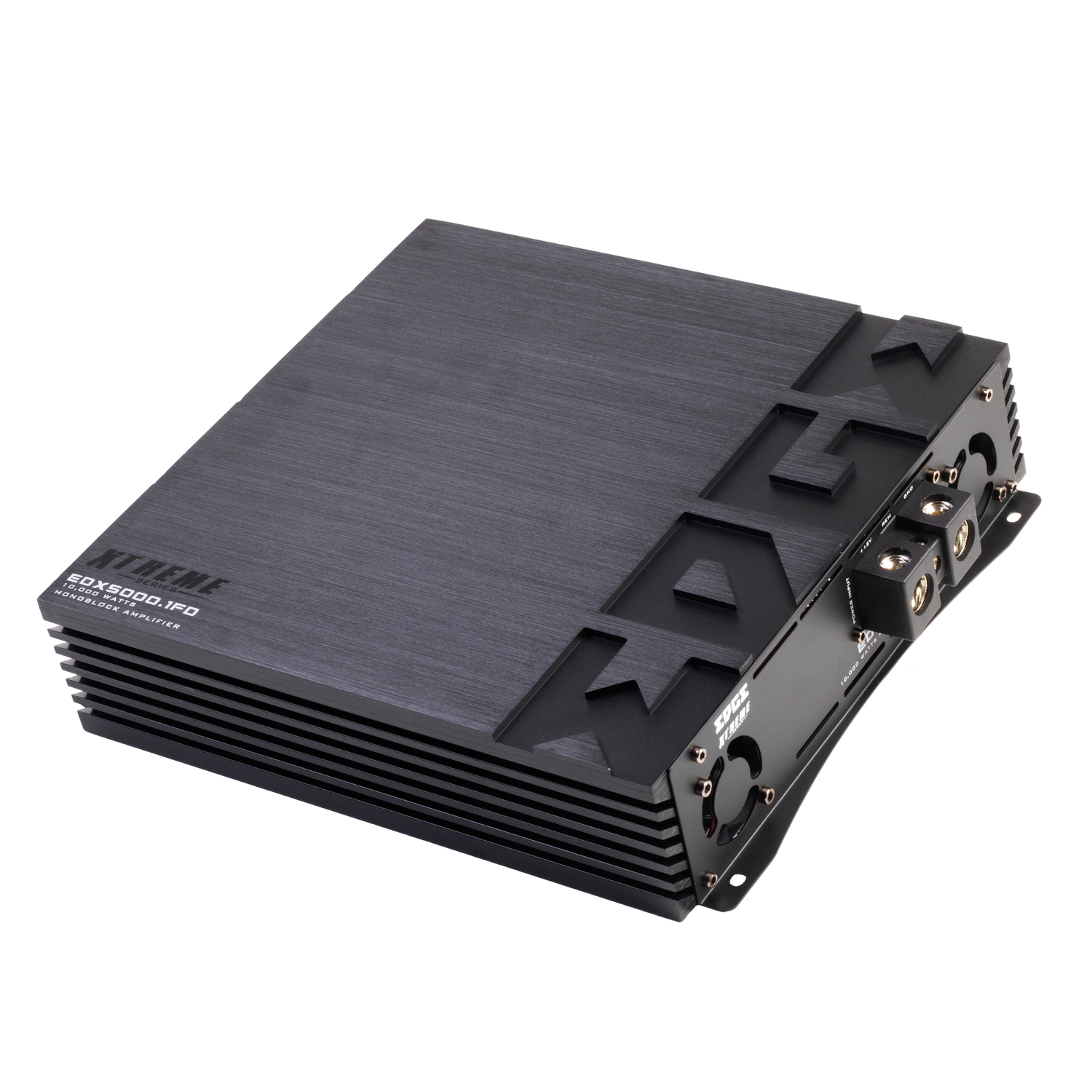

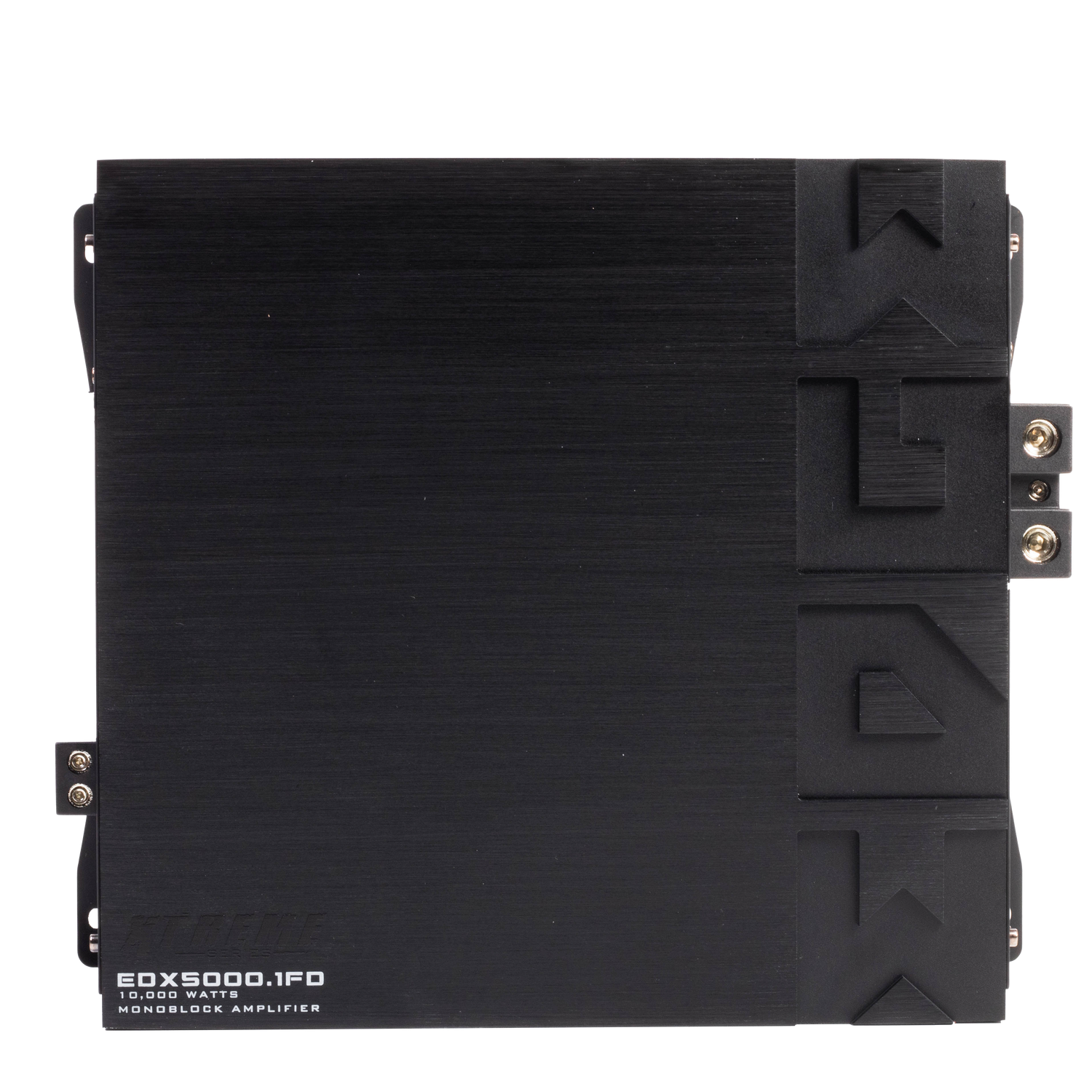

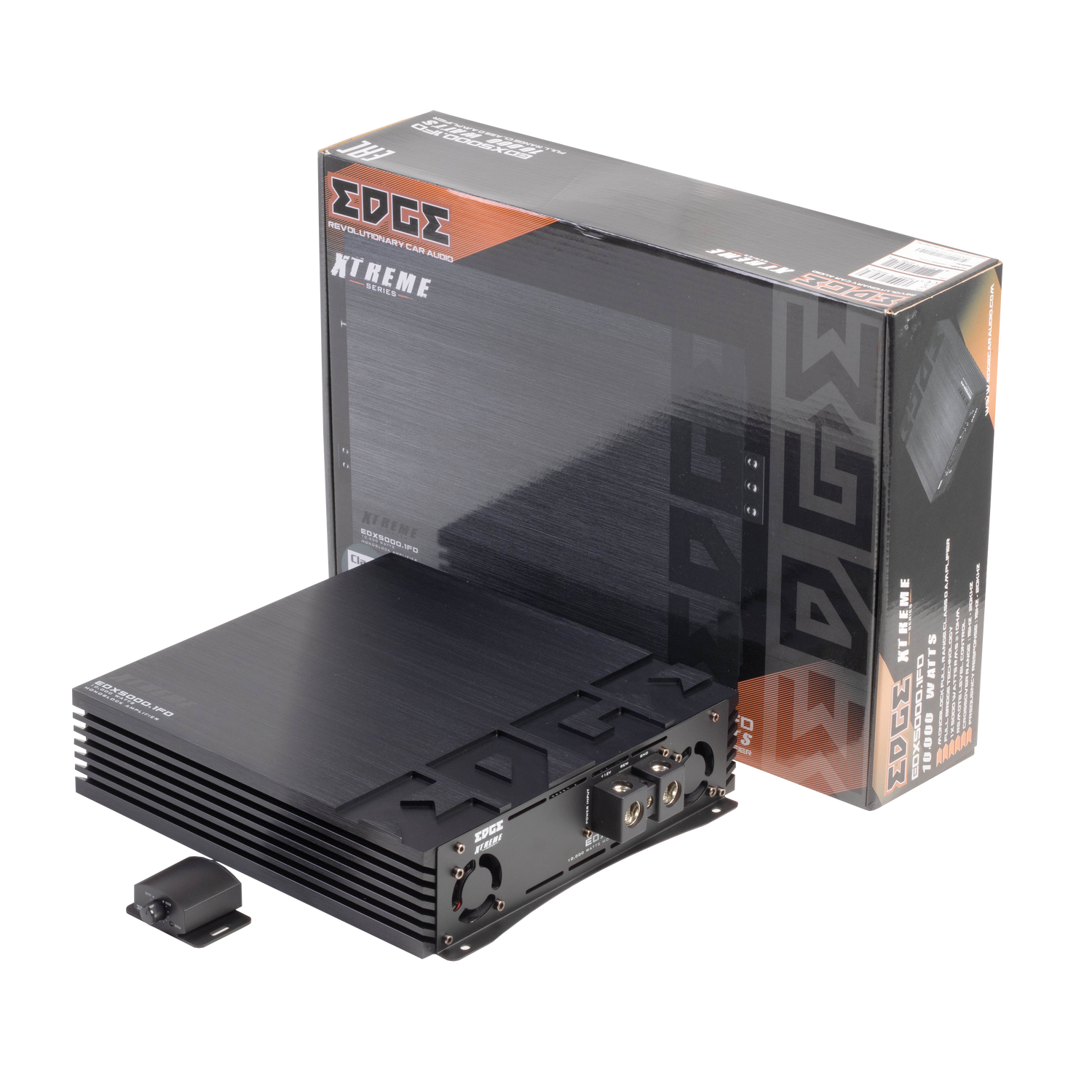

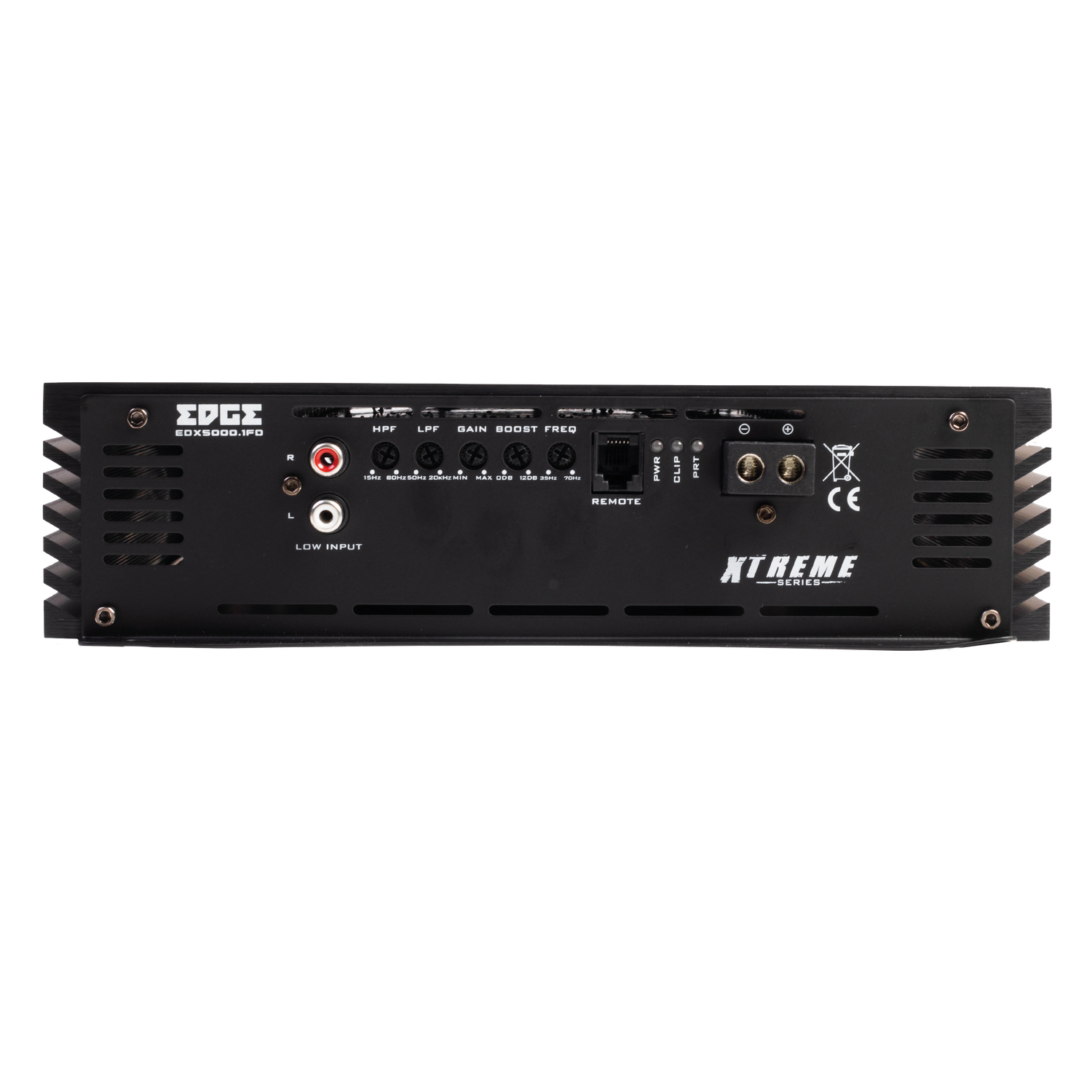

EDX5000.1-E4 | EDGE XTREME Series 11,000 watts competition amplifier

Features

• Ultra class D monoblock and full bridge amplifier
• High efficiency up to 92%

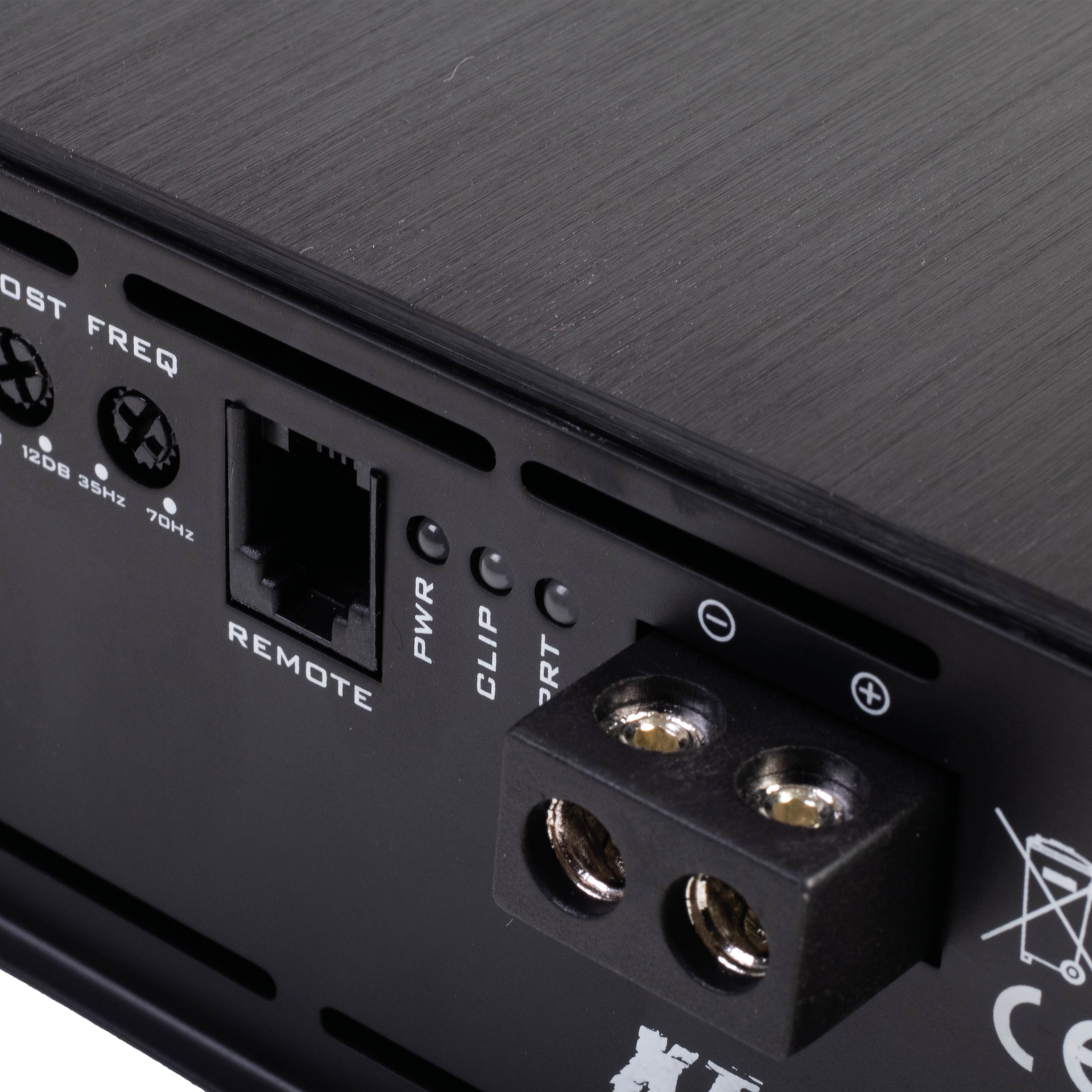

• Dual 0awg power input terminals allow huge gauge cable to be connected (Ultra class D only)
• Mosfet output stage delivers high power and reliability
• 1 Ohm low impedance drive
• Parametric bass boost allows up to +12db of boost at any frequency between 30Hz and 90Hz (Ultra class D only)
• Amplifier strapping allows 2 identical amplifiers to be connected to deliver the full power through a single channel (Ultra class D only)
• Full EMI and CE approval

Specification

• Model: EDX5000.1-E4
• Configuration: Monoblock
• Dimensions (H x W x D): 59mm (2.3") x 250mm (9.8") x 650mm (25.6")
• RMS @ 4 Ohms Mono: 1 x 1580 watts
• RMS @ 2 Ohms Mono: 1 x 3000 watts
• RMS @ 1 Ohm Mono: 1 x 3300 watts
• Maximum Power: 11,000 watts
• Frequency Response: 10Hz - 350Hz
• Crossover Type: LP/ Subsonic
• Crossover Range: 10Hz - 250Hz
• Recommended Fuse: 350A External Fuse
• Topology: Ultra Class D
