EDX12D2-E3 | EDGE Xtreme Series 12 inch 2000 watts Subwoofer

Introducing from EDGE the Xtreme series subwoofers, for those looking for deep, high power, street thumping bass our subwoofers are for you, multiple models and sizes available complete with a brand new range.

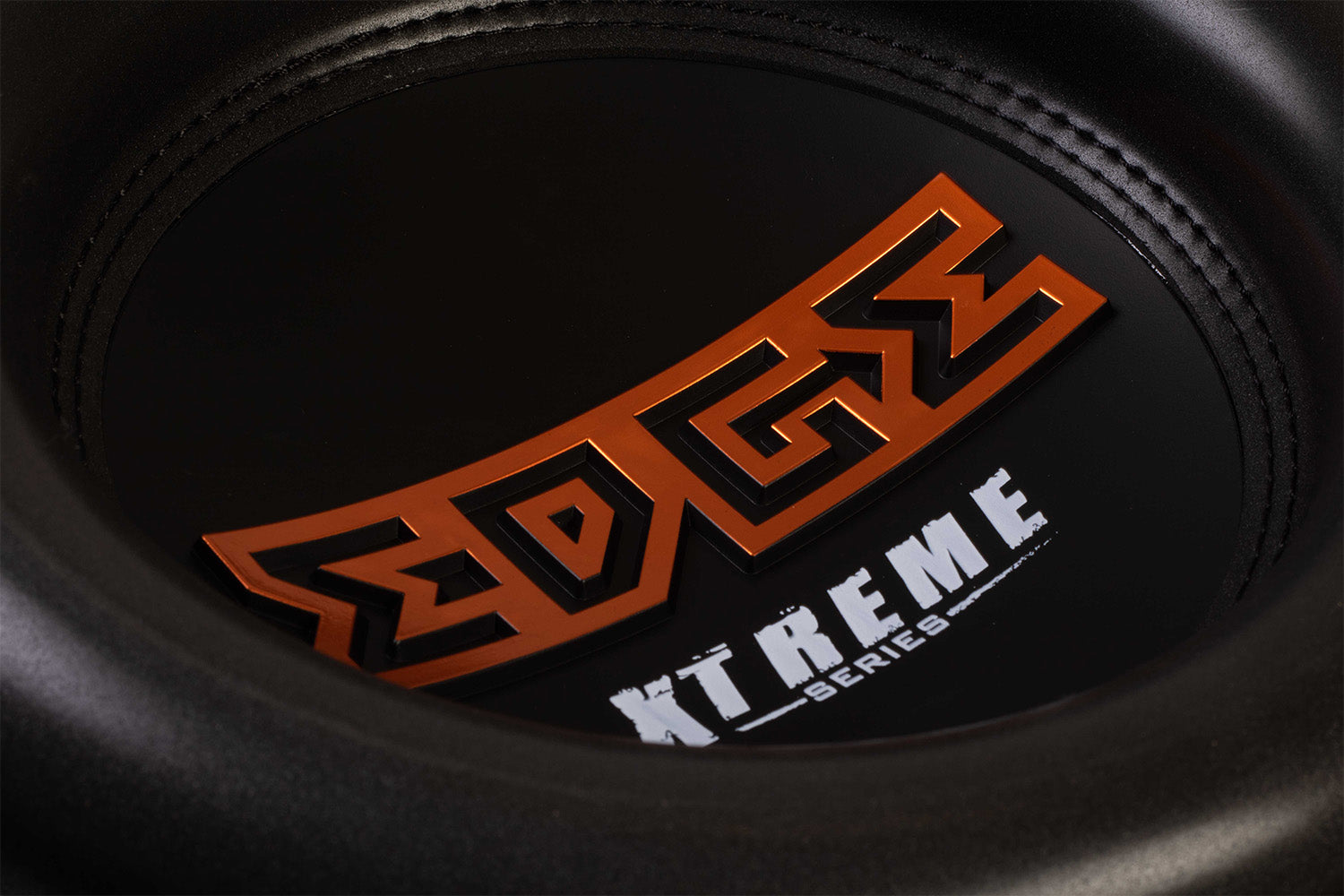

Our Xtreme series subwoofers were designed with a combination of street bass and competition bass in mind. All the subwoofers feature massive triple stacked motor structures across 3 baskets types all constructed from bast aluminium for strength and rigidity, paired with Polycotton spiders, stitched tinsel leads, non pressed paper cones and 3 inch Voice coils we have a variant of power and sizes available. The new for 2023 feature a brand new custom tooled basket for increased excursion on the low bass and an even wider foam surround to cope with this excursion! This is paired with our brand new custom tooled 2 piece dustcap giving us a unique subwoofer!

If Pushing the limits of excursion and SPL our Xtreme series subwoofers have been designed with you in mind!

Features

• Non pressed paper cone
• Wide roll dual foam surround

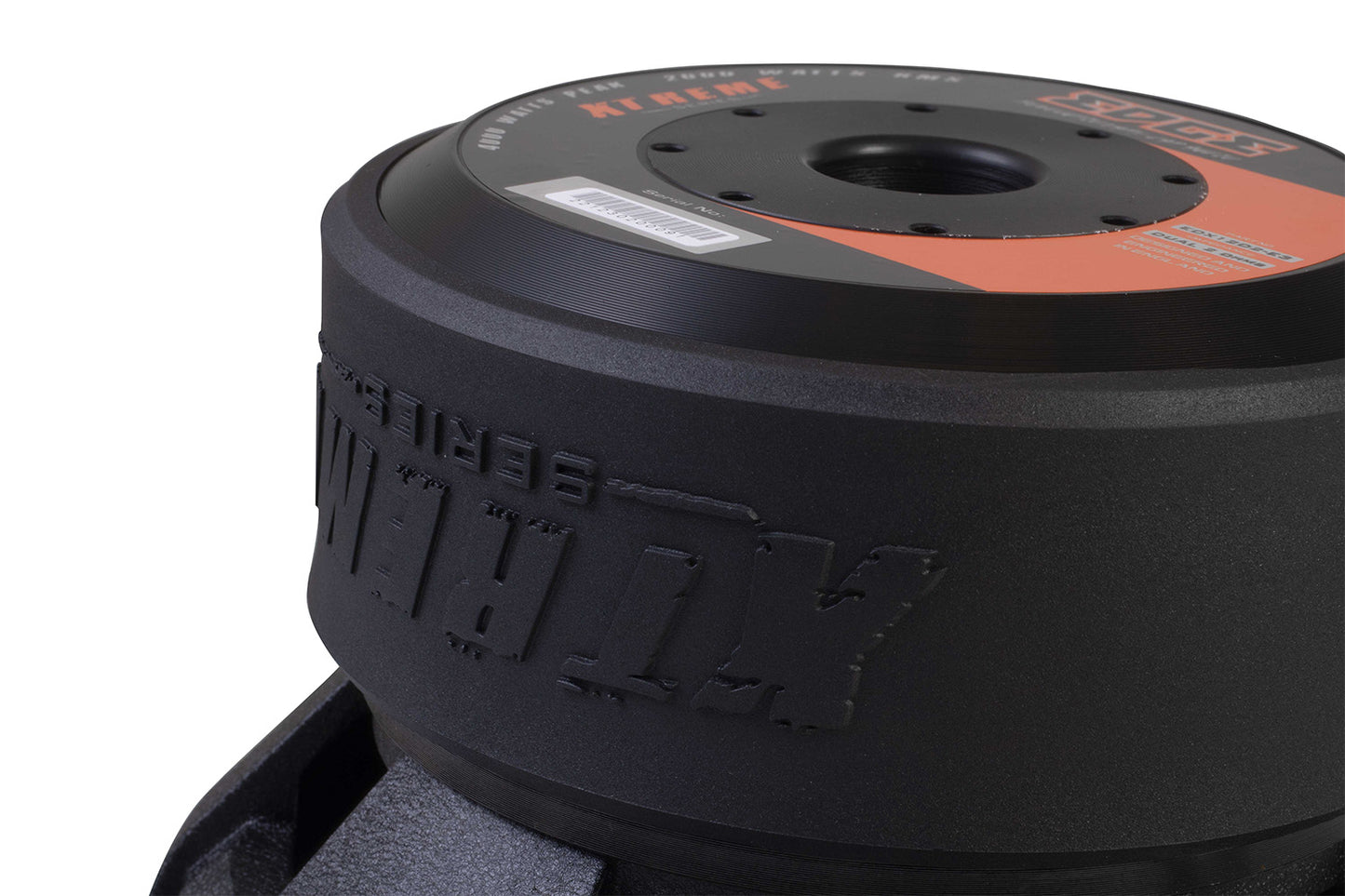

• High quality Y35 triple stacked Ferrite magnets
• 76mm USA built 4 layer flat wound voice coil

Specification

• Model: EDX12D2-E3
• Cone: Non pressed paper cone
• Surround: Big roll foam - dual stitched
• Voice Coil Former: 3" Black Aluminium
• Spider: 3pcs Black PC
• Gasket: Rubber
• Top Plate: 15mm Black anodized
• T-Yoke: 15mm Black anodized flat

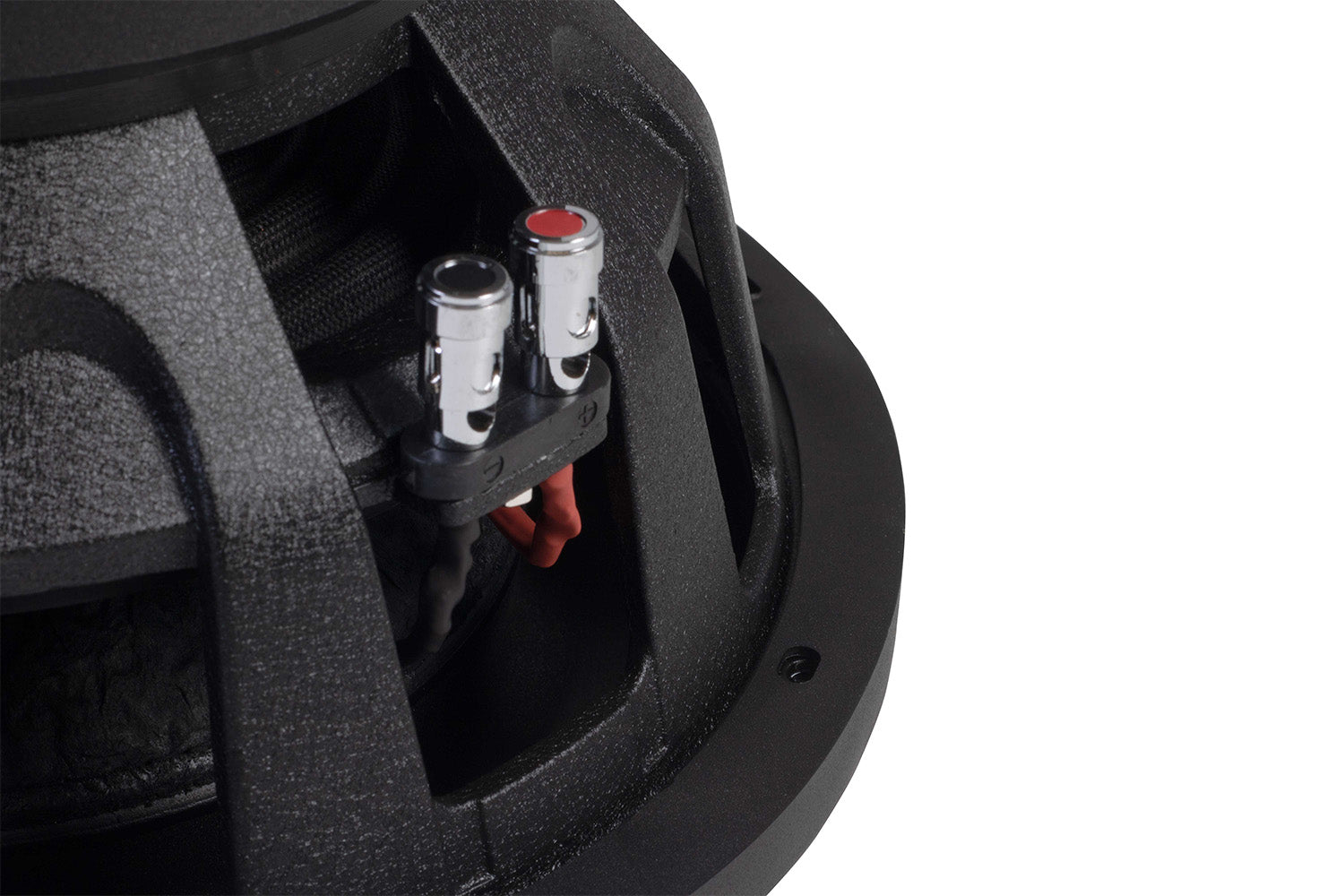

• Terminal / Wire: Spring loaded connectors
• Impedance: Dual 2 Ohms
• RMS Power: 2000 watts
• Vented Enclosure Volume: 1.5-2cuft


TS Parameters

• Equivalent Volume - Vas: 20.2L

• Free Air Resonance - Fs: 33Hz
• Mechanical Factor - Qms: 6.238
• Electrical Factor - Qes: 0.529
• Total Factor - Qts: 0.488
• Moving Mass - Mms: 338g
• Compliance - Cms:   67.19μ M/N
• BI Factor - BI: 21.97 T
• Voice Coil Inductance - Le:   158 mH
• Diaphragm Area - Sd:   459CM²
• DC Resistance - Re:   2*1.8 Ω
• SPL: 84dB

Installation

• Magnet: 190mm x 95mm x 20mm 3pcs
• Overall Diameter: 286mm
• Mounting Depth: 196mm
