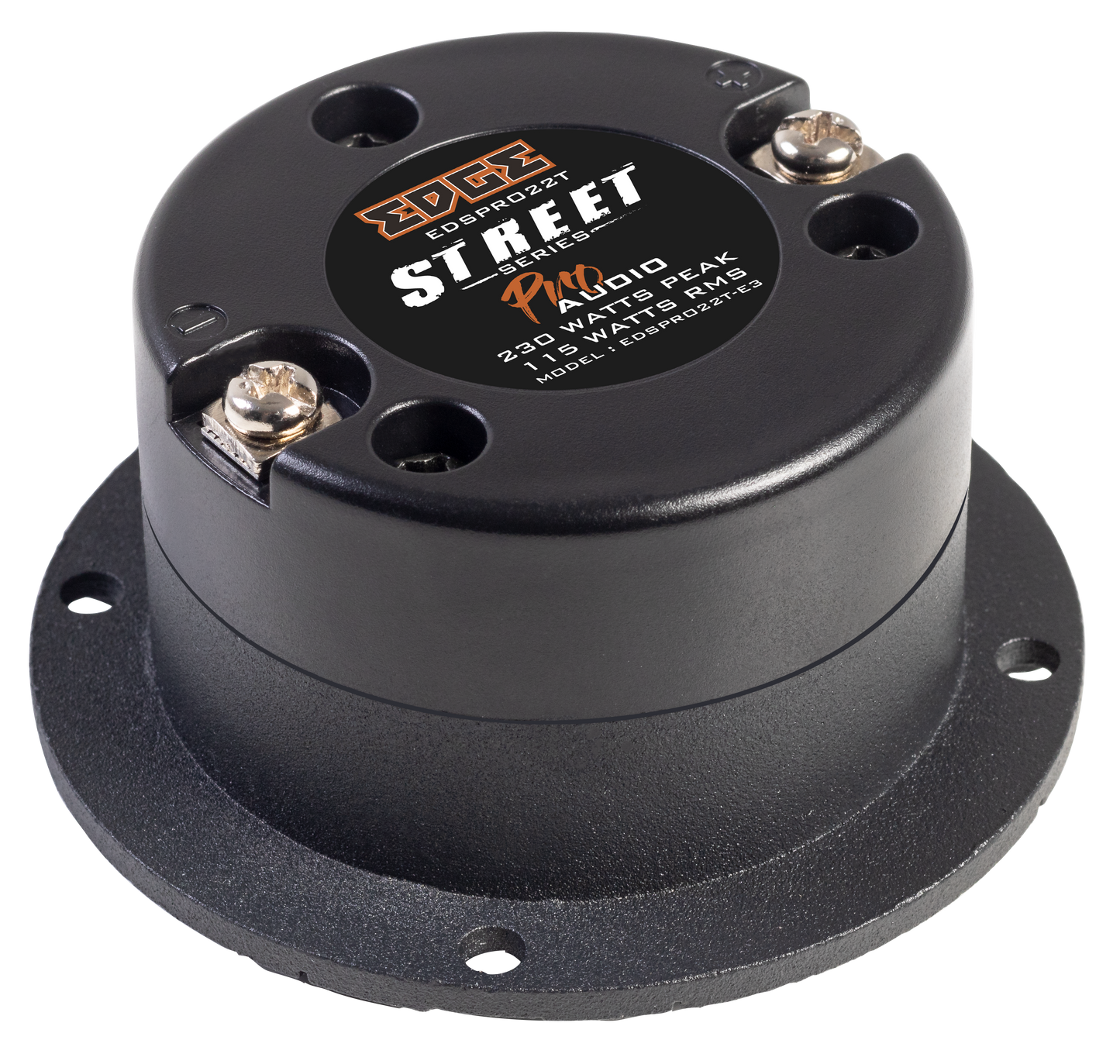

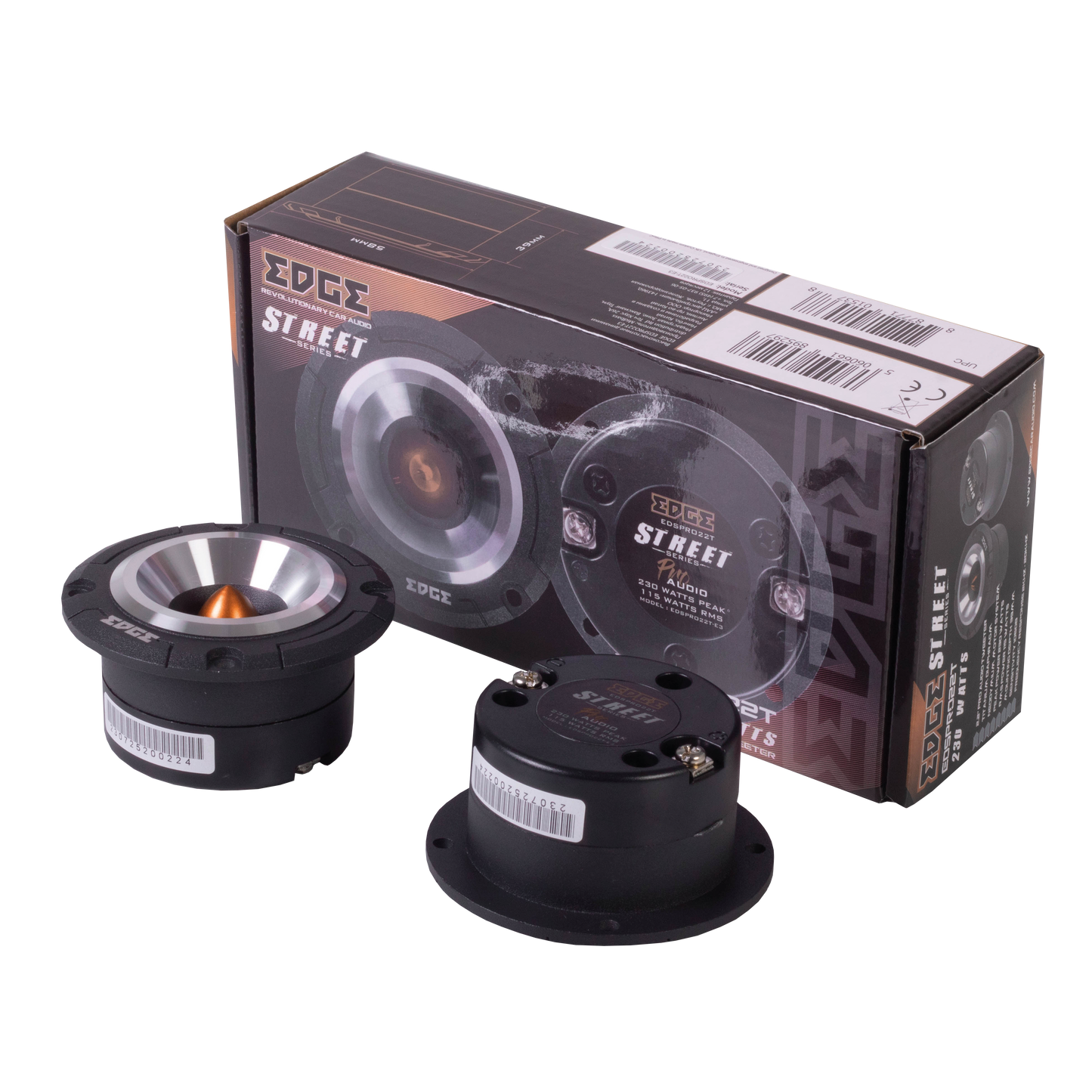

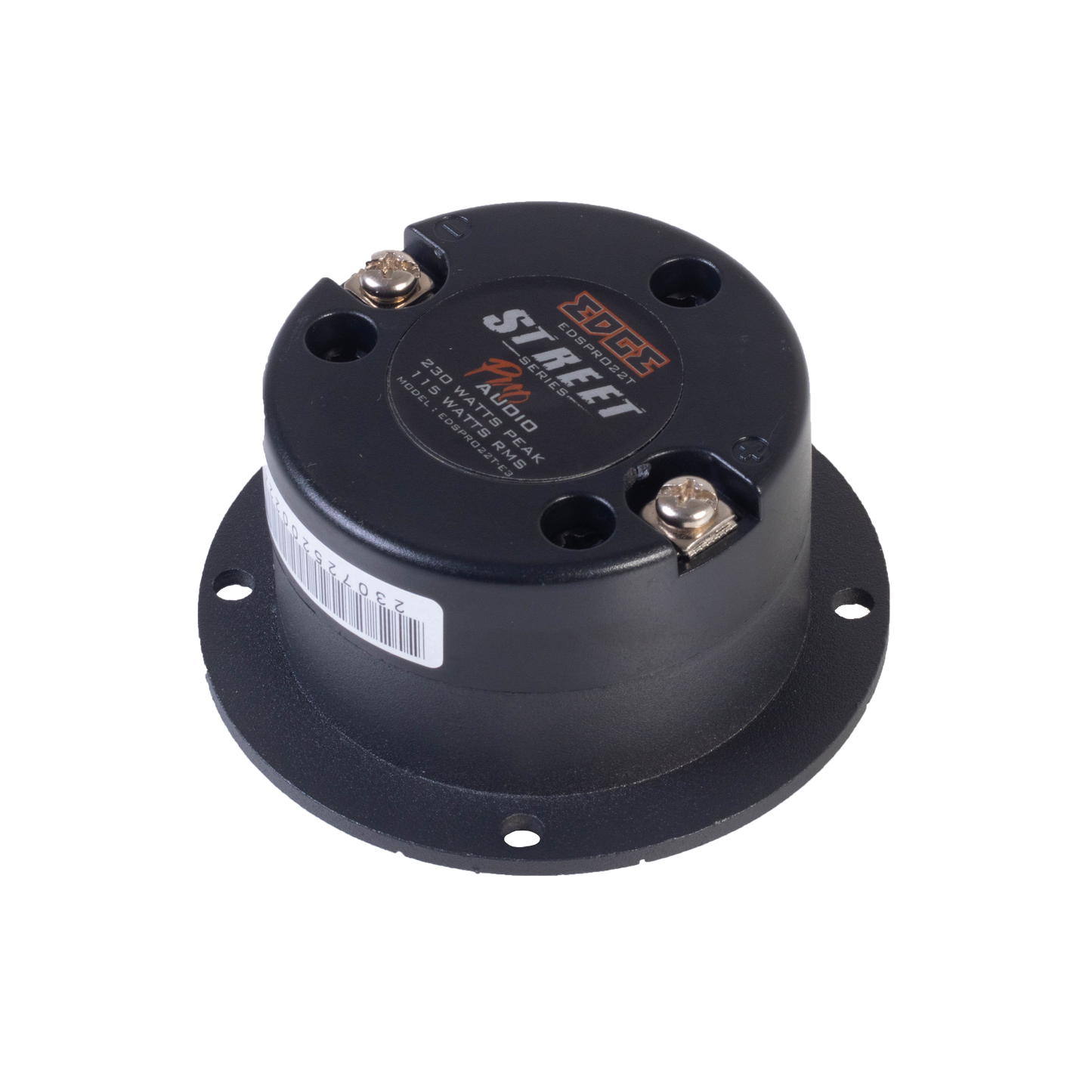

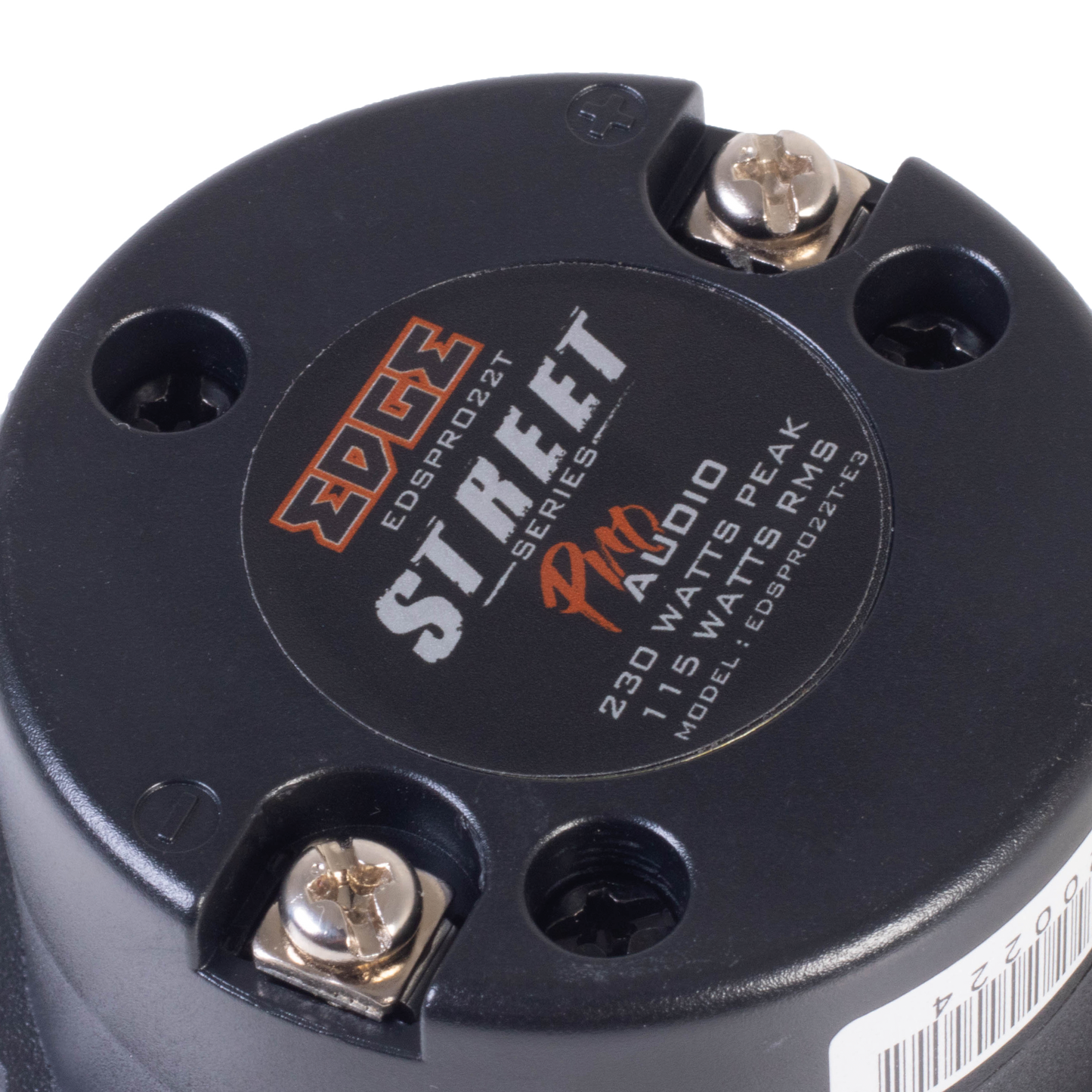

EDSPRO22T-E3 | EDGE Street Series 2.2 inch 115 watts Pro Audio Tweeters - Pair

STREET SERISED PRO AUDIO TWEETERS

Street range of products from EDGE car audio is designed to be heard before its seen!

The latest addition to the range is our new high frequency bullet tweeter, this is deigned to be paired with our latest EDS Pro midranges to give a dramatic full range response and incredible levels of volume.

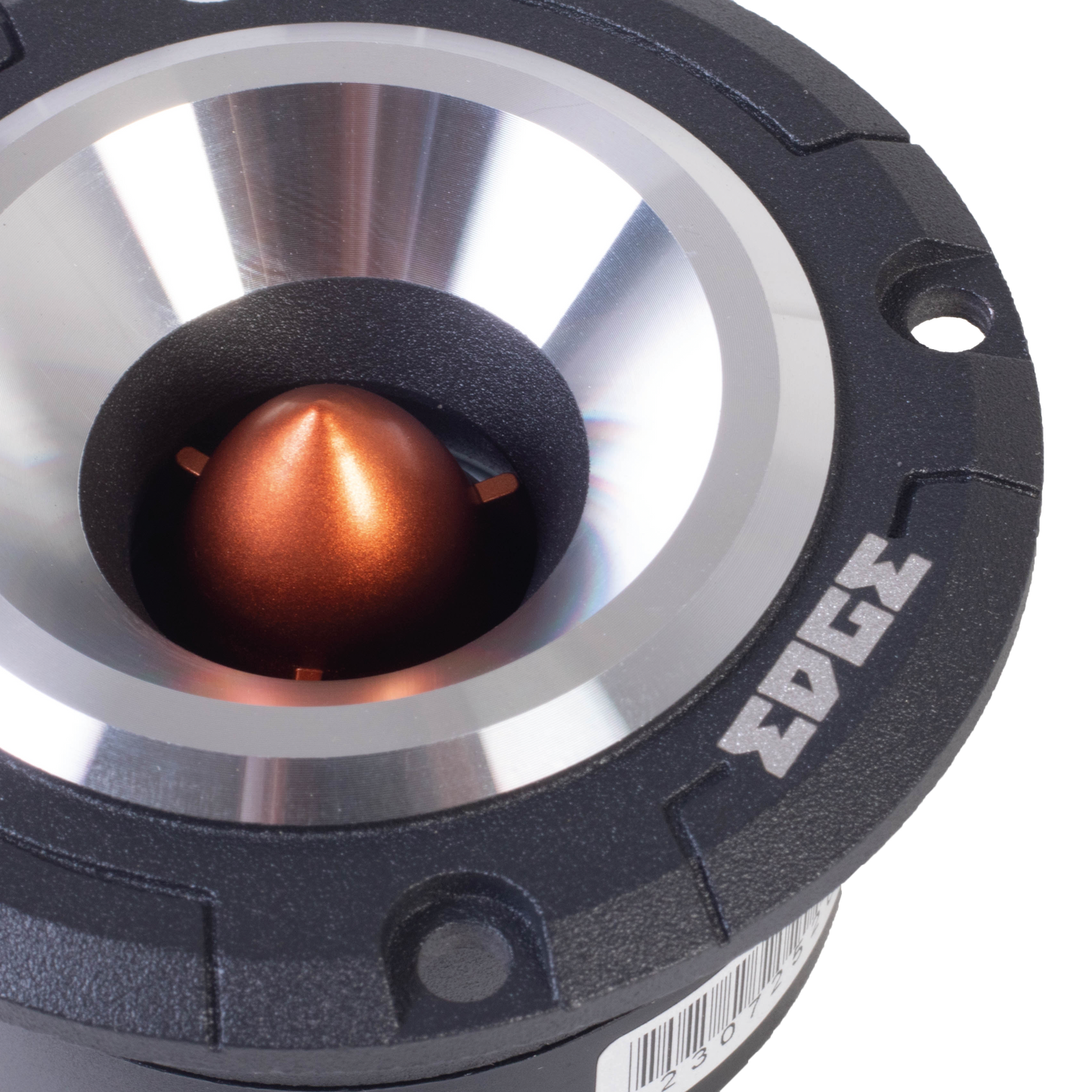

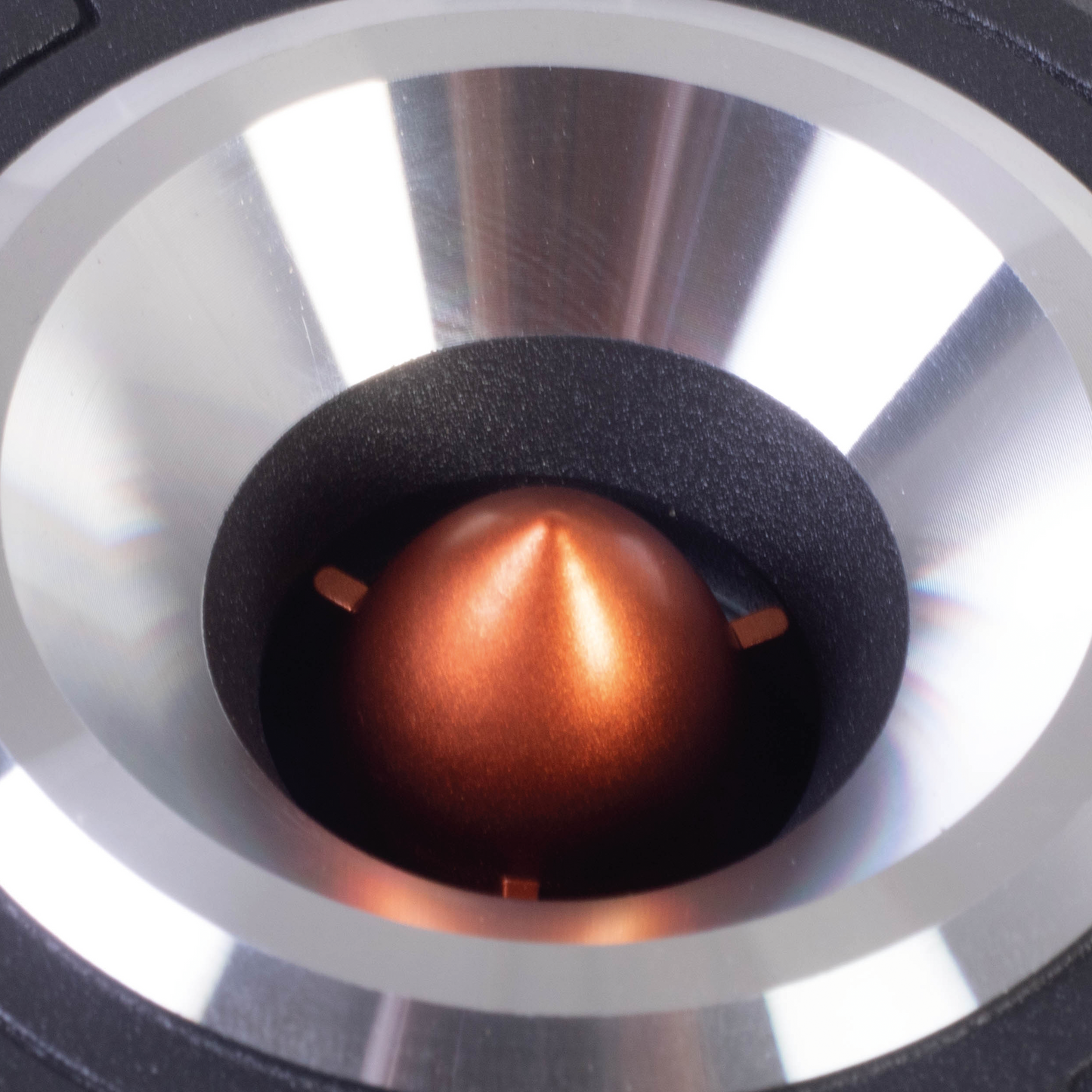

With the EDSPRO22T We have used a compact 3” design which is each to install, it features a titanium diaphragm for sharp tight response and high-power handling alongside a CNC aluminium horn front for smooth frequency dispersion and a central bullet phase plug for enhanced midrange response. The results is a smooth linear Pro Tweeter delivering a high level sound and volume levels that of a music event!

Featuring our iconic orange this sleek design combined premium CNC aluminium with a subtle black and hint of orange which will low beautifully with your EDGE Car audio install.

Features

• HIGH SENSITIVITY

• Smooth Power Bullet Phase Plug
• Premium Titanium Diaphragm
• CNC Horn Design

• 106dB Sensitivity
• OFC High Power Voice Coil




Specification

• Type: Pro Audio Tweeter
• Configuration: 1 way
• Speaker Size: 2.2" (58mm)
• RMS Power: 115 watts
• Peak Power: 230 watts
• Frequency Response: 2kHz - 20kHz
• Sensitivity: 106dB
• Impedance: 4 Ohms
• Recommended Amplifier: EDBX100.4-E1

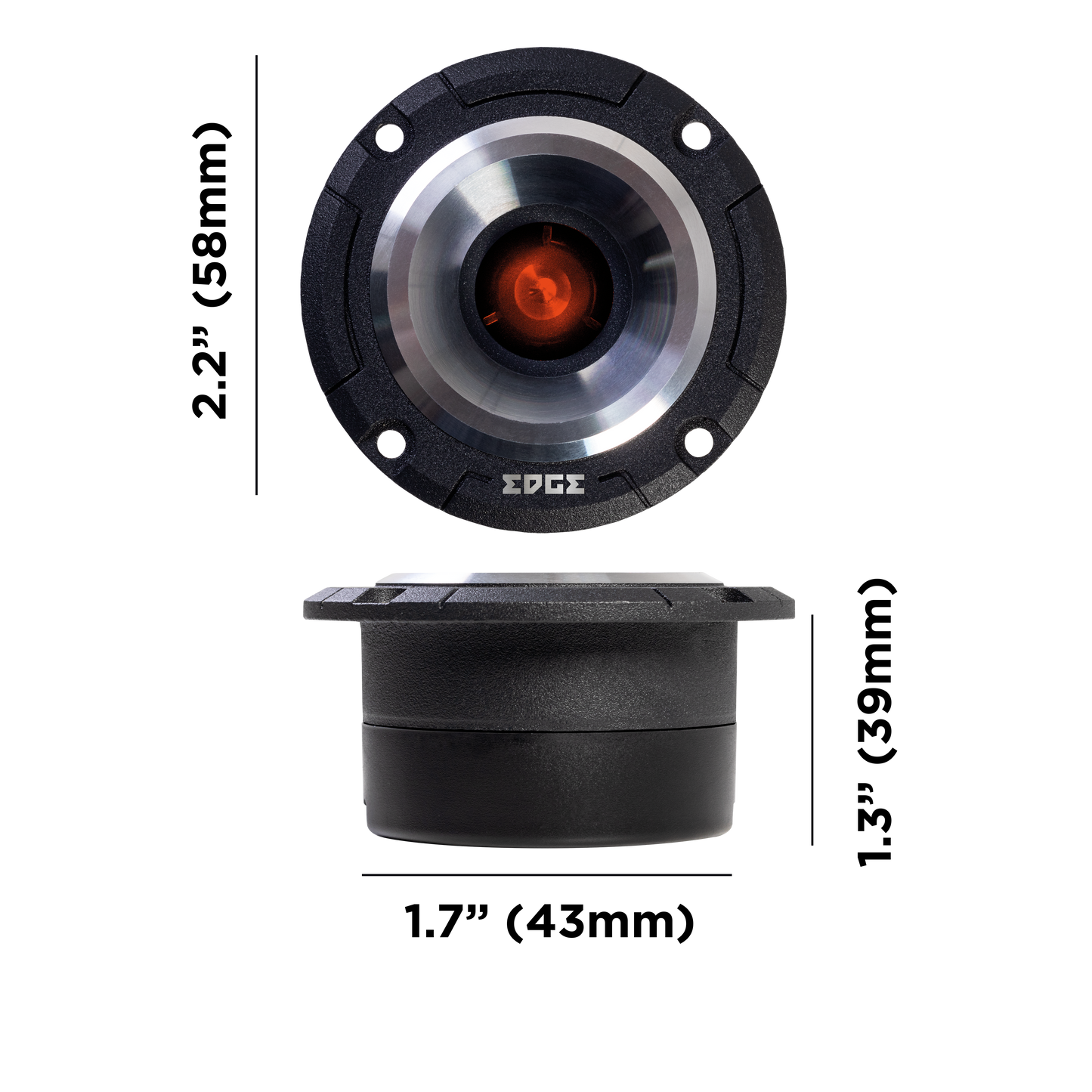

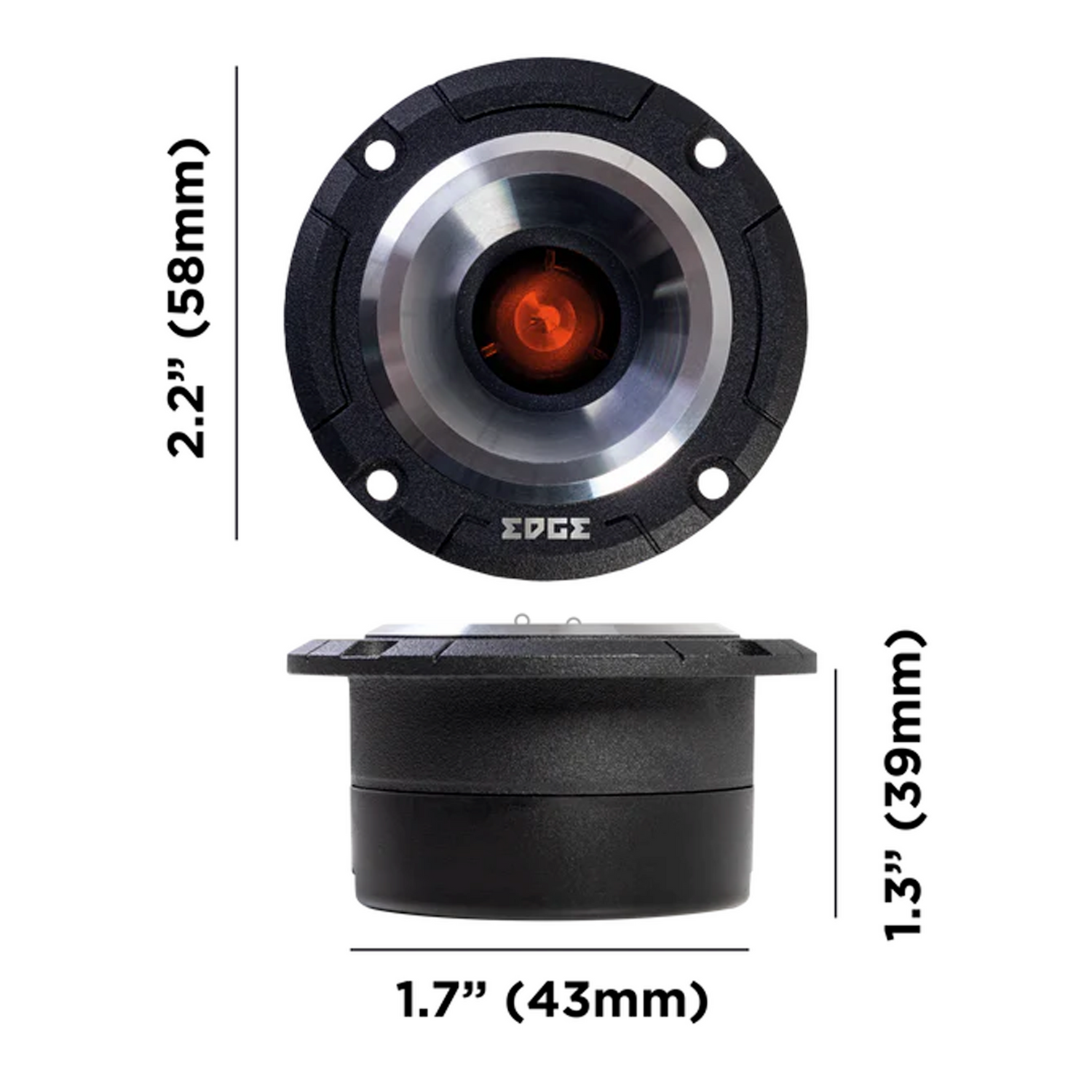

Installation

• Mounting Depth: 1.3" (39mm)
• Mounting Diameter: 1.7" (43mm)
