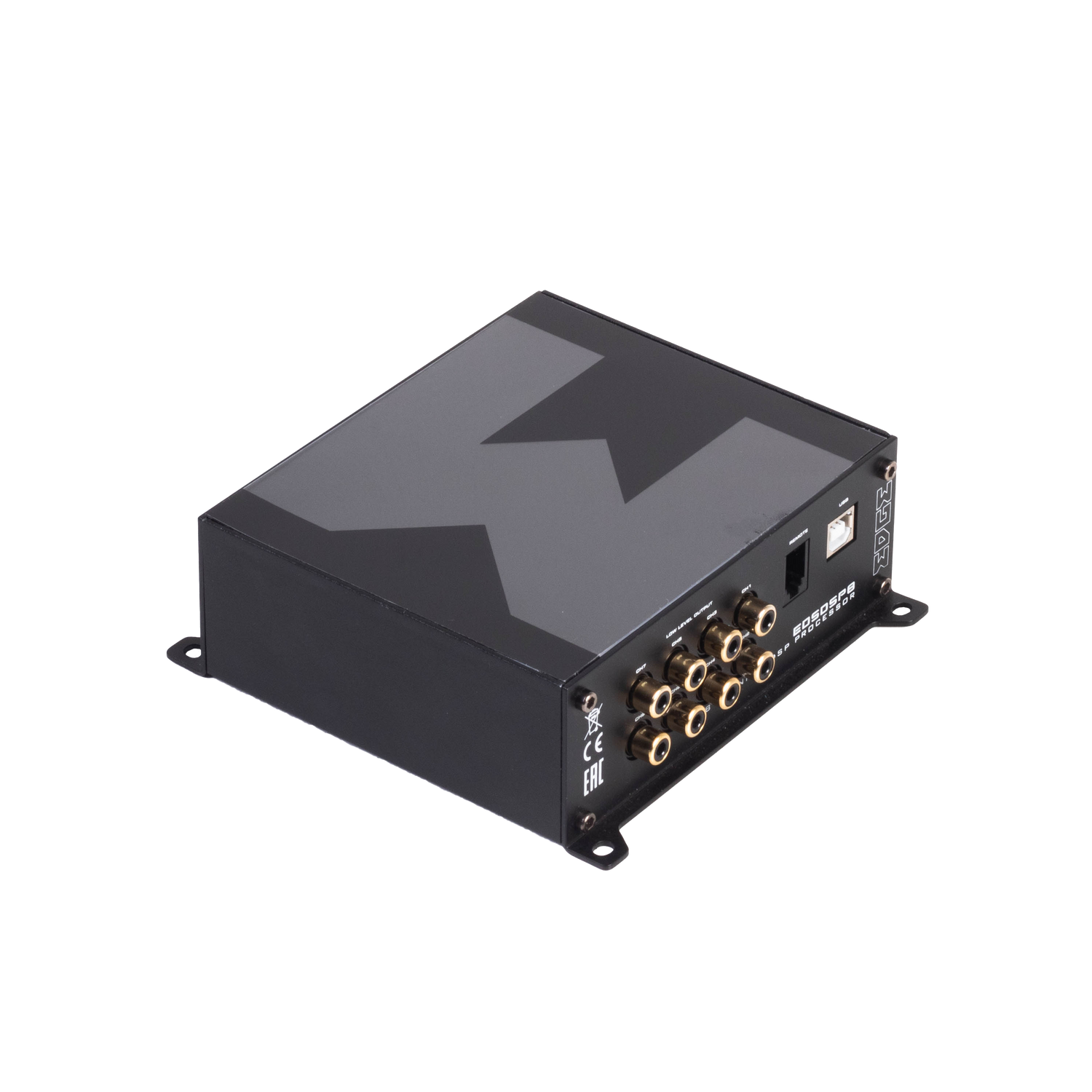

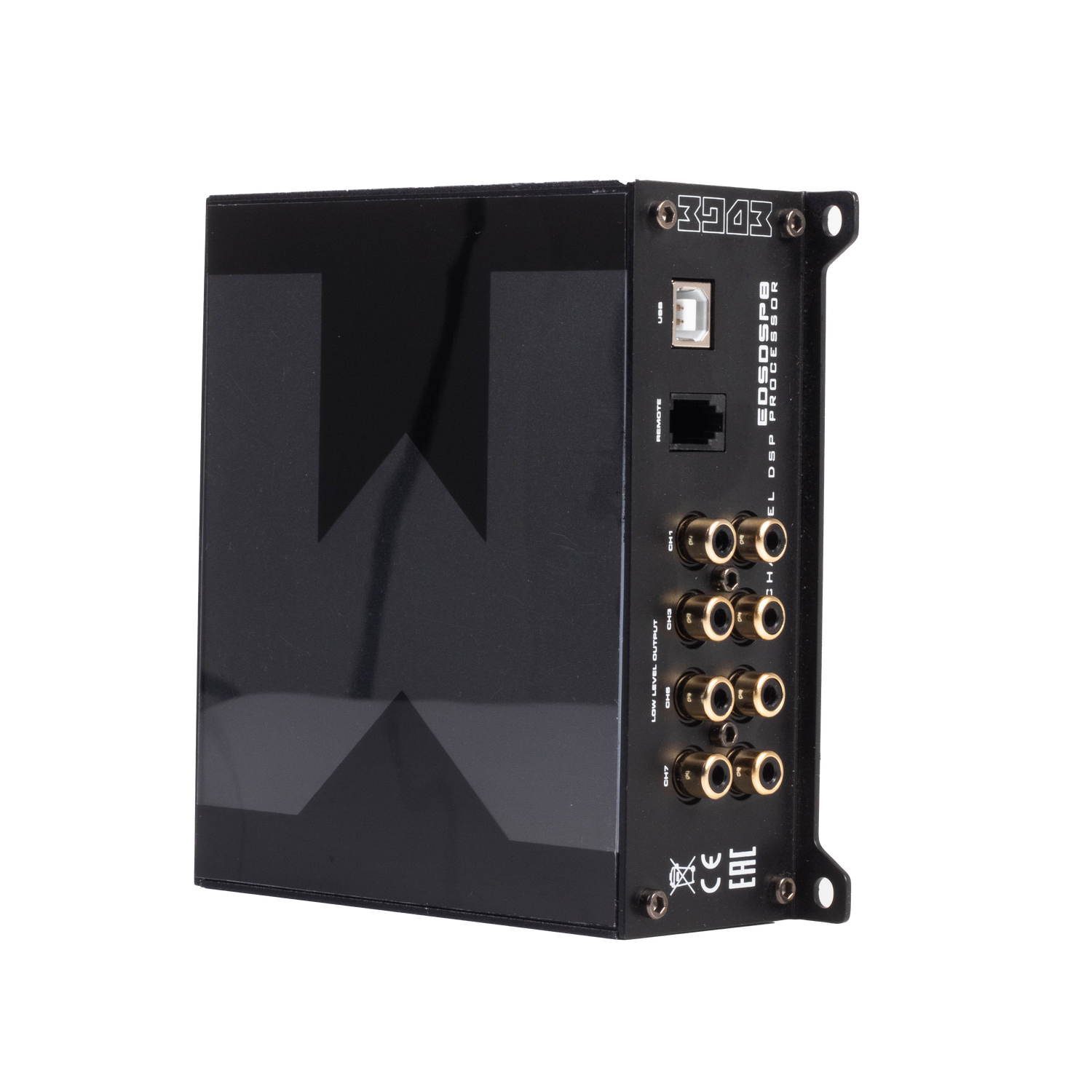

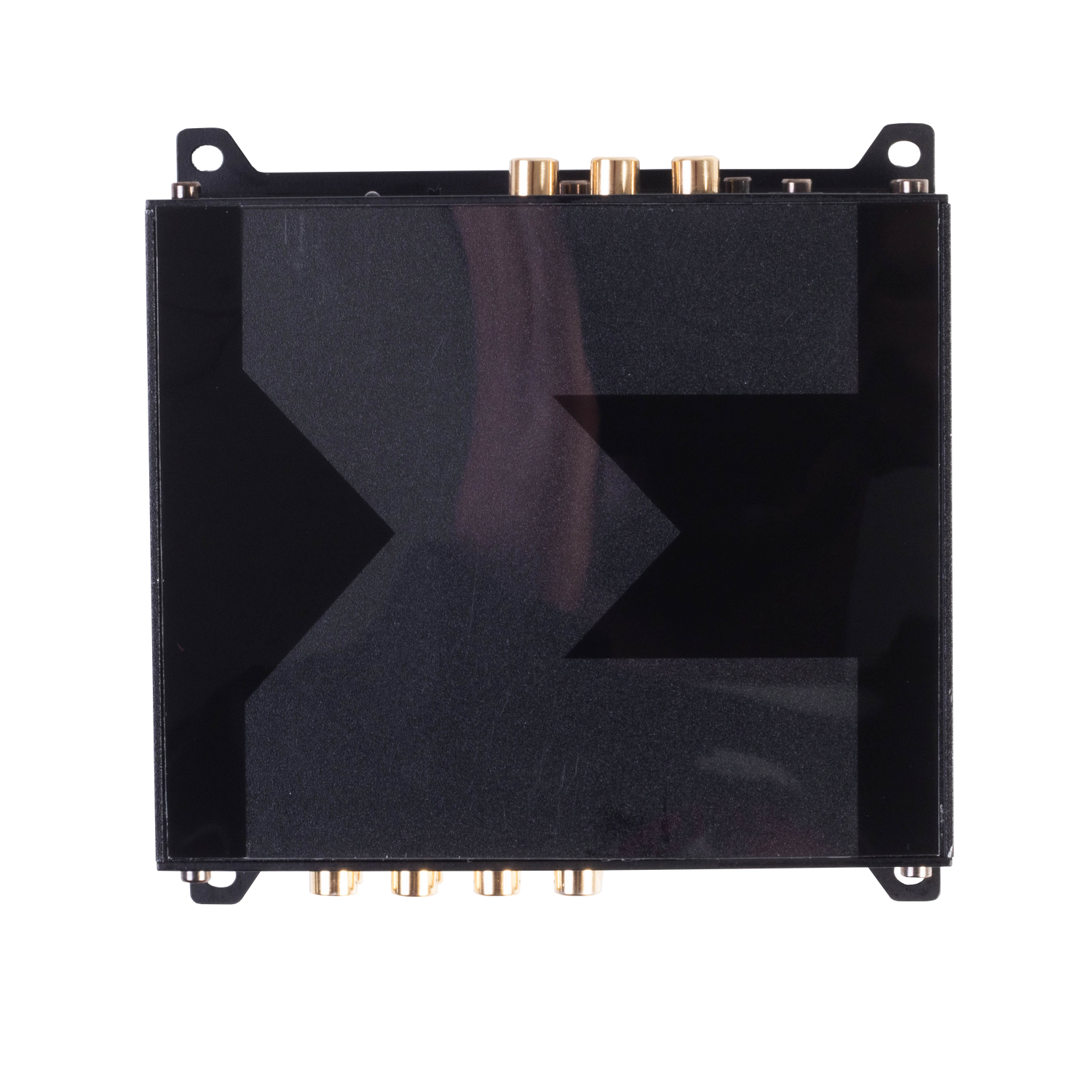

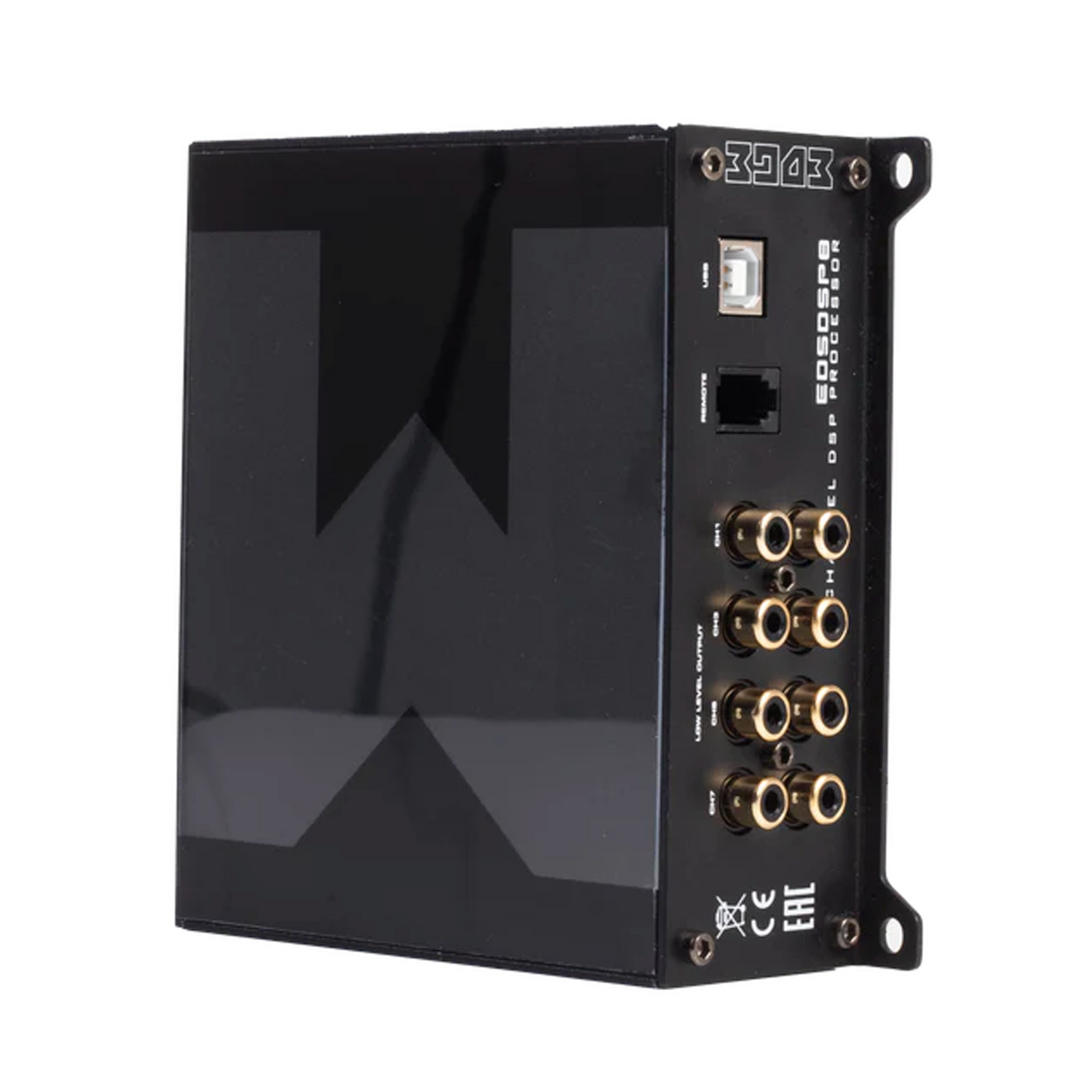

EDS8DSP-E3: EDGE Street Series 8 Channel DSP Processor

Features

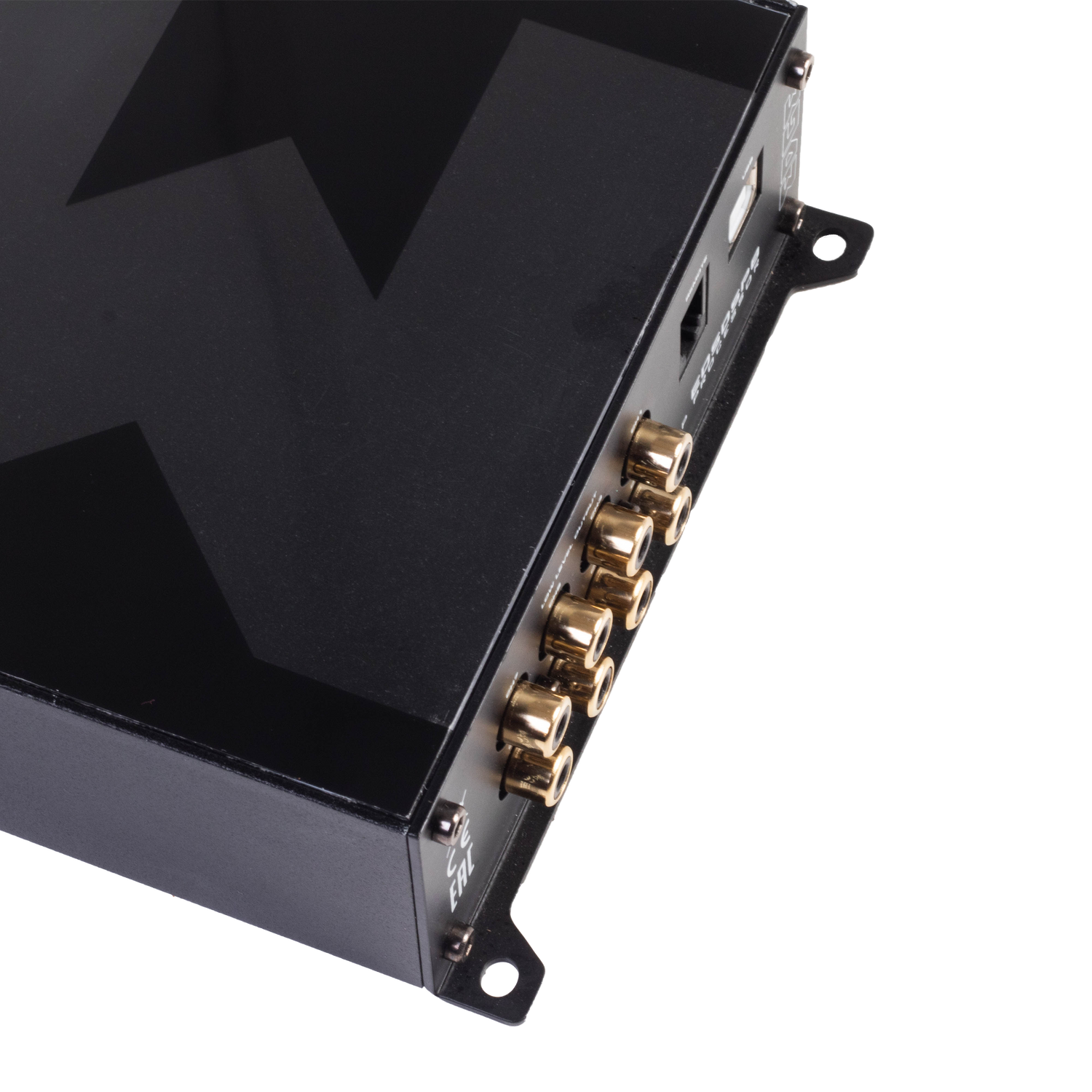

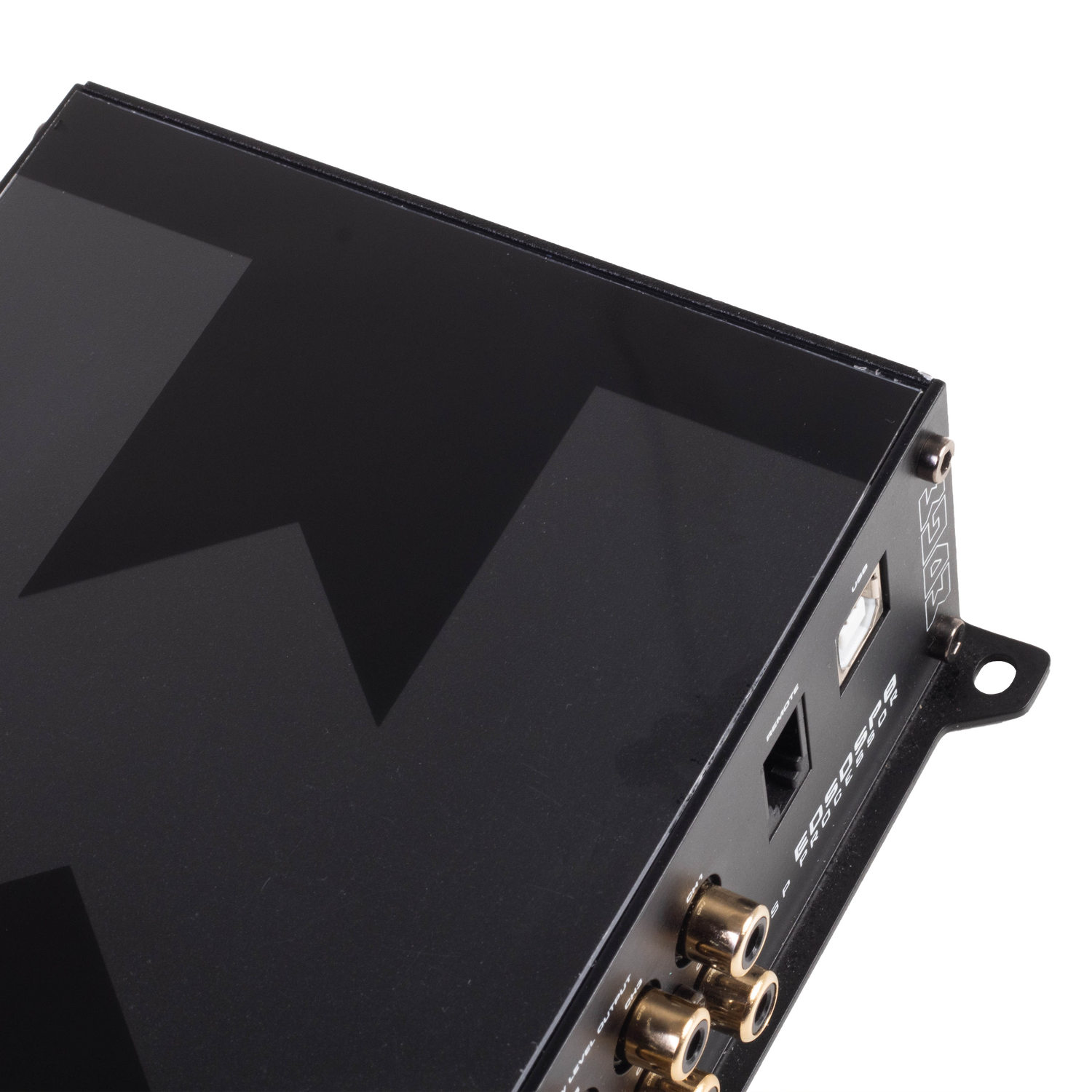

• Cast aluminium chassis
• Auto turn on circuit

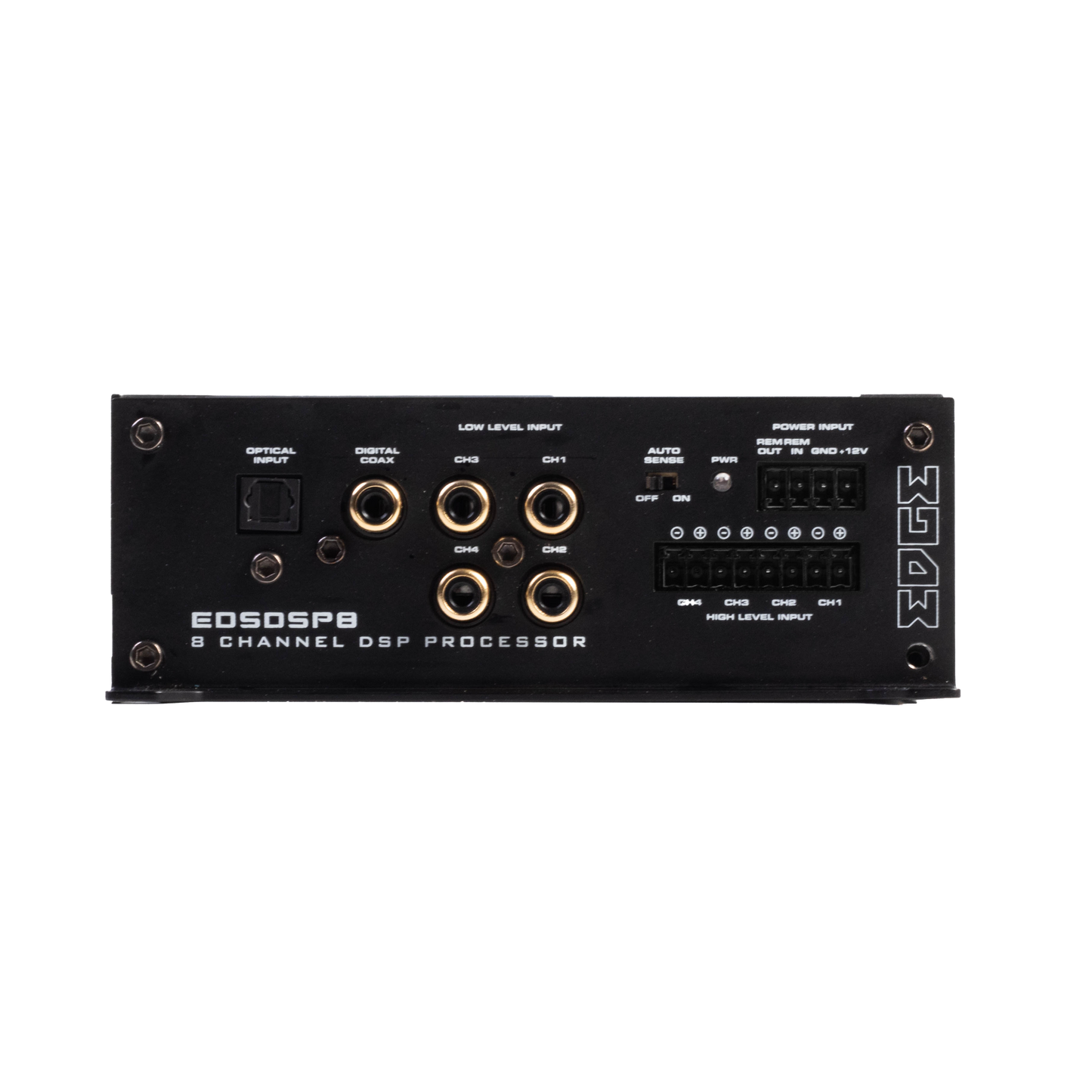

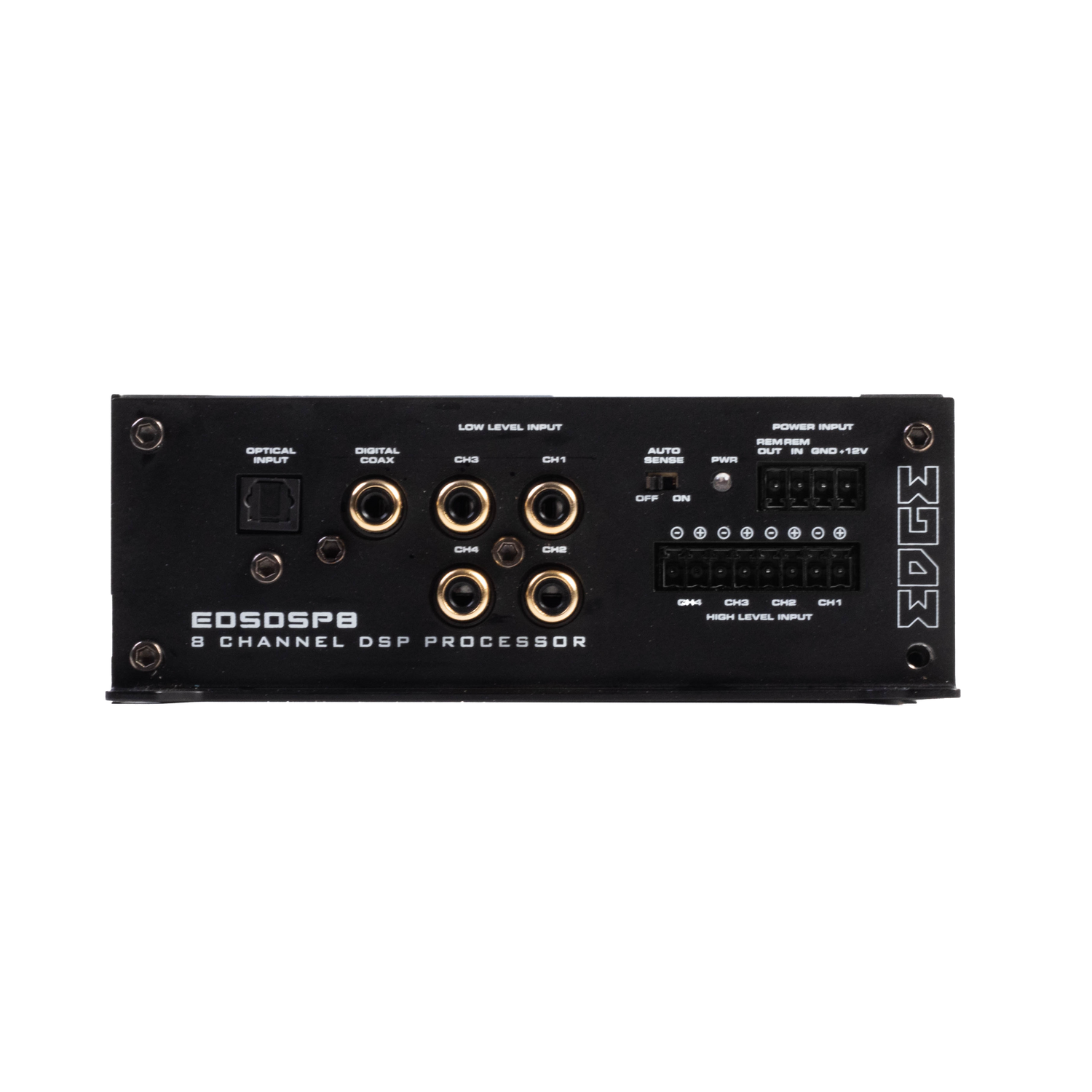

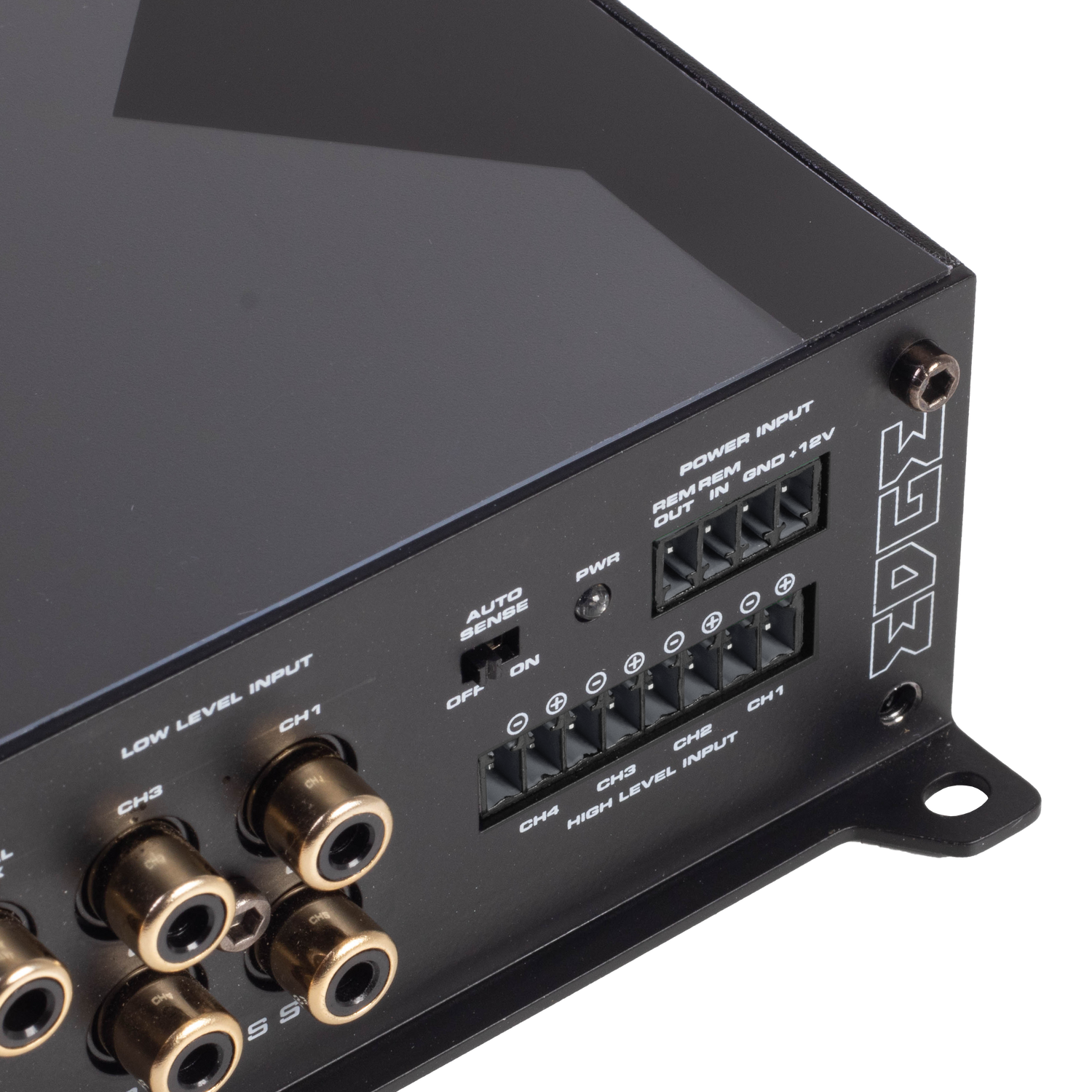

• High and low level input
• Optical and coaxial digital input
• Audio streaming receiver

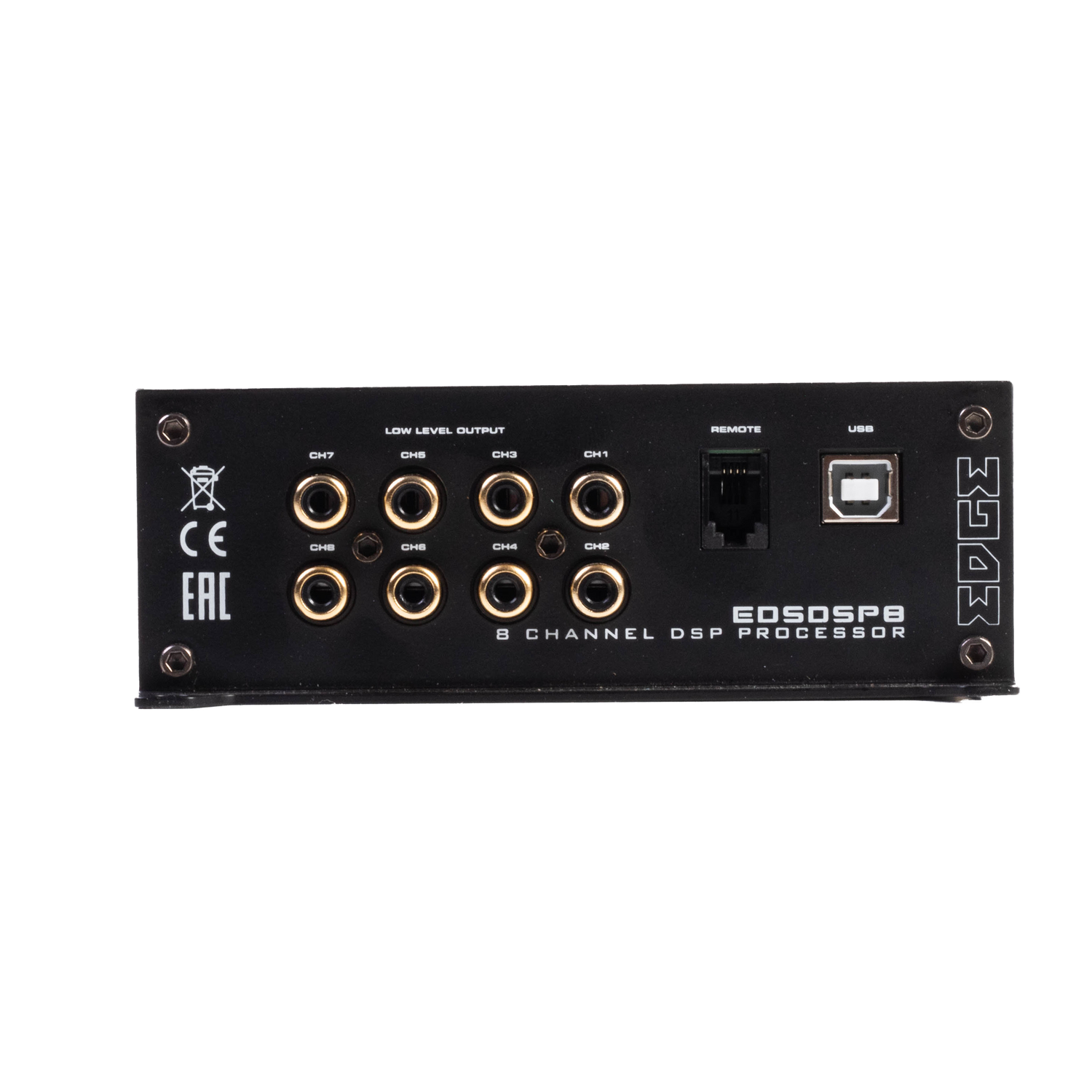

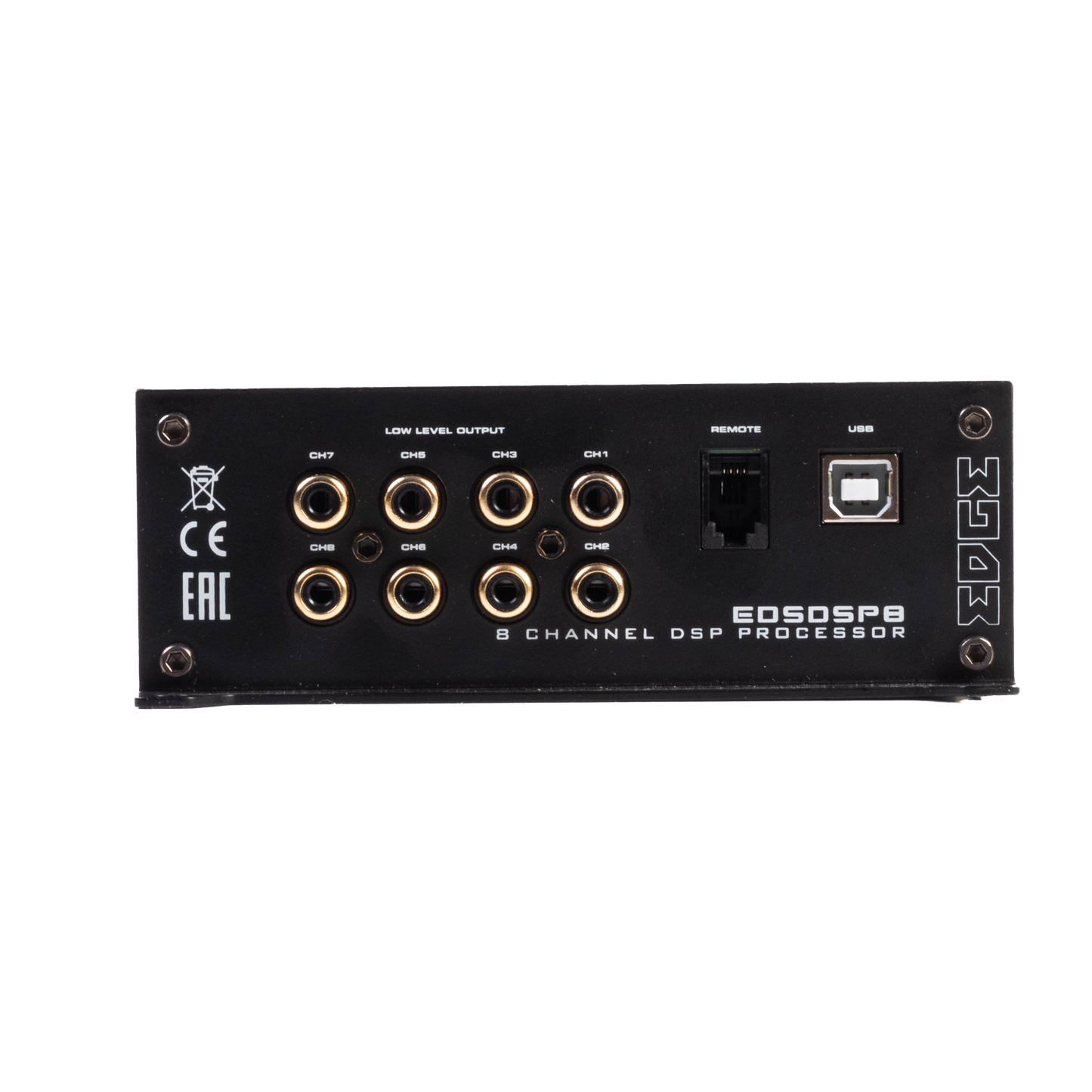

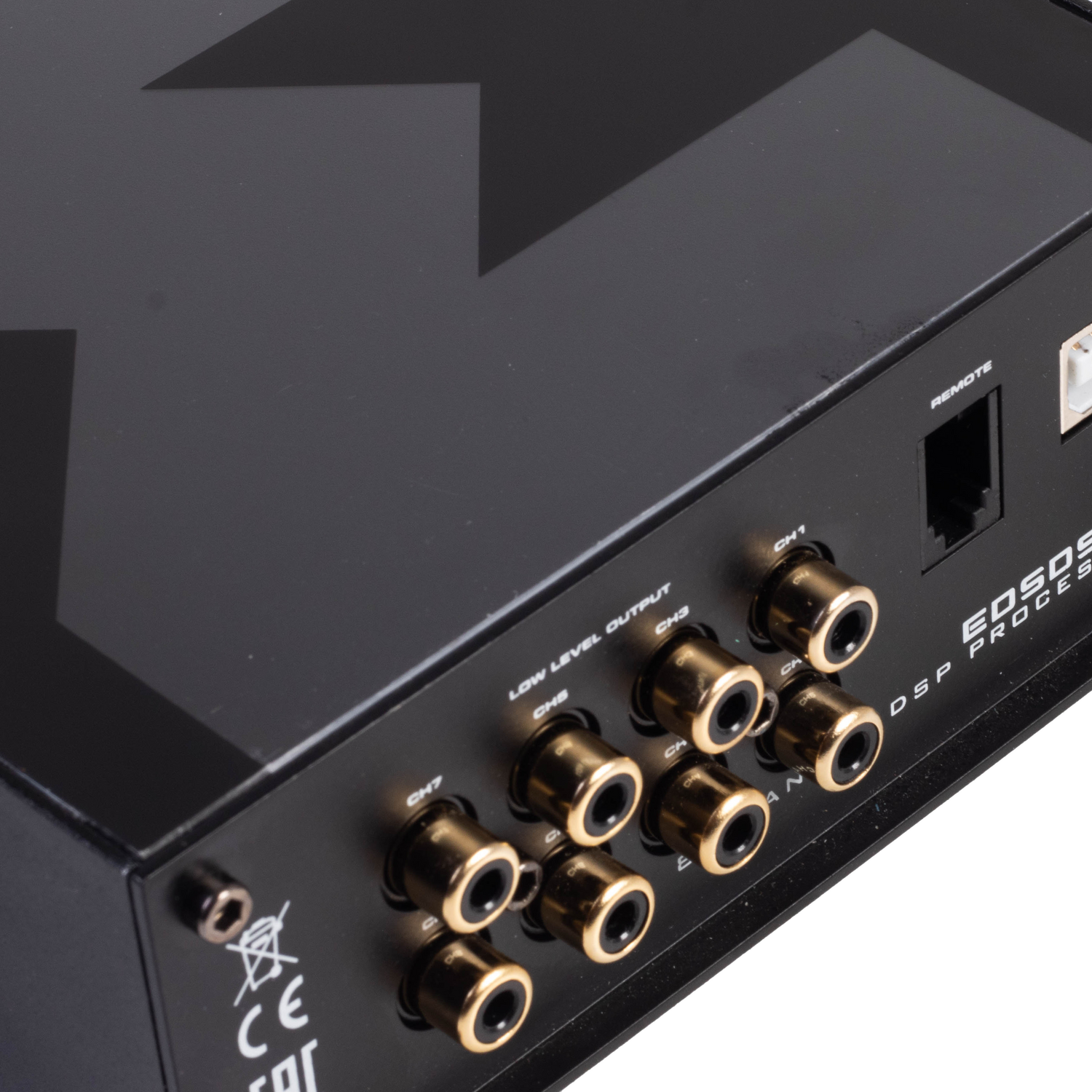

• 8 channel RCA output
• Master volume control via smartphone app
• Source input switching from High level, RCA, optical digital and wireless streaming
• 1/3 octave parametric equaliser with variable Q
• High pass, low pass and bandpass crossover for each channel with variable crossover slope up to 48dB per octave
• Phase control
• Time alignment for each channel
• Powerful mixer allows summing of input signal and distribution to any channel
• Limiter allows full control over system dynamics
• Real time adjustment from the drivers seat allowing easy setup after installation
• All features can be adjusted with intuitive gesture control

Specification

• Model: EDS8DSP-E3
• Configuration: 8 channel DSP processor
• Frequency Response: 10Hz - 30kHz
• Crossover Type: LP / HP / BP / Flat
• LP Crossover Range: 20Hz - 20kHz
• HP Crossover Range: 20Hz - 20kHz

Installation

• Dimensions (H x W x D): 1.6" x 5.3" x 5.2" (40mm x 135mm x 131mm)
