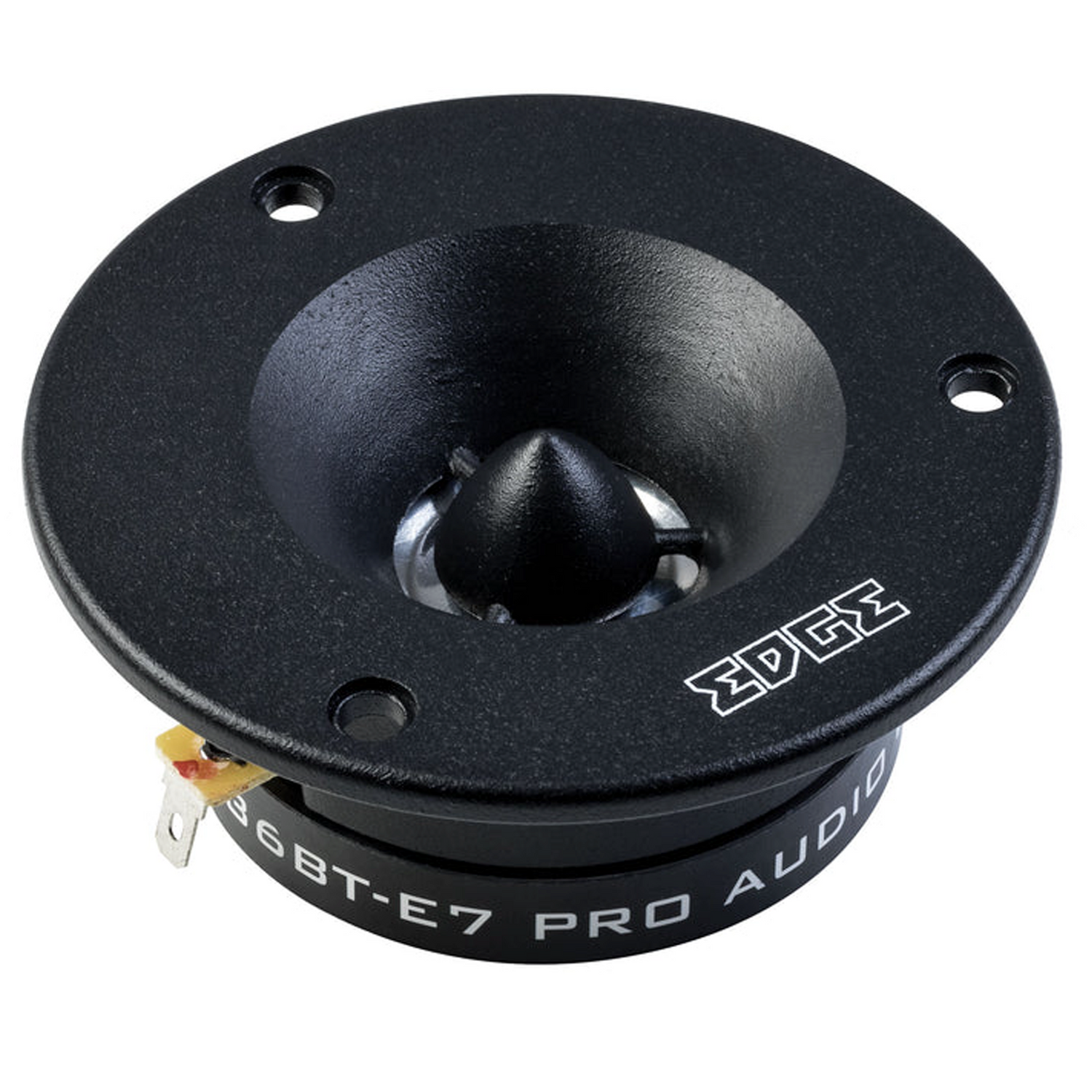

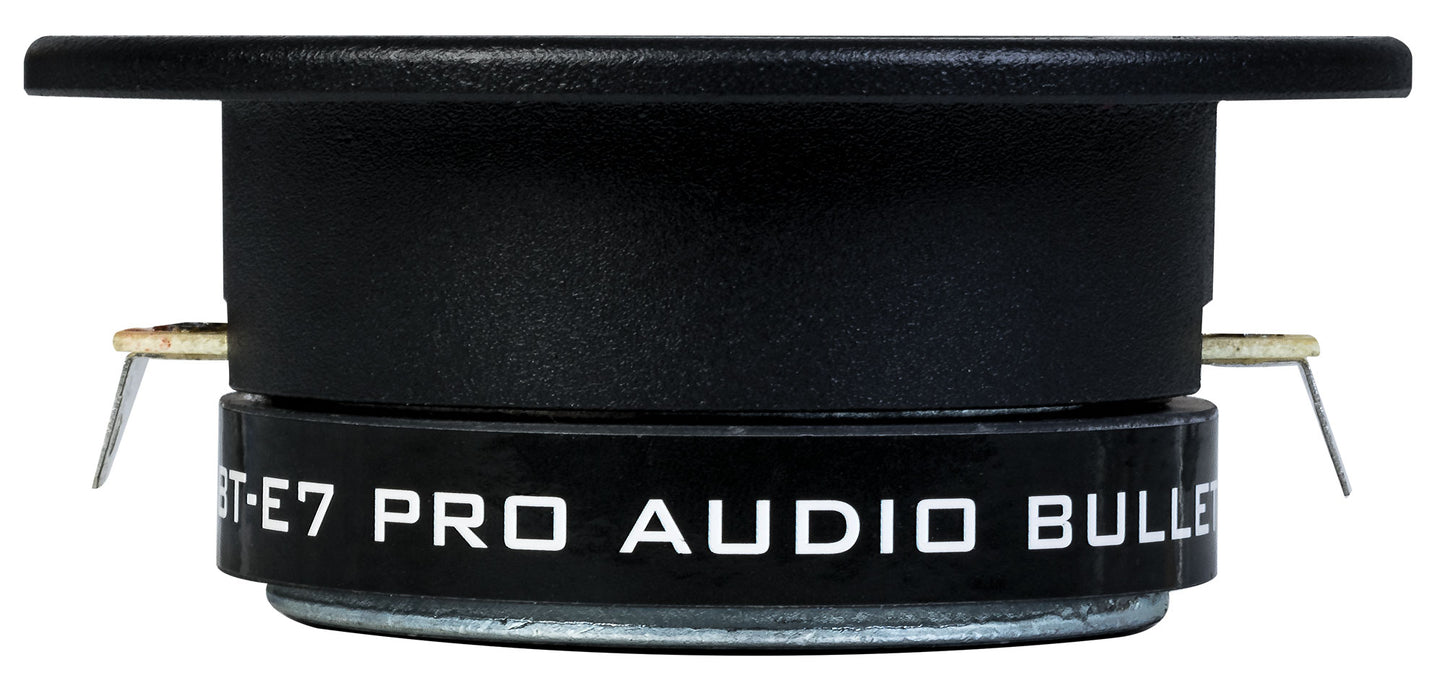

EDPRO36BT-E7 | EDGE DB Series 3.7 inch 160 watts Pro Audio Tweeters - Pair

The first introduction into Pro audio tweeters is in the DB series where we feature 2 Bullet tweeters, high frequencies at high volume.

The DB series Pro speakers are Ferrite magnet based drivers with Aluminium diaphragms for high volume, high frequency sound. The Horn designs allow a wide sound dispersion and a high level of efficiency meaning the speaker will be loud even at its minimum power input.

Its cast Aluminium housing ensures a robust solid functional design with no added resonance to distort the sound and a high quality feel.

Our DB series bullet tweeters have been engineered to match our range of Pro audio speakers, so when paired together you get a full range, high volume Pro audio sound.

Features

• Aluminium diaphragm
• Cast Aluminium flange
• Spade terminal
• High sensitivity

Specification

• Type: Pro Audio Tweeter
• Configuration: 1 way
• Speaker Size: 3.7" (95mm)
• RMS Power: 80 watts
• Peak Power: 160 watts
• Frequency Response: 2kHz - 20kHz
• Sensitivity: 105dB
• Impedance: 4 Ohms
• Recommended Amplifier: EDB80.4LITE-E0

Installation

• Mounting Depth: 1.5" (39mm)
• Mounting Diameter: 4.6" (117mm)

Downloads

• EDGE 2024 Catalogue
• EDPRO36BT-E7 Manual
