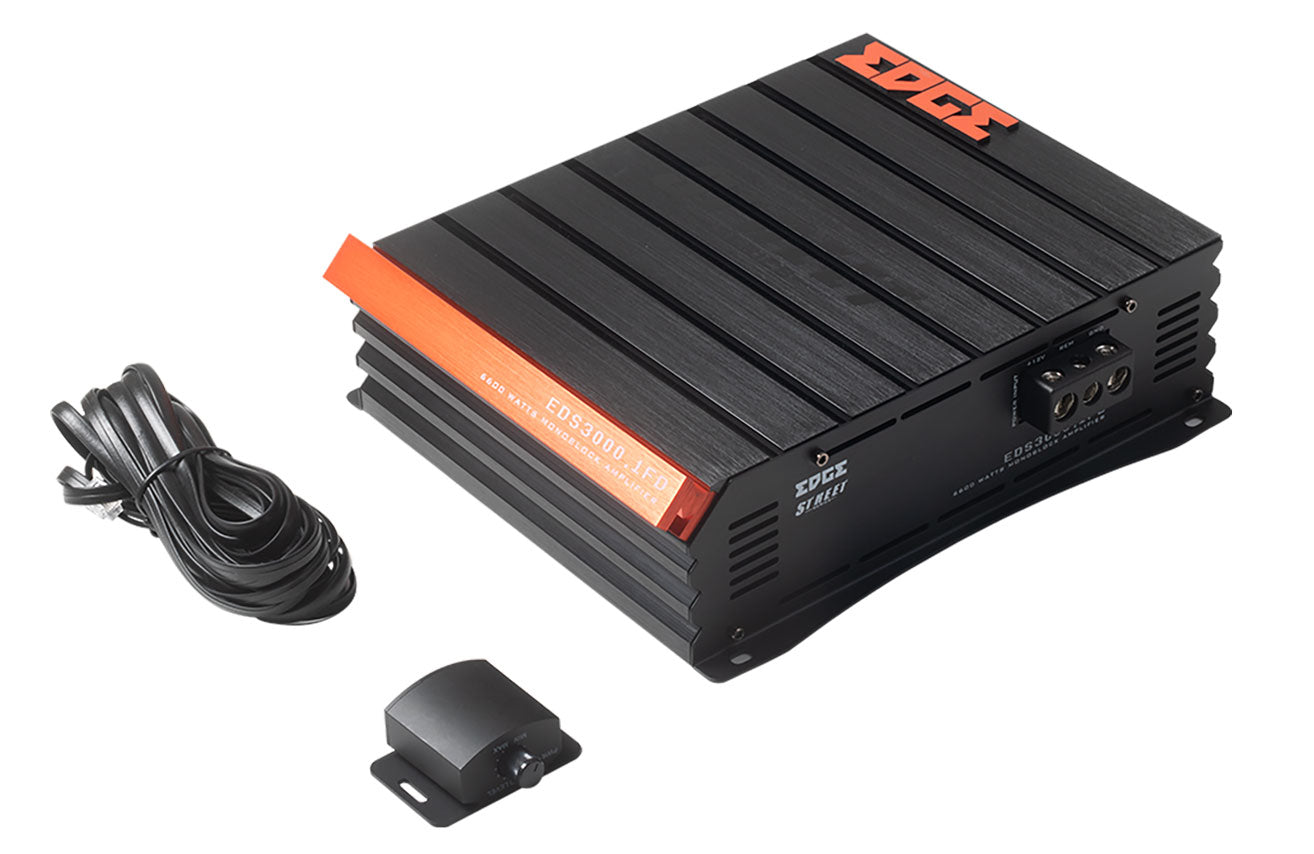

EDS3000.1FD-E0 | EDGE Street Series 6600 watts Monoblock Amplifier

The Street series amplifiers are new to the EDGE range, these amps feature Class D topology but use a full bridge method of power delivery.

This is more efficient method of converting DC power from your battery to AC output for your speakers. Full bridge technoology allows us to generate large power in a tiny footprint.

The custom tooled heatsink was designed with over engineered fins for excellent heat dissertation ensuring the amp works well and cools correctly.

All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.

Compact and powerful, the perfect amplifier upgrade for those wanting more than the norm.

Features

• Built in active crossovers
• Bass boost circuit
• Ultran effecient class D topology
• Wideband frequency response up to 20kHz
• Full bridge technology
• Compact footprint

Specification

• Model: EDS3000.1FD-E0
• Configuration: Monoblock
• RMS @ 4 Ohms Mono: 1 x 1100 watts
• RMS @ 2 Ohms Mono: 1 x 2050 watts
• RMS @ 1 Ohms Mono: 1 x 3300 watts
• Maximum Power: 6600 watts
• Frequency Response: 15Hz - 20kHz
• Crossover Type: LP / HP
• Crossover Range: 15Hz - 20kHz
• Recommended Fuse: 250A external fuse
• Topology: Class D

Installation

• Dimensions (H x W X D): 63mm x 184mm x 232mm (2.5" x 7.2" x 9.1")

Downloads

• EDGE 2024 Catalogue
