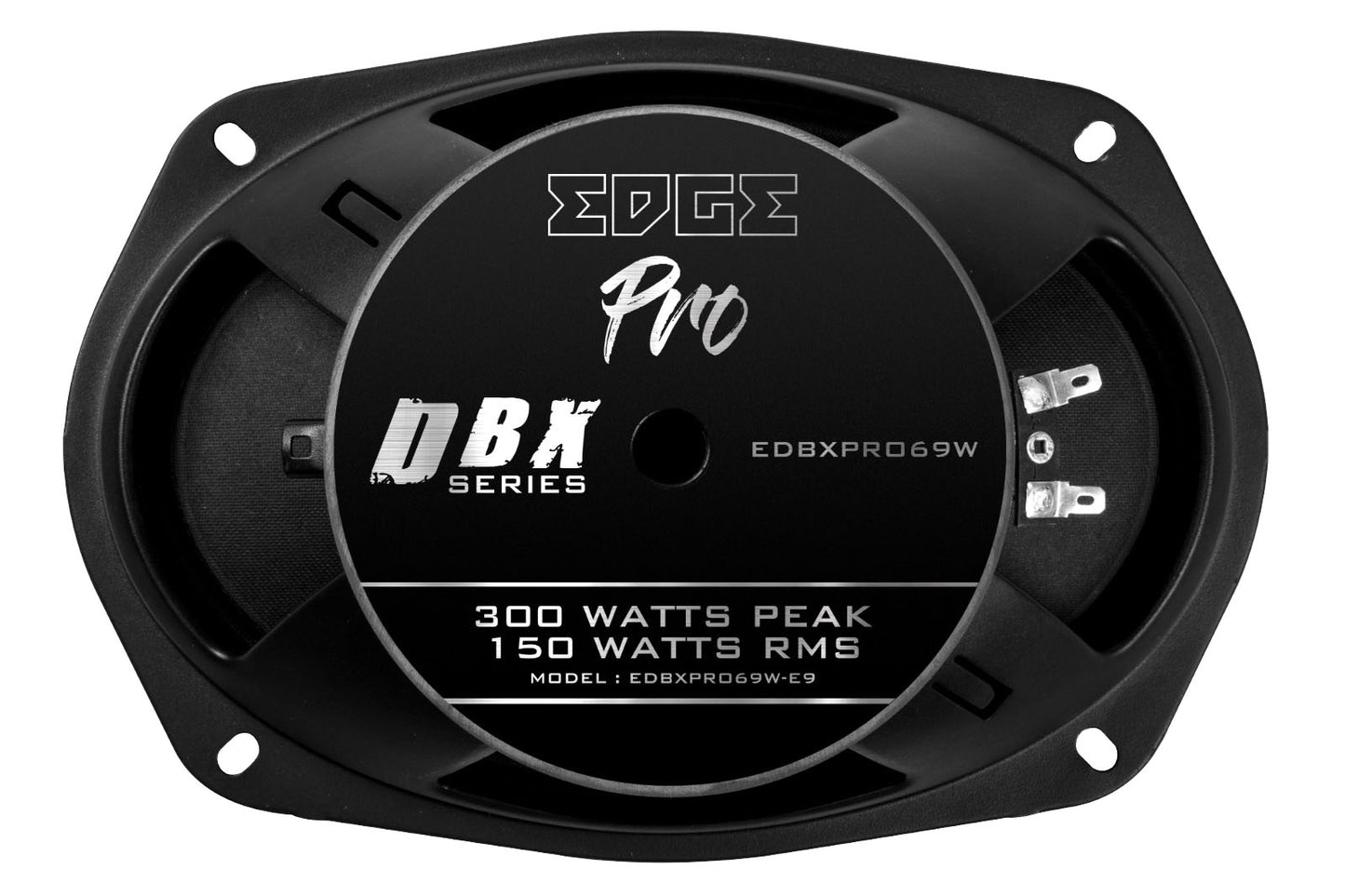

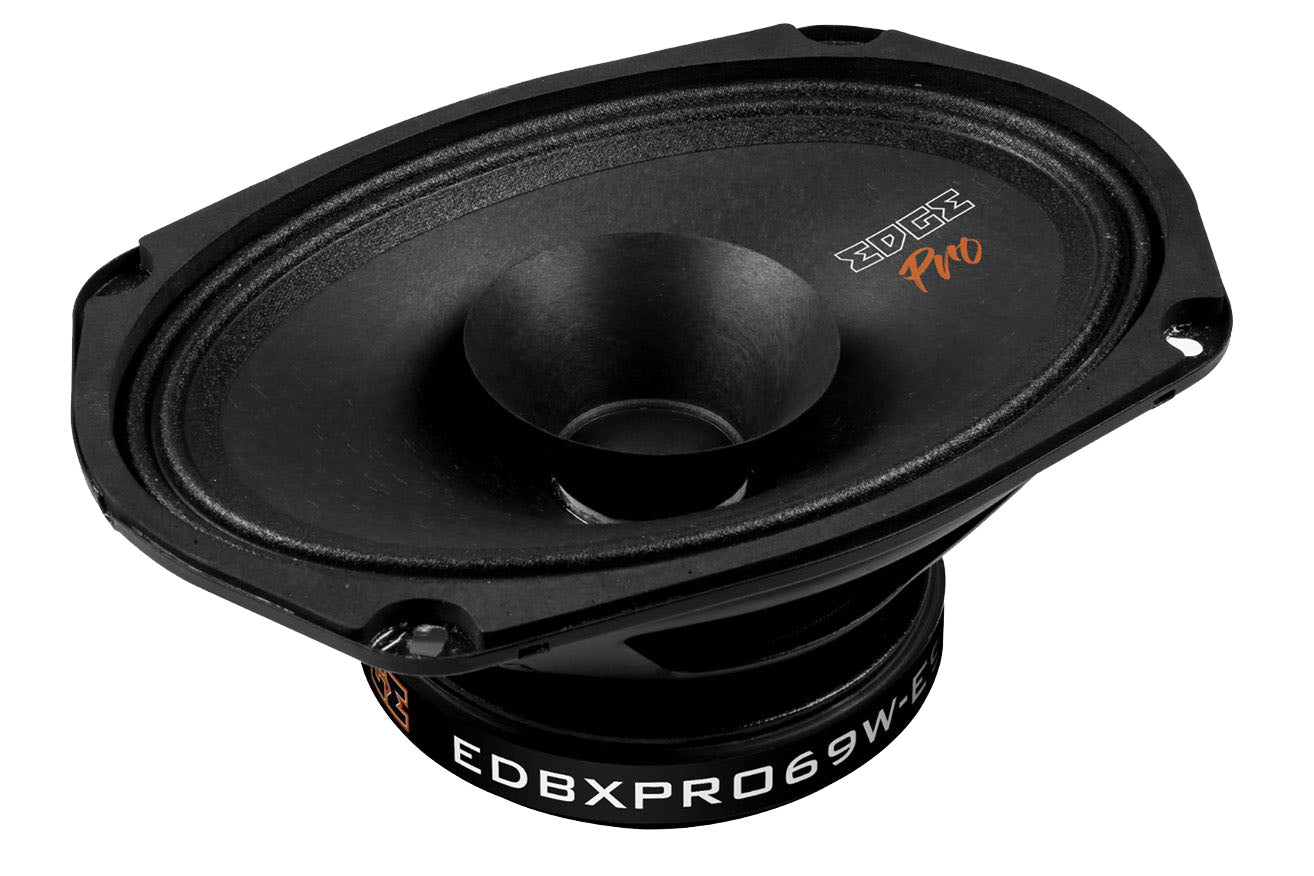

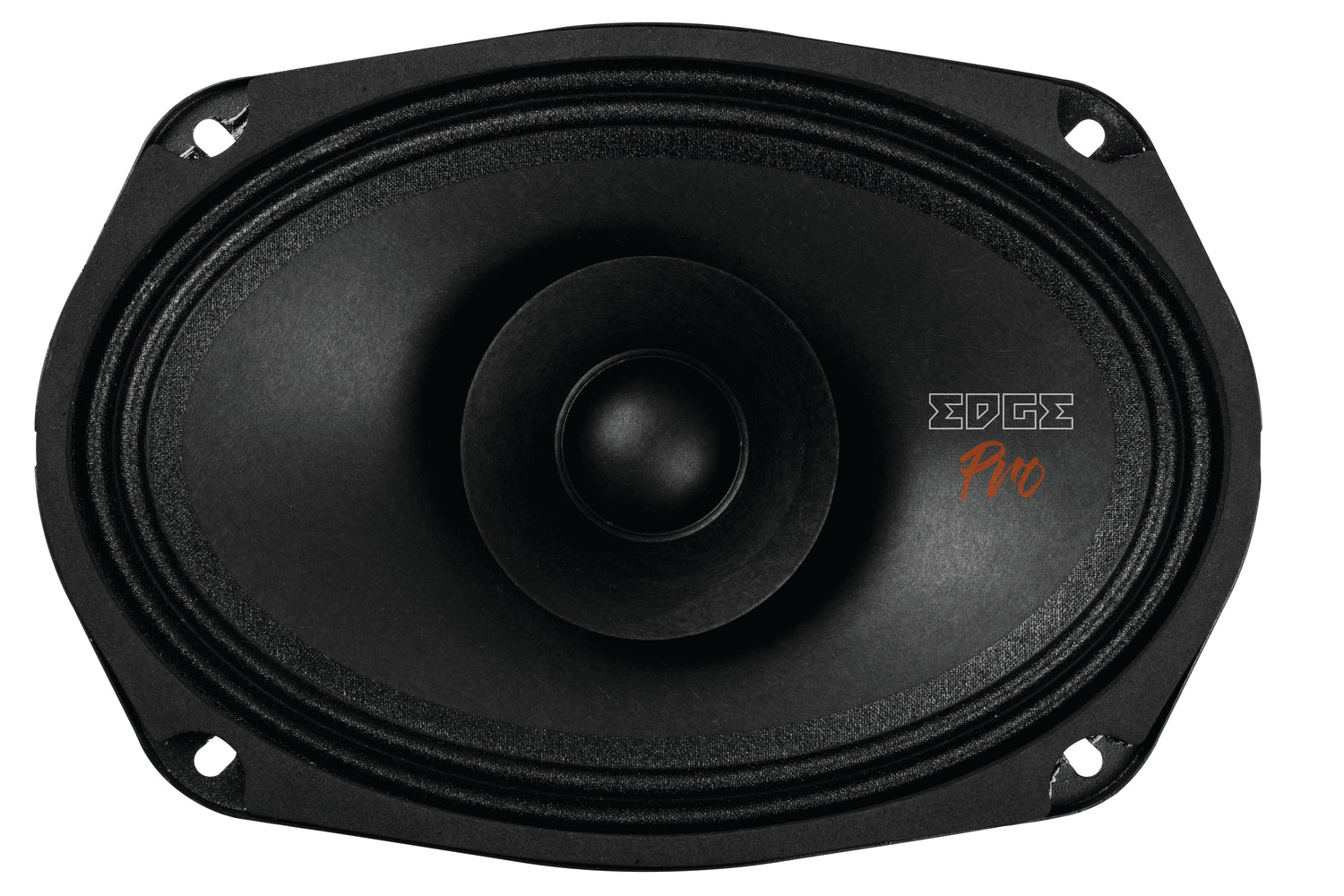

EDBXPRO69W-E9 | EDGE DBX Series 6x9 inch 300 watts Pro Audio Midrange Speakers - Pair

The DBX series Pro speakers features 6.5, 8 and 6x9 inch models designed for high volume sound reproduction.

Using all the experience and information we gathered from the development of the DB Series speakers the DBX Series are an advancement in performance, with subtle engineering changes, increased magnet sizes, redeveloped voice coils with precision designed spiders and cone to produce loud efficient sound.

The 6 inch and 6x9 inch model in the range features a full range design.

This wideband reproduces full range sound so can be used even without a tweeter! The DBX series is our second range of speakers and shows technology advancements for added volume, efficiency and sound quality. Used when a Pro sound and high volume is required, the DBX series speakers paired with DBX series tweeters delivers game changing performance.

Features

• Non pressed paper cone
• Dual roll foam surround
• Polycotton spiders
• Spade terminals
• EVA gasket

Specification

• Type: Pro Audio Midrange
• Configuration: 1 way
• Speaker Size: 6x9" (160mm x 230mm)
• RMS Power: 150 watts
• Peak Power: 300 watts
• Sensitivity: 94dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 4 Ohms
• Recommended Amplifier: EDA350.2-E7

TS Parameters

• Fs 56.9515
• Fs Added Mass 43.9208
• Fs Known Vol 0.0000
• Added Mass 10.0000
• Known Vol 0.0000
• Diameter 150.0000
• ZMax 33.9466
• ZMax Added Mass 23.0297
• ZMax Known Vol 0.0000
• Z F1F2 10.4225
• Re 3.2000
• Rms 0.4385
• Qms 11.9771
• Qes 1.2465
• Qts 1.1290
• Cms 0.5321
• Mms 14.6757
• BL 3.6717
• VAS 23.2046
• dBSPL 87.3866
• L 1kHz 0.2236
• L 10kHz 0.1310
• CAS 1.661786E-0007
• RAS 1404.0730
• MAS 46.9954
• RAT 14894.8700
• SD 0.0177
• LCES 7.1740
• CMES 1088.5990
• RES 30.7466
• MMD 13.3461
• RMT 4.6514
• eta 0.3301
• Z Min 3.1812
• Z AVG 6.3720

Installation

• Mounting Depth: 3.6" (91mm)
• Mounting Diameter: 5.7" x 8.5" (145mm x 215mm)
