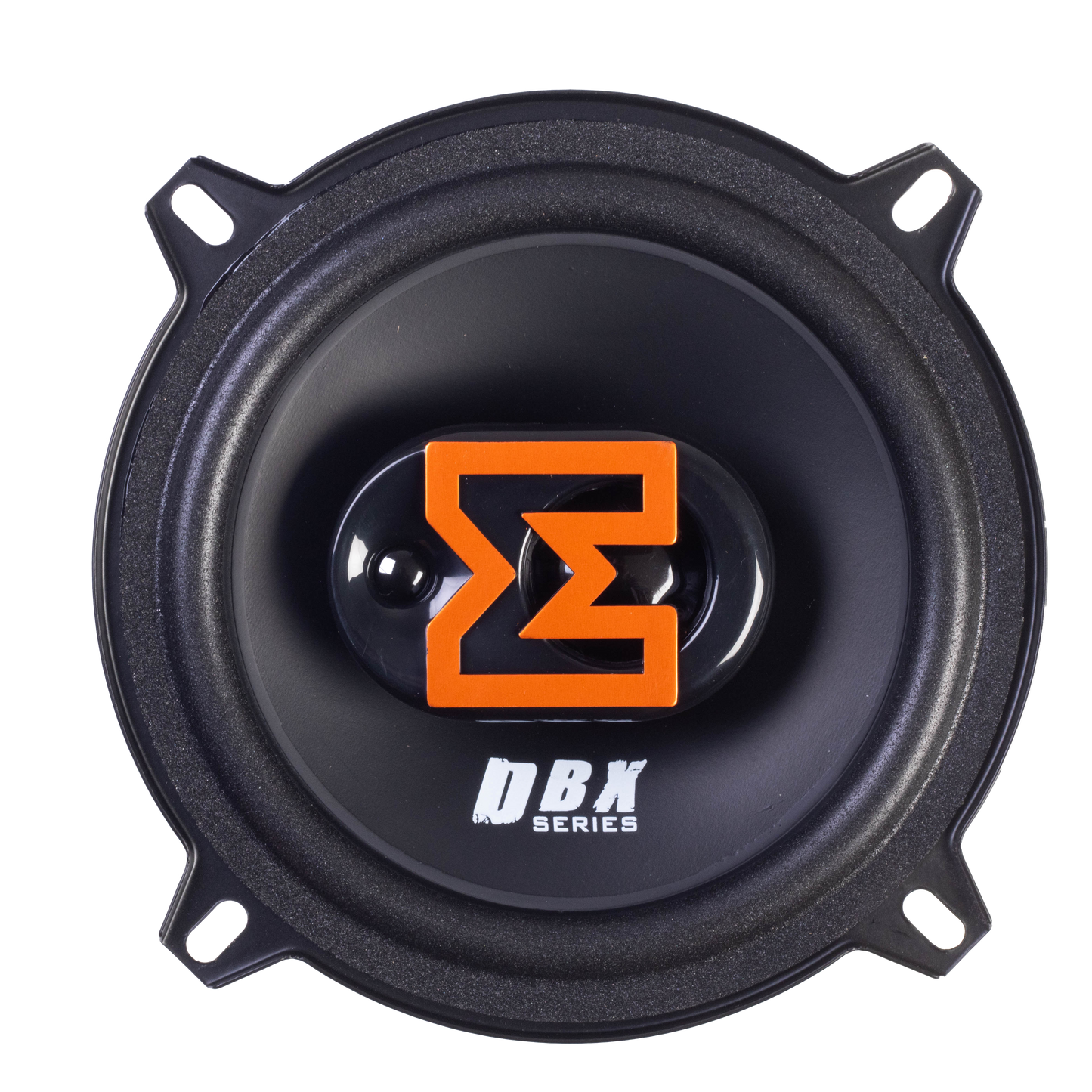

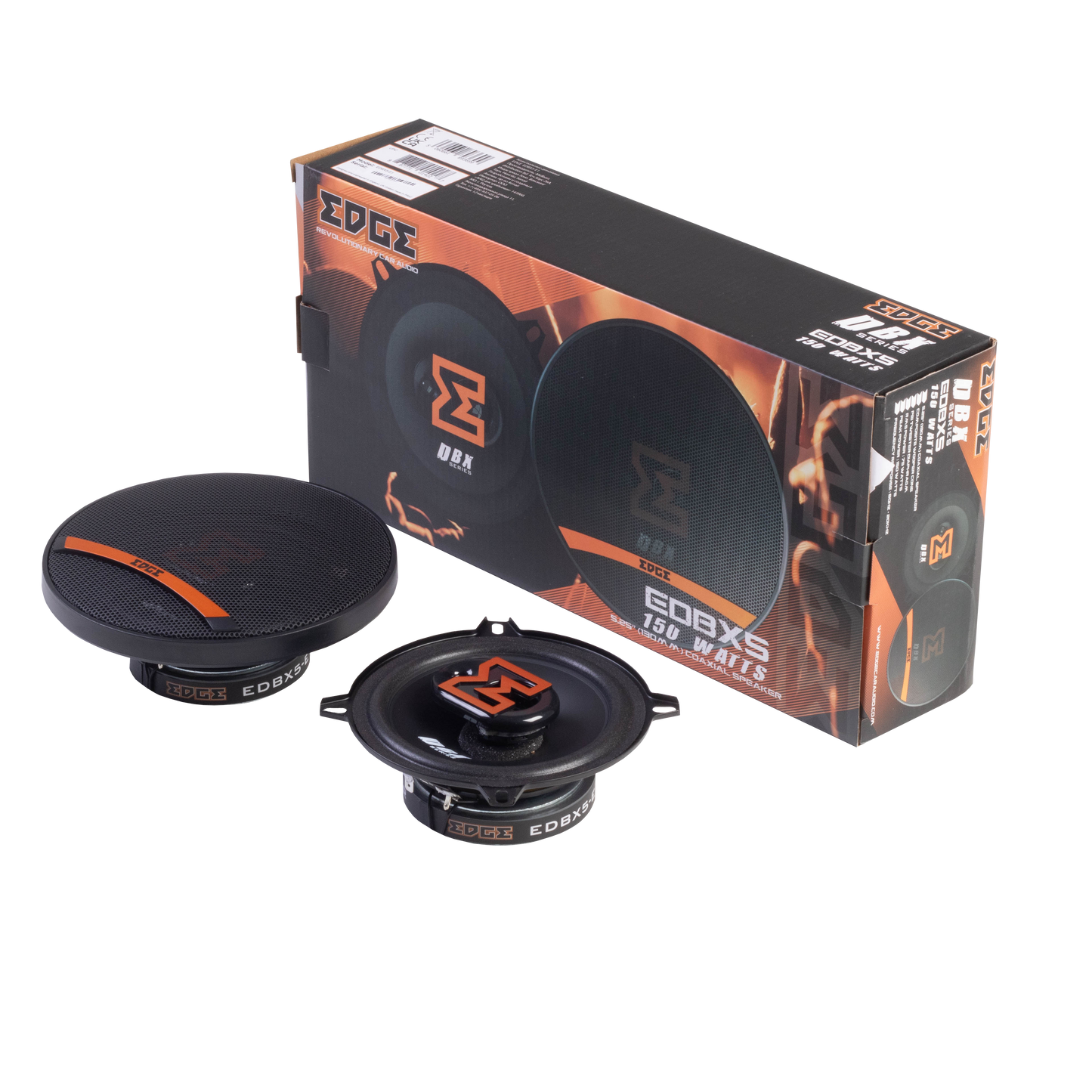

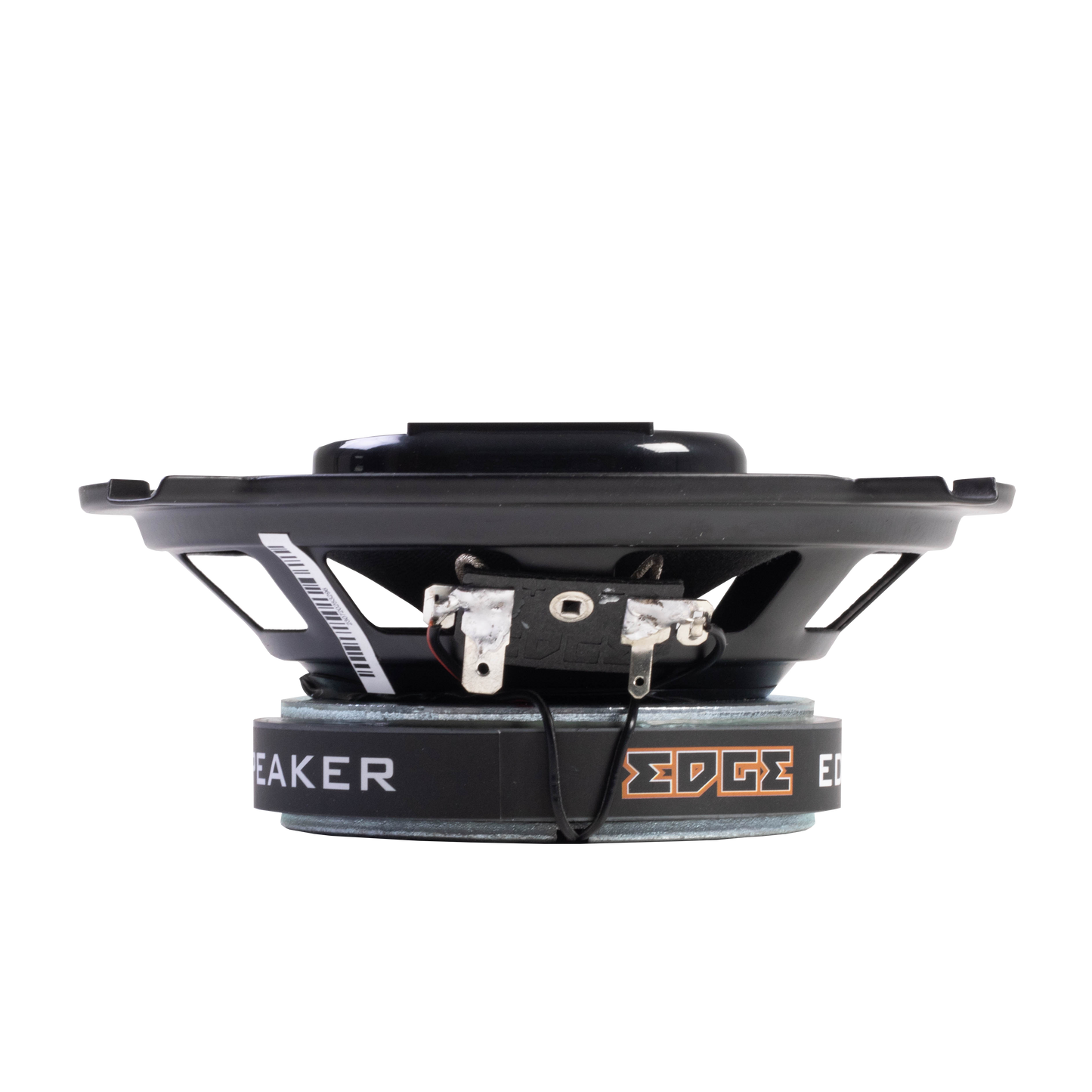

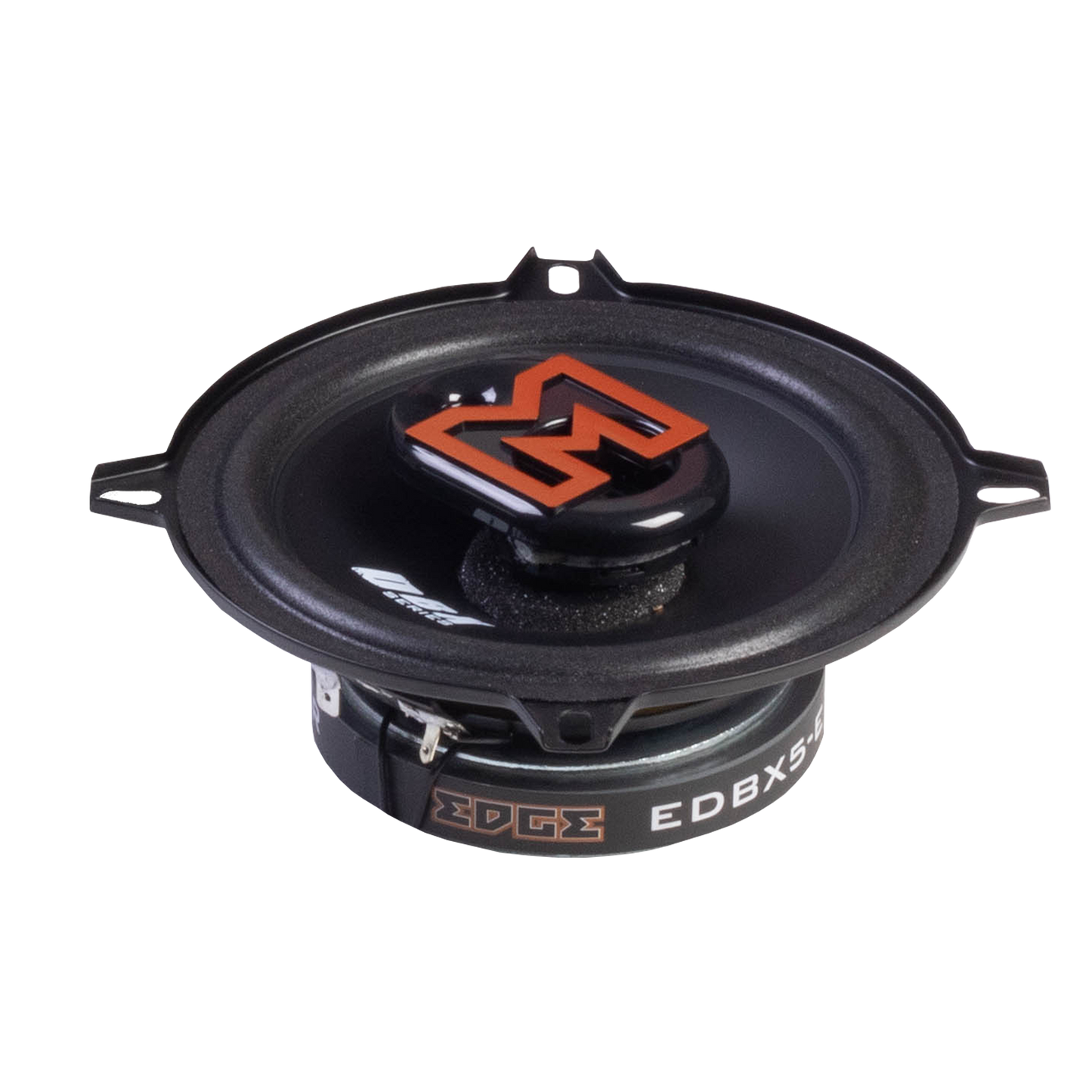

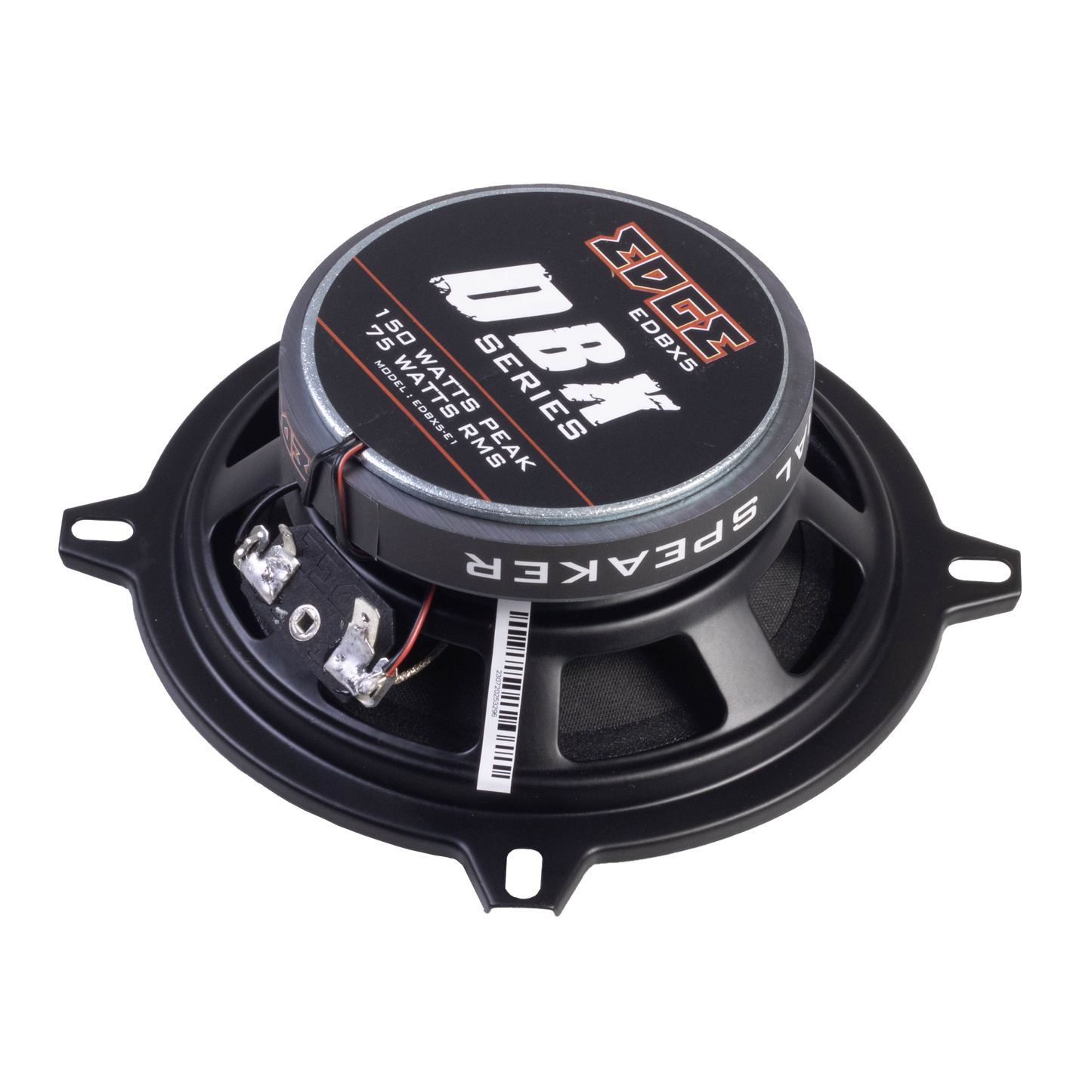

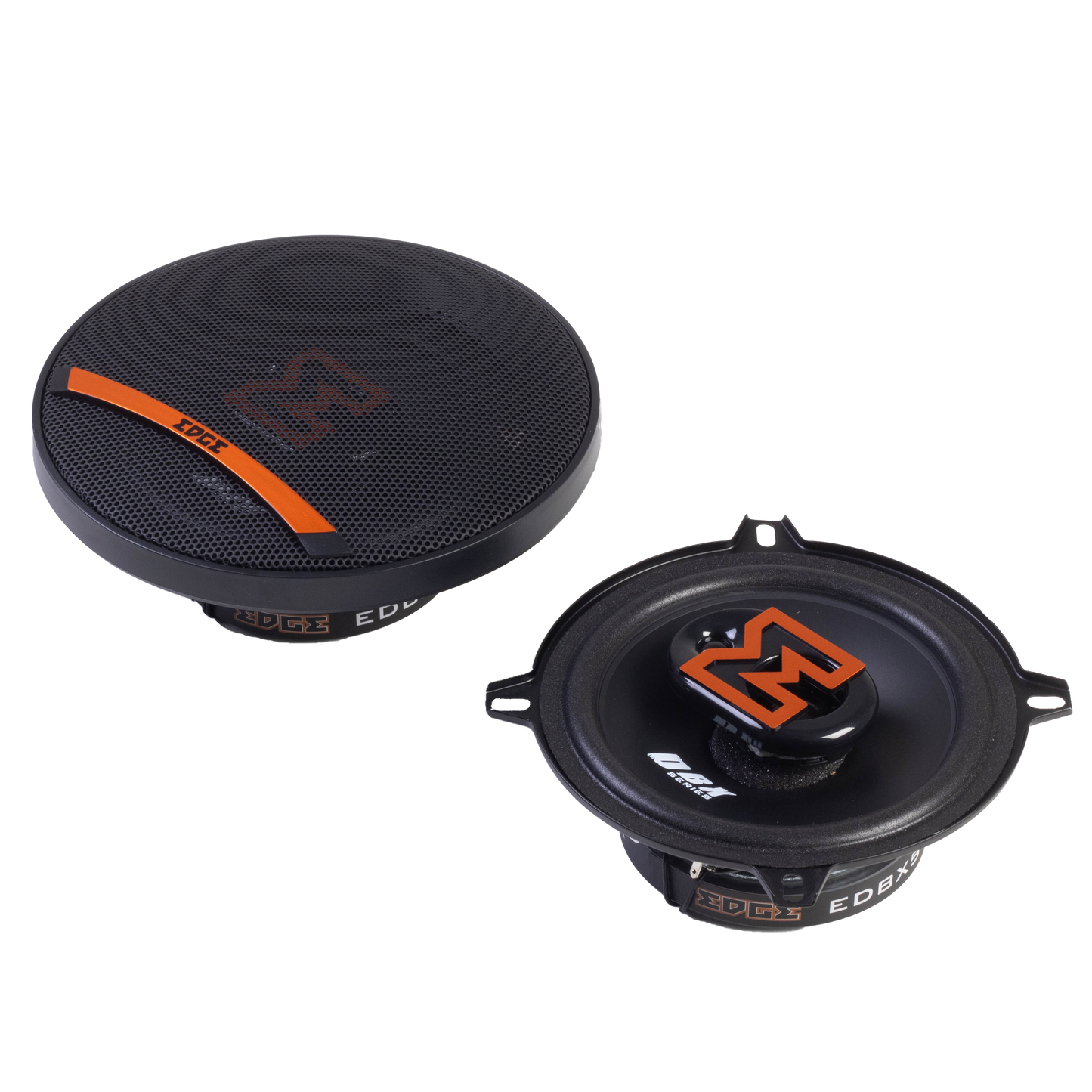

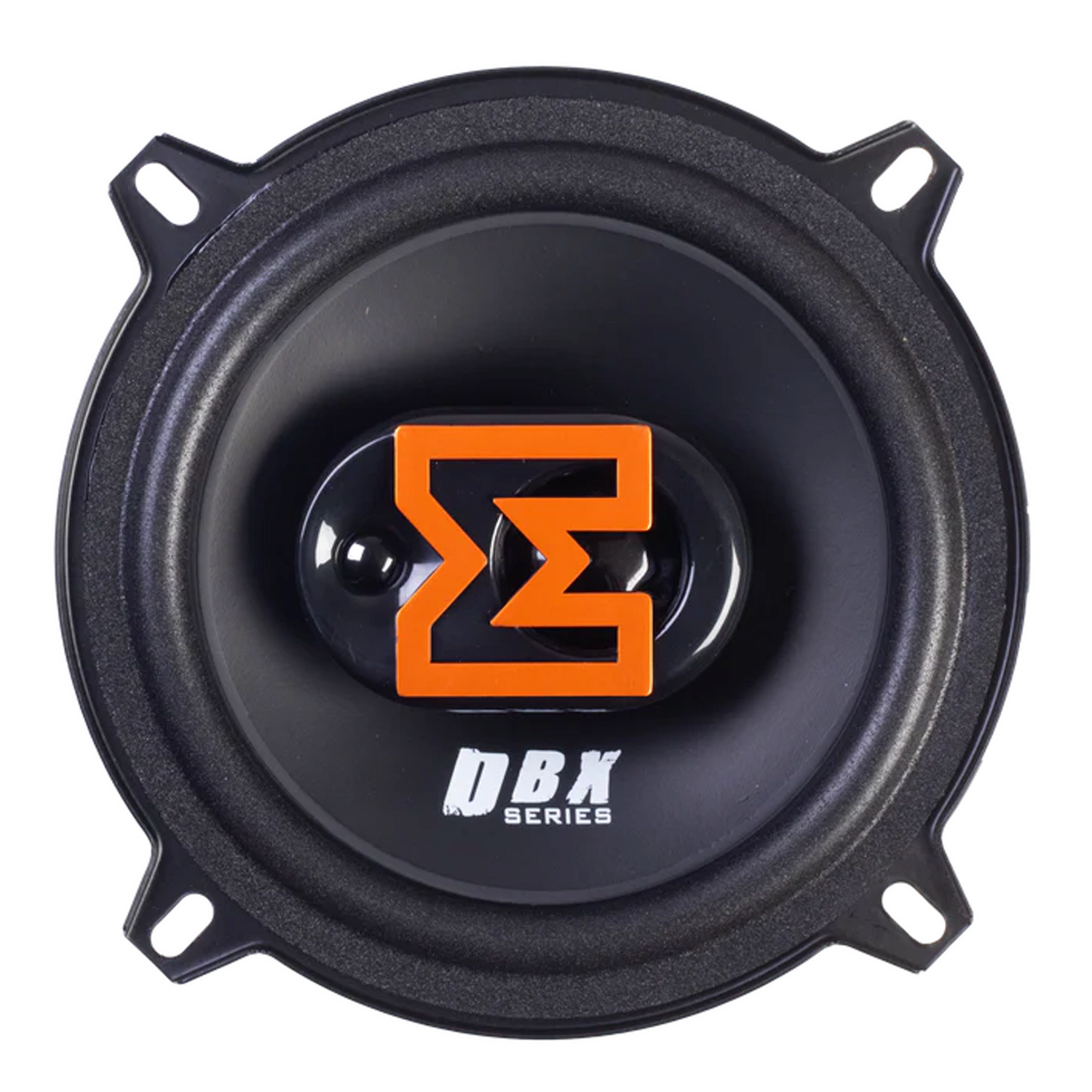

EDBX5-E1 | EDGE DBX Series 5.25 inch 150 watts Coaxial Speakers - Pair

Our DBX series see the introduction of our 3 way Coaxial speakers available in 5,6.5 and 6x9 inch models.

Coaxial in the DB series Consist of a 3 way configuration. The Cone is a unique composite cone making it lightweight and strong allowing it to move fast to easily and accurately recreate the sound, paired with PEI tweeter material which gives sound quality similar to silk and volume close to metal but without the harness.

The Stamped steel basket features a multi-fit design in the 6.5 inch which allows them to be easily installed in most vehicles.

Adding a DBX series coaxial will give you enhanced sound quality and volume due to its advanced materials and engineering, giving you a fantastic sound upgrade.

Features

• 3 way coaxial speakers
• PEI tweeter element
• Composite woofer cone
• Spade terminal
• Multi-fit design allows fitment in most vehicles

Specification

• Type: Coaxial
• Configuration: 3 way
• Speaker Size: 5.25" (130mm)
• RMS Power: 75 watts
• Peak Power: 150 watts
• Frequency Response: 80Hz - 20kHz
• Impedance: 4 Ohms
• Grille: Yes
• Recommended Amplifier: EDA100.4-E7

Installation

• Mounting Depth: 2" (50mm)
• Mounting Diameter: 4.6" (117mm)

Downloads

• EDGE 2024 Catalogue
