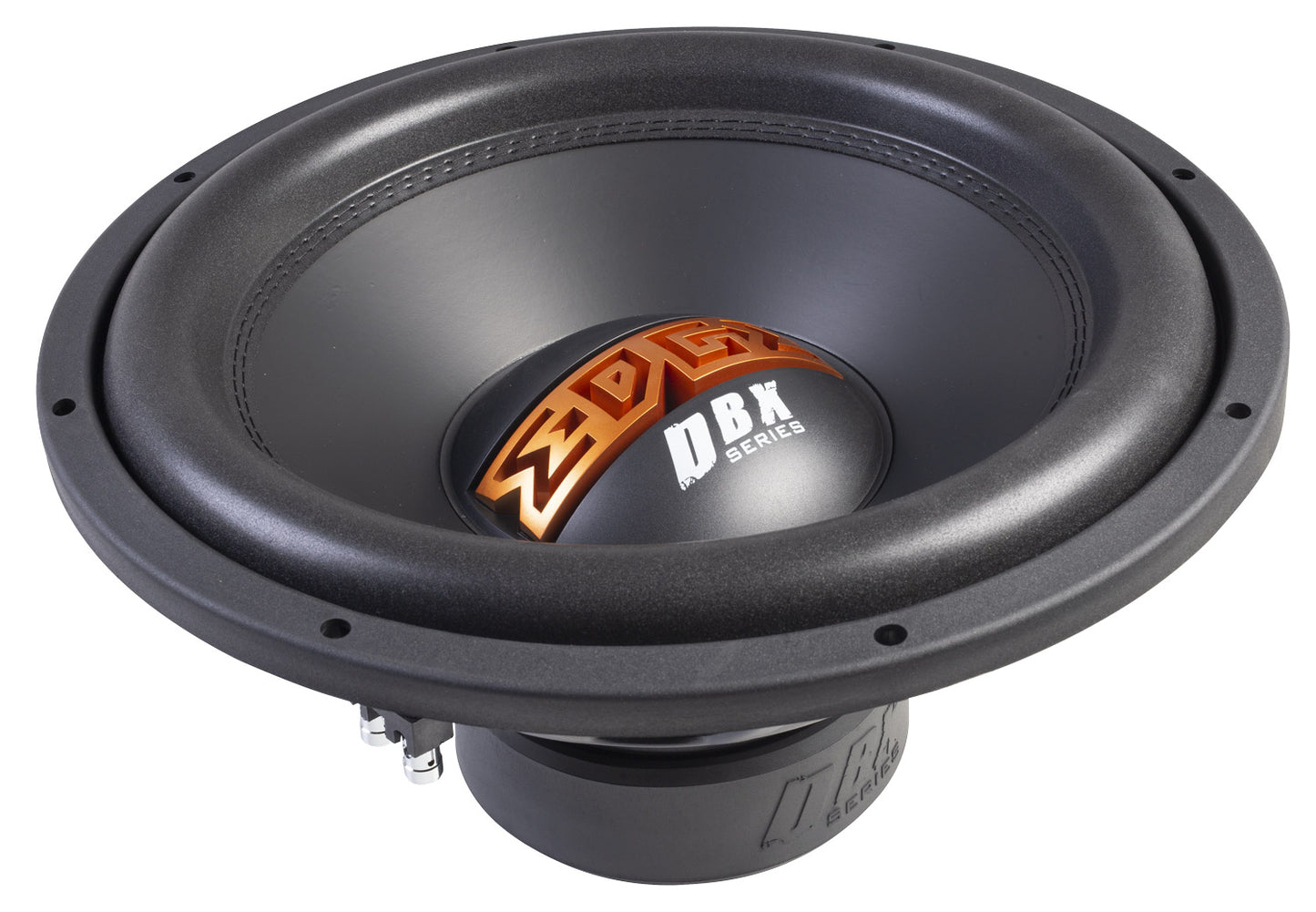

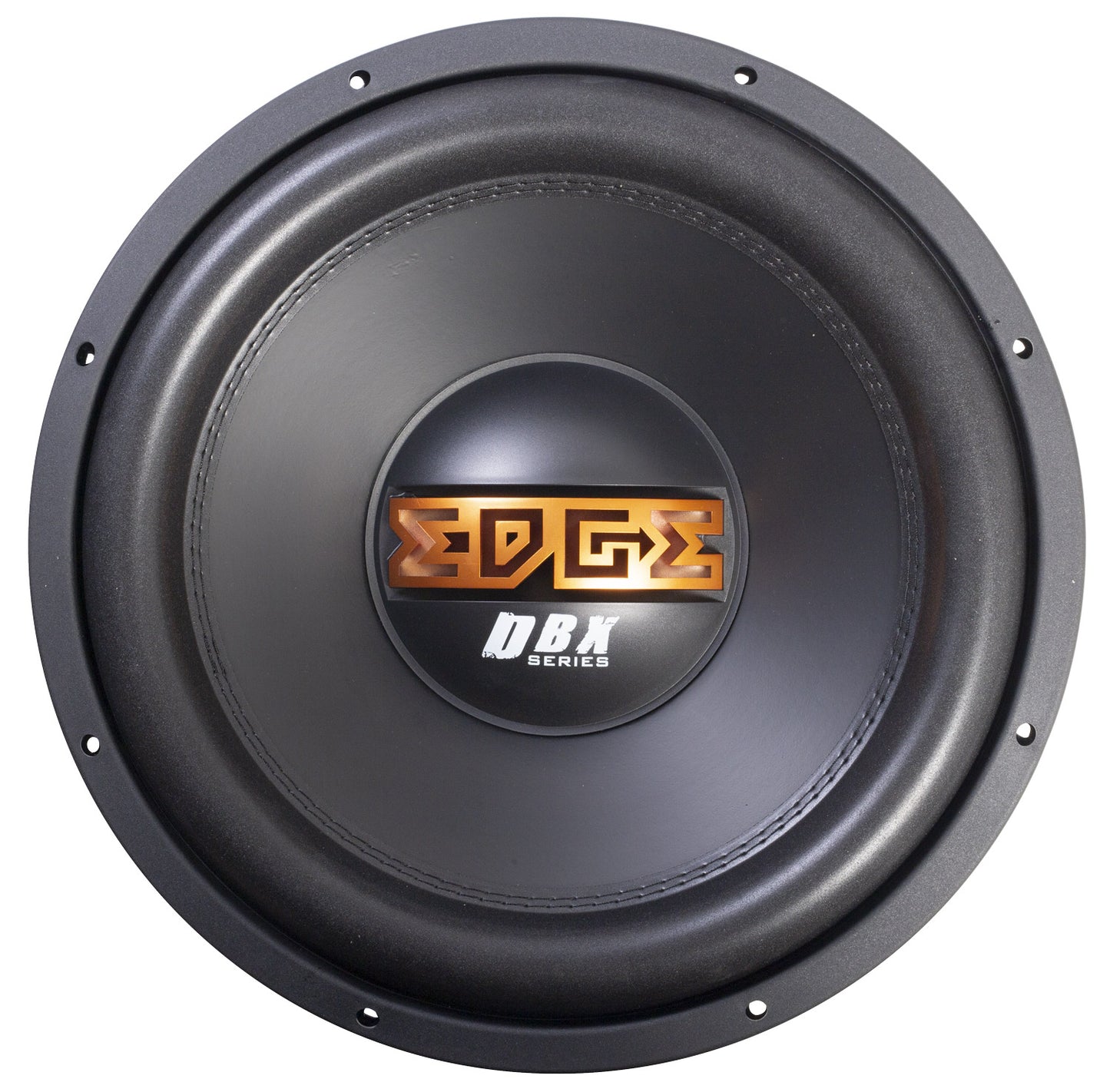

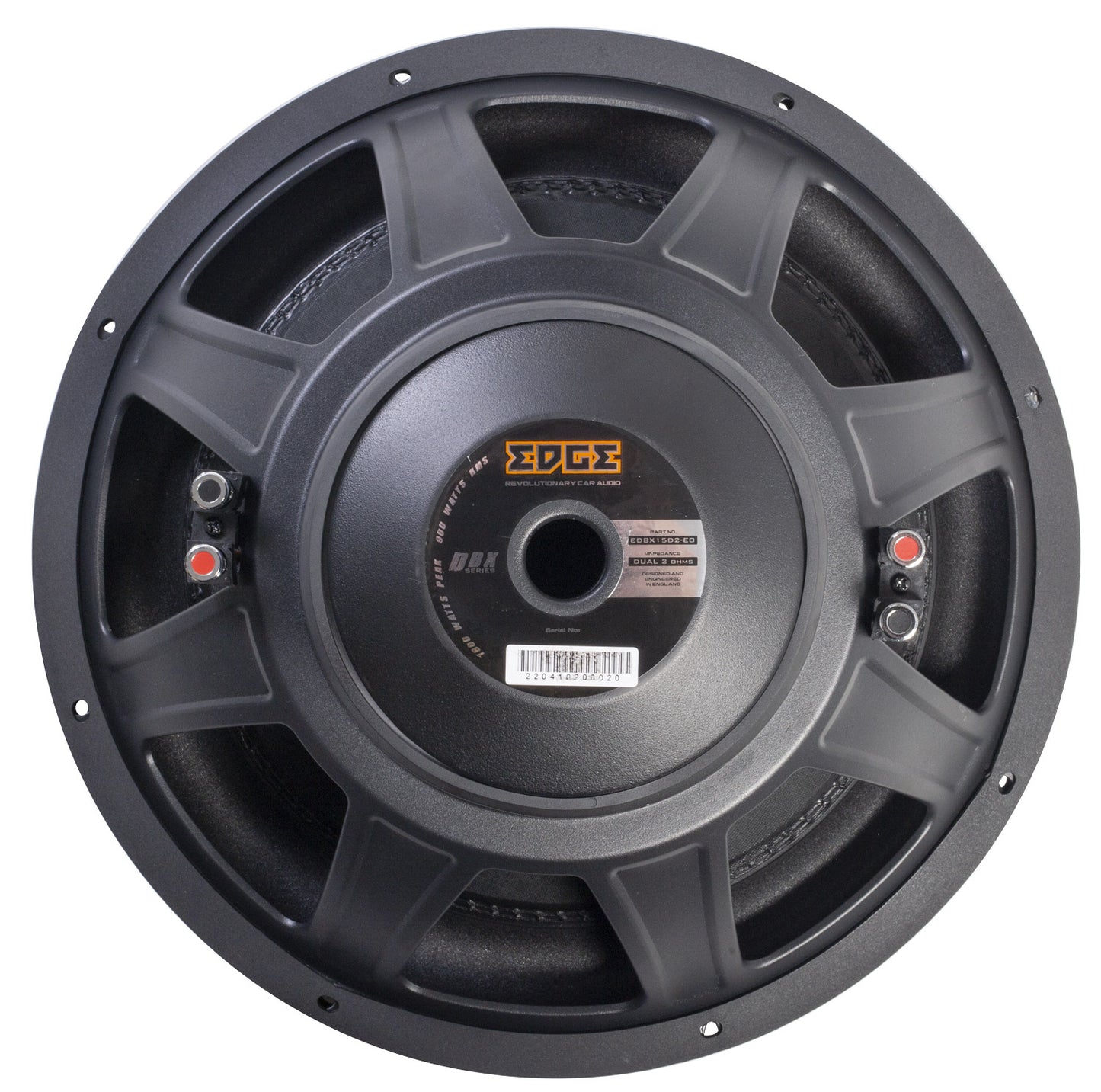

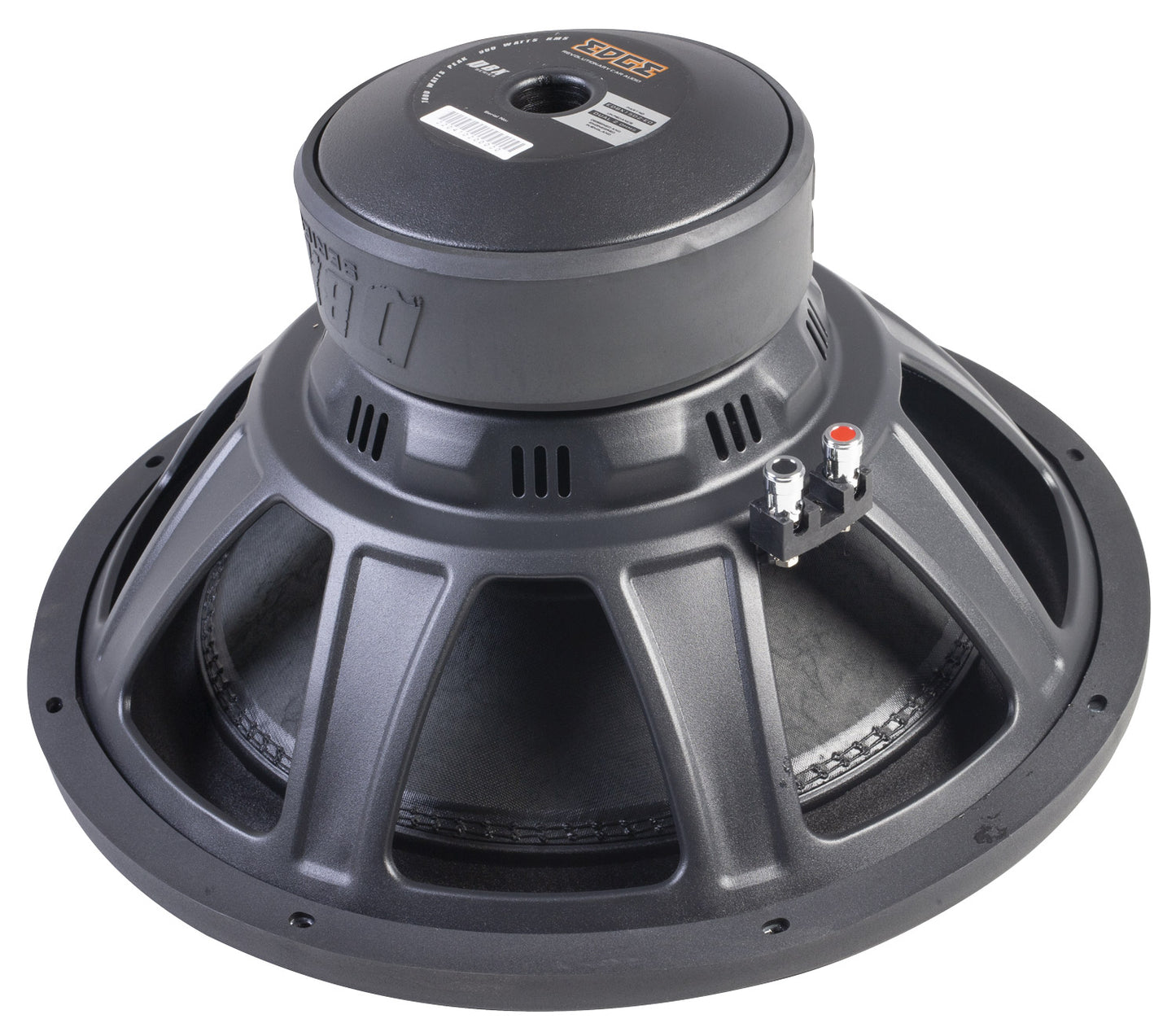

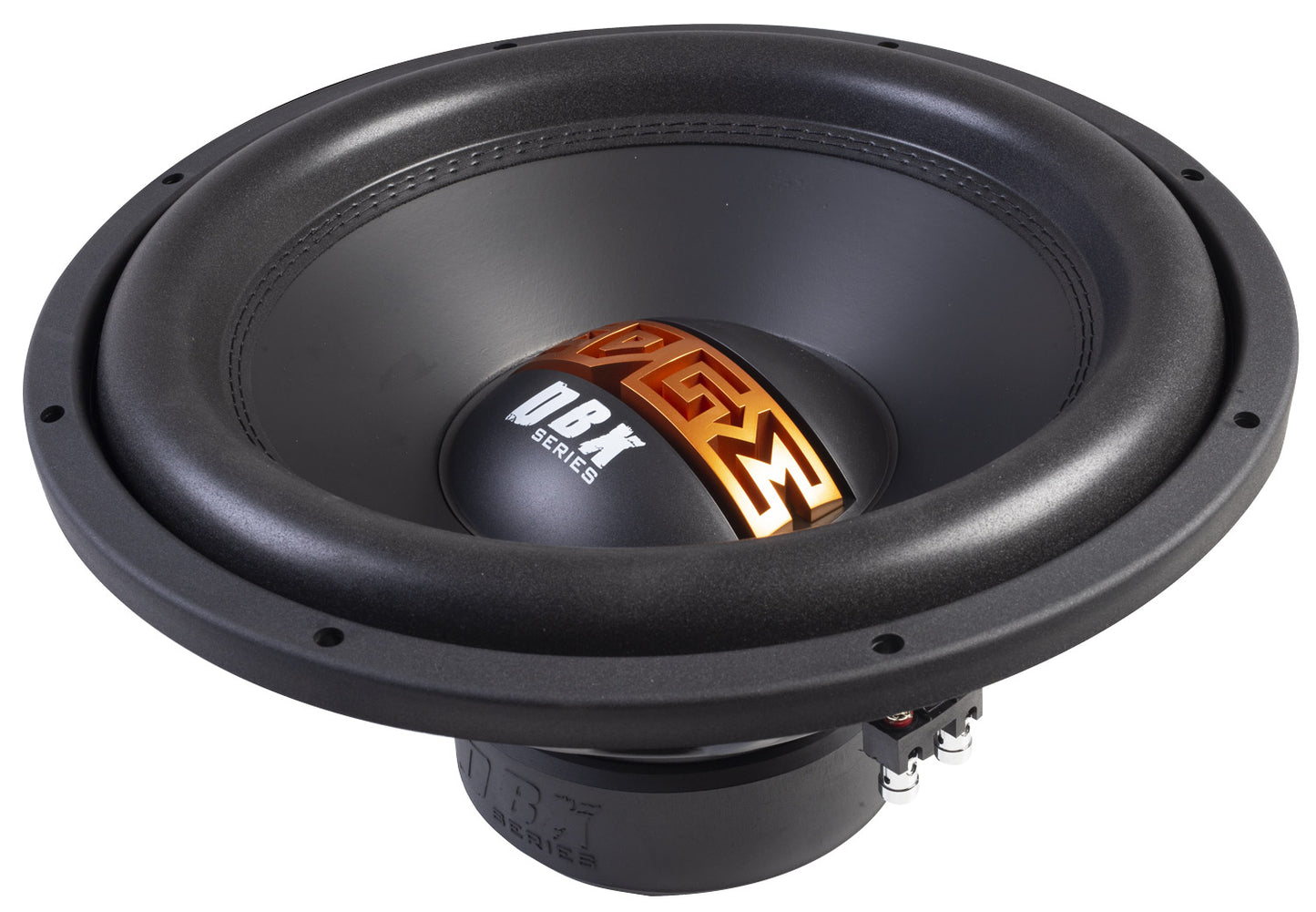

EDBX15D2-E0 | EDGE DBX Series 15 inch 1800 watts Subwoofer

This new subwoofer range features our new unique 2 piece dustcap which in included across our entire range, the 2pcs cap gives added rigidity to the cone for stronger tighter bass. This Subwoofer has a pressed steel torsion basket and double stacked high quality ferrite magnets for a competent level of motor force, paired with the motor structure we use a 2.5Ó inch voice coil and a non-pressed paper cone and high roll surround we are able to produce efficient, strong, powerful and accurate bass reproduction.

The DBX subwoofers give great you that wonderful added depth and volume off bass missing from a car sound system, tailored to give high performance at a competitive price.

Features

• Non pressed paper cone
• Wide roll foam surround
• 100 oz dual stacked magnet
• Spring loaded connectors
• Y35 ferrite magnet
• Dual 2 Ohms impedance
• Double stitched surround

Specification

• Model: EDBX15D2-E0
• Cone: Non pressed paper cone
• Surround: Big roll foam - dual stitched
• Dustcap: Custom tooled IMPP
• Voice Coil Former: 2.5" Black Aluminium
• Spider: 2 layer
• Gasket: Rubber
• Top Plate: 10mm Black anodised
• T-Yoke: 10mm Black anodised flat
• Terminal / Wire: Spring loaded connectors
• Impedance: Dual 2 Ohms
• RMS Power: 900 watts
• Peak Power: 1800 watts

TS Parameters

• Equivalent Volume - Vas: 59L

• Free Air Resonance - Fs: 33Hz
• Mechanical Factor - Qms: 5.567
• Electrical Factor - Qes: 0.897
• Total Factor - Qts: 0.772
• Moving Mass - Mms: 355g
• Compliance - Cms:   64.24μ M/N
• BI Factor - BI: 17.28 T
• Voice Coil Inductance - Le:   2.3 mH
• Diaphragm Area - Sd:   804CM²
• DC Resistance - Re:   2*1.8 Ω
• SPL: 86dB

Installation

• Magnet: 156mm x 80mm x 20mm 2pcs
• Overall Diameter: 358mm
• Mounting Depth: 188mm
