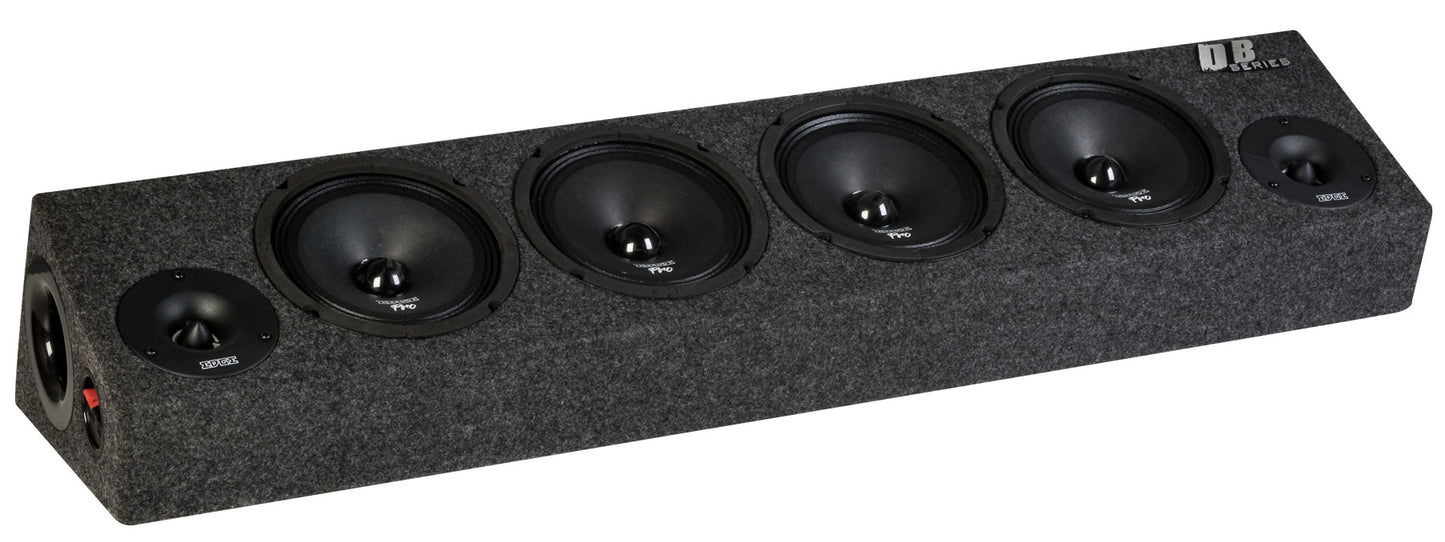

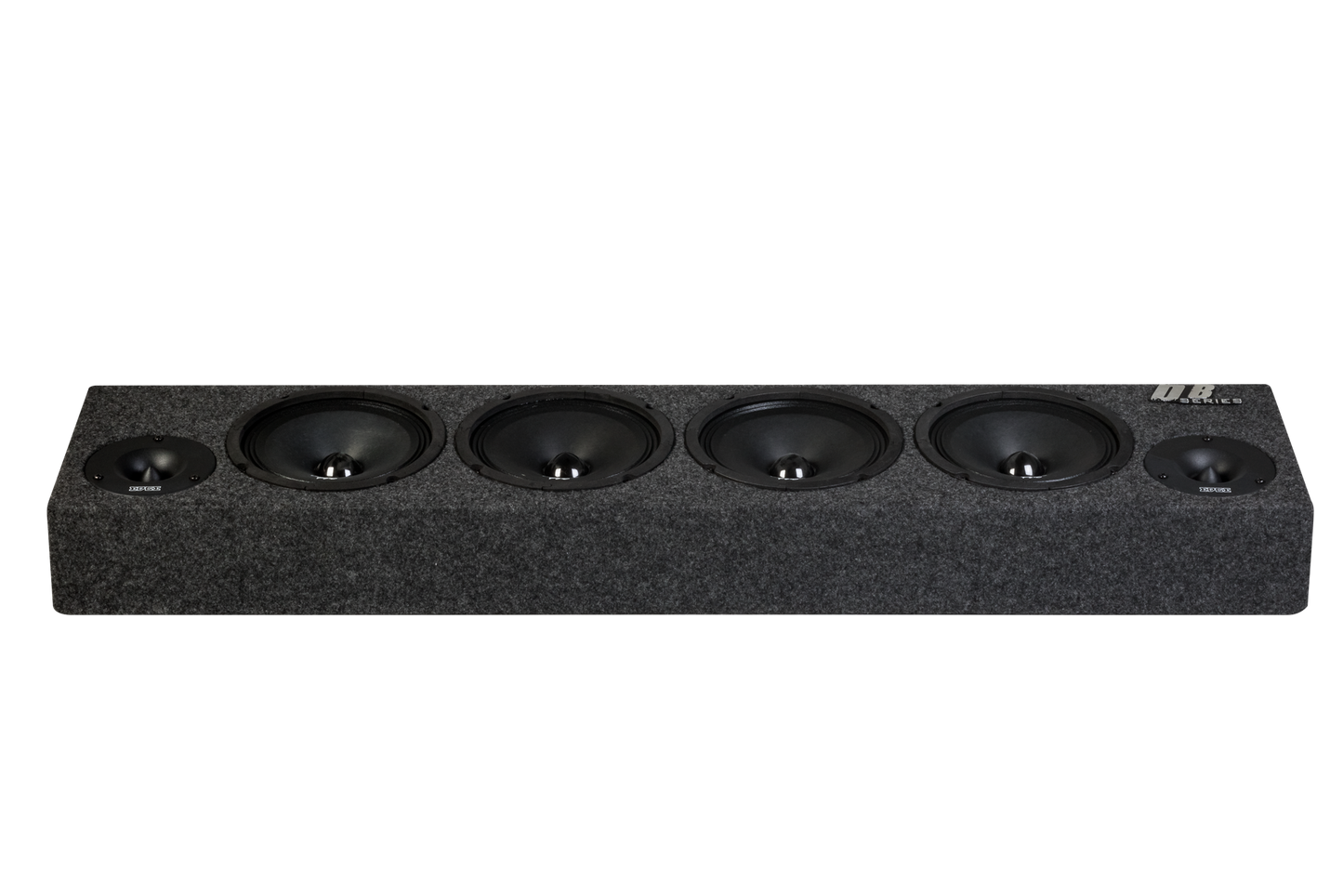

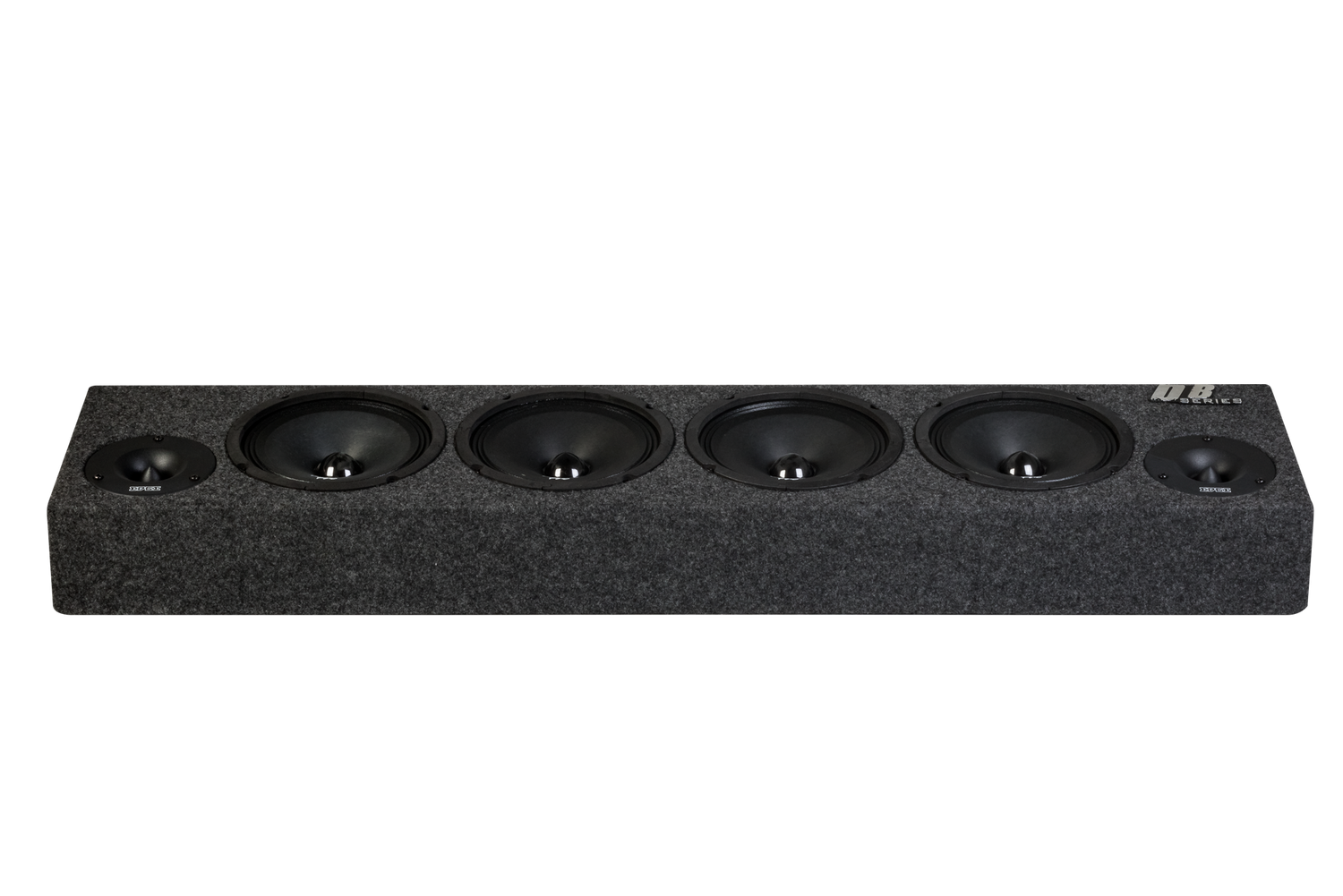

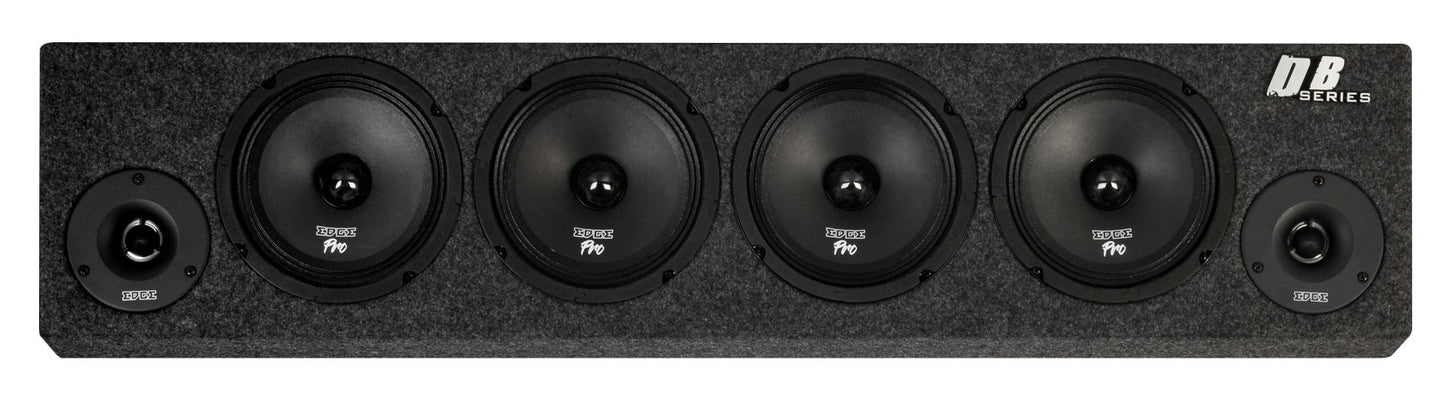

EDBPROBOX-E9 | EDGE DB Series 1520 watts Pro Audio Enclosure

Unique from EDGE Audio the DB series Pro box, a full range Pro audio solution featuring 4 Pro Midrange drivers and 2 Pro bullet tweeters.

The DB Series Pro box was developed from a special requirement in Scandinavia, this design principle then became so popular we released it to the world. The Pro box is designed with a left and a right hand side, both ported and housing terminals for stereo sound. The port is calculated to help deliver higher mid-bass response and the Quad 6.5 inch midrange and dual tweeters offer massive sound output from a small enclosure, perfect for anytime you want to be loud!

A solid MDF constructed enclosure with central bracing allows low resonance and keeps the playback clean and crystal clear.

Adding a Pro box is not for the feint of heart! When you want super loud crystal clear sound in or out of the vehicle this box delivers.

Features

• Full range pro audio enclosure
• 4 x EDBPRO6 midrange speakers
• 2 x EDPRO36BT tweeters
• Dual ported enclosure
• Dual input with 2 x 2 Ohms terminals
• 1520 watts max power

Specification

• Type: Pro Audio Enclosure
• Tweeter: EDPRO36BT
• Midrange: EDBPRO6-E9
• RMS Power: 760 watts
• Peak Power: 1520 watts
• Frequency Response: 150Hz - 20kHz
• Impedance: Dual 2 Ohms
• Recommended Amplifier: EDA350.2

Installation

• Dimensions (H x W x D): 160mm x 900mm x 248mm (6.3" x 35.4" x 9.8")

Downloads

• EDGE 2024 Catalogue
