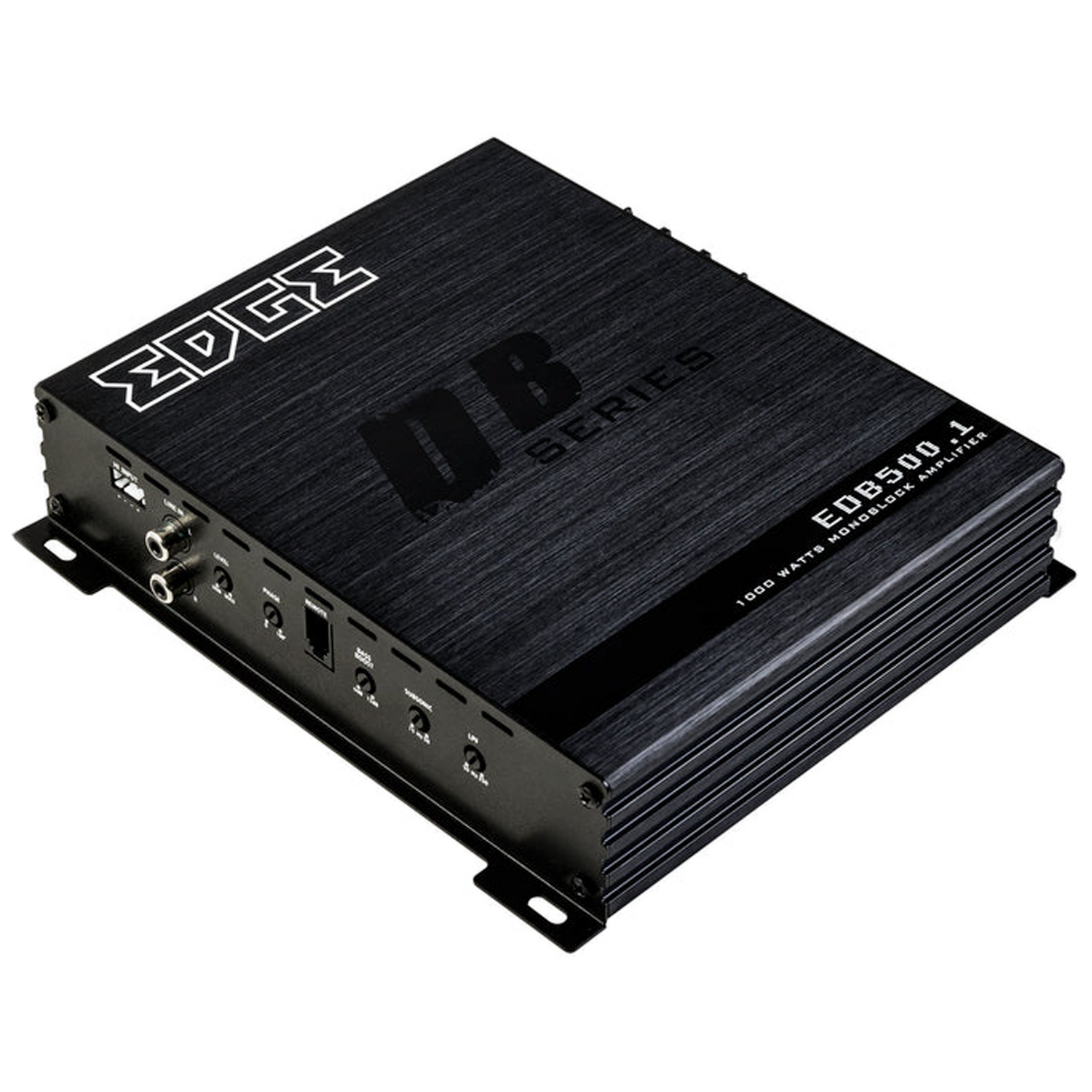

EDB500.1-E9 | EDGE DB Series 1000 watts Monoblock Amplifier

Introducing the DB series amplifiers.

A range of entry level amps to be paired to power the range of speakers and
subwoofers featured in the DB series.

Our DB Series amps feature Class D topology, this means they more efficiently
produce power and can be manufactured in a compact design for easier installation.

Available in single channel and four channel models the amp range features active
crossovers, bass boosts and remote gain controls for accurate amp configuration.
When power and space are important, utilise the DB series amps to power any DB
series speaker, subwoofer and tweeter.

Features

• Built in active crossovers
• Bass boost circuit
• Extruded Aluminium heatsink
• Efficient class D topology

Specification

• Type: Monoblock
• RMS @ 4 Ohms: 1 x 200 watts
• RMS @ 2 Ohms: 1 x 350 watts
• RMS @ 1 Ohms: 1 x 500 watts
• Maximum Power: 1000 watts
• Frequency Response: 15Hz - 250Hz
• Crossover Type: LP / Subsonic
• Crossover Range: 15Hz - 250Hz
• Topology: Class D

Installation

• Dimensions (H x W X D): 46mm x 185mm x 205mm (1.8" x 7.3" x 8.1")
