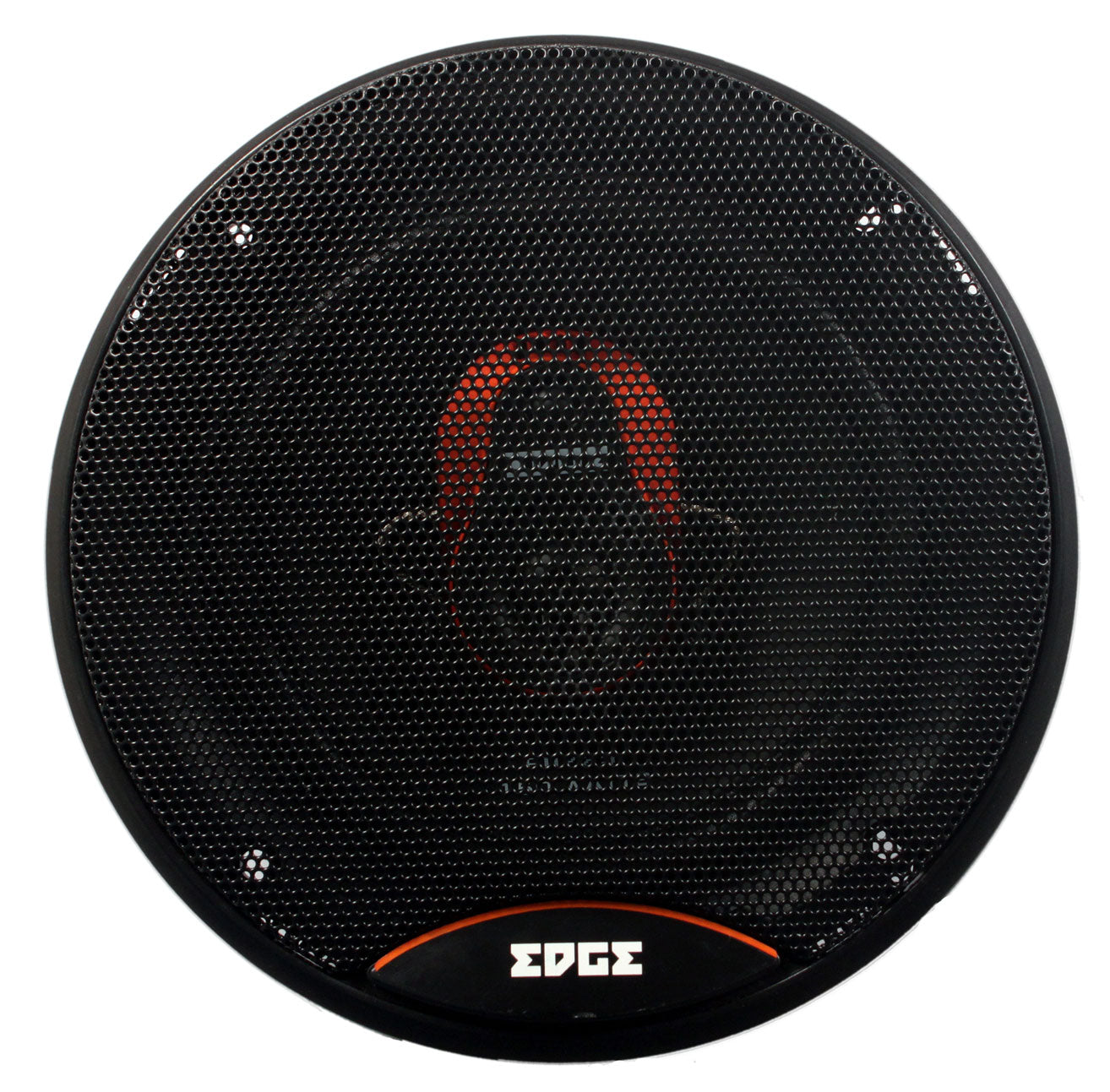

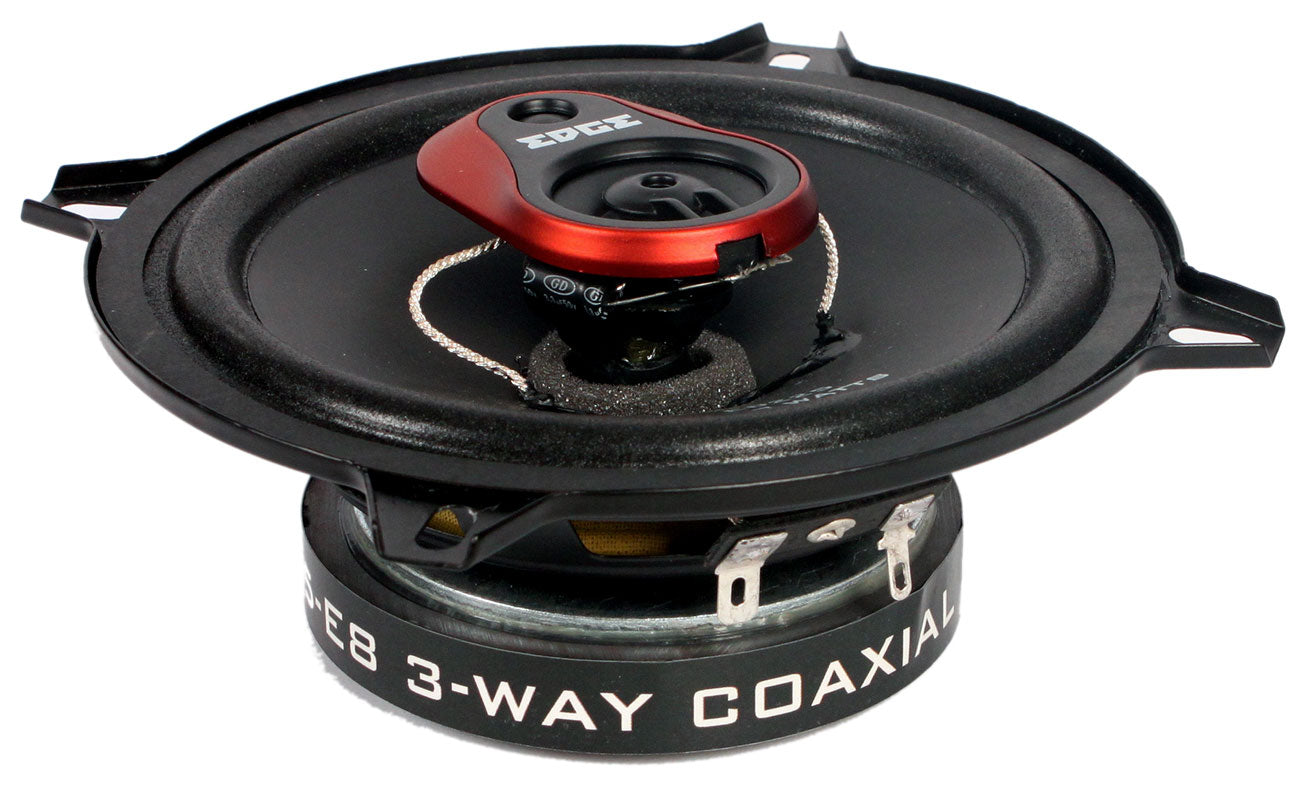

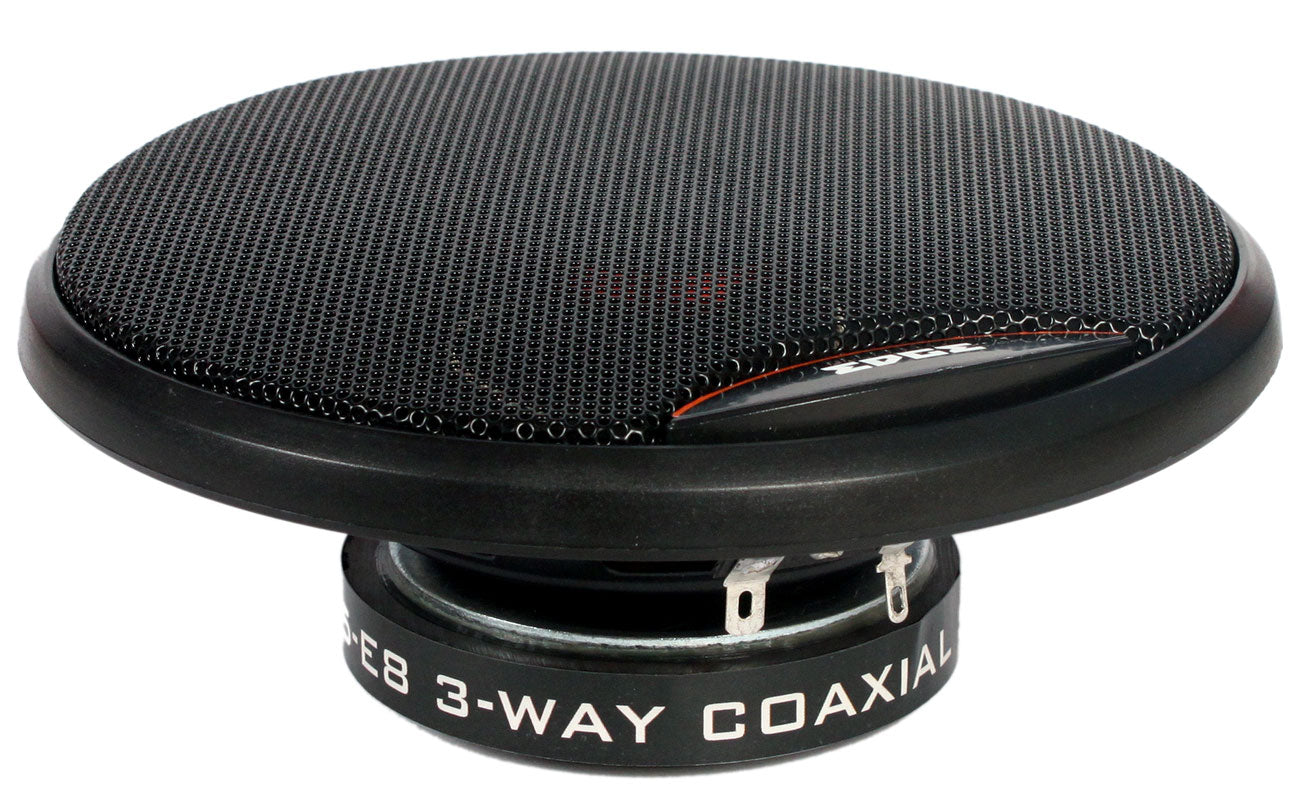

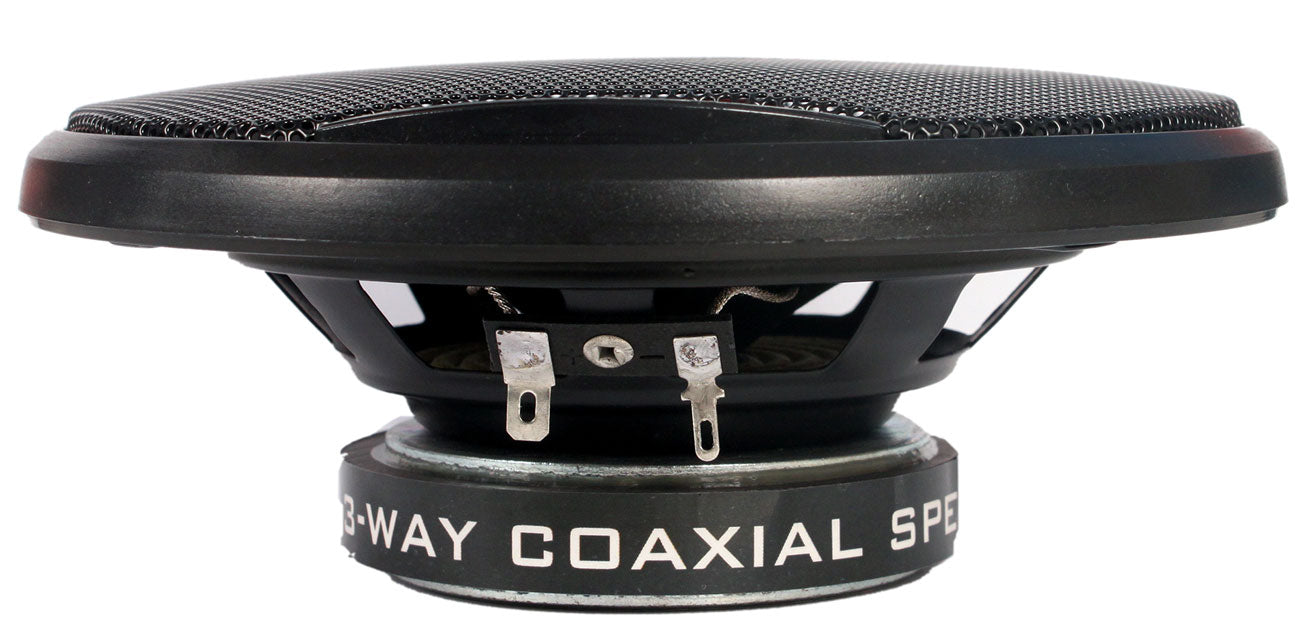

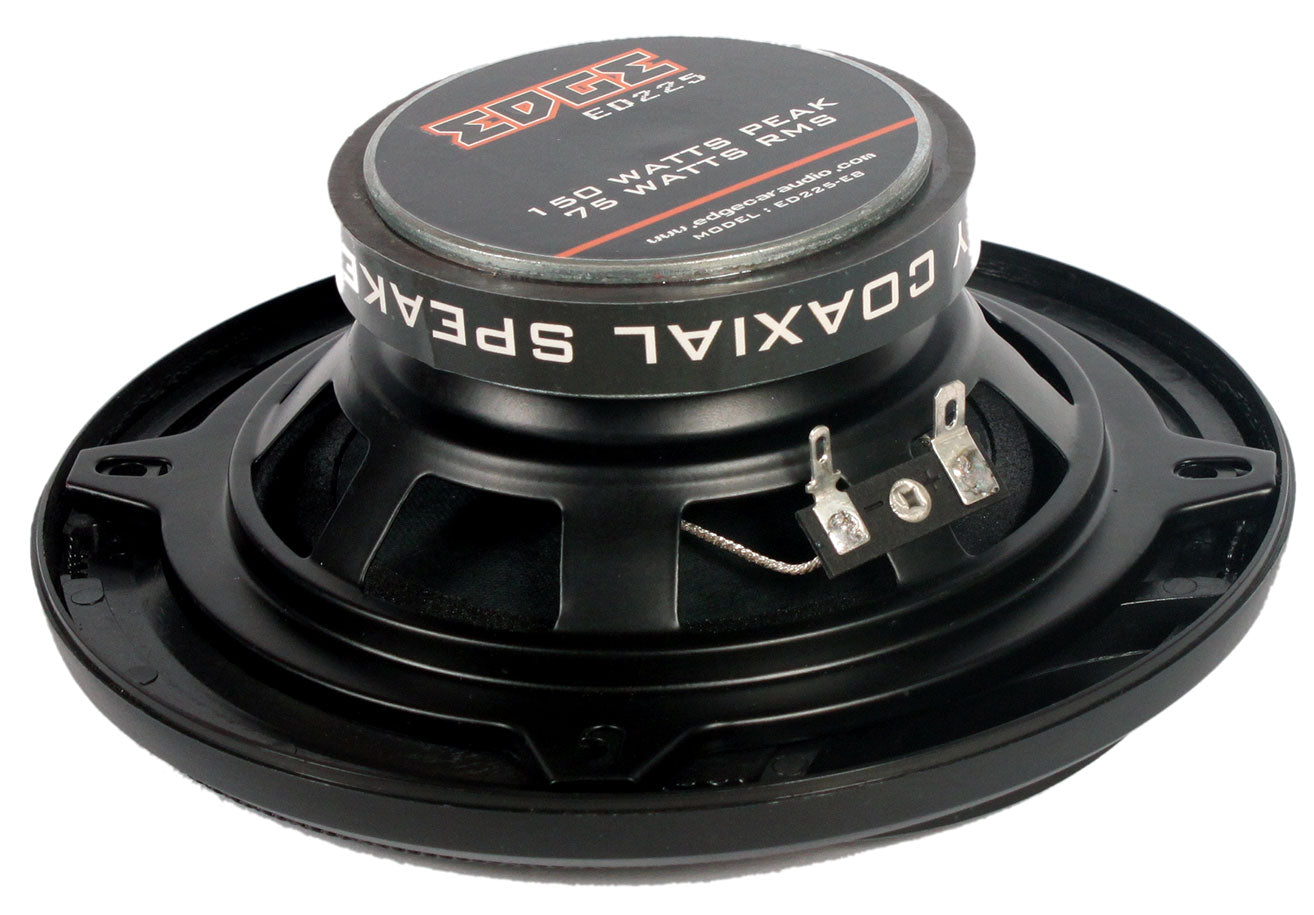

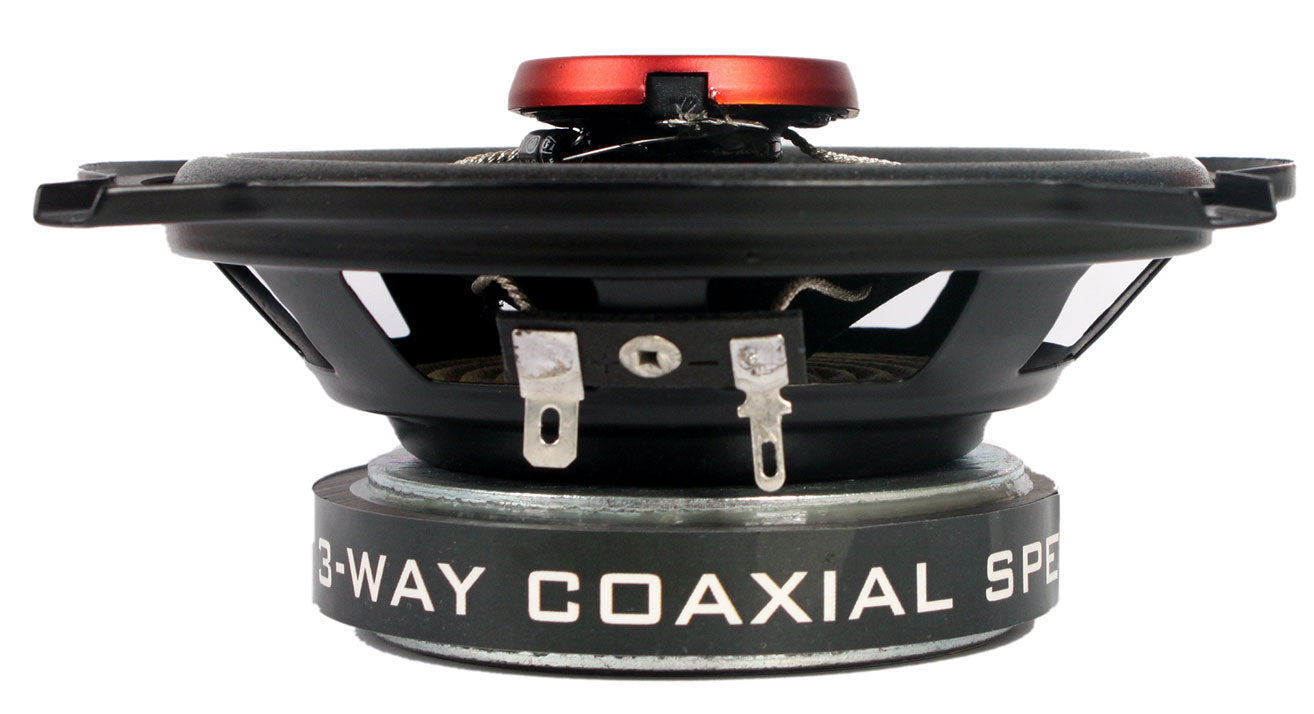

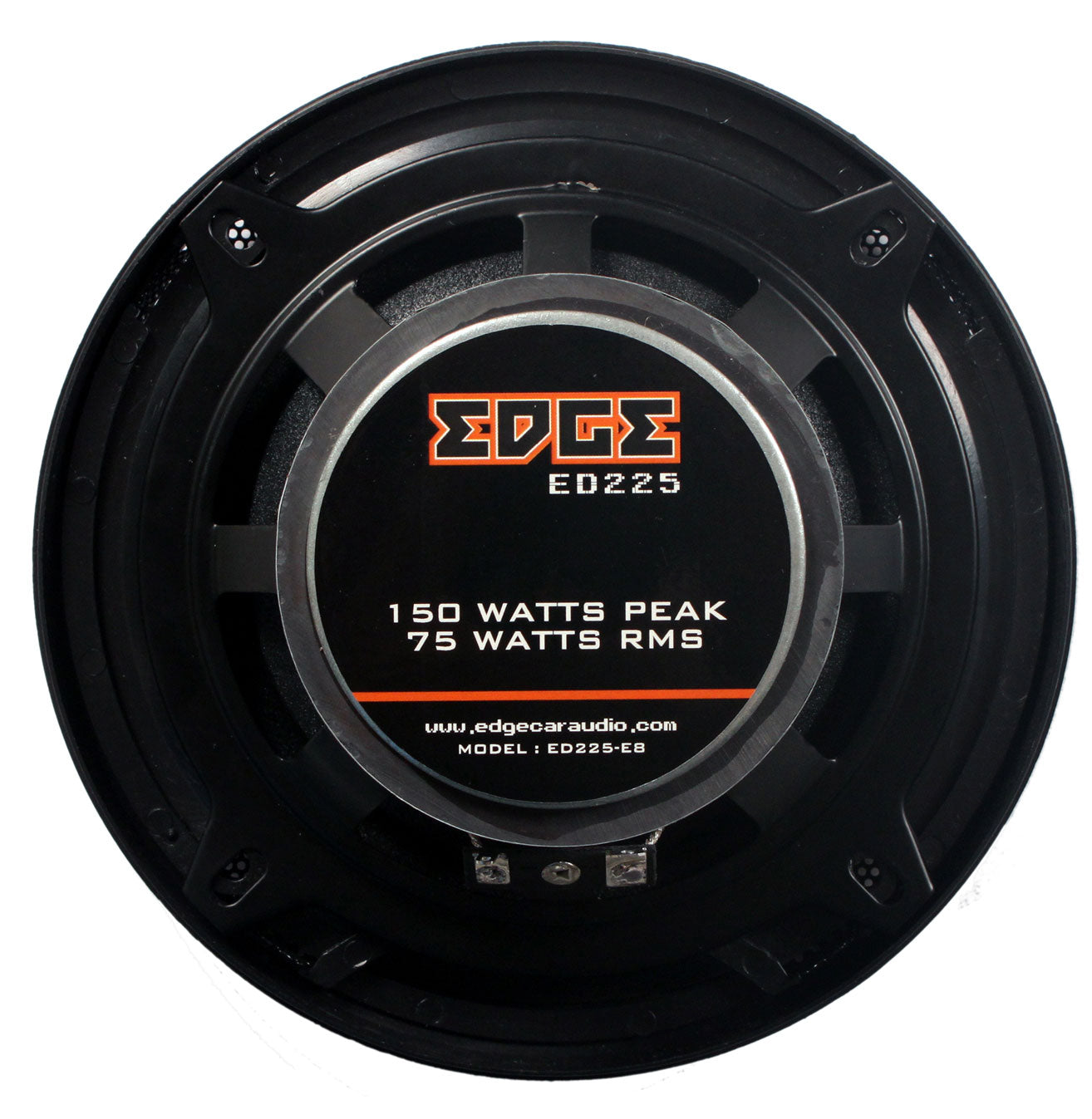

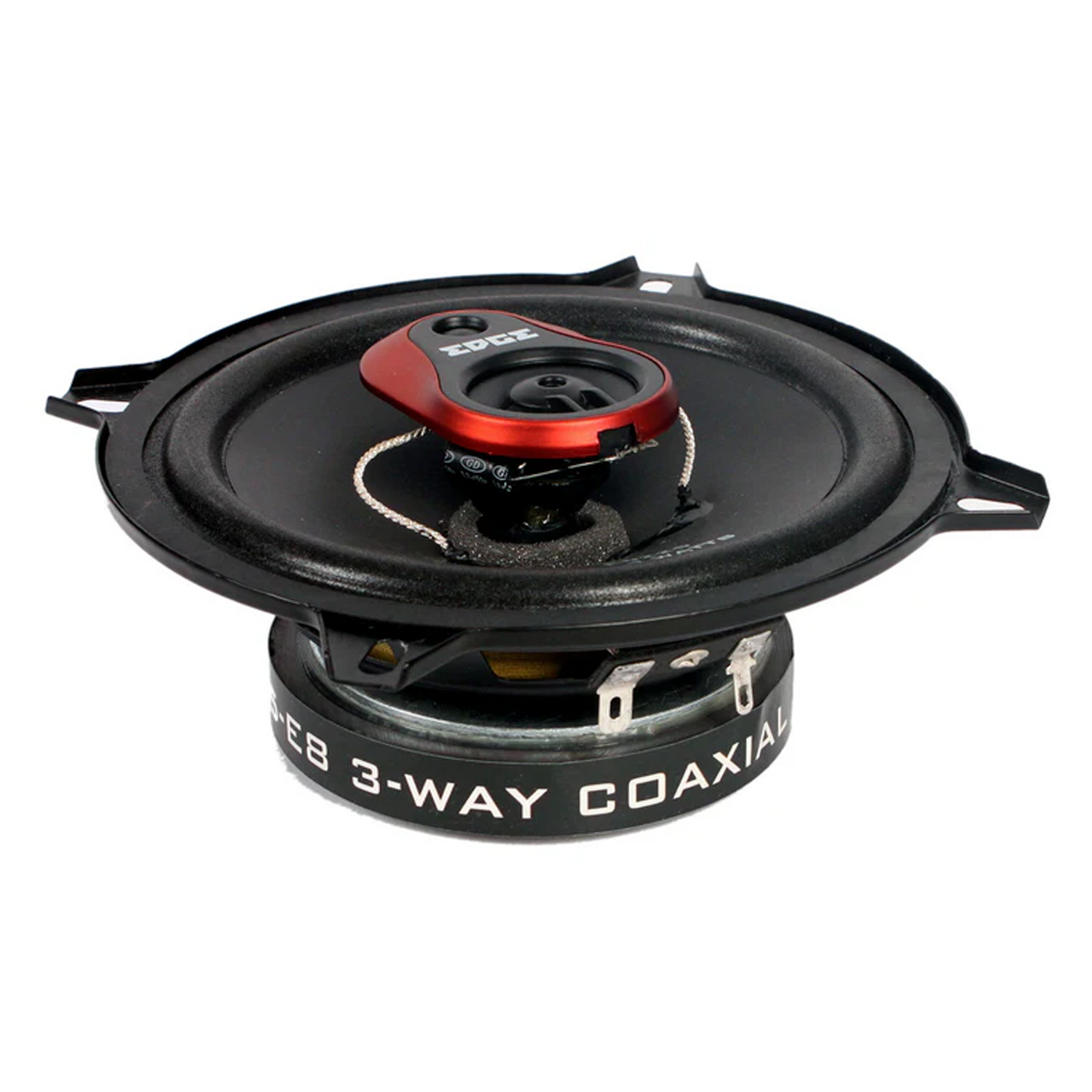

ED225-E8 | EDGE DB Series 5.25 inch 150 watts Coaxial Speakers - Pair

Features

• 3 way coaxial speakers
• PEI tweeter element
• Composite woofer cone
• Spade terminal
• Multi fit design allows fitment in most vehicles

Specification

• Model: ED225-E8
• Type: Coaxial
• Configuration: 3 way
• Speaker Size: 5.25" (130mm)
• RMS Power: 75 watts
• Peak Power: 150 watts
• Frequency Response: 80Hz - 20kHz
• Impedance: 4 Ohms
• Recommended Amplifier: EDA100.4-E7

Installation

• Mounting Depth: 2" (50mm)
• Mounting Diameter: 4.6" (117mm)
