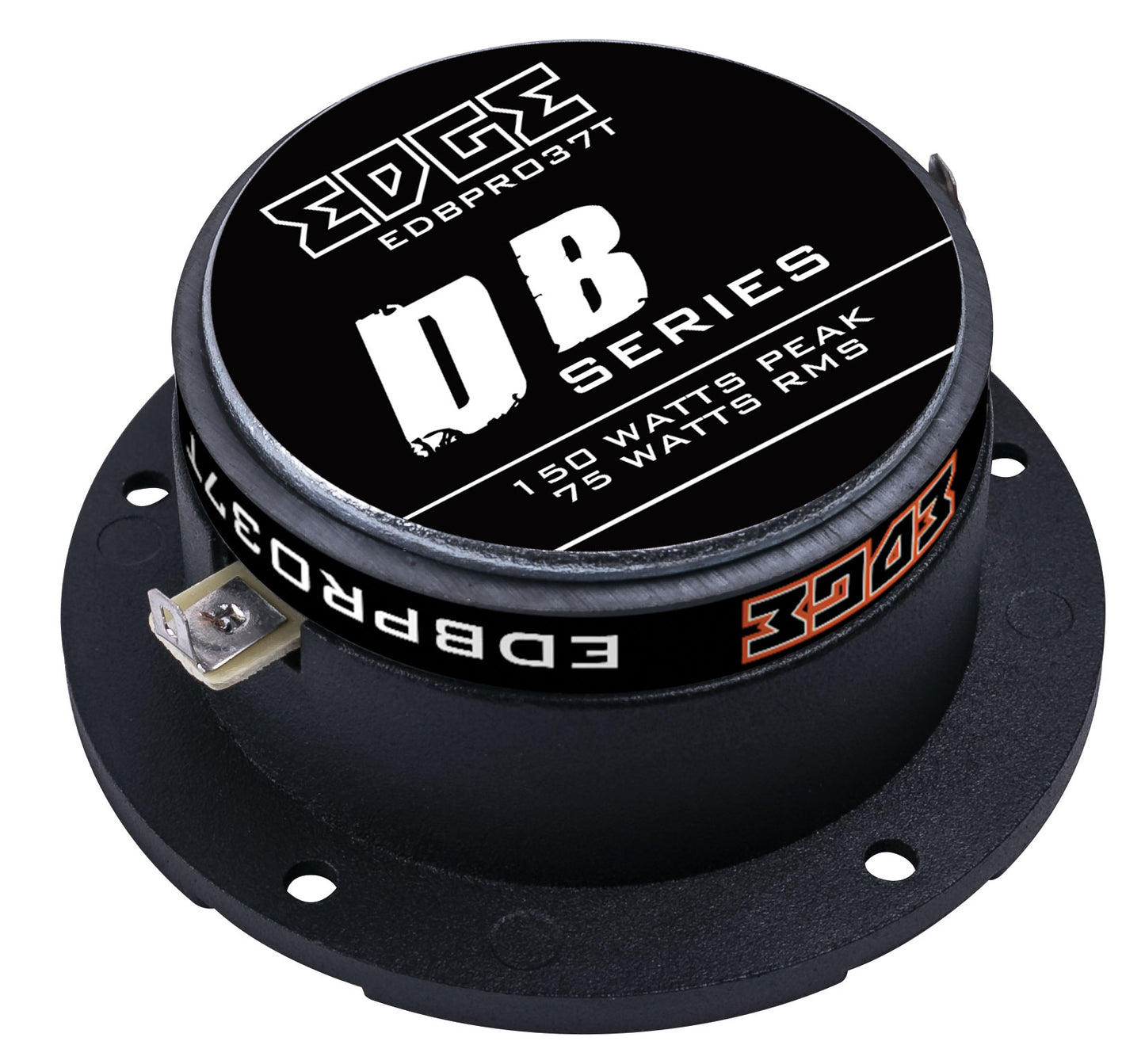

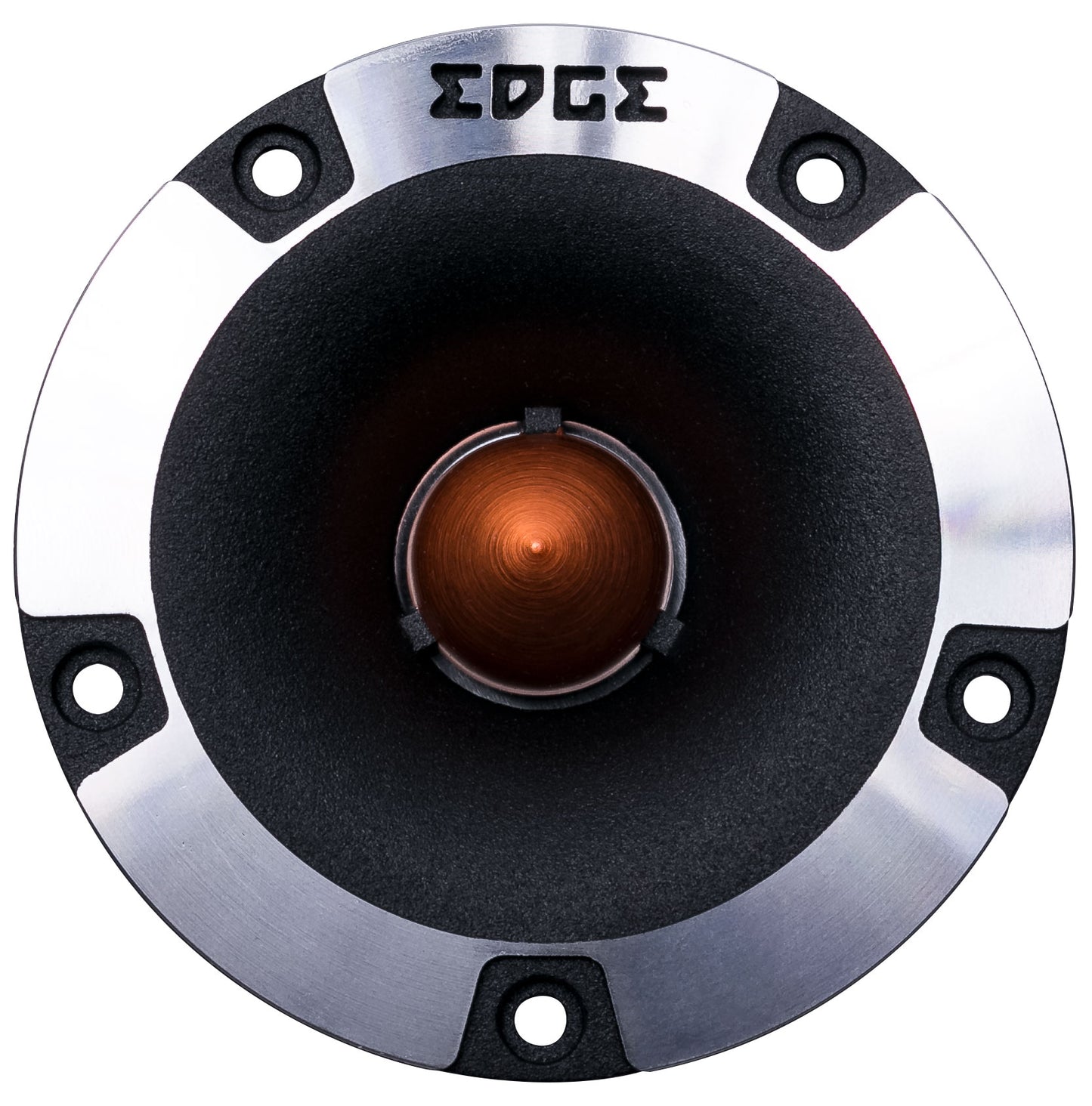

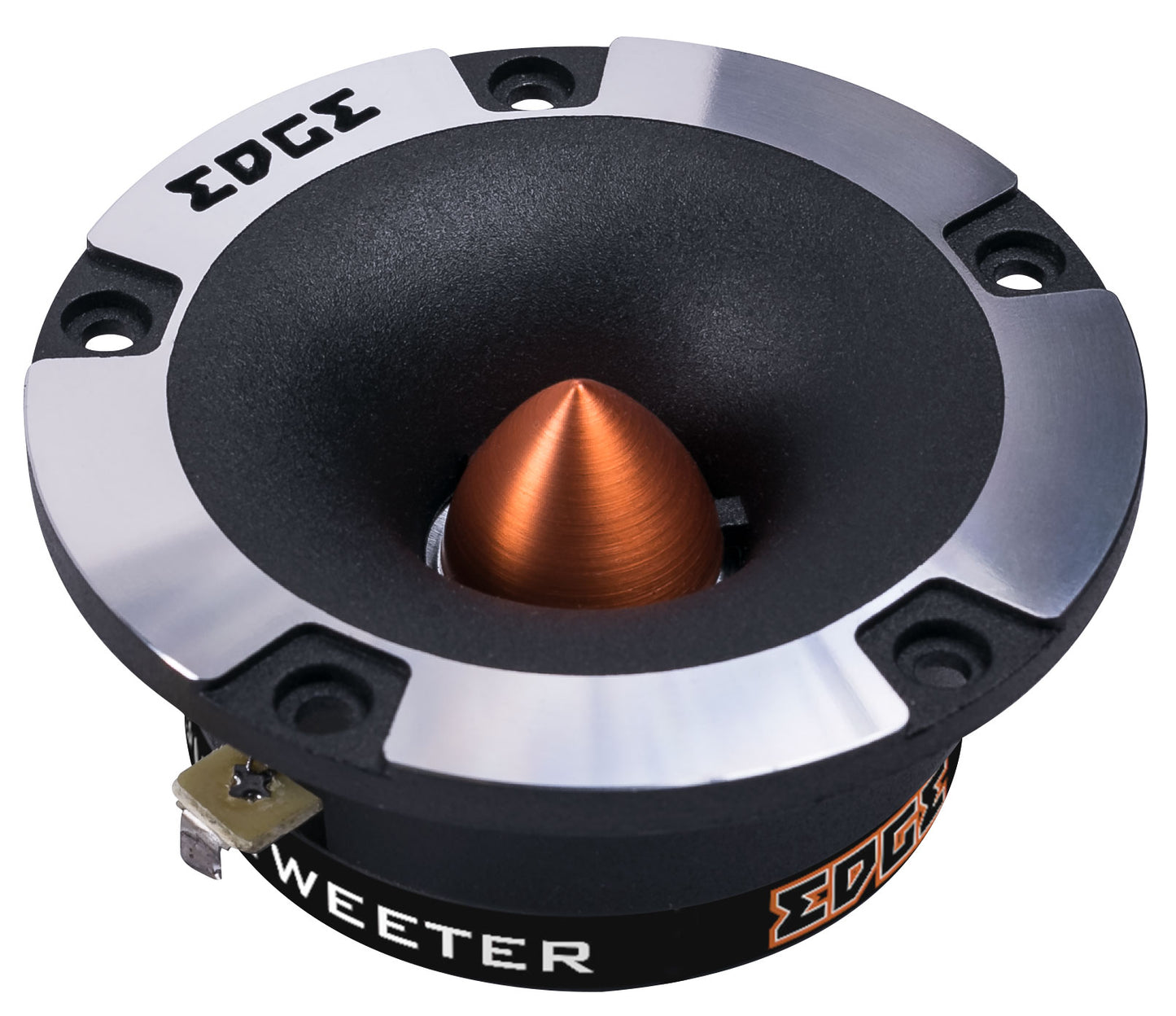

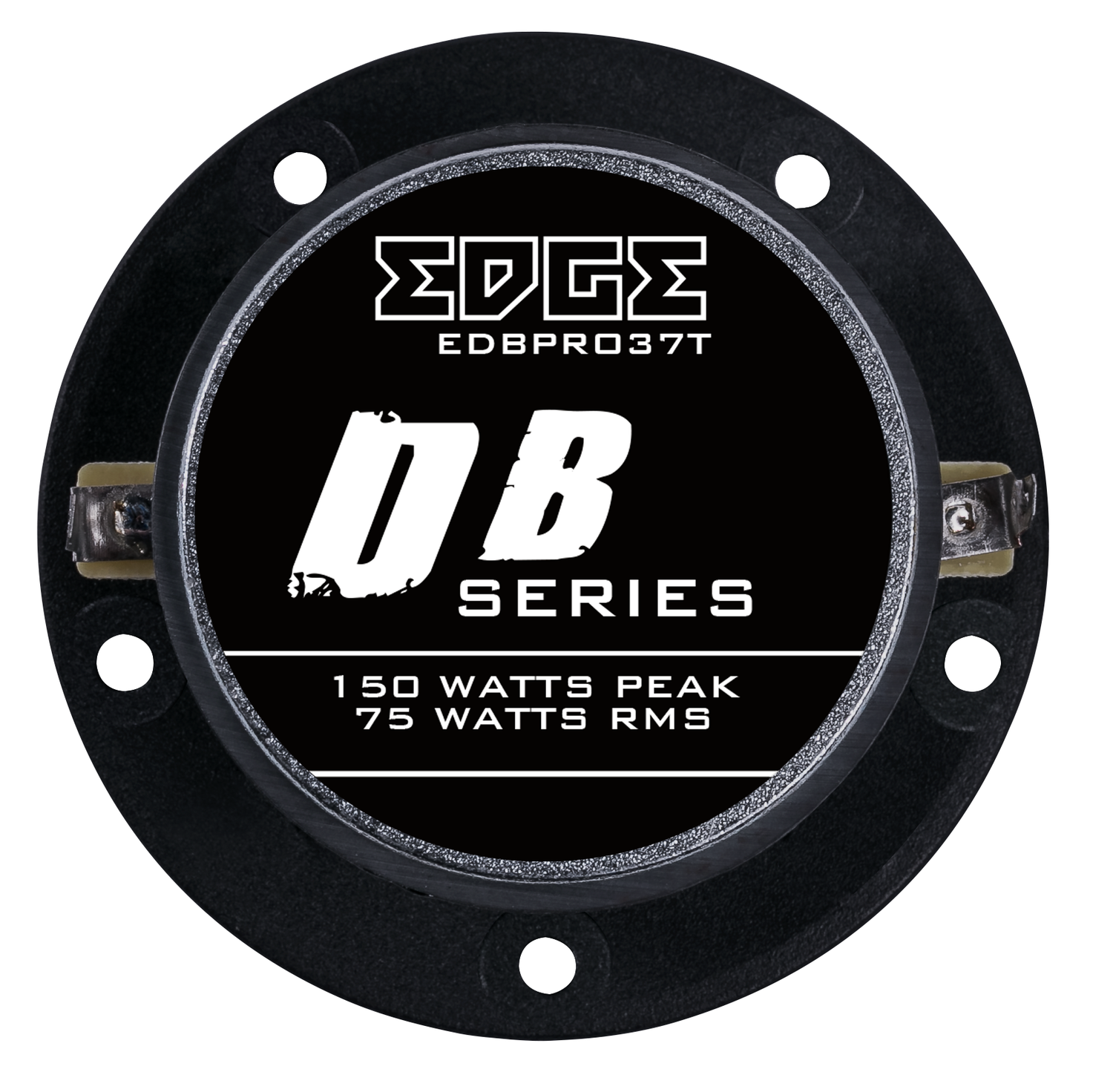

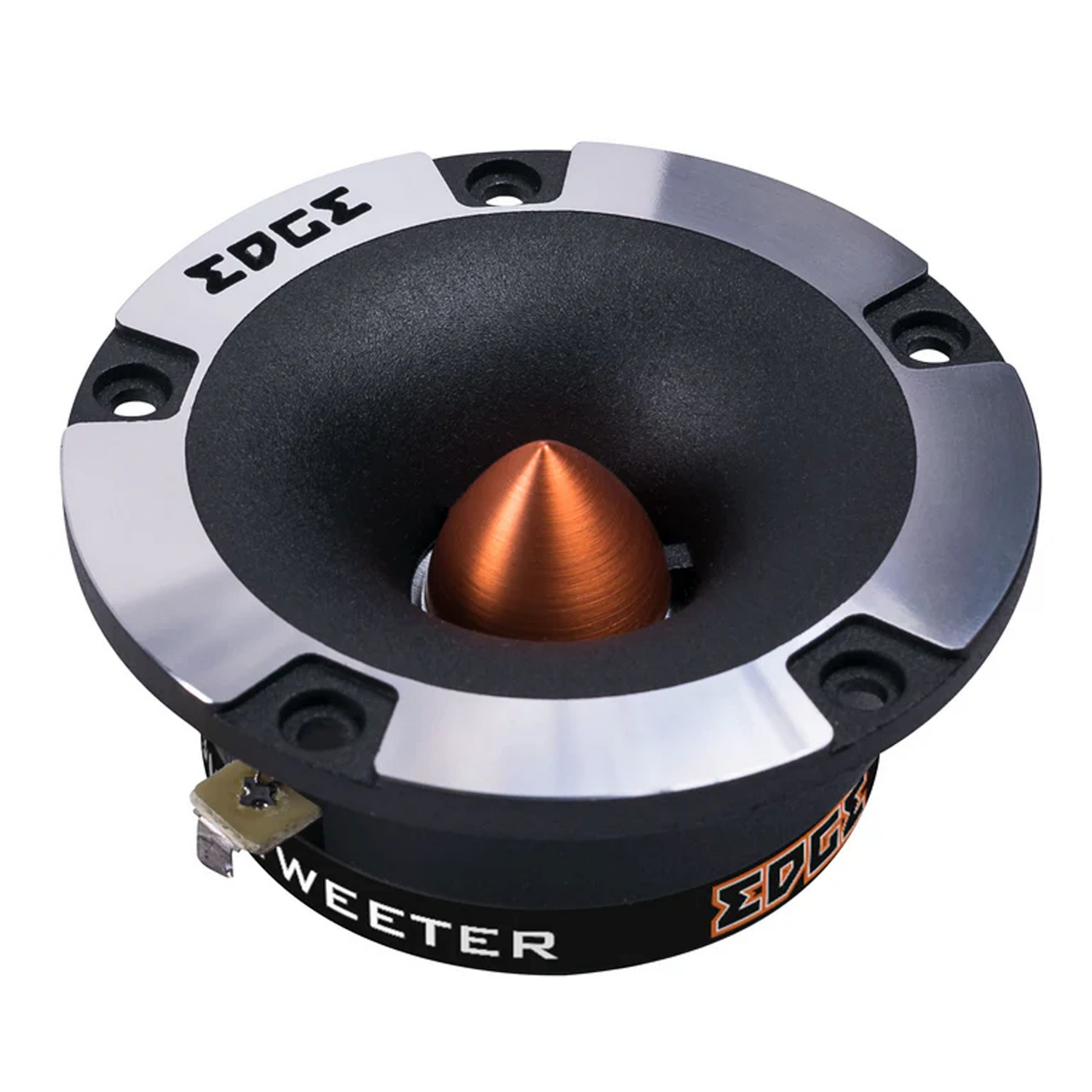

EDBPRO37T-E0 | EDGE DB Series 3.7 inch Pro Audio Tweeter 150 watts - Pair

The first introduction into Pro audio tweeters is in the DB series where we feature 2 Bullet tweeters, high frequencies at high volume.

The DB series Pro speakers are Ferrite magnet based drivers with Aluminium diaphragms for high volume, high frequency sound. The Horn designs allow a wide sound dispersion and a high level of efficiency meaning the speaker will be loud even at its minimum power input.

Its cast Aluminium housing ensures a robust solid functional design with no added resonance to distort the sound and a high quality feel.

Our DB series bullet tweeters have been engineered to match our range of Pro audio speakers, so when paired together you get a full range, high volume Pro audio sound.

Features

• Aluminium diaphragm
• Cast Aluminium flange
• Spade terminal
• High sensitivity

Specification

• Type: Pro Audio Tweeter
• Configuration: 1 way
• Speaker Size: 3.7" (95mm)
• RMS Power: 75 watts
• Peak Power: 150 watts
• Frequency Response: 2kHz - 20kHz
• Sensitivity: 102dB
• Impedance: 4 Ohms
• Recommended Amplifier: EDB75.4-E9

Installation

• Mounting Depth: 1.1" (28mm)
• Mounting Diameter: 2.9" (73mm)

Downloads

• EDGE 2024 Catalogue
