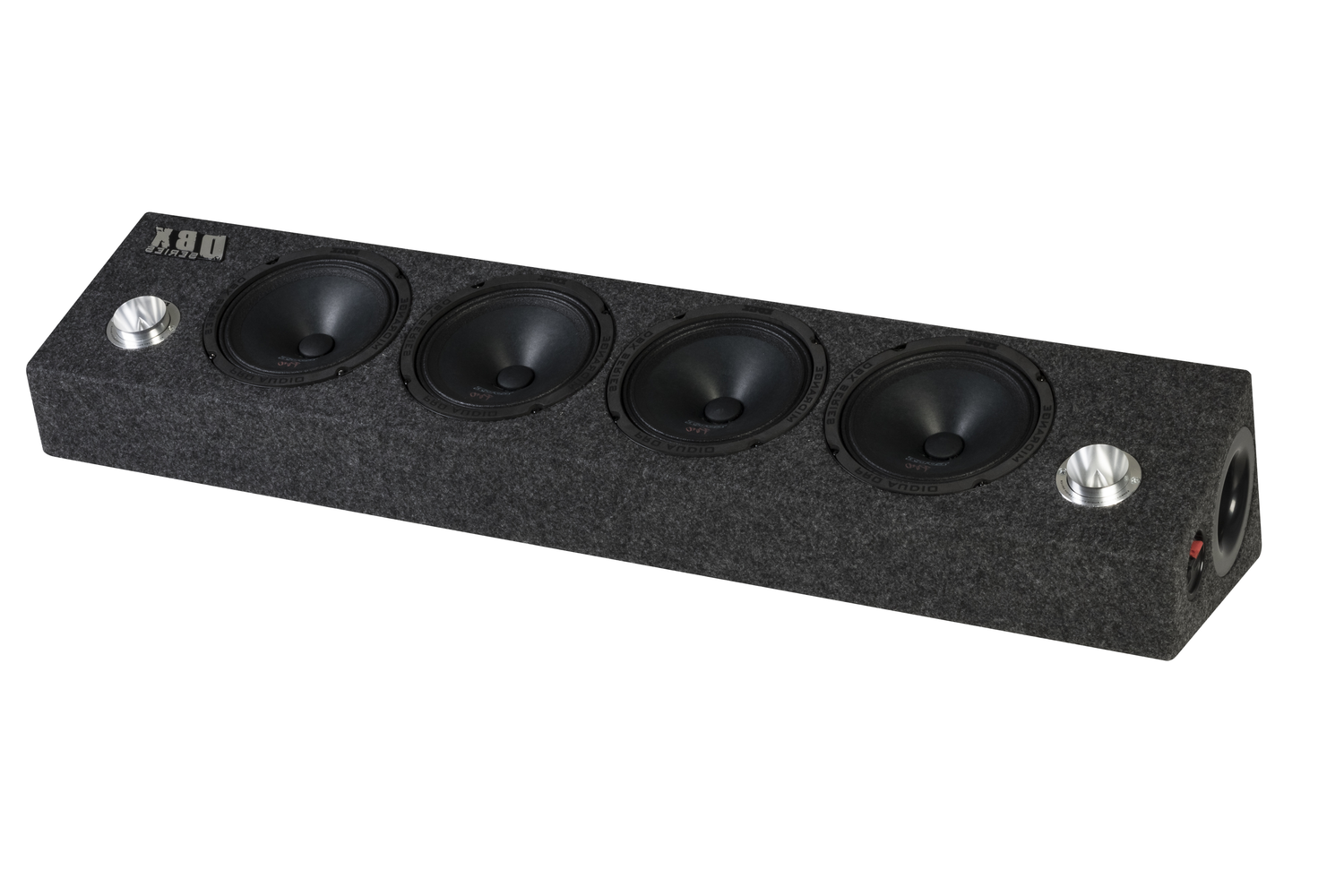

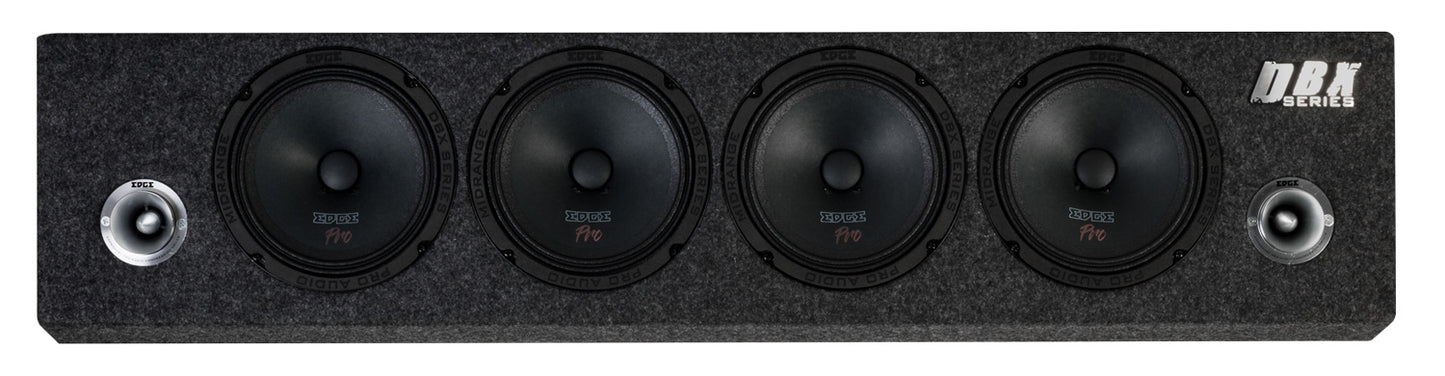

EDBXPROBOX-E9 | EDGE DBX Series 1600 watts Pro Audio Enclosure

Regular price £249.99 GBP
Regular price Sale price £249.99 GBP
Tax included. Shipping calculated at checkout.

As an expansion of the DB Series Pro box this improved model features the DBX
series 6.5 inch mids.


Taking the design of the Pro box we had already developed, we utilised this to add
the DBX Series ferrite midrange speaker alongside a compression driver for the
high frequency reproduction.


Much like the previous model, this Pro box is designed with left and right
terminals for stereo sound and ported for increased mid-bass reproduction.


The addition of the Pro box gives full range stereo sound at high volume to any
system, brilliant for in vehicle and out of vehicle applications.

Features

  • Full range pro audio enclosure
  • 4 x EDBPRO6 midrange speakers
  • 2 x EDPRO23ST tweeters
  • Dual ported enclosure
  • Dual input with 2 x 2 Ohms terminals
  • 1600 watts max power
Specification
  • Type: Pro Audio Enclosure
  • Tweeter: EDPRO23ST
  • Midrange: EDBXPRO6
  • RMS Power: 800 watts
  • Peak Power: 1600 watts
  • Frequency Response: 150Hz - 20kHz
  • Impedance: Dual 2 Ohms
  • Recommended Amplifier: EDA350.2
Installation
  • Dimensions (H x W x D): 160mm x 900mm x 248mm (6.3" x 35.4" x 9.8")
