EDBX2200.1D-E4 | EDGE DBX Series Monoblock 4400 watts Amplifier

EDGE Introduces “The Big E” range of brand new Class D monoblock amplfiers to the DBX series.

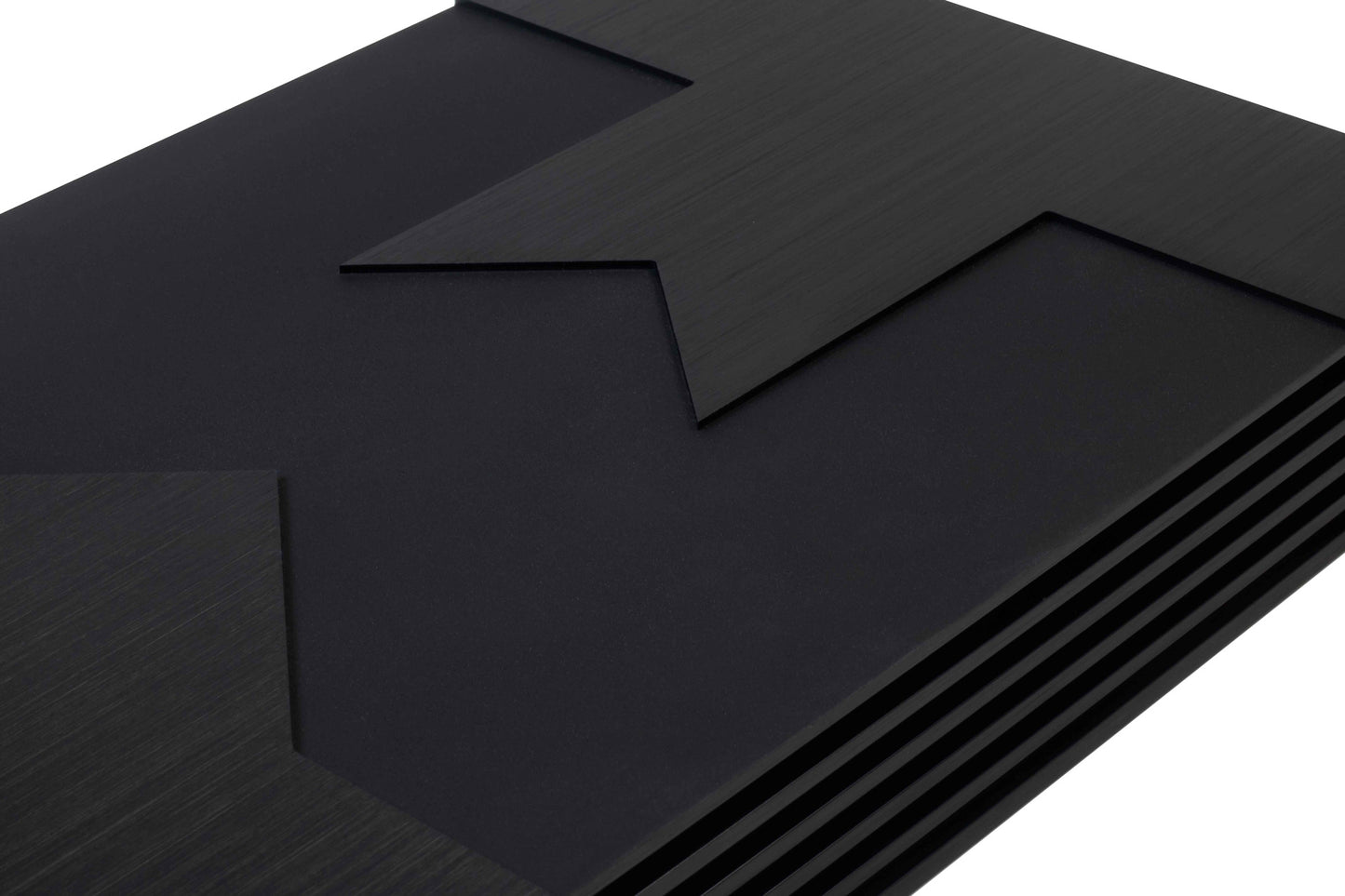

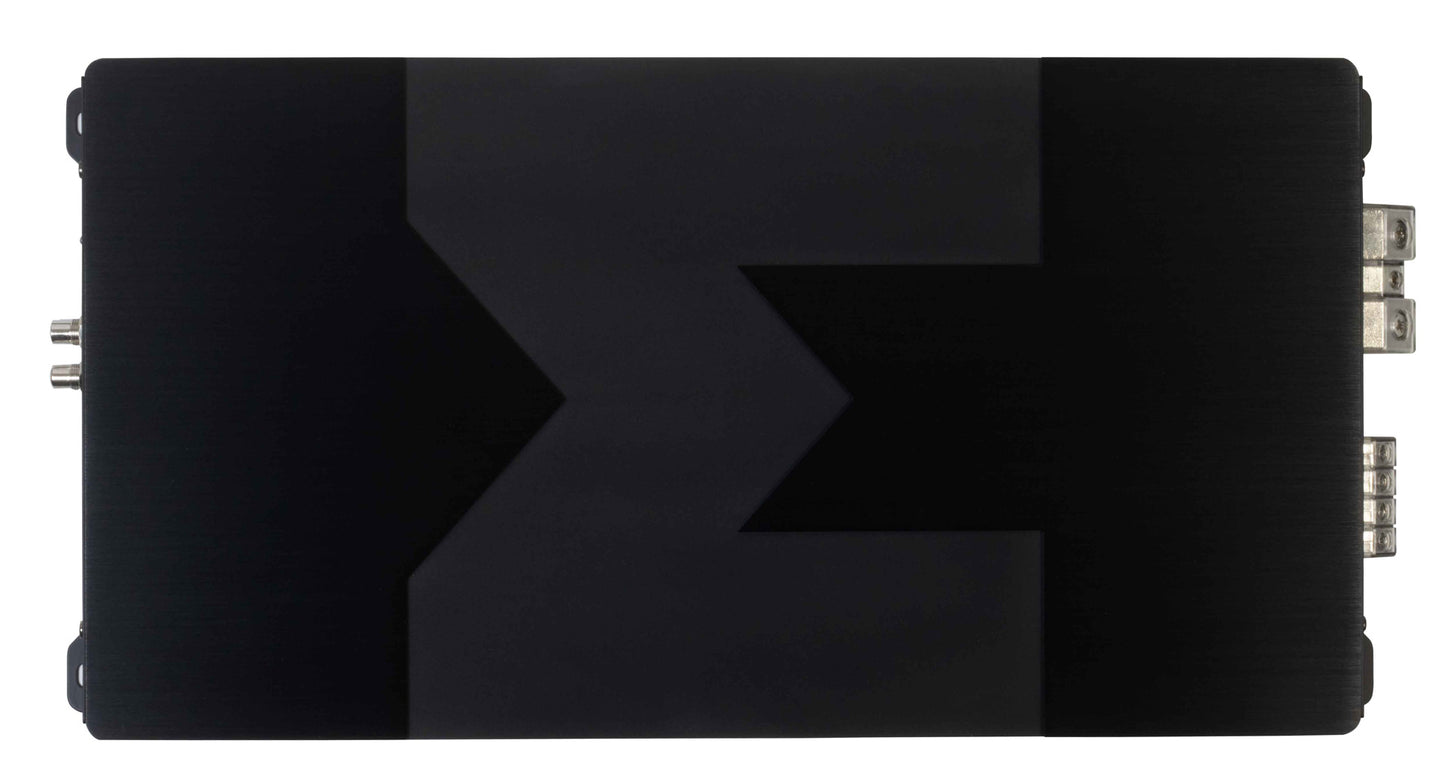

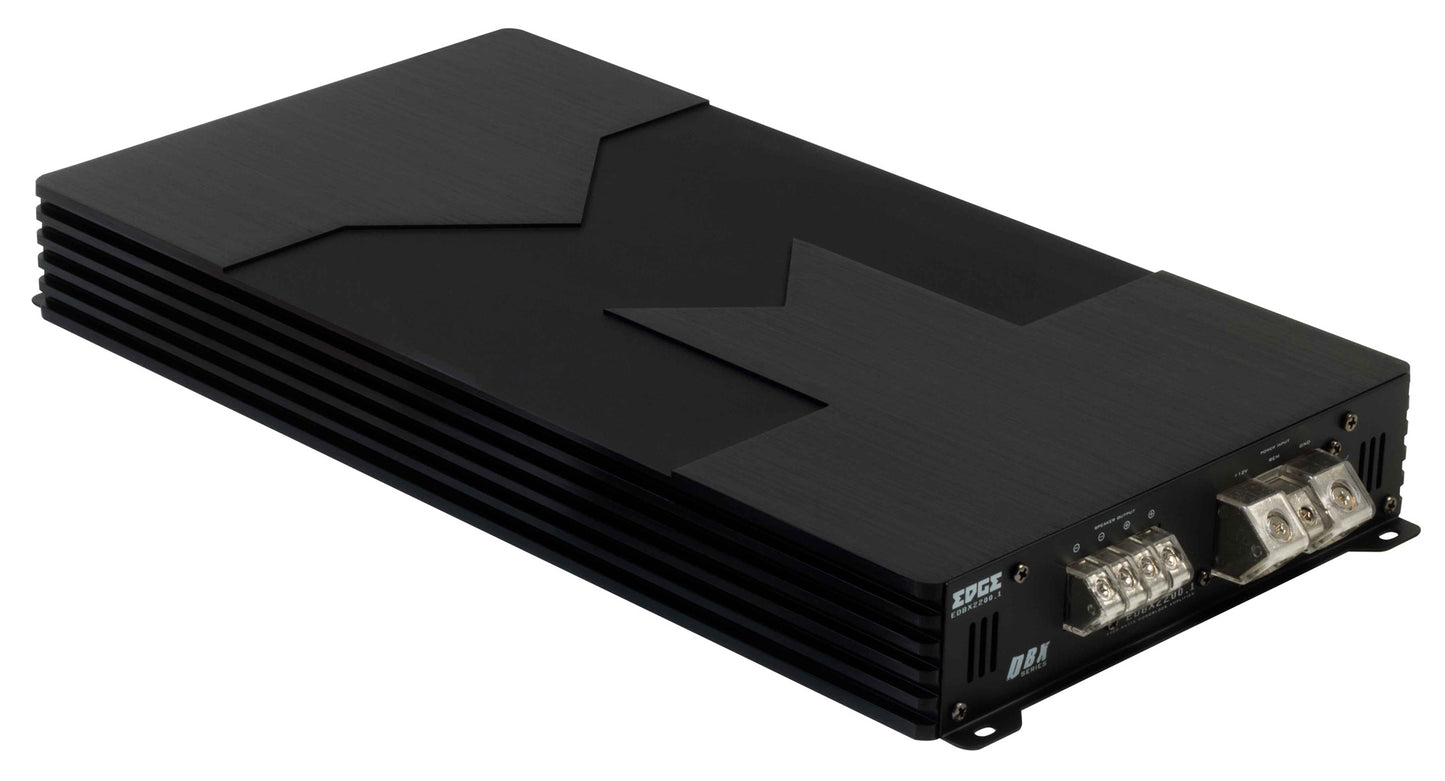

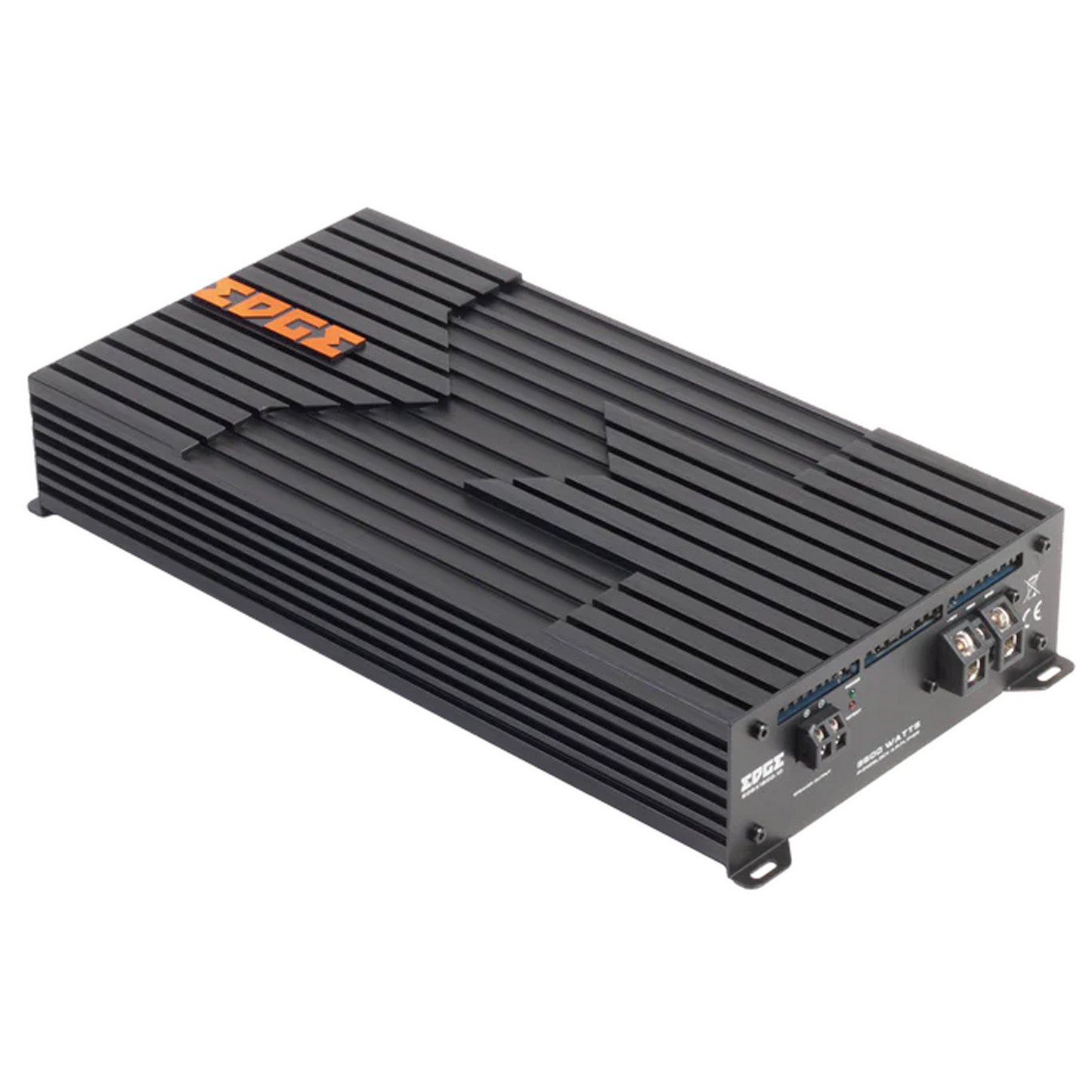

Our unique designed “Big E” heatsink has a high quality extruded Aluminium chassis with thick side fins for heat dissipation and our signature E engraved into the top for a subtle but very unique design.

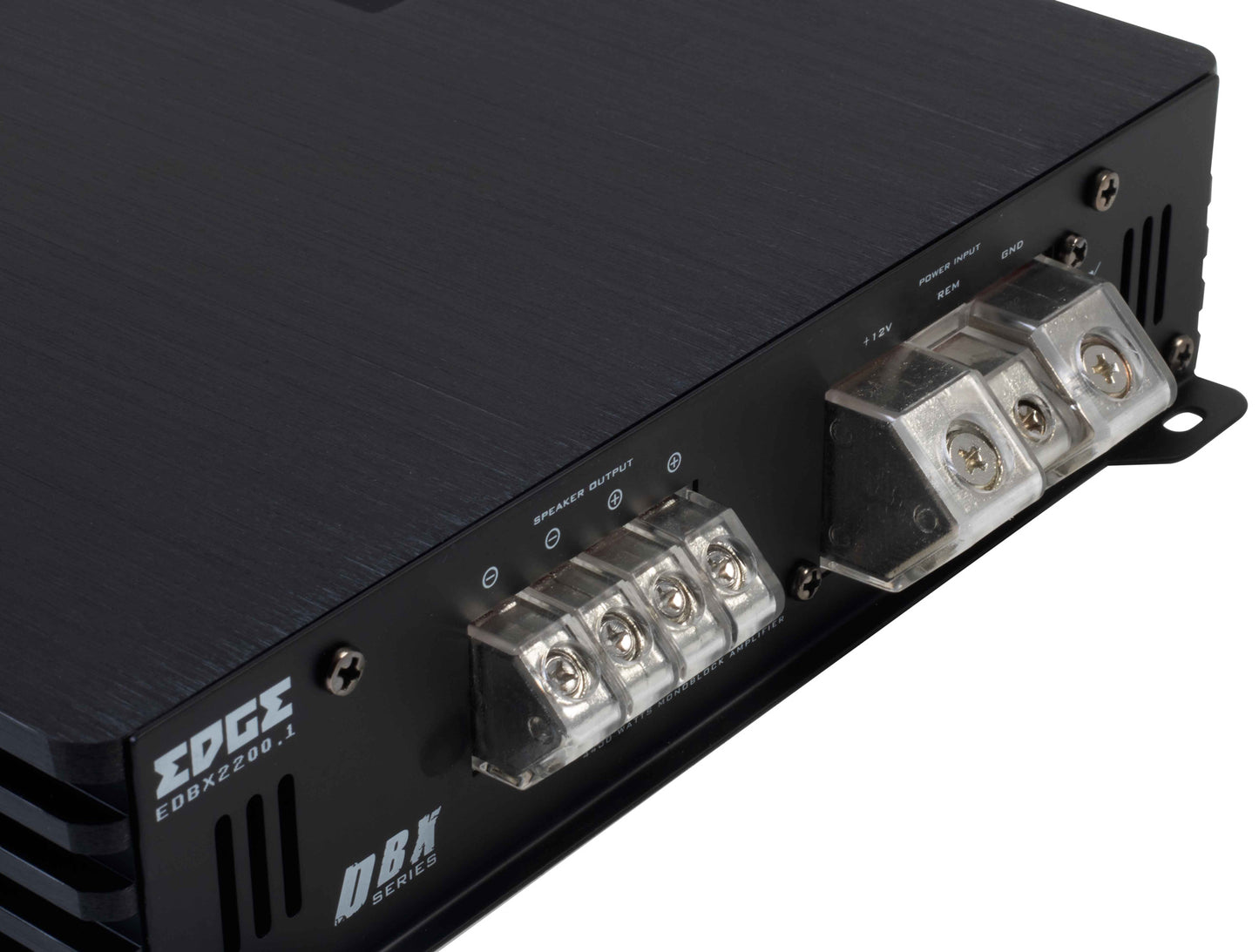

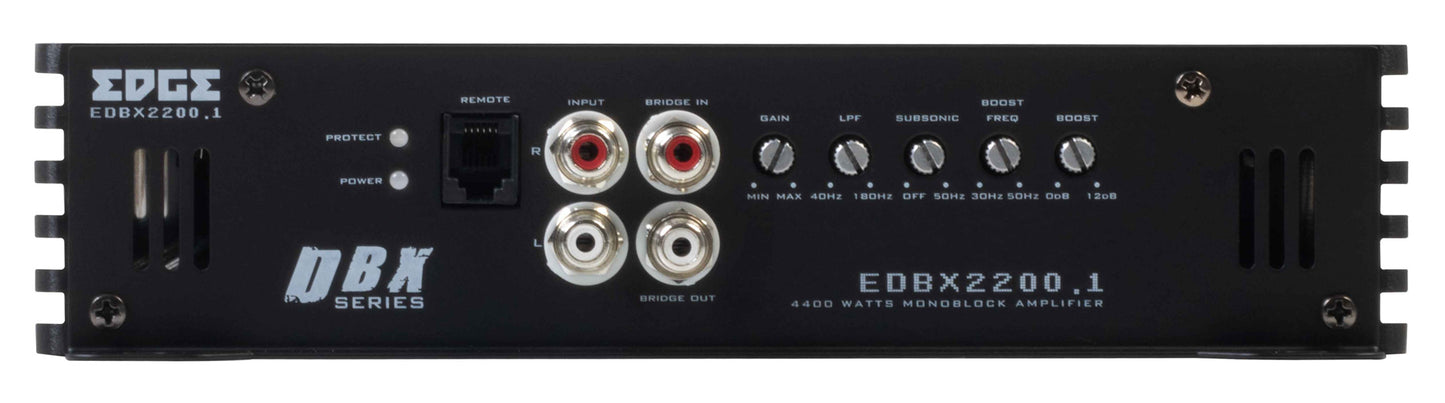

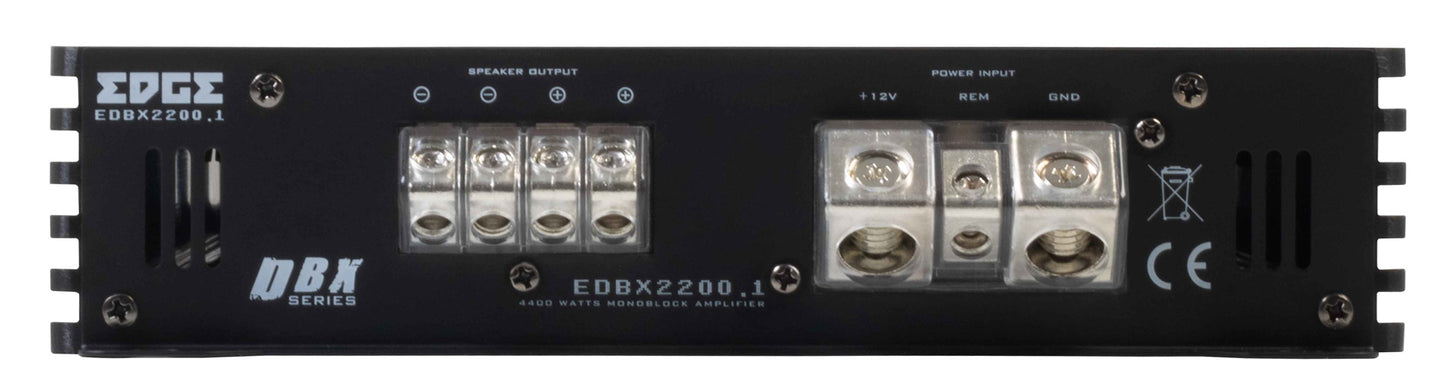

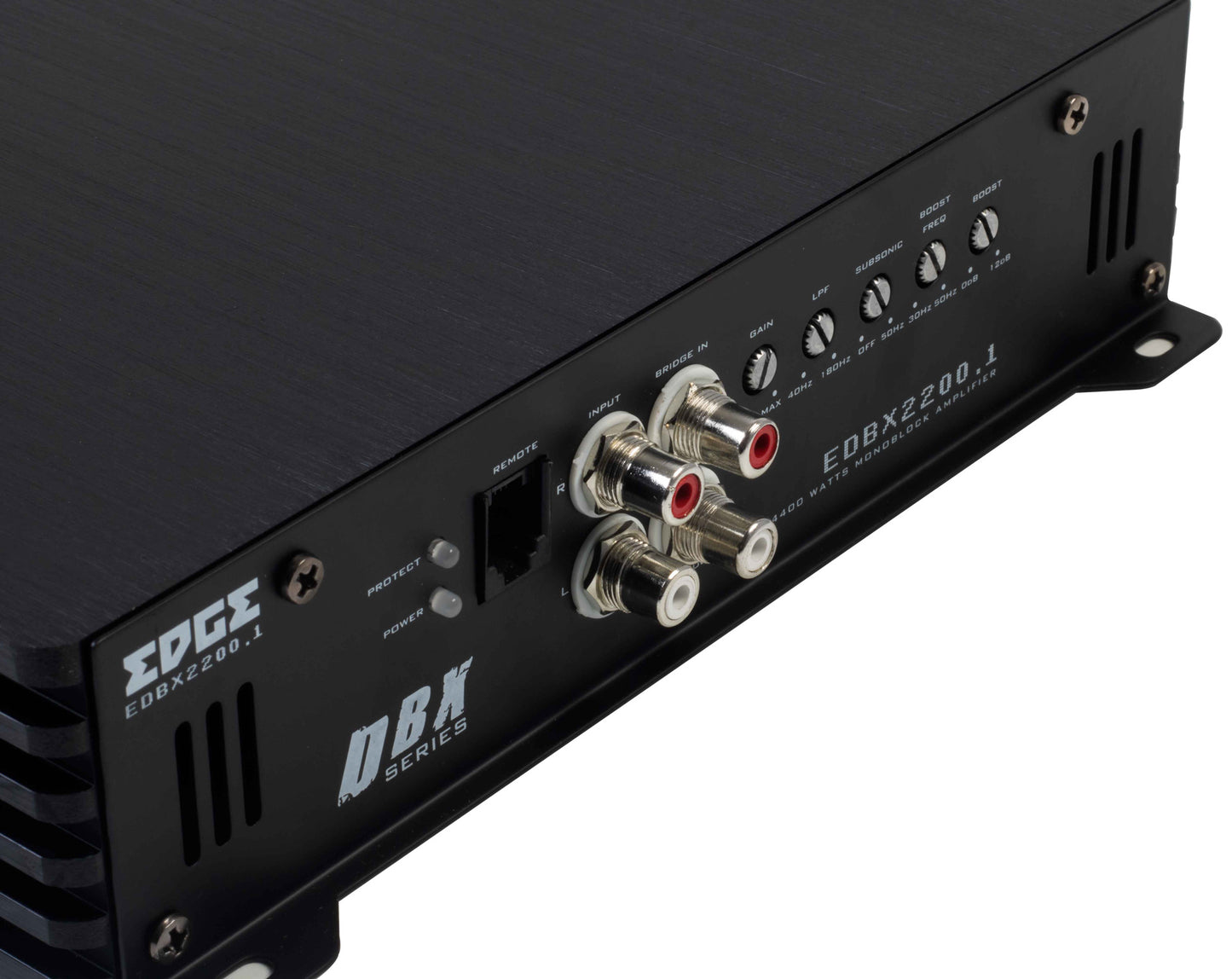

The amps come with solid die-cast 4AWG power and ground terminals, dual speaker terminals and a bass remote for fine tuning adjustability, paired with onboard adjustment for gain, bass boost, frequency and a subsonic filters these amps offer great levels of control.

Finally both models offer a signal output allowing you to simply add signal to another amp in your system. Elegant, precise and powerful.

Features

• Built in active crossover with LPF and Subsonic filter
• Parametric bass boost circuit with adjustable frequency
• Remote level control
• RCA input and output

Specification

• Configuration: Monoblock
• RMS @ 4 Ohms Mono: 1 x 850 watts
• RMS @ 2 Ohms Mono: 1 x 1600 watts
• RMS @ 1 Ohms Mono: 1 x 2200 watts
• Maximum Power: 4400 watts
• Frequency Response: 10Hz - 180Hz
• Crossover Type: LP / Subsonic
• Crossover Range: 0Hz - 180Hz
• Recommended Fuse: 220A (External Fuse)
• Topology: Class D

Installation

• Dimensions (H x W X D): 50mm x 490mm x 228mm (2" x 19.3" x 9")

Downloads

• EDGE 2024 Catalogue
• EDGE EDBX2200.1D-E1 User Manual
