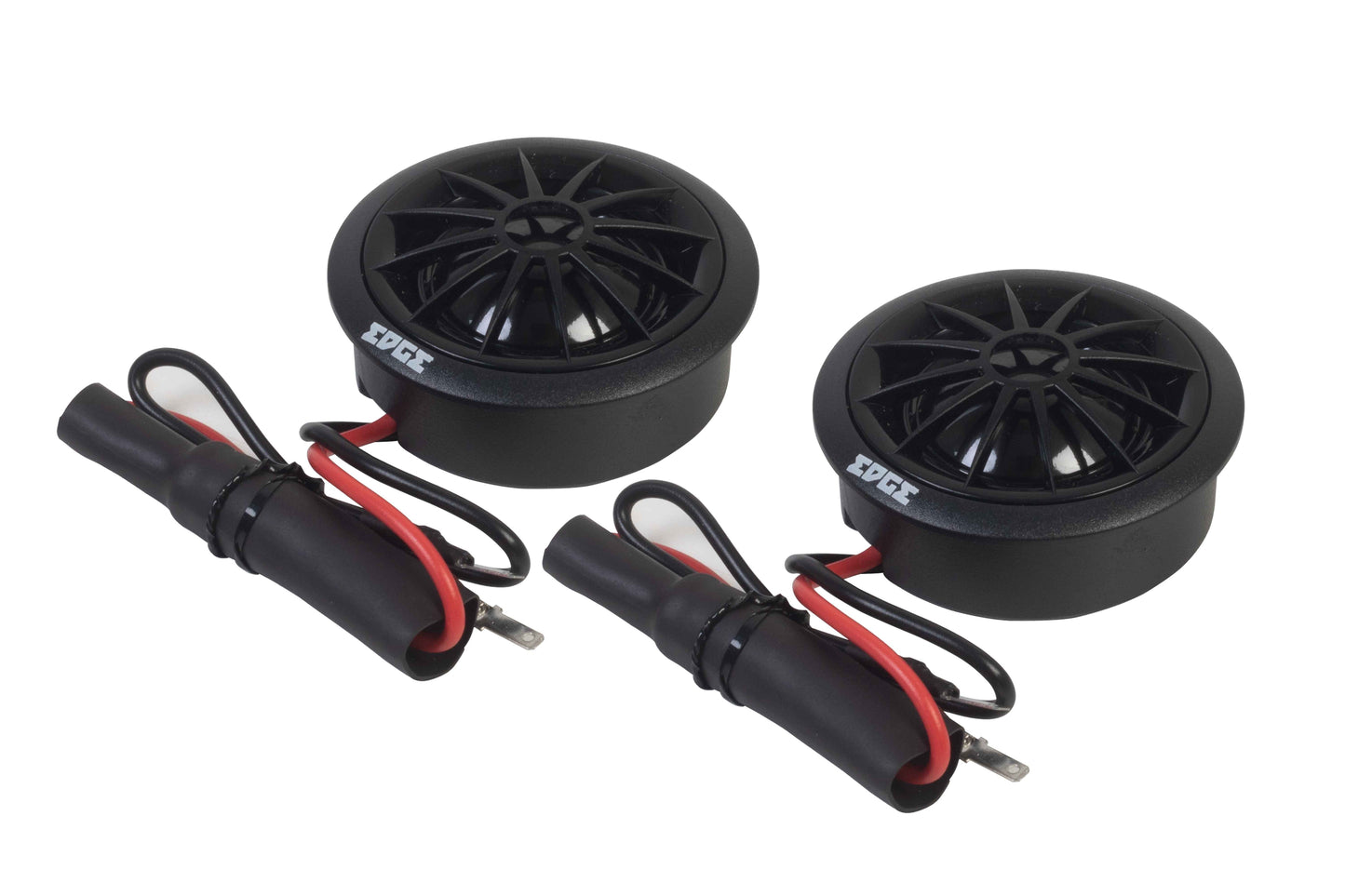

EDBX1TN-E1 | EDGE DBX Series 1.9 inch 140 watts Component Tweeters - Pair

The all-new EDGE DBX Series tweeter provides the perfect tune up solution for your factory audio system that lacks high frequency output.

The DBX Series tweeter features a Black Mylar dome diaphragm which delivers enhanced high frequencies and vocal reproduction. Installation is made simple with the option to flush mount or surface mount the tweeter and the wiring has a filter capacitor inline so there is no need to find space for an external crossover housing.

When enhanced sound is required as an upgrade to your system, an EDGE tweeter is the perfect place to start.

Features

• 1 way component tweeters
• Neodymium motor
• Black Mylar dome diaphragm

• 25mm voice coil

• Flush and surface mounting options

• Inline passive crossover filter

Specification

• Model: EDBX1TN-E1
• Type: Tweeter
• Configuration: 1 way
• Speaker Size: 1.9" (48mm)
• RMS Power: 70 watts
• Peak Power: 140 watts
• Frequency Response: 1.5kHz - 25kHz
• Impedance: 4 Ohms

Installation

• Mounting Depth: 15mm
• Mounting Diameter: 44mm

Downloads

• EDGE 2024 Catalogue
