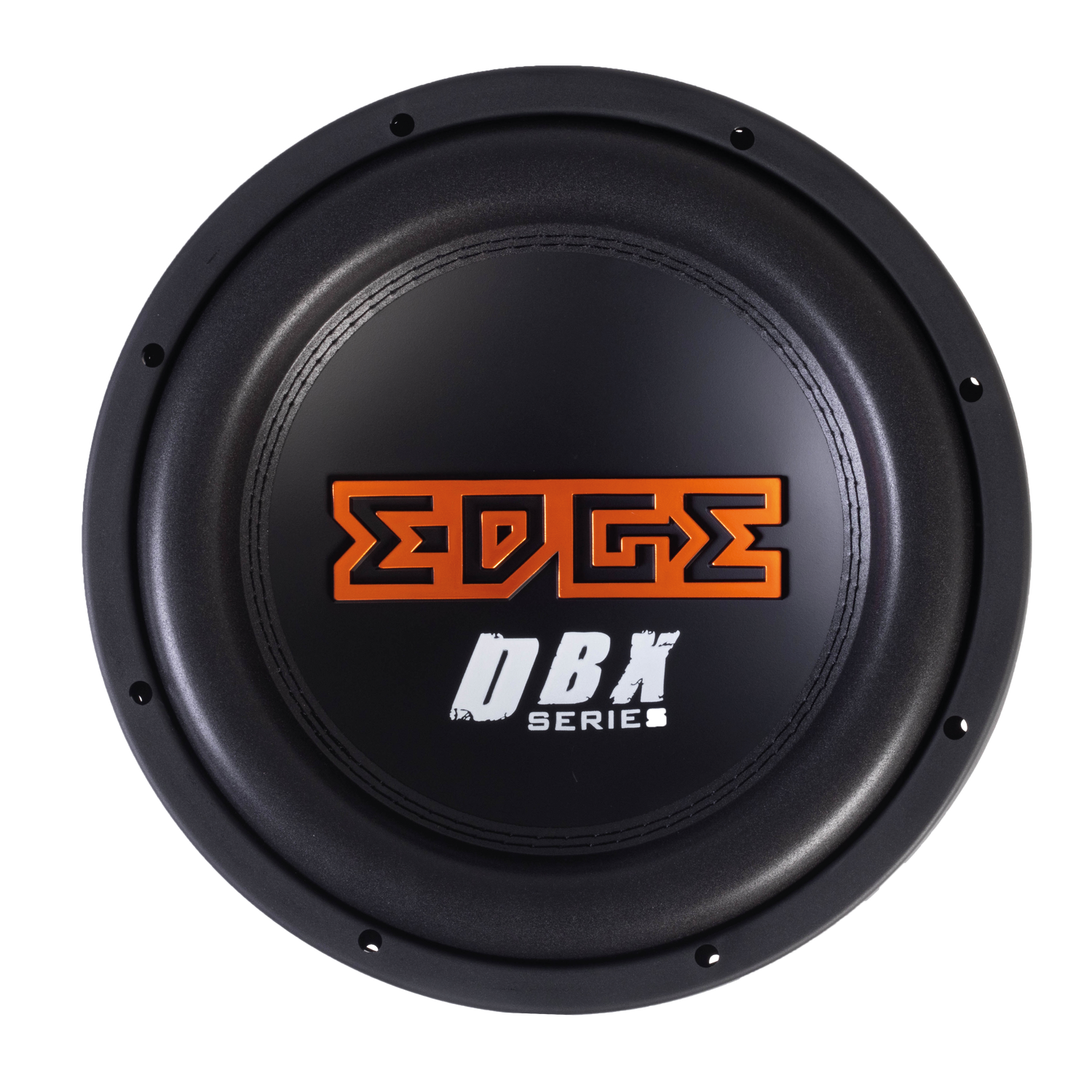

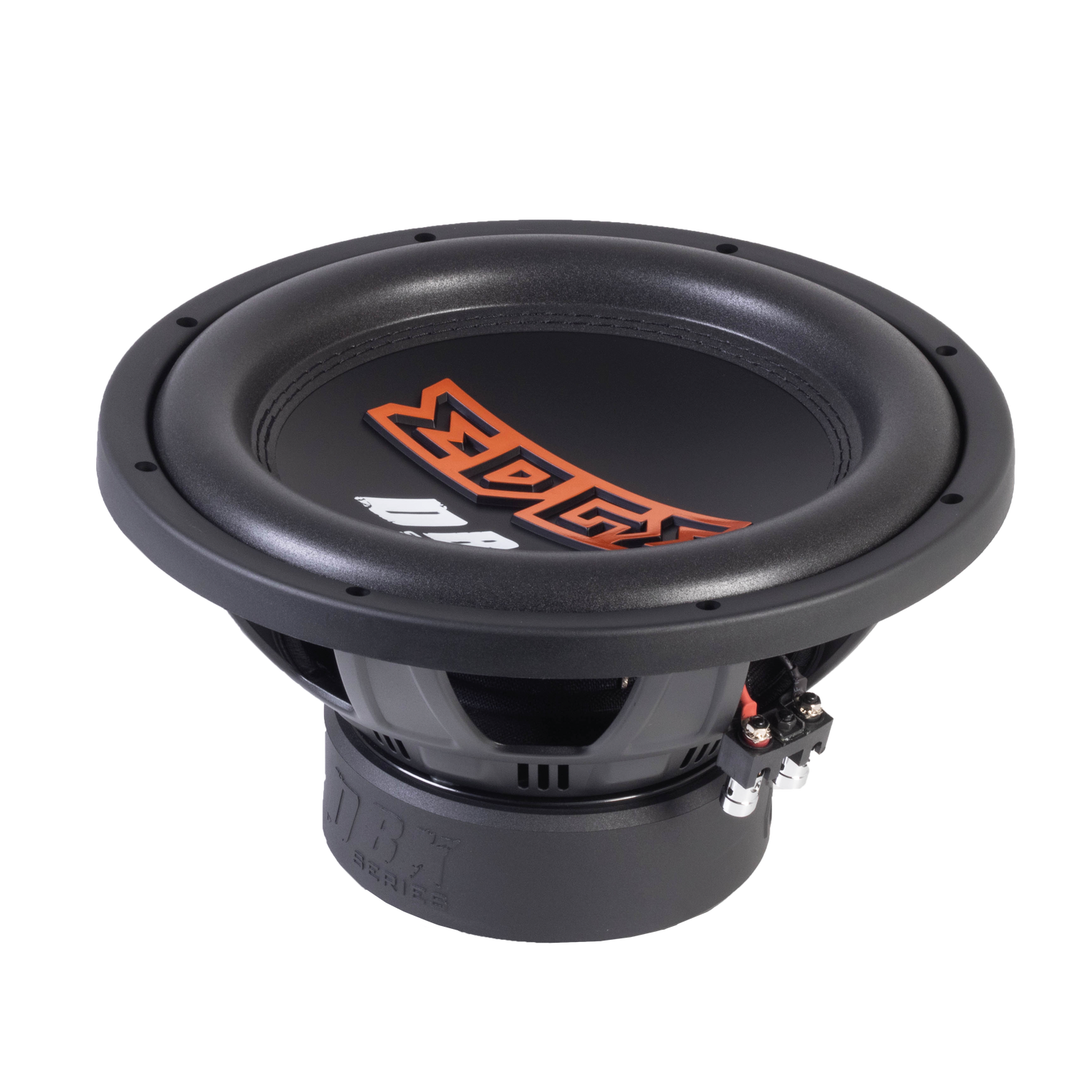

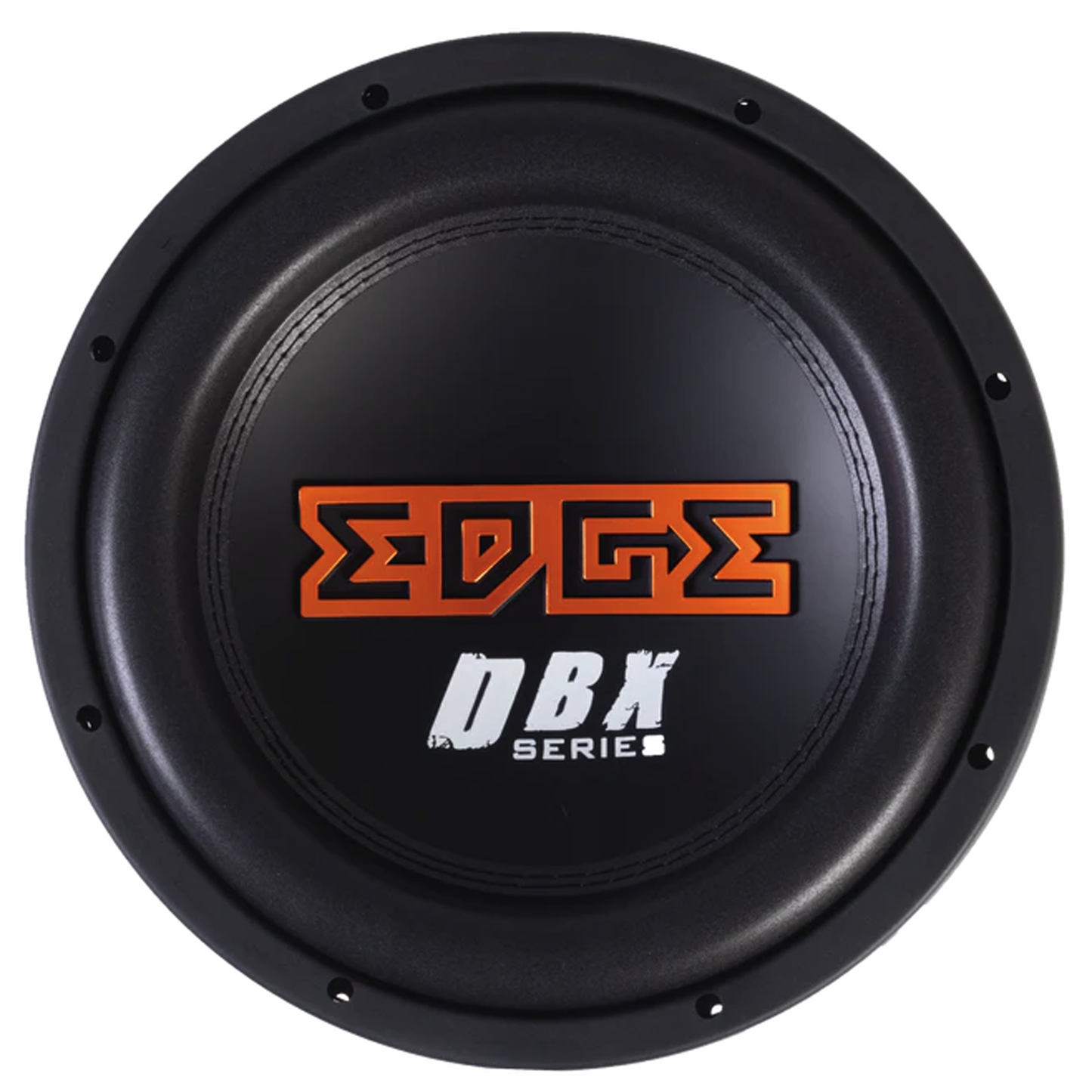

EDBX12D2-E3 | EDGE DBX Series 12 inch 2000 watts Subwoofer

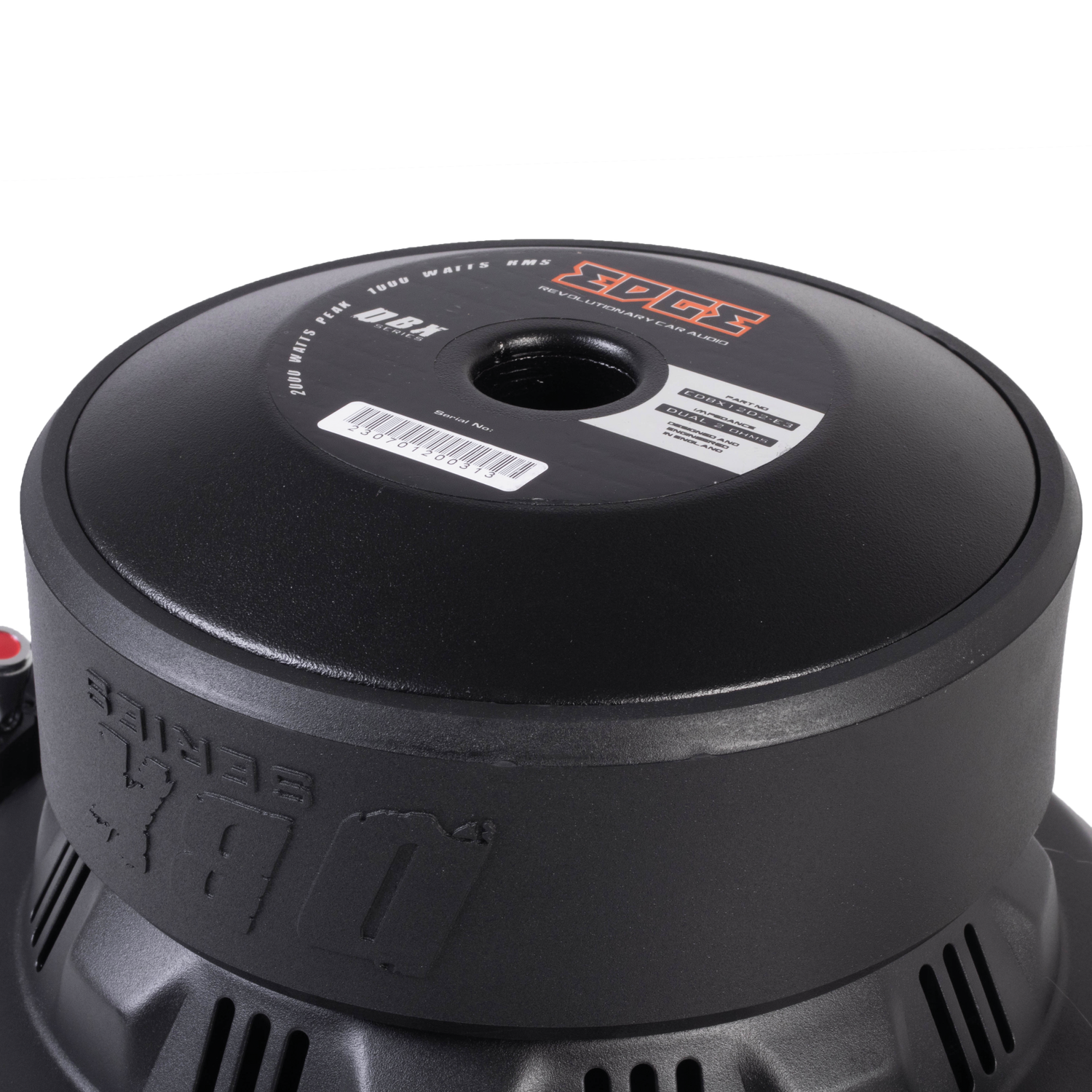

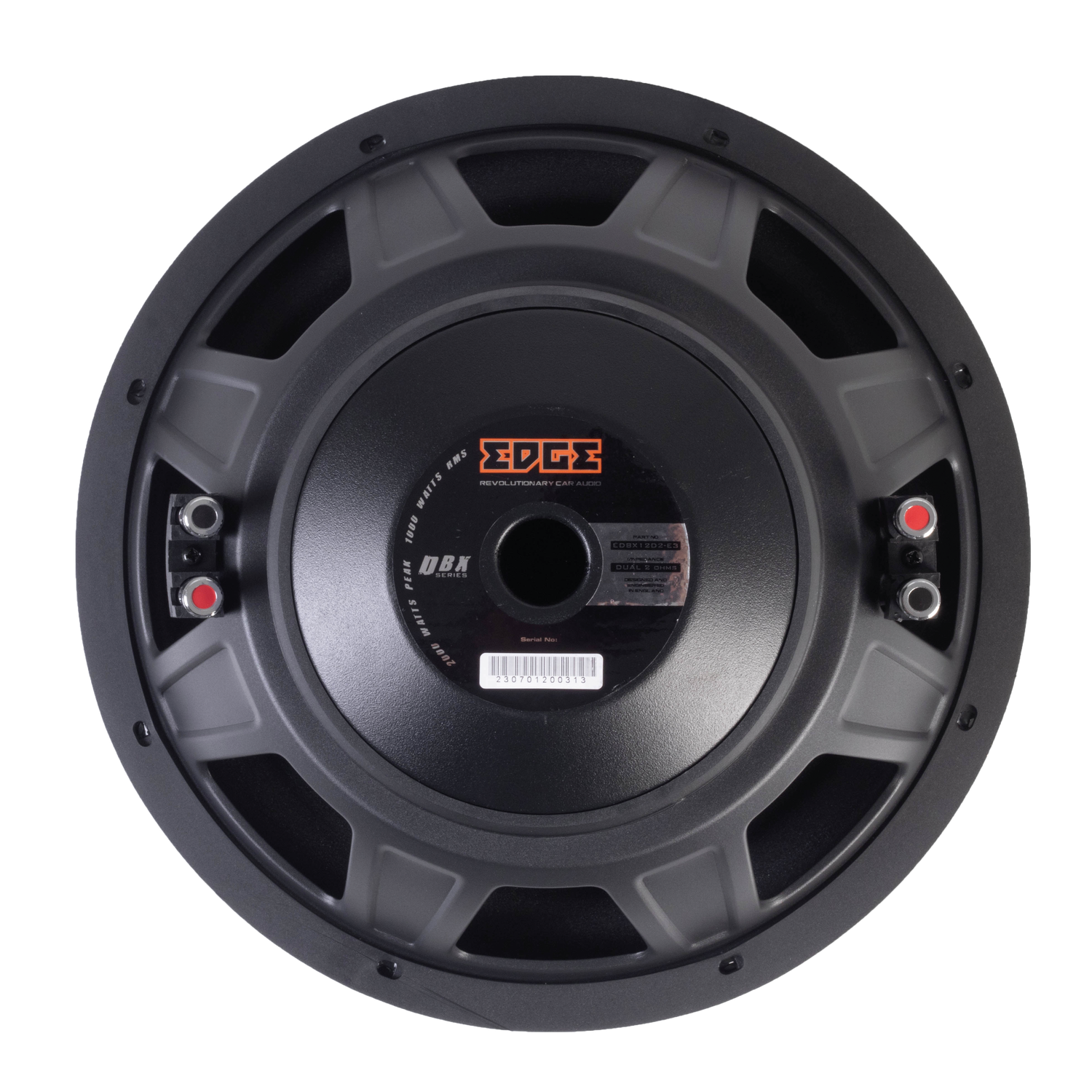

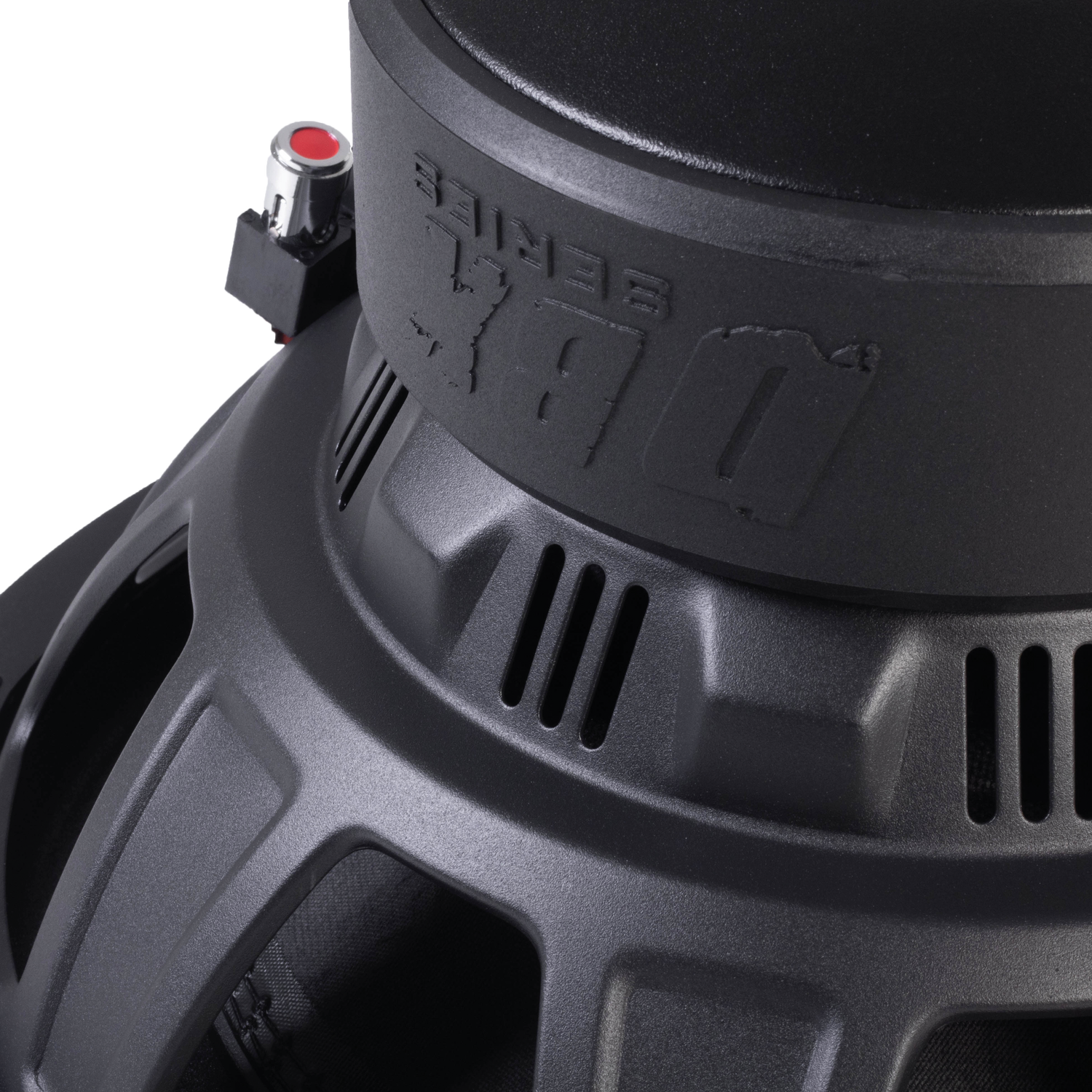

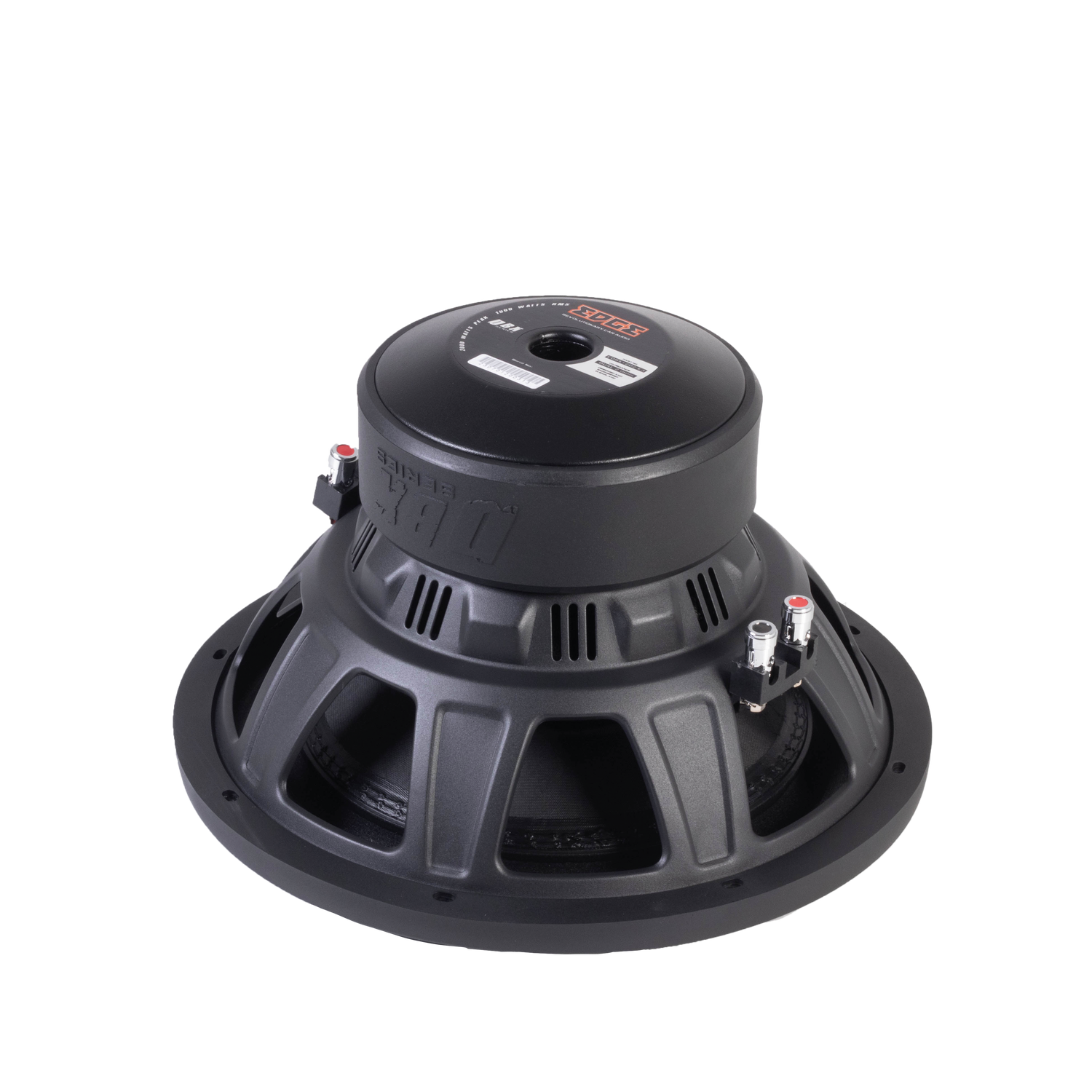

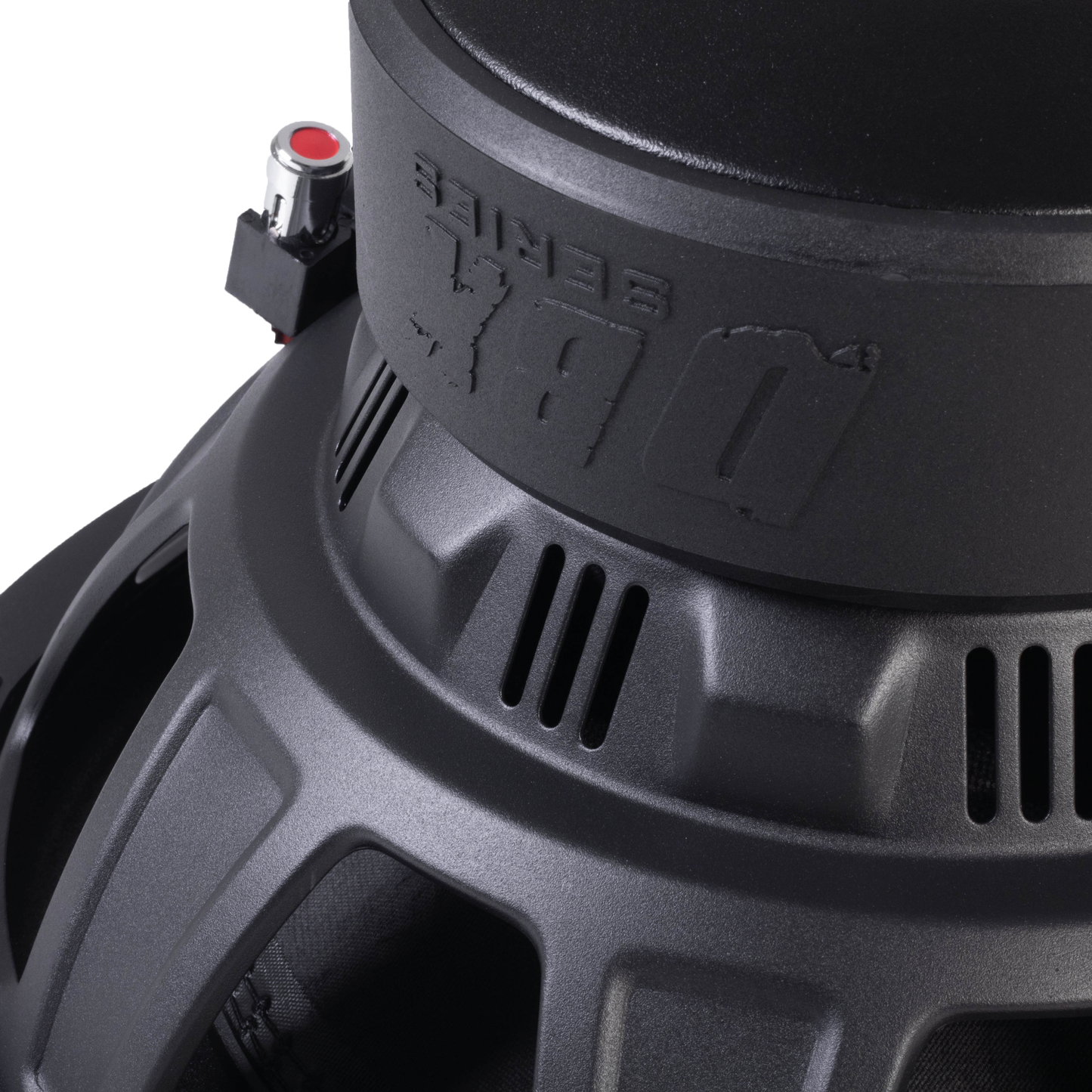

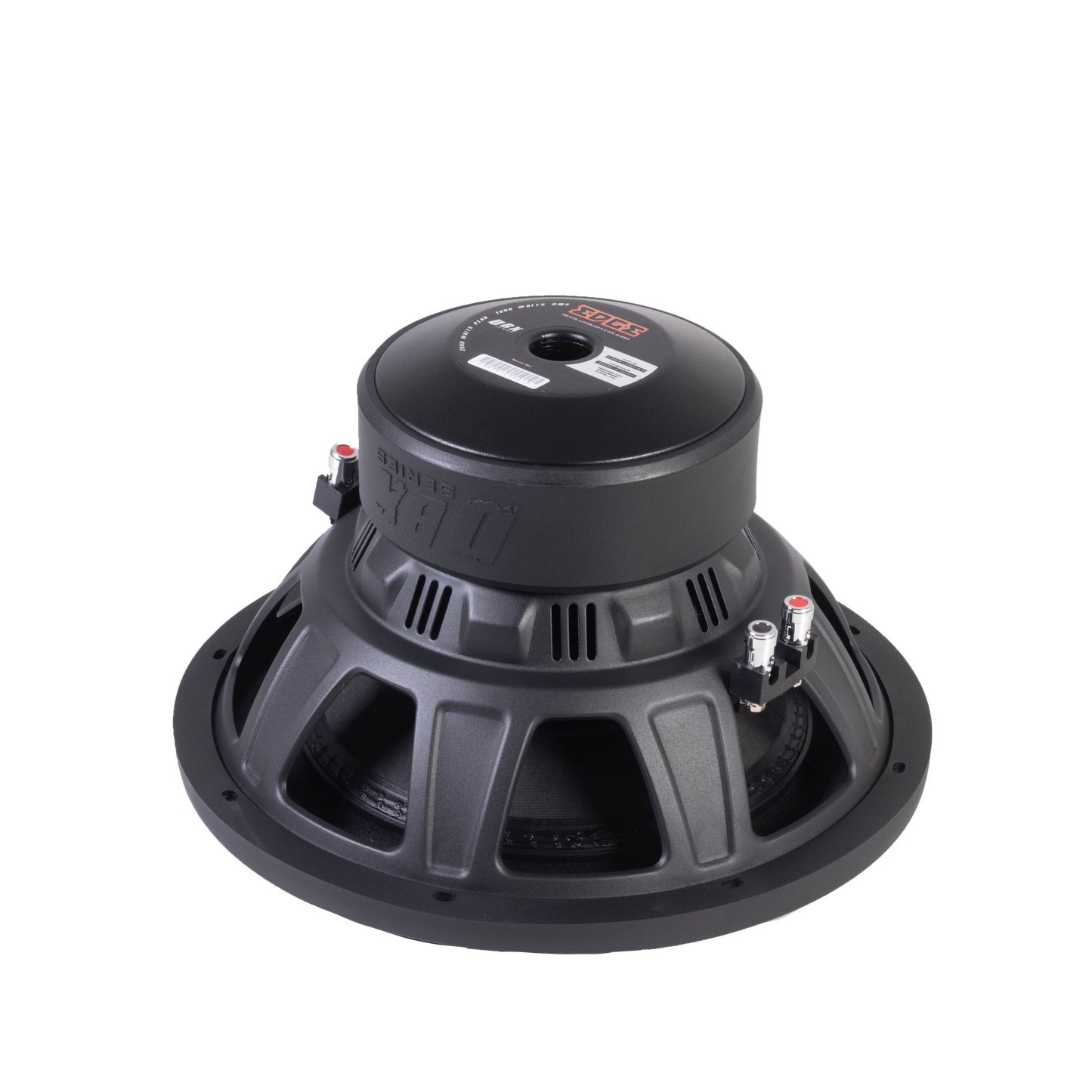

This new subwoofer range features our new unique 2 piece dustcap which in included across our entire range. The two piece dustcap gives added rigidty to the cone. This Subwoofer has a pressed steel torsion basket and double stacked high quality ferrite magnets to deliver the correct level of motor force.

Paired with the motor structure we use a 2.5" inch voice coil and a non-pressed paper cone and high roll surround produces an efficient, strong, powerful and accurate bass reproduction.

The DBX subwoofers give you that added depth, volume and bass that is missing from a standard car audio system. Tailored to give high performance at a competitive price.

Features

• Non pressed paper cone
• Wide roll foam surround
• 100 oz dual stacked magnet
• Spring loaded connectors
• Y35 ferrite magnet
• Dual 2 Ohms impedance

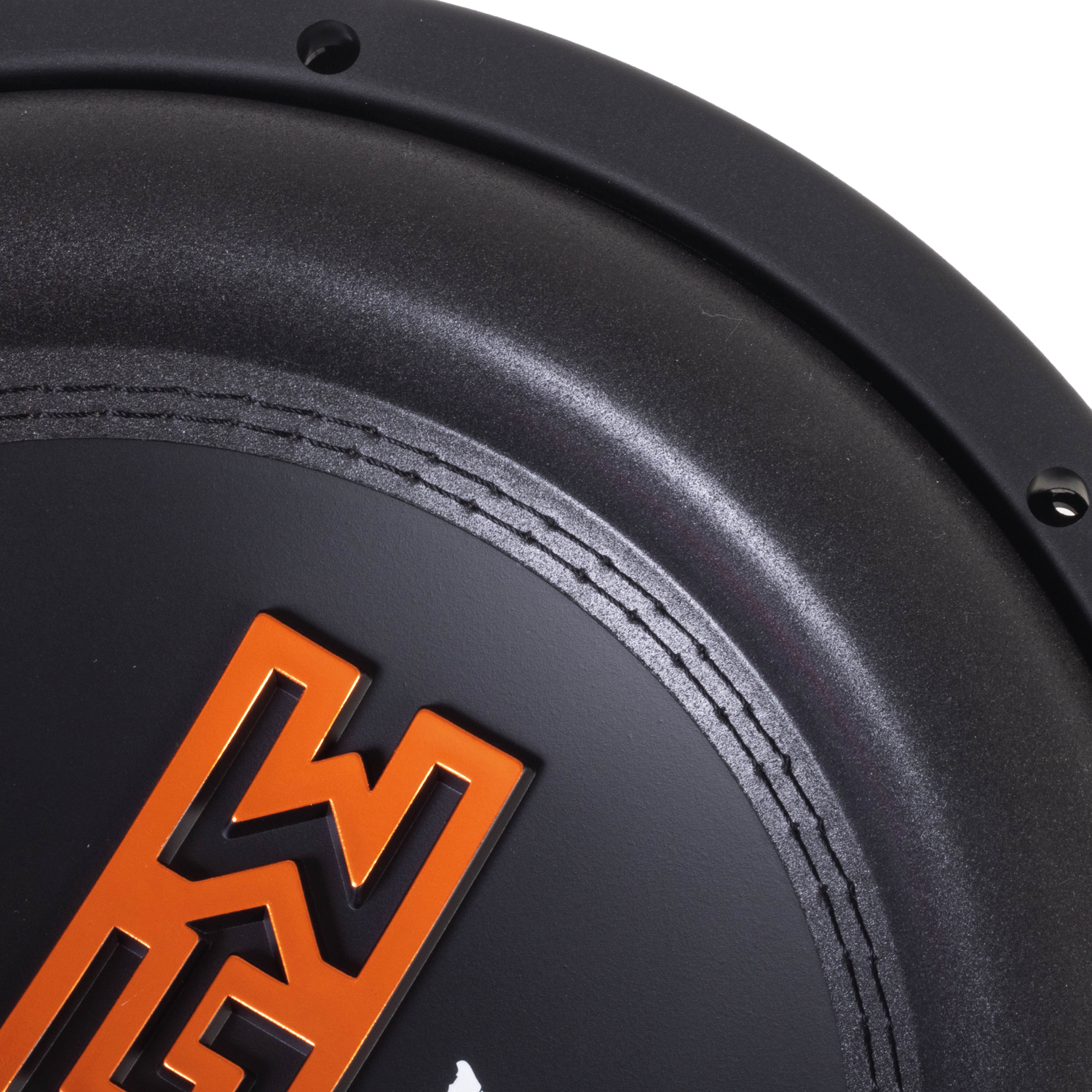

• Double stitched surround

Specification

• Model: EDBX12D2-E3
• Cone: Non pressed paper cone
• Surround: Big roll foam - stitched
• Dustcap: Custom tooled IMPP
• Voice Coil Former: 2.5" Black Aluminium
• Spider: 1 layer Black PC
• Gasket: Rubber
• Top Plate: 10mm Black anodised
• T-Yoke: 10mm Black anodised flat

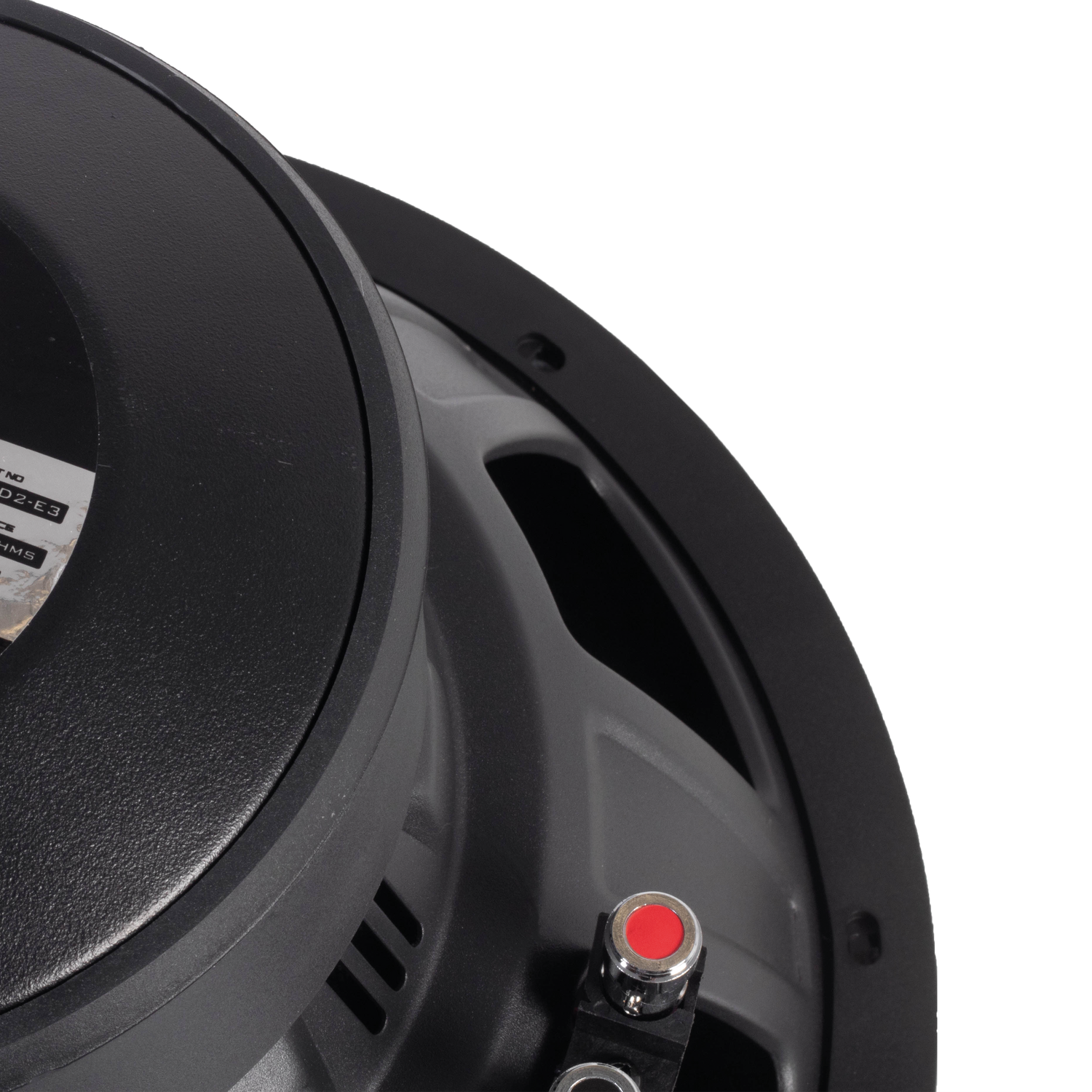

• Terminal / Wire: Spring loaded connectors
• Impedance: Dual 2 Ohms
• RMS Power: 1000 watts
• Peak Power: 2000 watts

TS Parameters

• Equivalent Volume - Vas: 24.7L

• Free Air Resonance - Fs: 34Hz
• Mechanical Factor - Qms: 4.96
• Electrical Factor - Qes: 0.715
• Total Factor - Qts: 0.625
• Moving Mass - Mms: 272.2g
• Compliance - Cms:  78.4μ M/N
• BI Factor - BI: 17.2 T
• Voice Coil Inductance - Le:  2.2 mH
• Diaphragm Area - Sd:  471CM²
• DC Resistance - Re:  2*1.8 Ω
• SPL: 84dB

Installation

• Overall Diameter: 280mm
• Mounting Depth: 170mm
• Enclosure Volume: 1.5-2.5ft3
