EDBPB8-E5 Full range Pro Audio Enclosure DB Series Enclosure

The DB Series Pro Box by EDGE is a standout product in the pro audio market, tailored specifically for delivering exceptional sound quality and volume, especially for those seeking high levels of ESQL (Extreme Sound Quality Level) within their vehicles. This all in one solution that includes 4 Pro Midrange drivers and 2 Pro bullet tweeters.

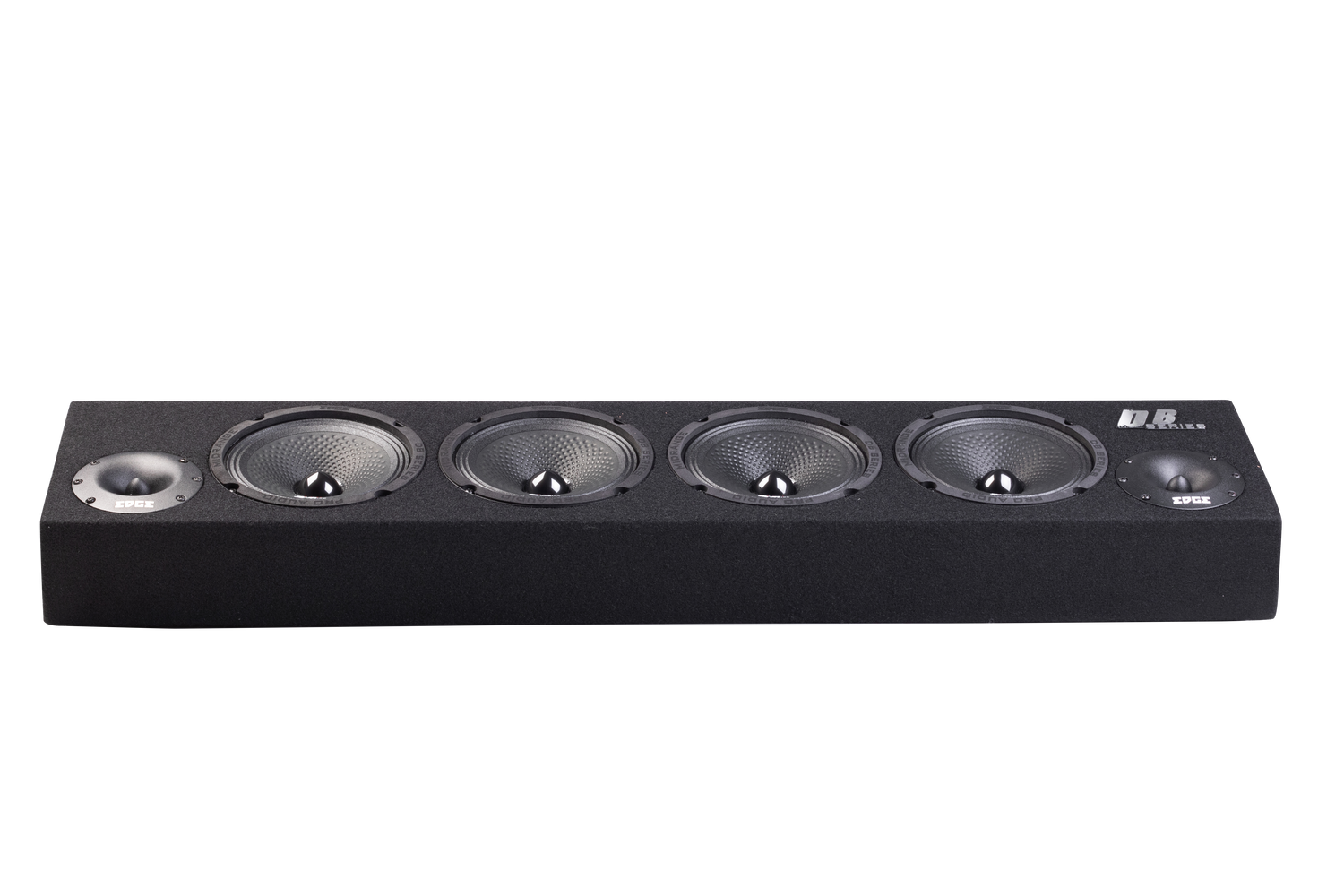

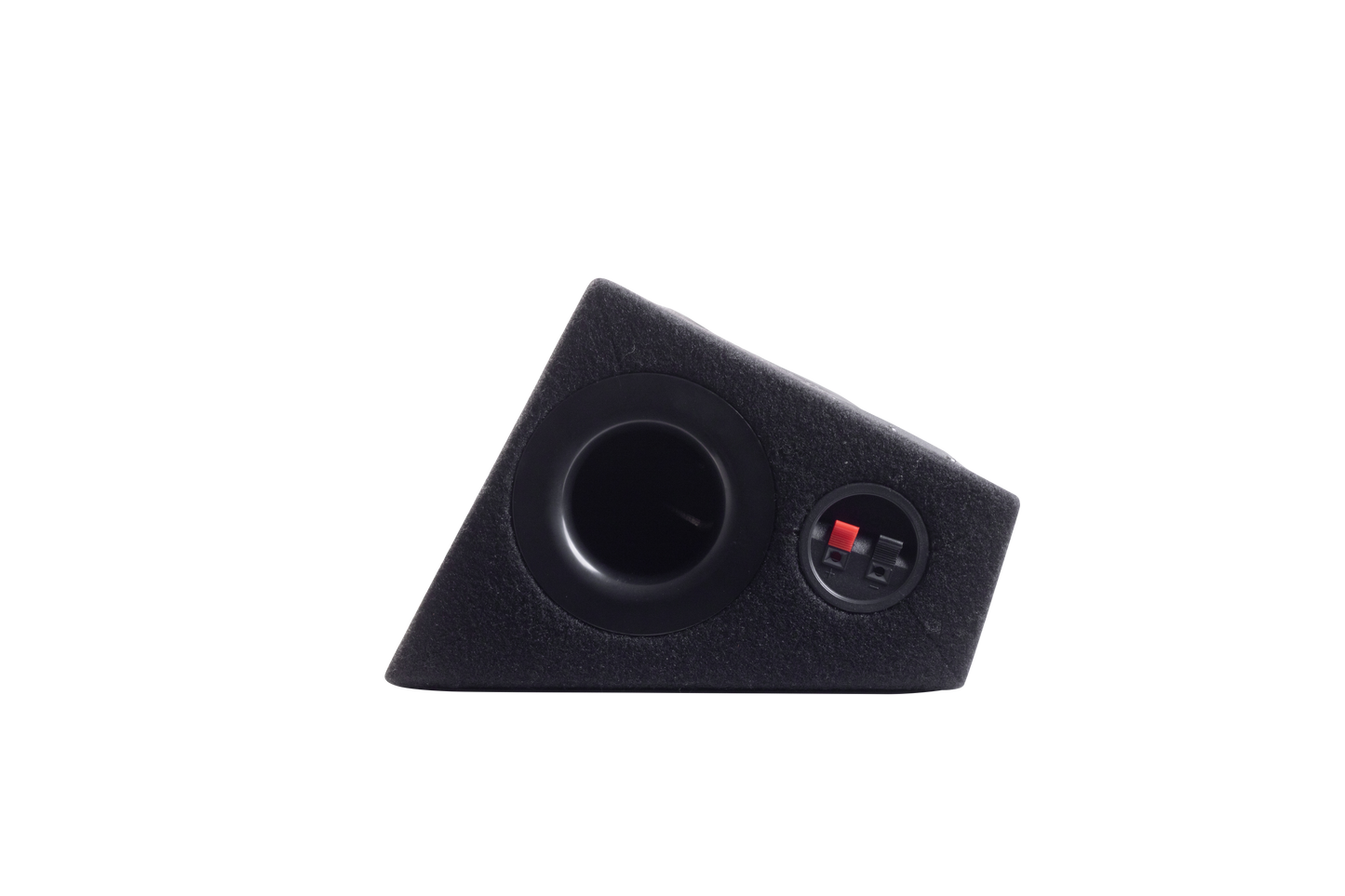

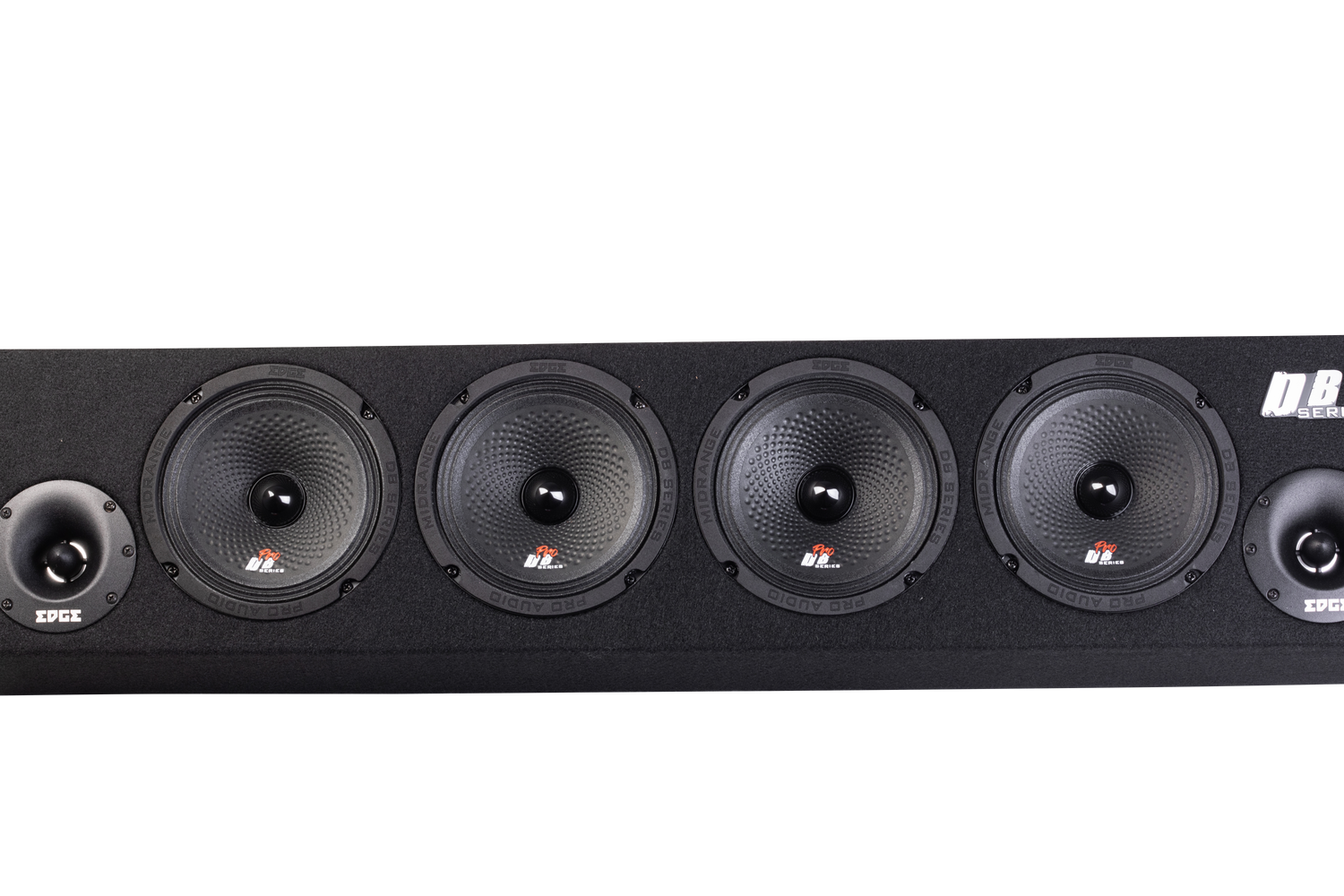

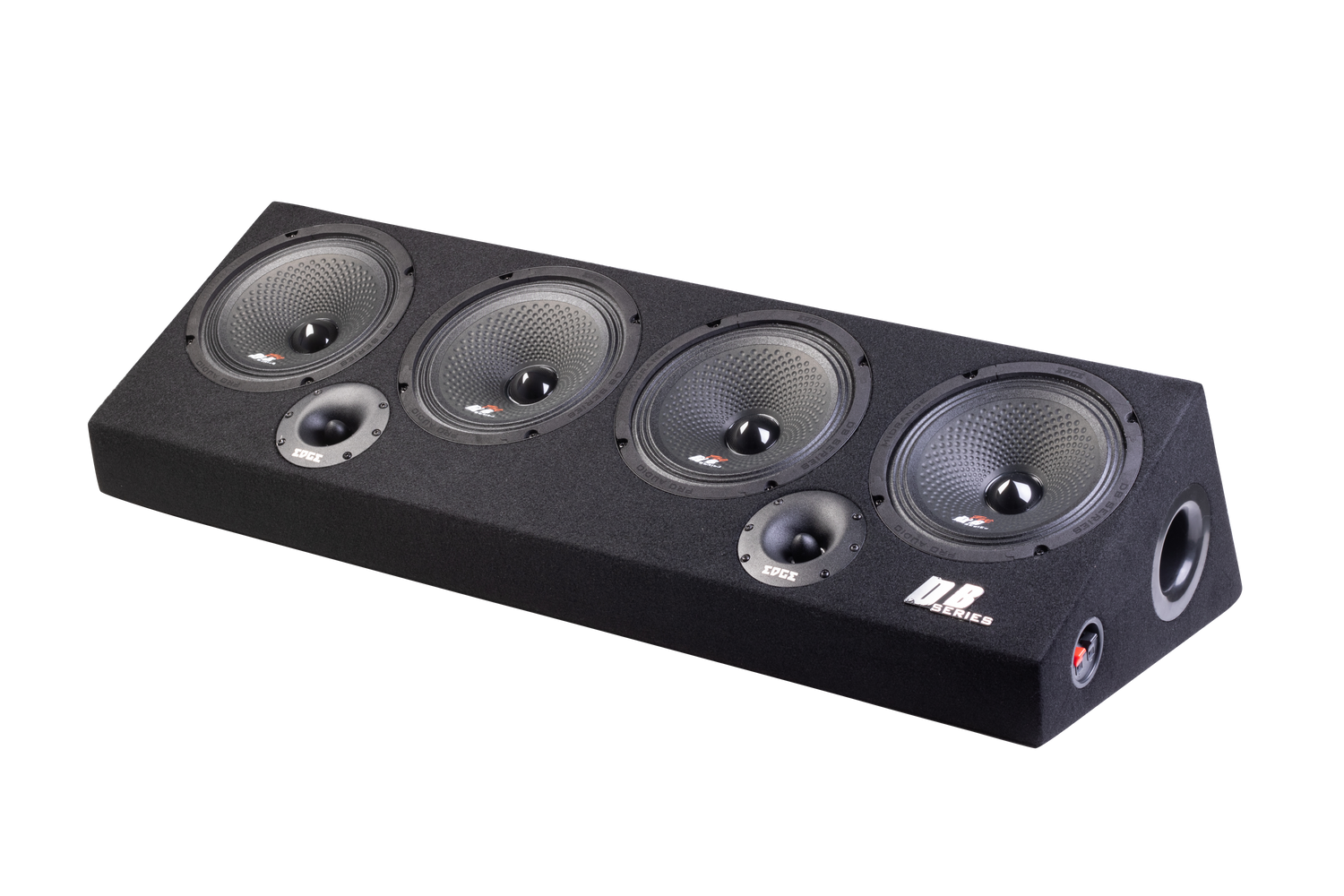

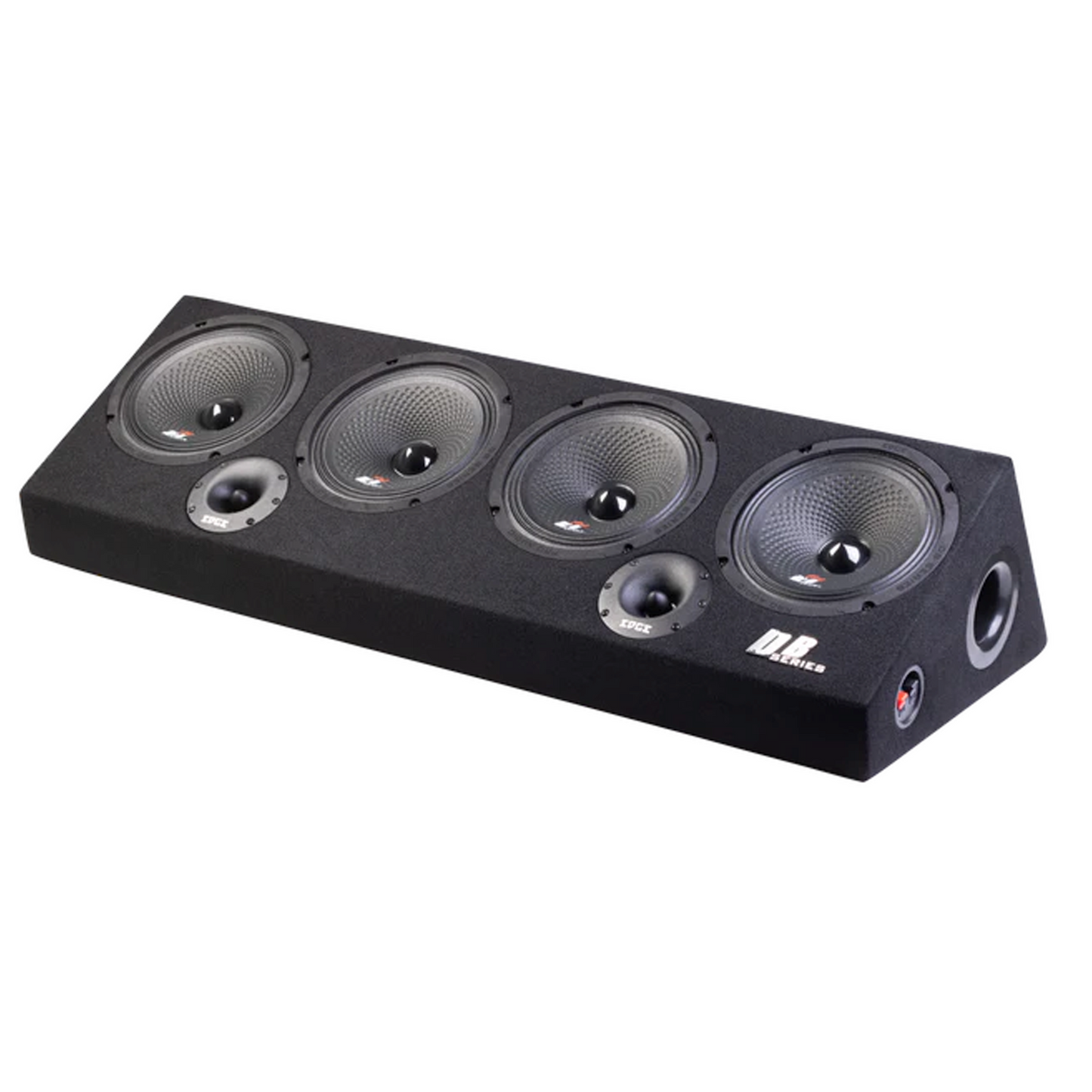

The box is equipped with four 8inch midrange drivers (EDBPRO8-E3) designed for efficiency and high output complemented with Two bullet tweeters to handle the high frequencies, ensuring a balanced and powerful audio experience. The Pro box is designed with a left and a right hand side for a stereo sound. Both sides are ported featuring terminals either side. The port is calculated to help deliver higher mid-bass response for a balanced sound. Made from solid MDF (Medium-Density Fiberboard), the enclosure is robust and features central bracing. This reduces resonance and vibration, contributing to clearer and cleaner sound playback.

BEST TECHNOLOGY - Featuring a flared Turbo Port for increased efficiency and increased bass response and the new EBPRO8 drivers with “Golf ball” design cone which increases strength and rigidity of the speaker cone and the added benefit of a small increase in cone area.

HIGH EFFICIENCY - The EDBPRO8-E3 drivers are noted for their efficiency, meaning they can produce a significant amount of sound without requiring excessive power.

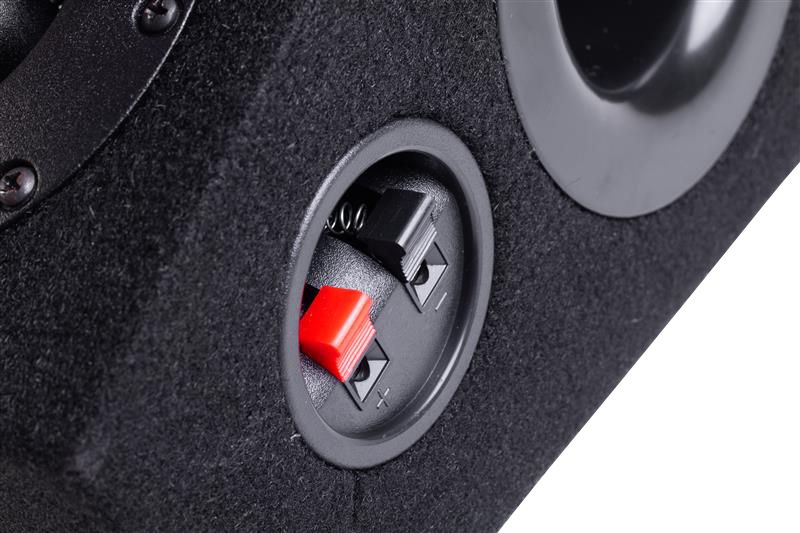

BEST FEATURES - The enclosure features two sets of 2 x 2OHM spring terminals, allowing the enclosure to be ran in stereo for improved sound quality and staging

CRYSTAL CLEAR SOUND - The design and construction of the enclosure help minimize unwanted noise and resonance, ensuring that the sound remains clear and precise even at high volumes.

• Model: EDBPB8-E5
• Driver: 4X EDBPRO8 + 2xEDBPRO36T
• Dimensions (H x W x D): 210mm (8.2") x 900mm (35.4") x 249mm (9.8")
• RMS Power: 860 Watts
• Peak Power: 1720 Watts
• Impedance: Dual 2 Ohms
• Freq. Response: 100hz - 20kHz
• Configuration: Full Range Pro Enclosure
