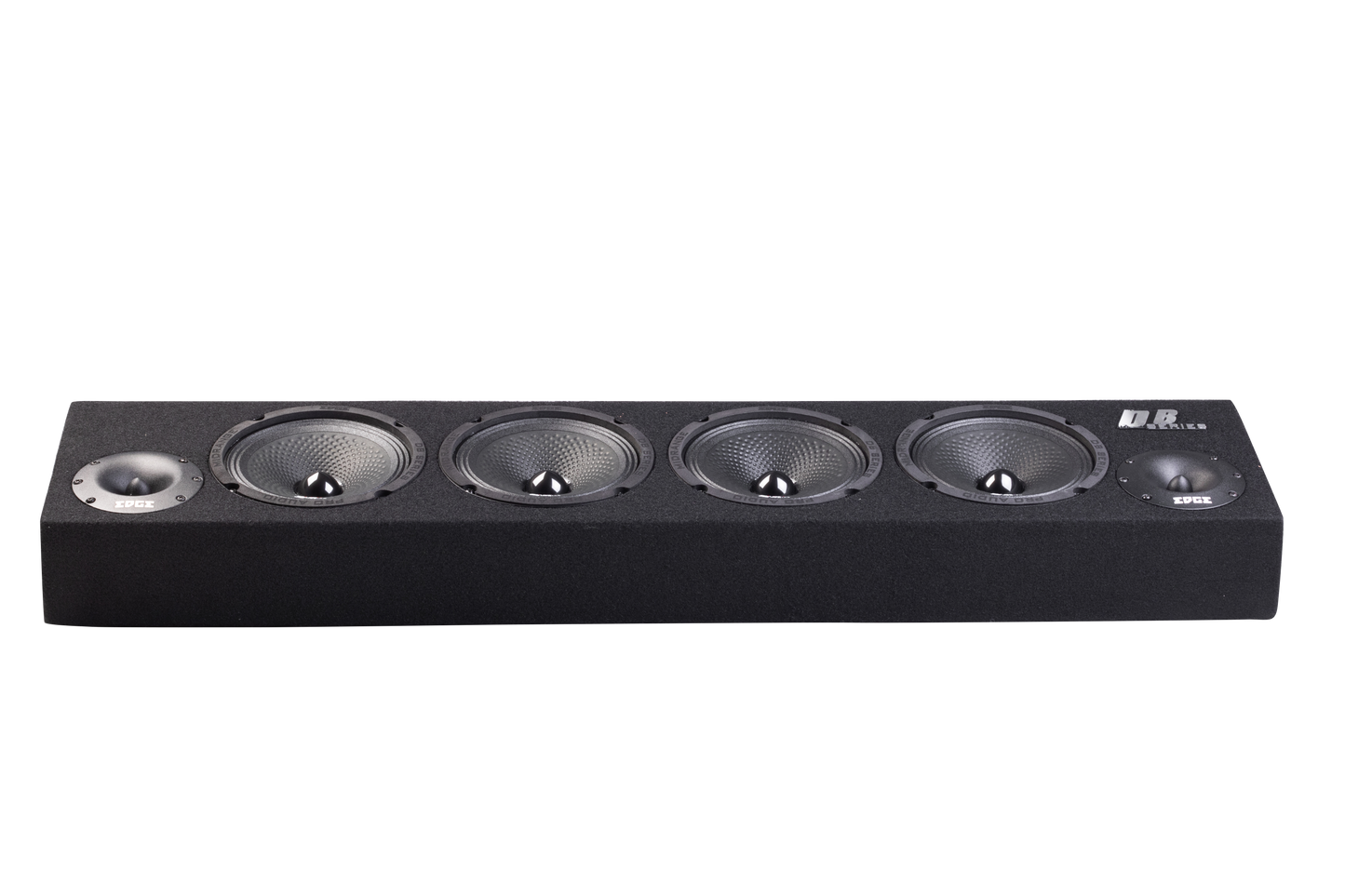

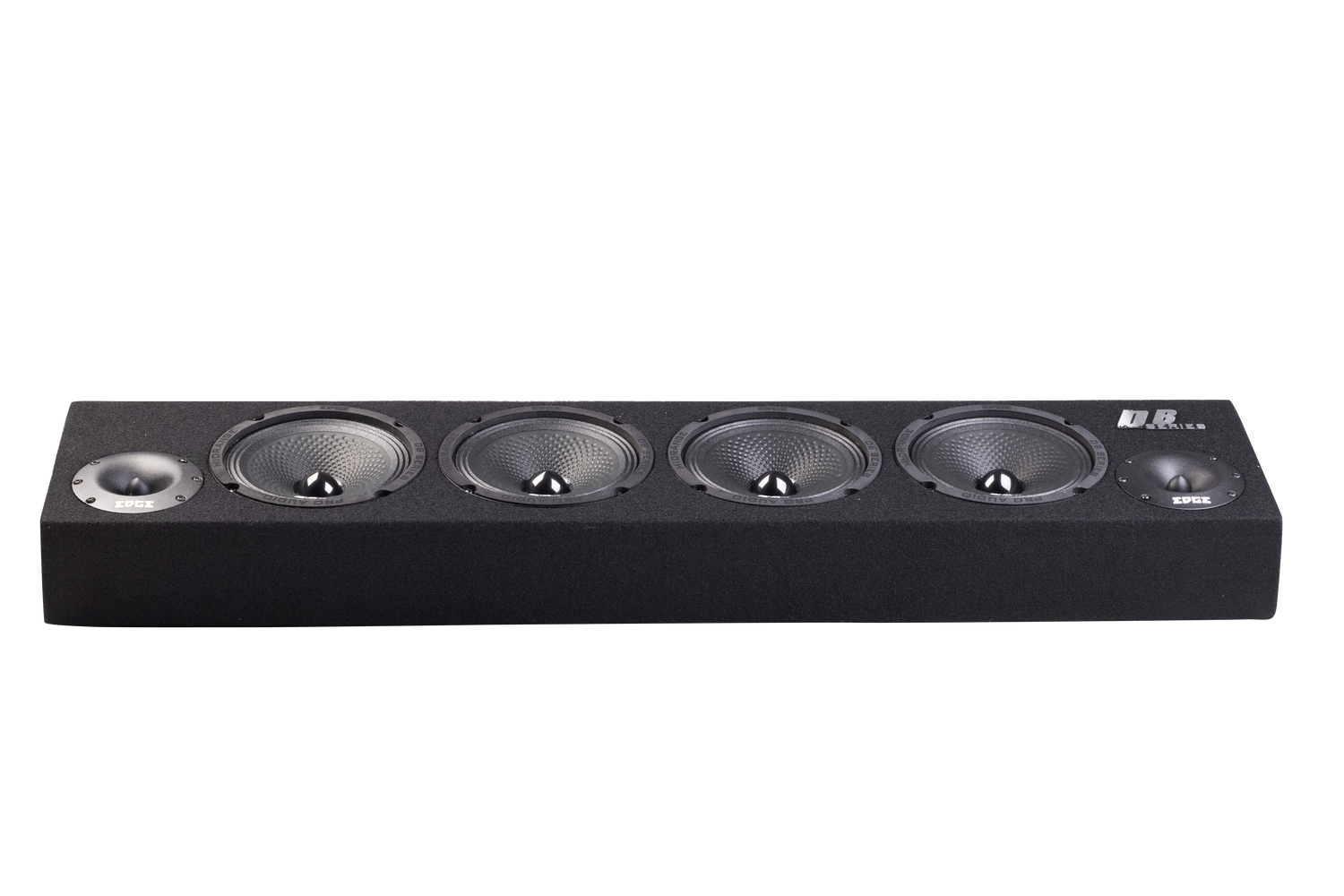

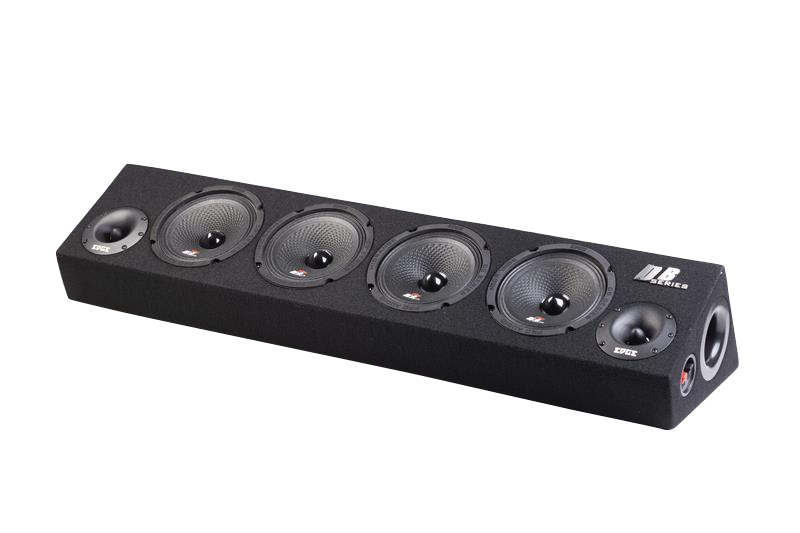

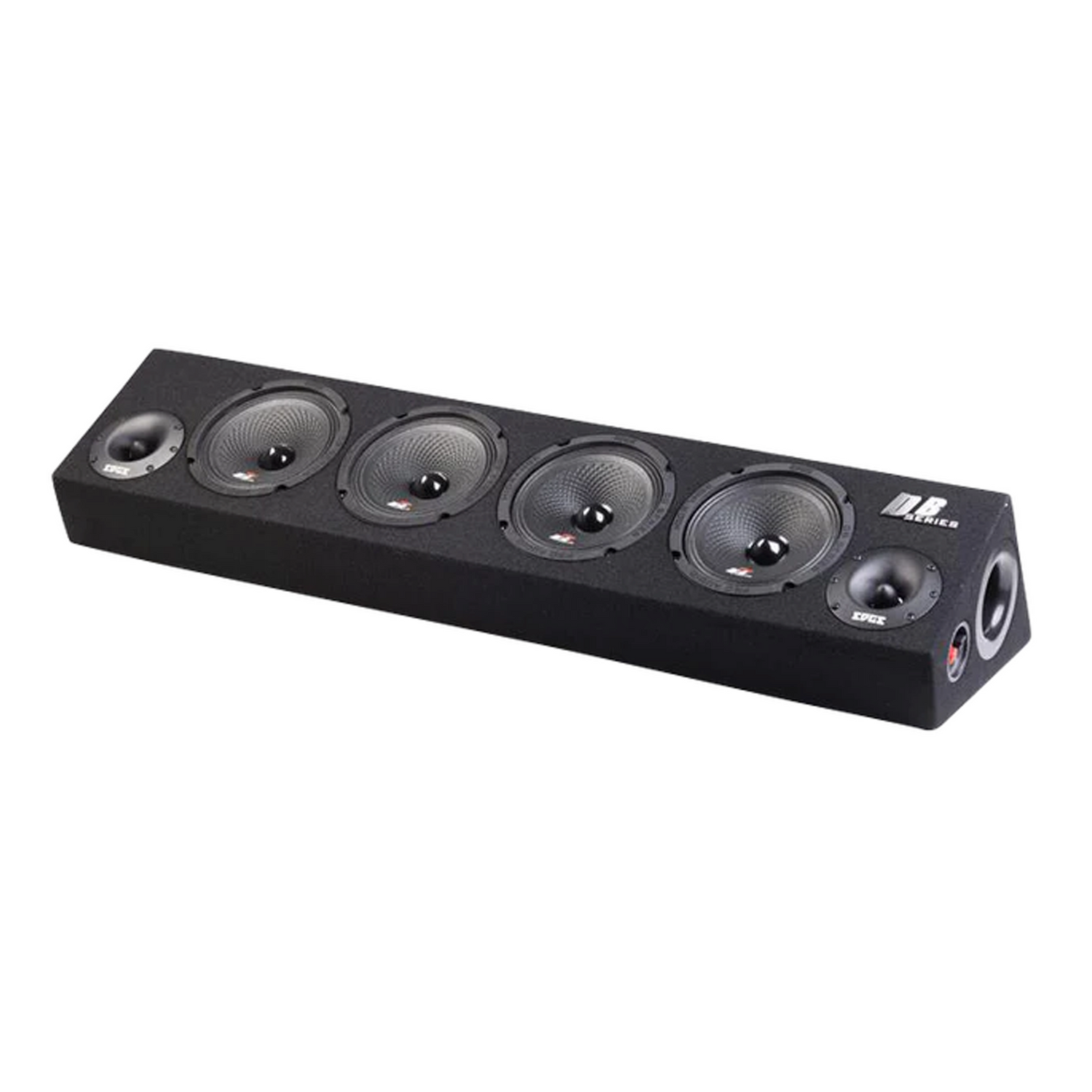

EDBPB6-E5 Full Range Pro Audio Enclosure DB Series Enclosure

The all new DB Series Pro Box by EDGE is yet another standout product in the pro audio market, tailored specifically for delivering exceptional sound quality and volume, especially for those seeking high levels of ESQL (Extreme Sound Quality Level) within their vehicles. This all in one solution based on the DB series pro boxes. Featuring 4 Component speakers and 2 pro tweeter setup in stereo for the ultimate performance.

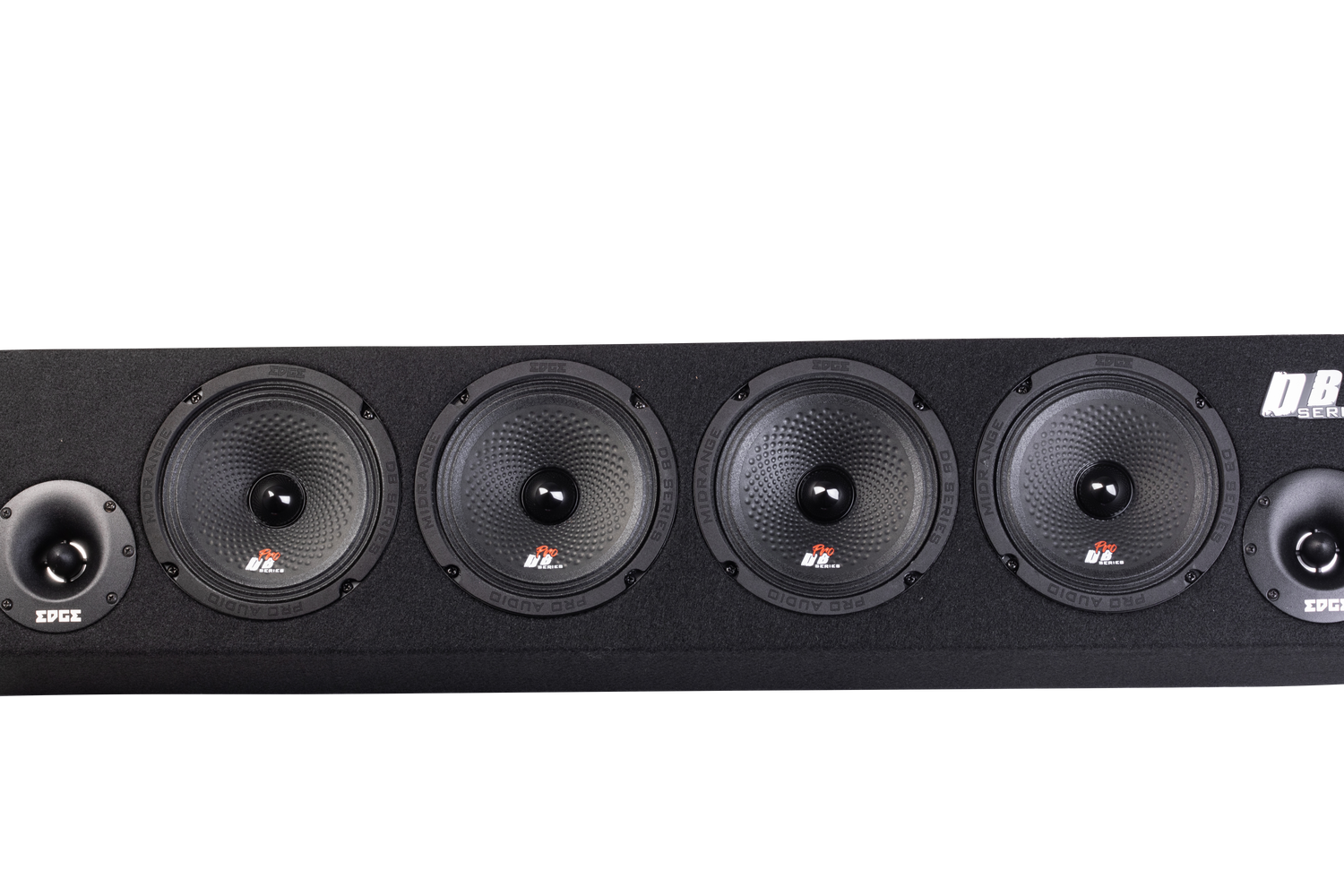

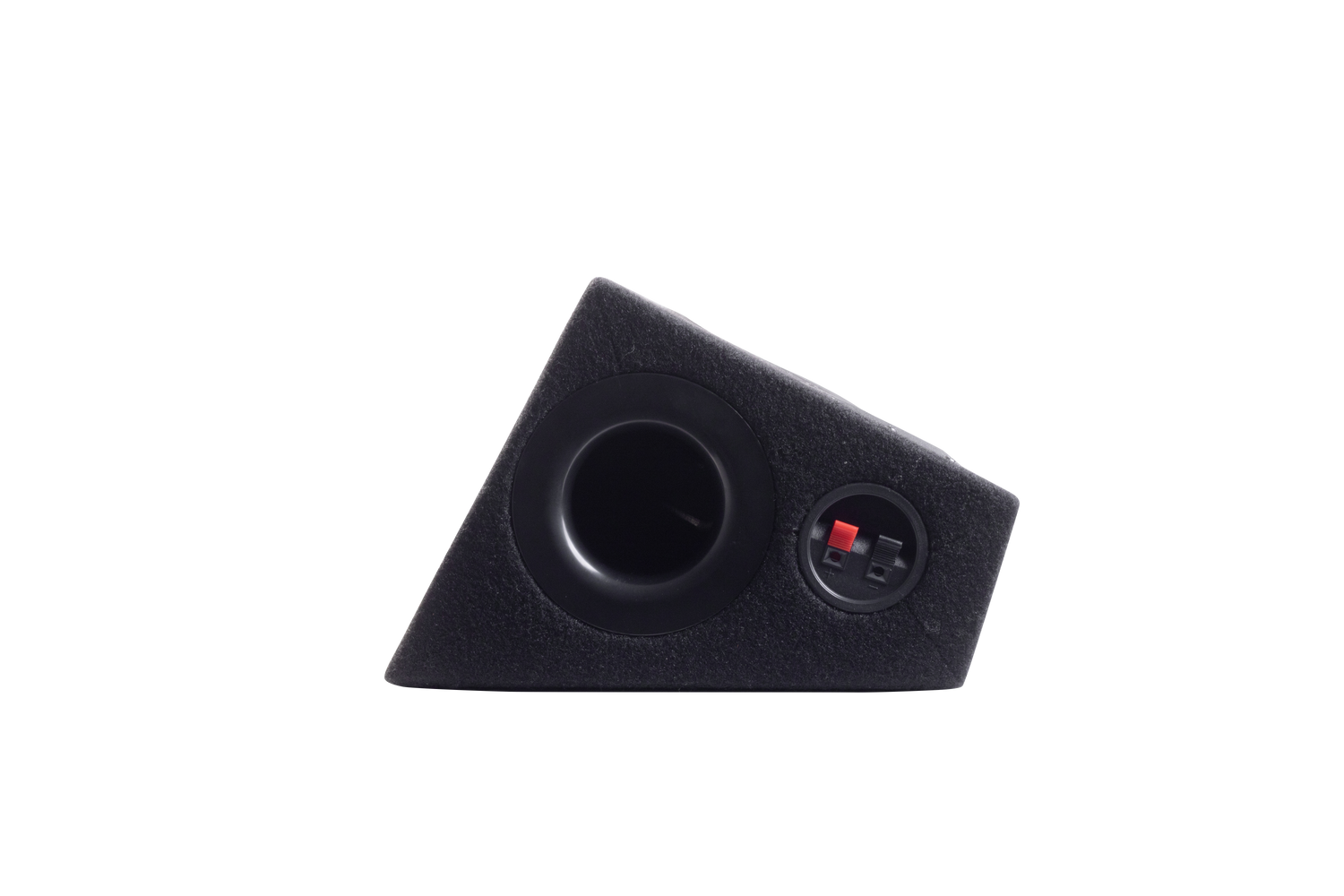

The box is equipped with four 6.5-inch pro component drivers (EDBPRO6-E3) designed for efficiency and high output, ensuring a balanced and powerful audio experience. The Pro box is designed with a left and a right hand side for a stereo sound. Both sides are ported featuring terminals eitherside. The port is calculated to help deliver higher mid-bass response for a balanced sound. Made from solid MDF (Medium-Density Fiberboard), the enclosure is robust and features central bracing. This reduces resonance and vibration, contributing to clearer and cleaner sound playback.

BEST TECHNOLOGY - Featuring a flared Turbo Port for increased efficiency and increased bass response and the new EDBPRO6 drivers with “Golf ball” design cone which increases strength and rigidity of the speaker cone and the added benefit of a small increase in cone area.

HIGH EFFICIENCY - The EDBPR06-E3 drivers are noted for their efficiency, meaning they can produce a significant amount of sound without requiring excessive power. complimented with high efficiency built in tweeters.

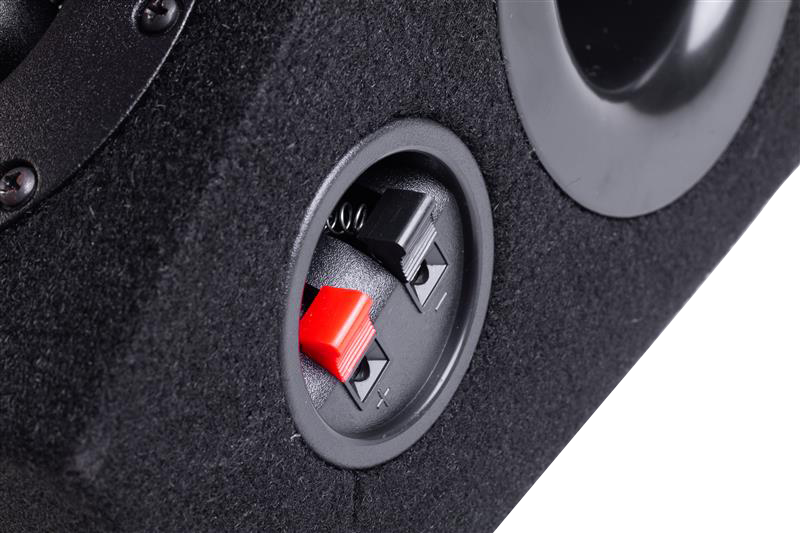

BEST FEATURES - The enclosure features two sets of 2 x 2OHM spring terminals, allowing the enclosure to be ran in stereo for improved sound quality and staging.

CRYSTAL CLEAR SOUND - The design and construction of the enclosure help minimize unwanted noise and resonance, ensuring that the sound remains clear and precise even at high volumes.

• Model: EDBPB6-E5
• Driver: 4X EDBPRO6-E3, 2 X EDBPRO37T-E0
• Dimensions (H x W x D): 185mm (7.3") x 866mm (34.1") x 271mm (10.7")
• RMS Power: 760 Watts
• Peak Power: 1520 Watts
• Impedance: 2 x 2 Ohms
• Freq. Response: 150 Hz - 20 kHz
• Configuration: Full Range Pro Enclosure
