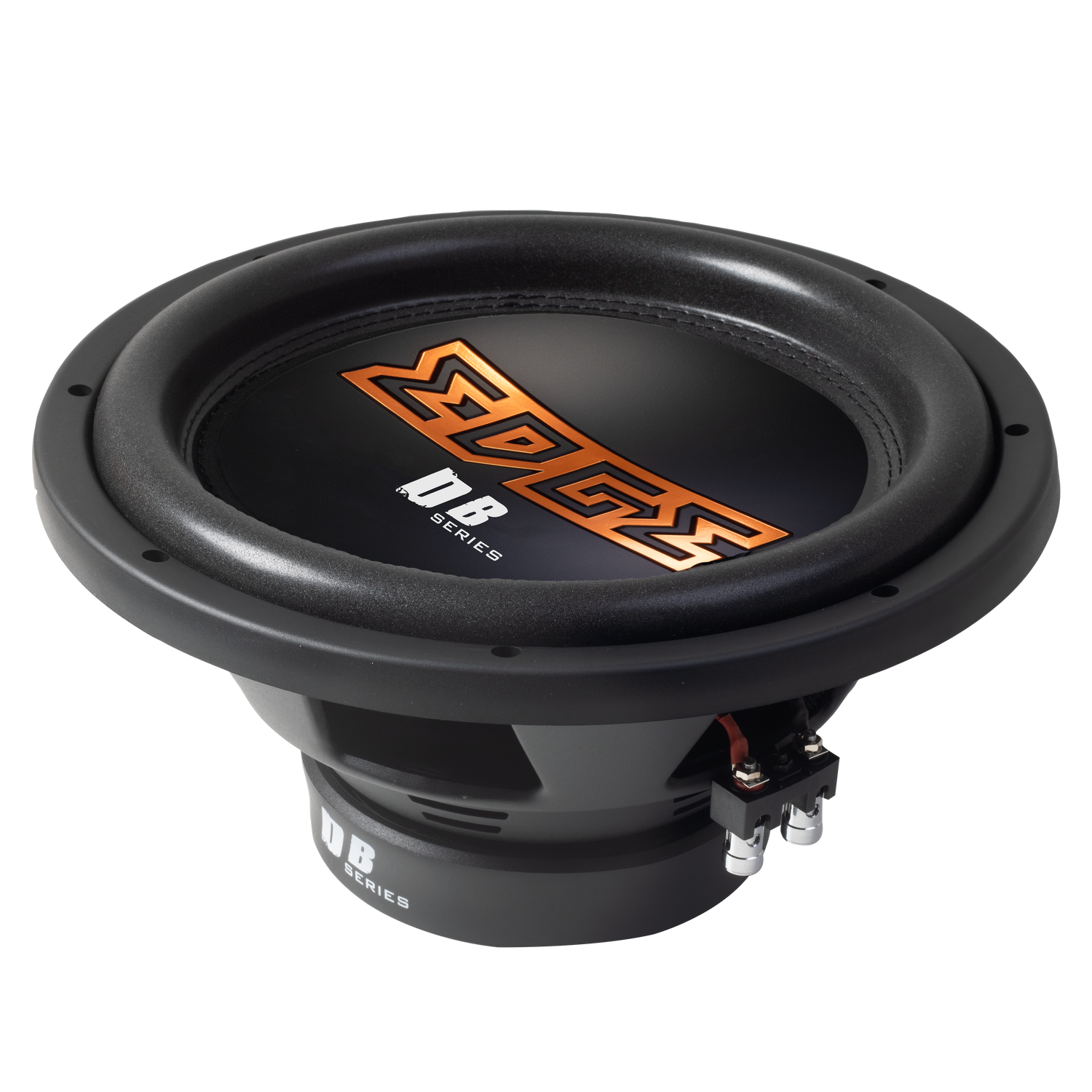

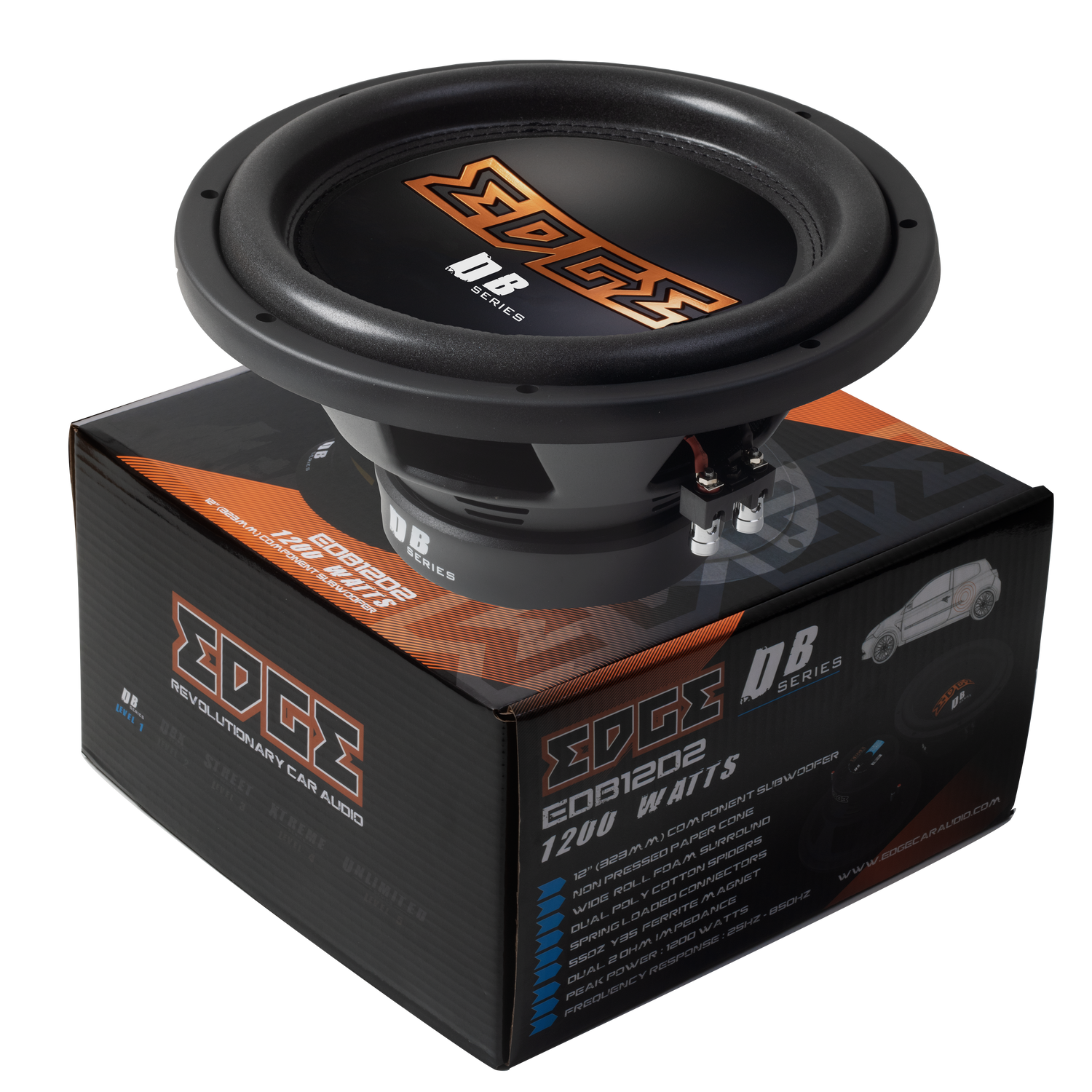

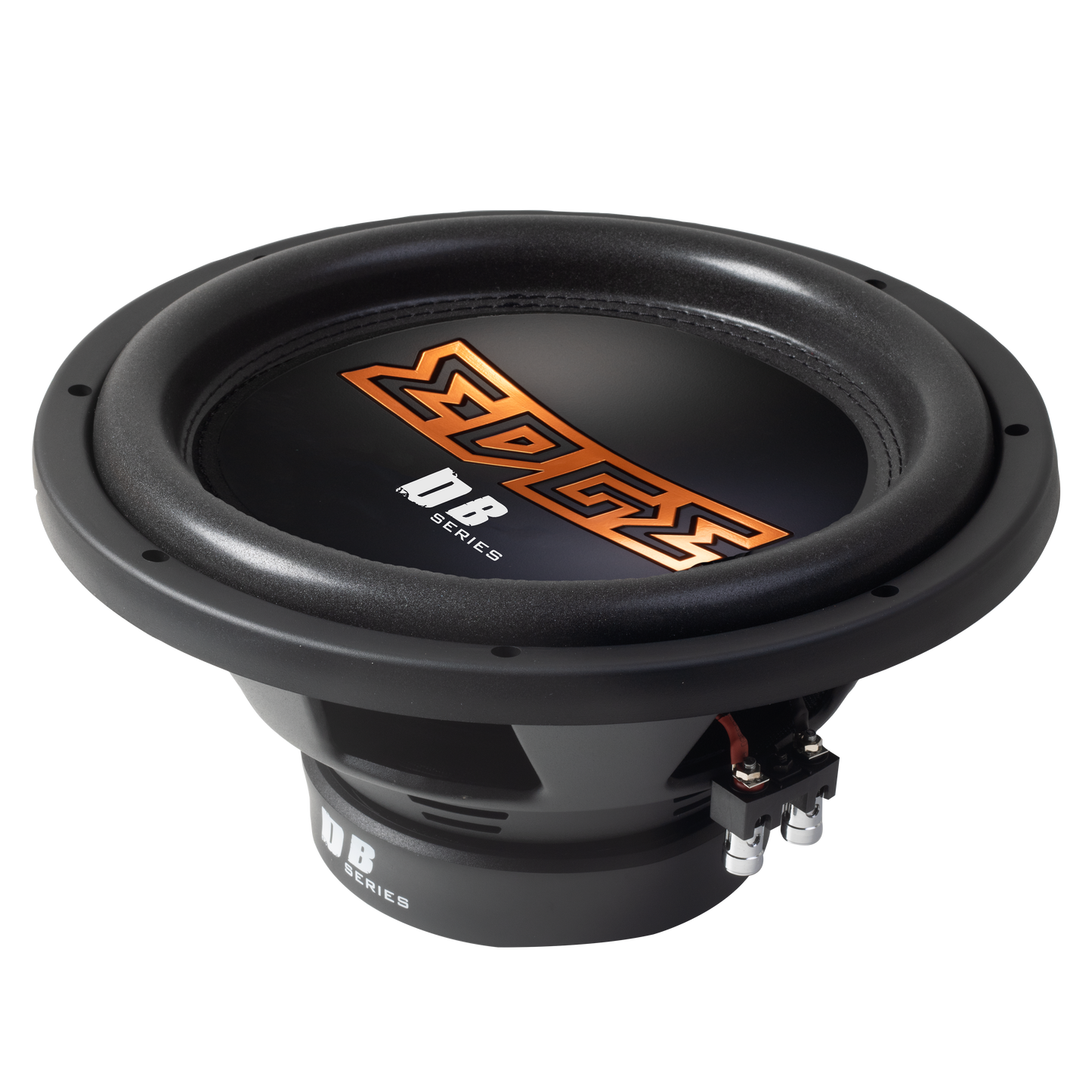

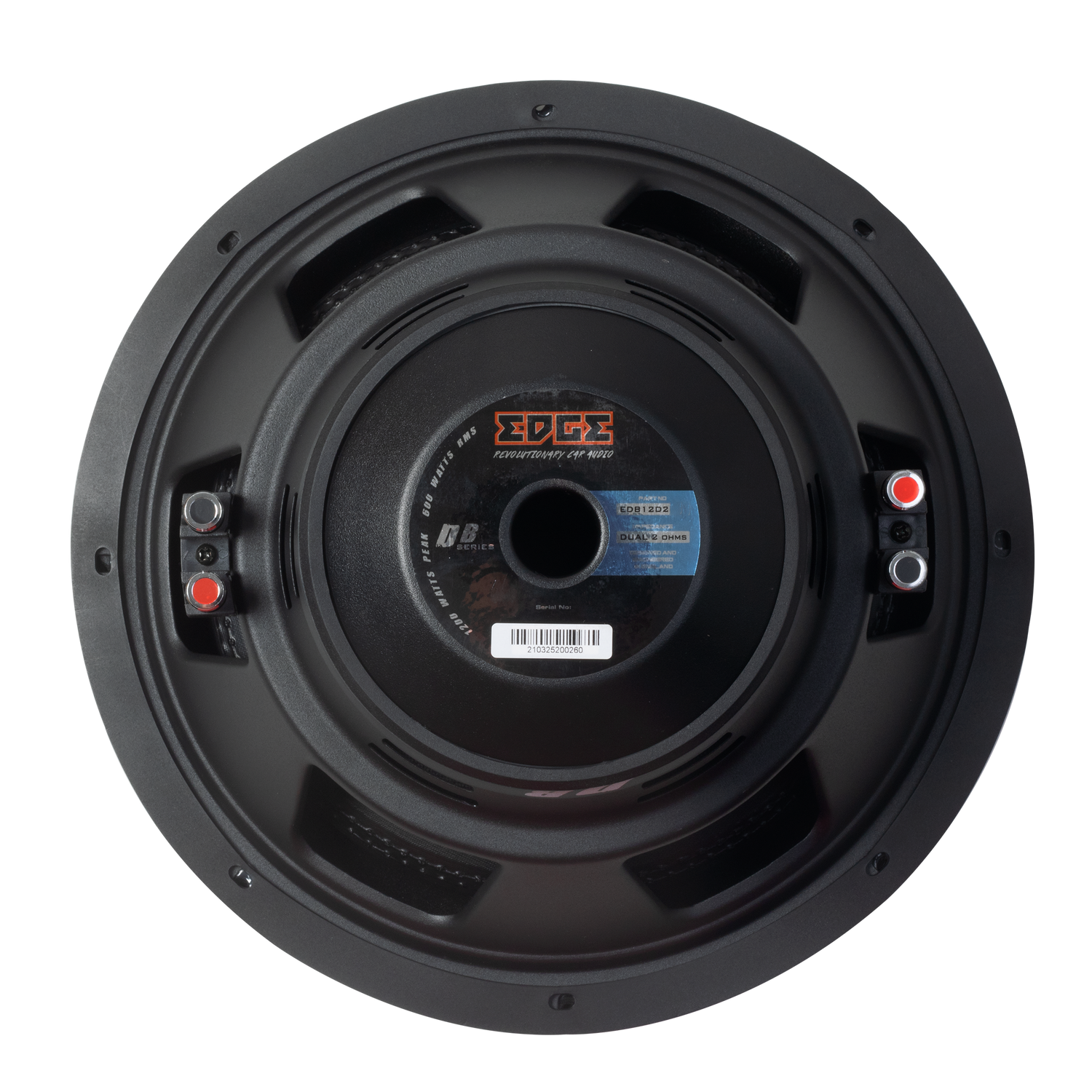

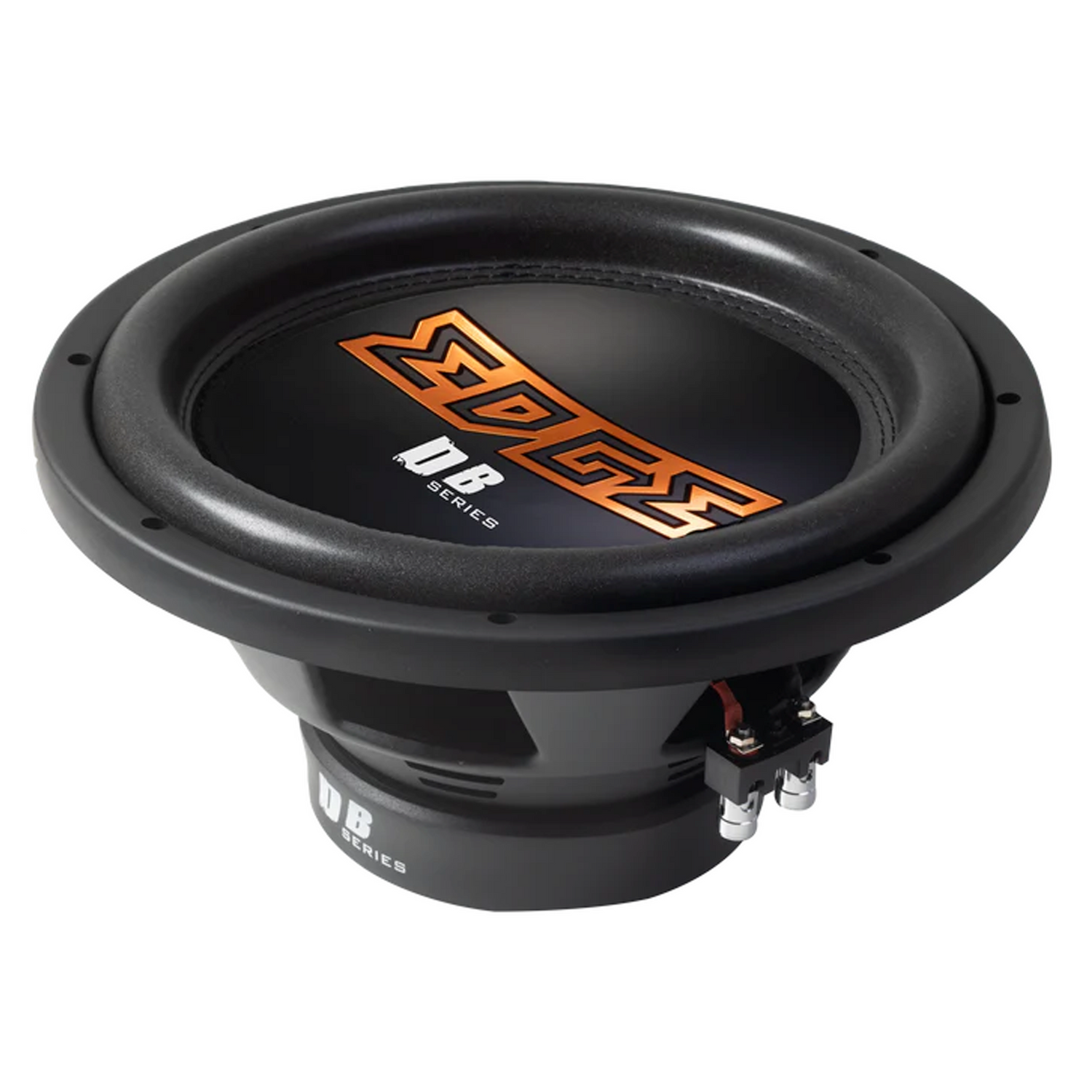

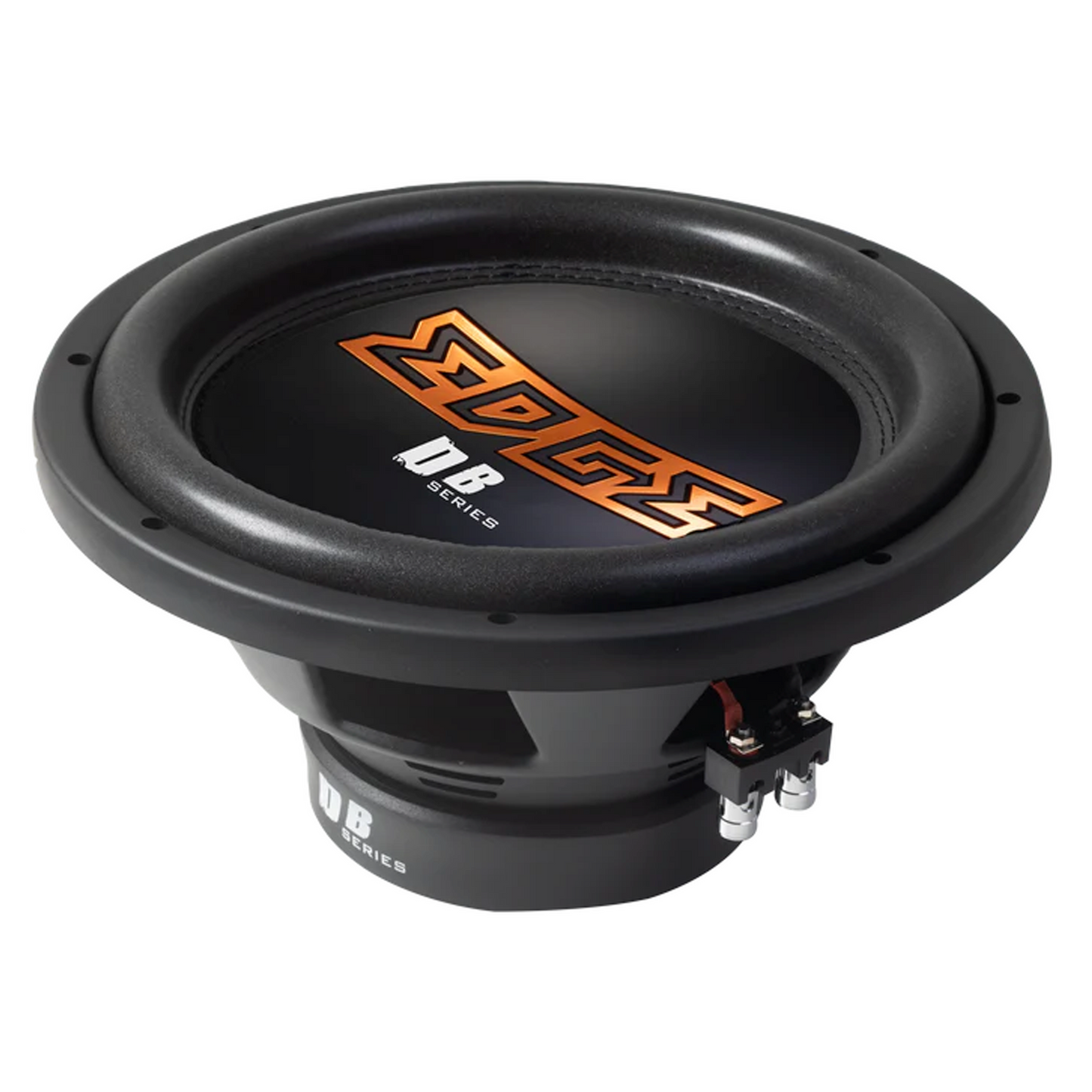

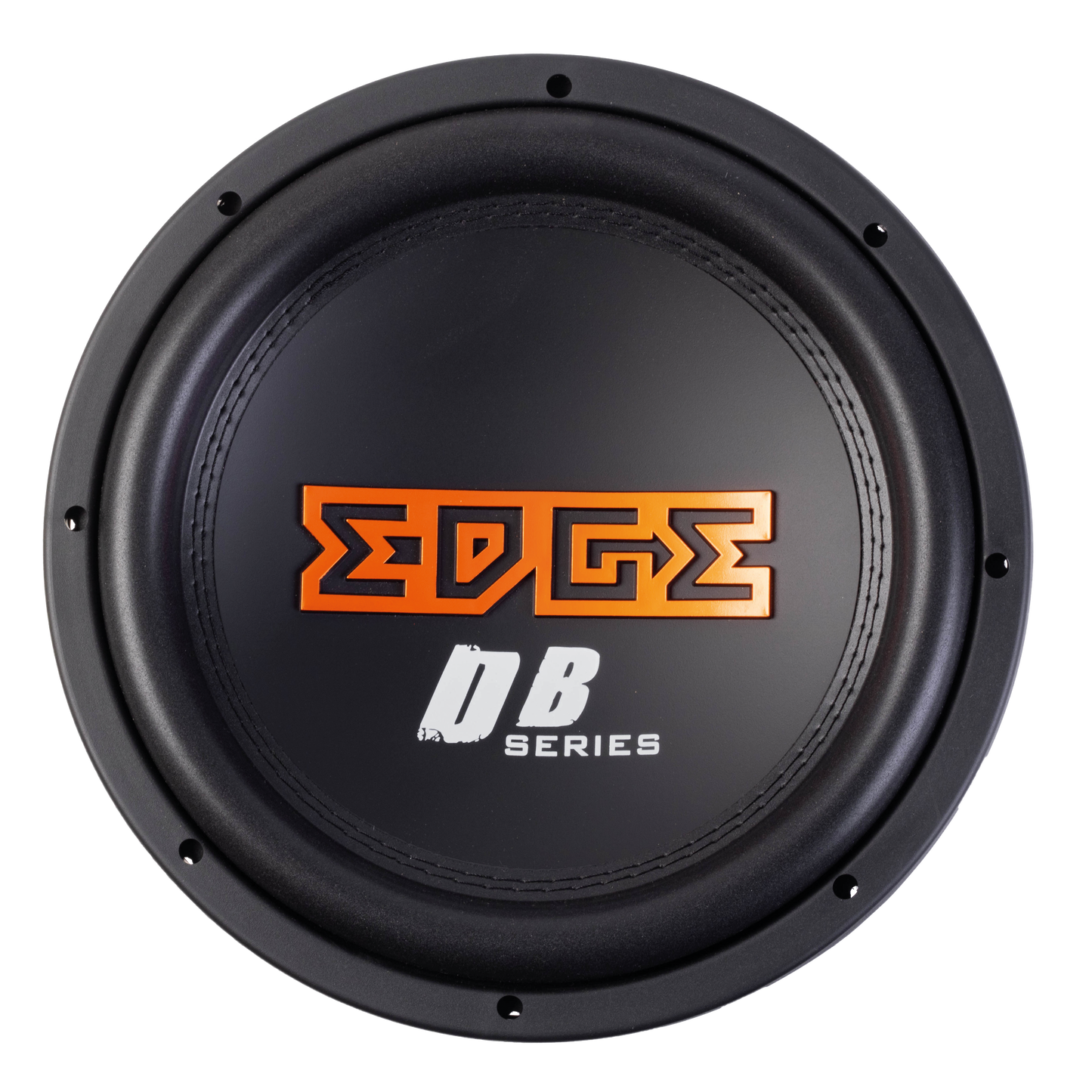

EDB12D2-E3 | EDGE DB Series 12 inch 1200 watts Subwoofer

The EDGE DB series features three subwoofers to cover a range of power and size applications.

These subwoofers are equipped with meticulously selected components and a structurally engineered motor structure, resulting in a harmonised set of subwoofers that deliver precise bass reproduction and impressive SPL output. Our DB subwoofers come in different power capacities and sizes to accommodate diverse needs.

Each woofer has undergone the same rigorous engineering practices and principles, ensuring an exceptional entry-level range of subwoofers. Wondering why you should add a subwoofer? It’s simple: to fully immerse yourself in the music and experience the deep, resonating bass that brings the sound to life and captivates your senses.

OUTSTANDING PERFORMANCE - Our precision-engineered design seamless-ly combines the effective utilisation of soft parts with a robust motor, resulting in bass that surpasses its price range.

PREMIUM AESTHETICS - Introducing our latest addition, a single-piece dust cap, not only ensuring smoother sound reproduction but also enhancing the visual appeal with its eye-catching premium look.

SUPERIOR SOUND - Immerse yourself in warm, rounded, and accurate audio. The DB series subwoofers are meticulously crafted with music in mind, enabling flawless integration into any system and infusing life into your journey.

EXPERT ENGINEERING - Our dedicated R&D team, boasting over 50 years of combined experience, has designed and engineered these subwoofers in-house. This ensures optimal performance, high-quality sound, and elegant aesthetics.

Why add a subwoofer? In order to fully feel and experience the music, bringing the low bass that makes you feel the sound and feel fully immersed!

Features

• Non pressed paper cone
• Wide roll foam surround
• Dual poly cotton spiders

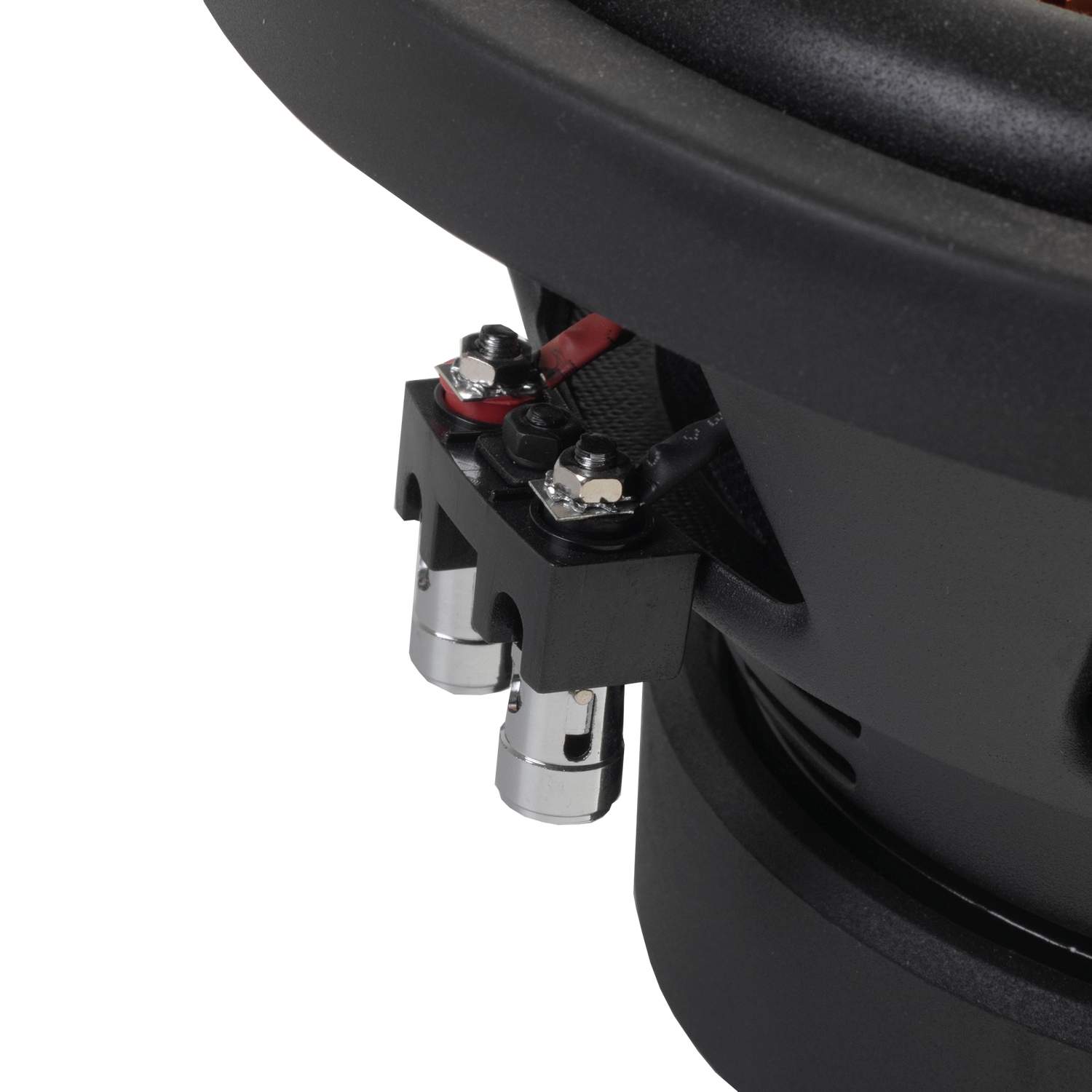

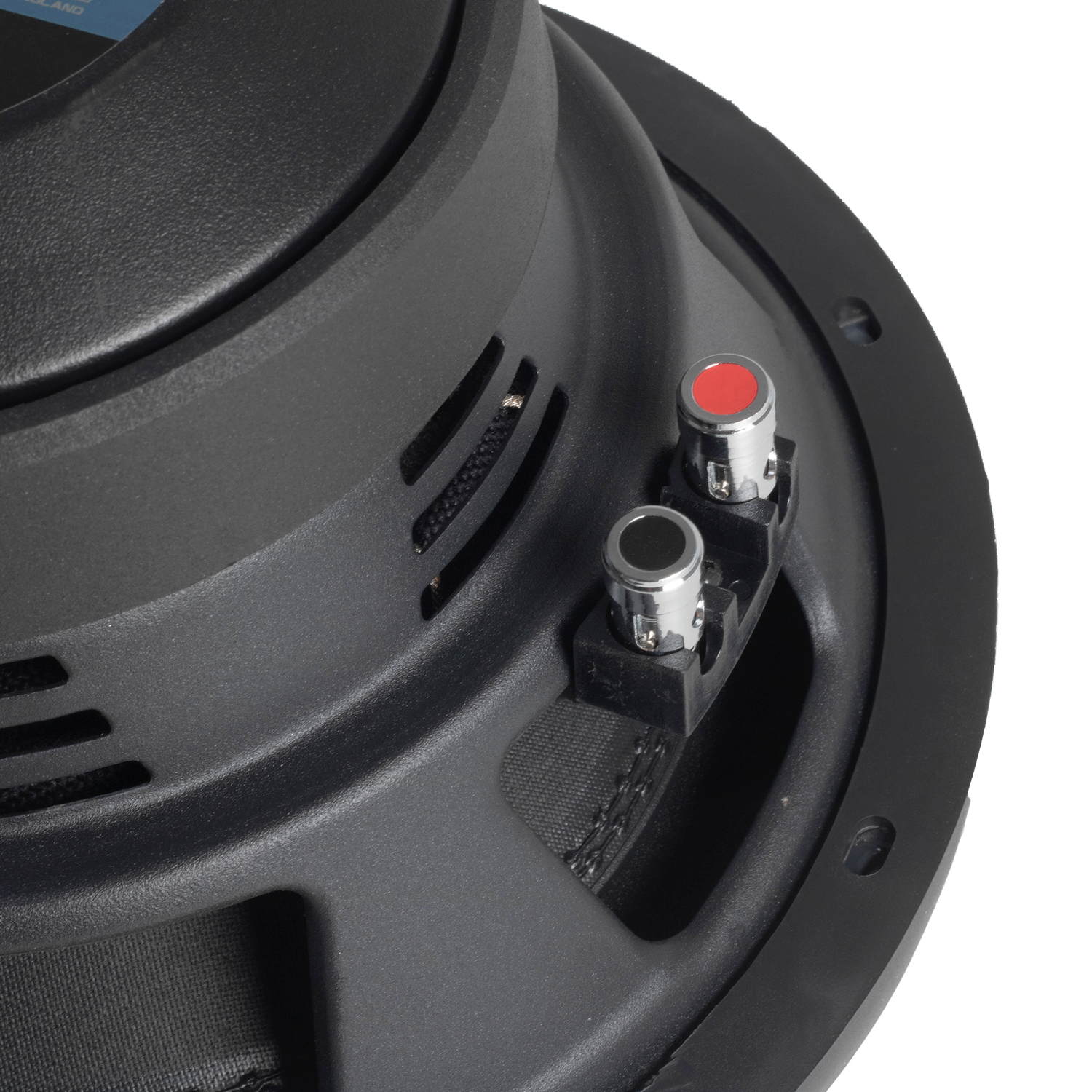

• Spring loaded connectors

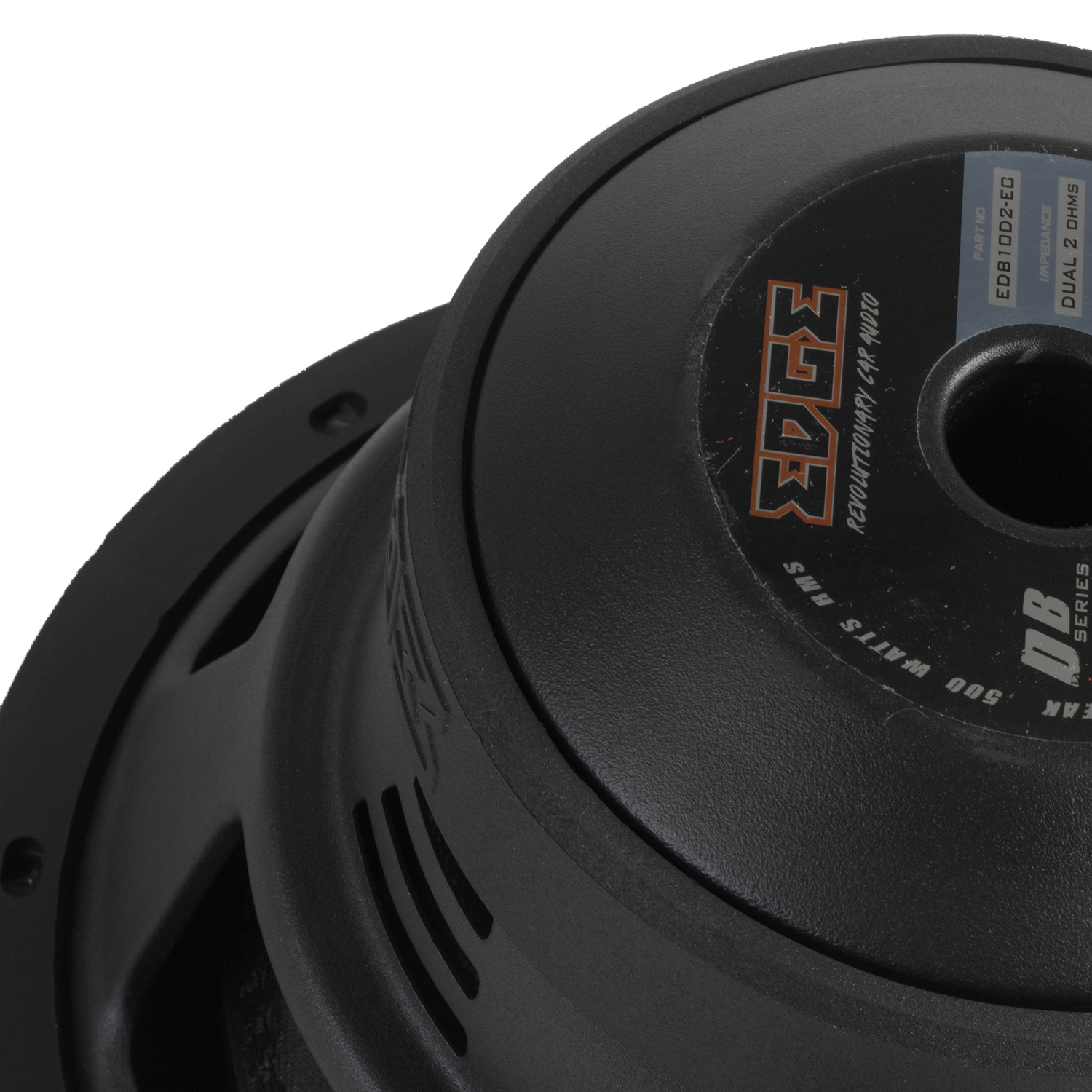

• Y35 Ferrite magnet
• Double stitched surround

Specification

• Type: Subwoofer
• Subwoofer Size: 12" (323mm)
• RMS Power: 600 watts
• Peak Power: 1200 watts
• Sensitivity: 88dB
• Frequency Response: 25Hz - 850Hz
• Impedance: Dual 2 Ohms
• Voice Coil: 2" 4 Layer
• Recommended Amplifier: EDB500.1-E9

Installation

• Magnet Weight: 55oz
• Magnet Dimensions: 5.7" x 1" (145mm x 25mm)

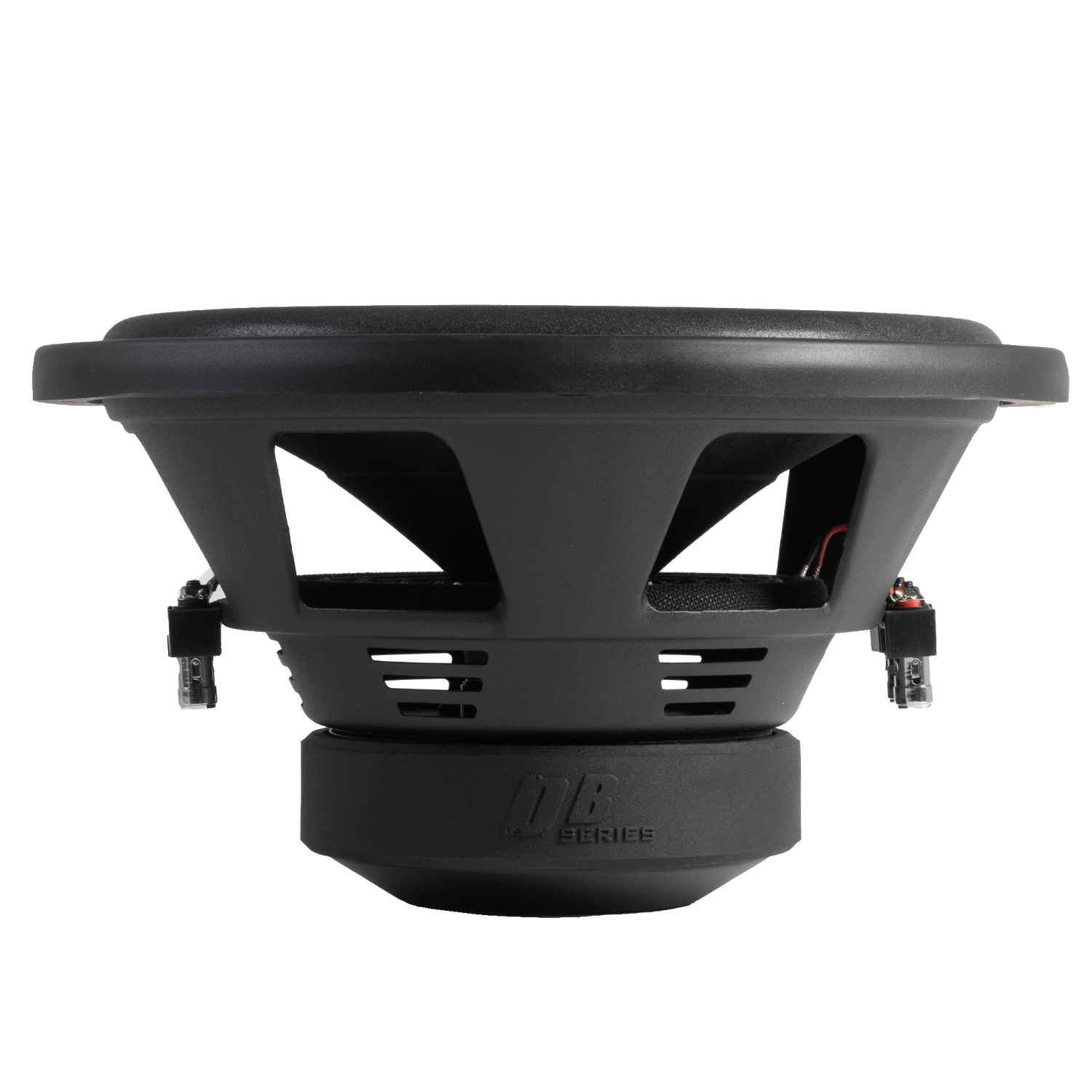

• Mounting Depth: 5.8" (146mm)
• Mounting Diameter: 10.8" (275mm)
