EDB10D2-E3 | EDGE DB Series 1000 Watts Subwoofer

Features

• Non pressed paper cone
• Wide roll foam surround
• Dual poly cotton spiders
• Spring loaded connectors
• Y35 ferrite magnet
• Dual 2 ohms impedance
• Double stitched surround

Specification

• Model: EDB10D2-E3
• Speaker Size: 10.8" (274mm)
• Sensitivity: 84dB
• Frequency Response: 30Hz - 1kHz
• Impedance: Dual 2 Ohms
• Voice coil: 2" 4 layer

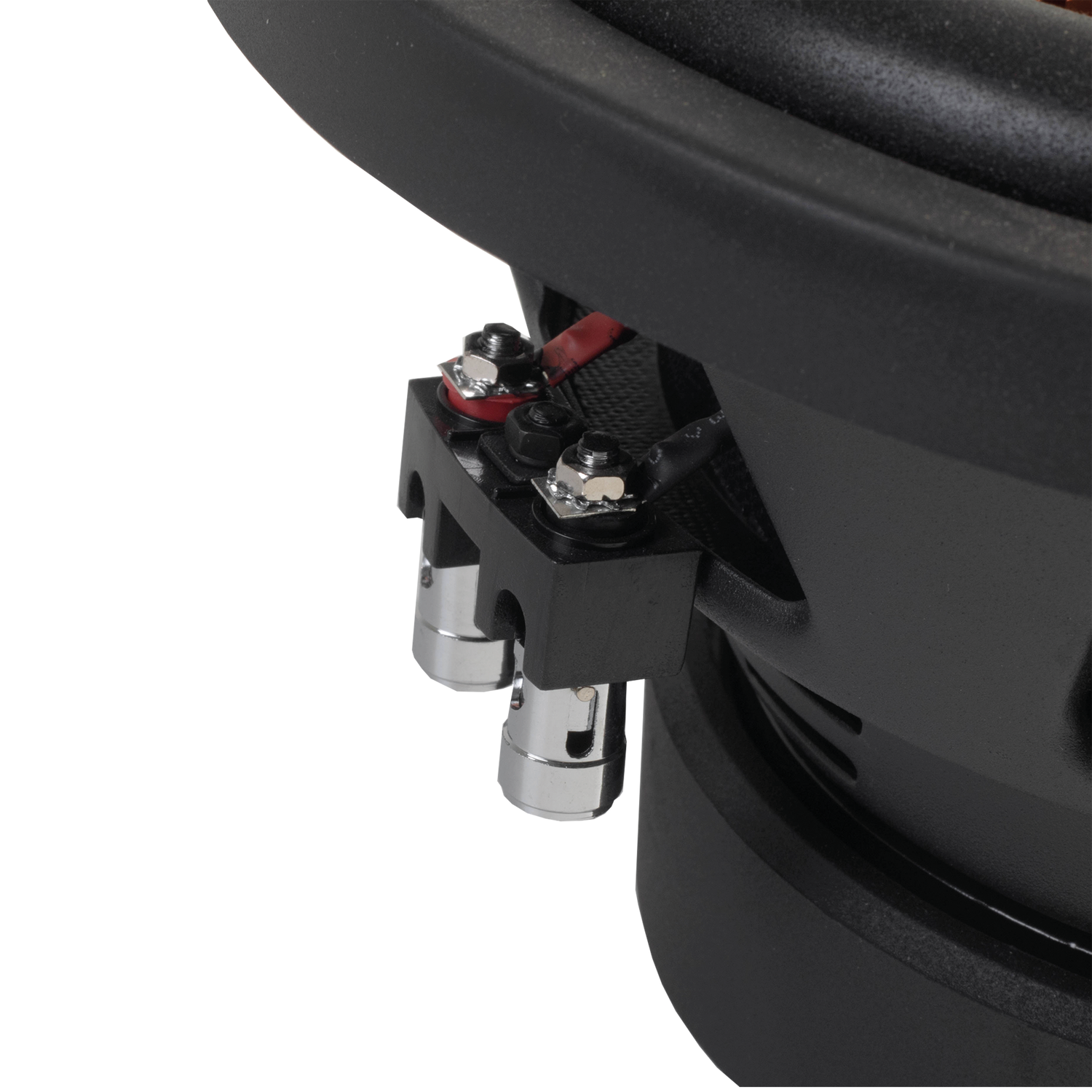

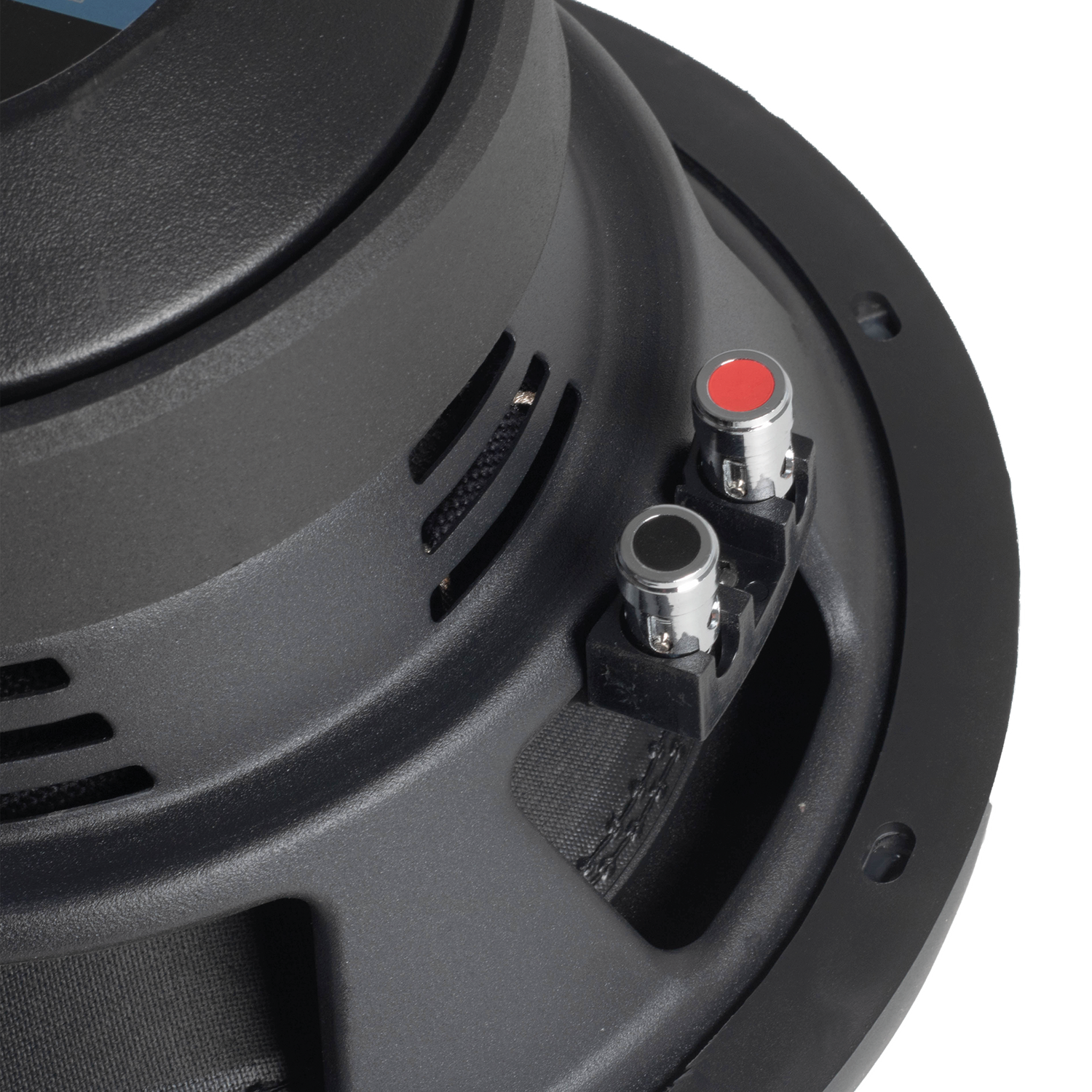

• Terminal: Spring loaded
• Mounting Depth: 5.3" (135mm)
• Mounting Diameter: 9.2" (232mm)
• RMS Power: 500 watts
• Peak Power: 1000 watts

Downloads

• EDGE 2019 Catalogue
• EDB10D2-E3 PA Sheet
