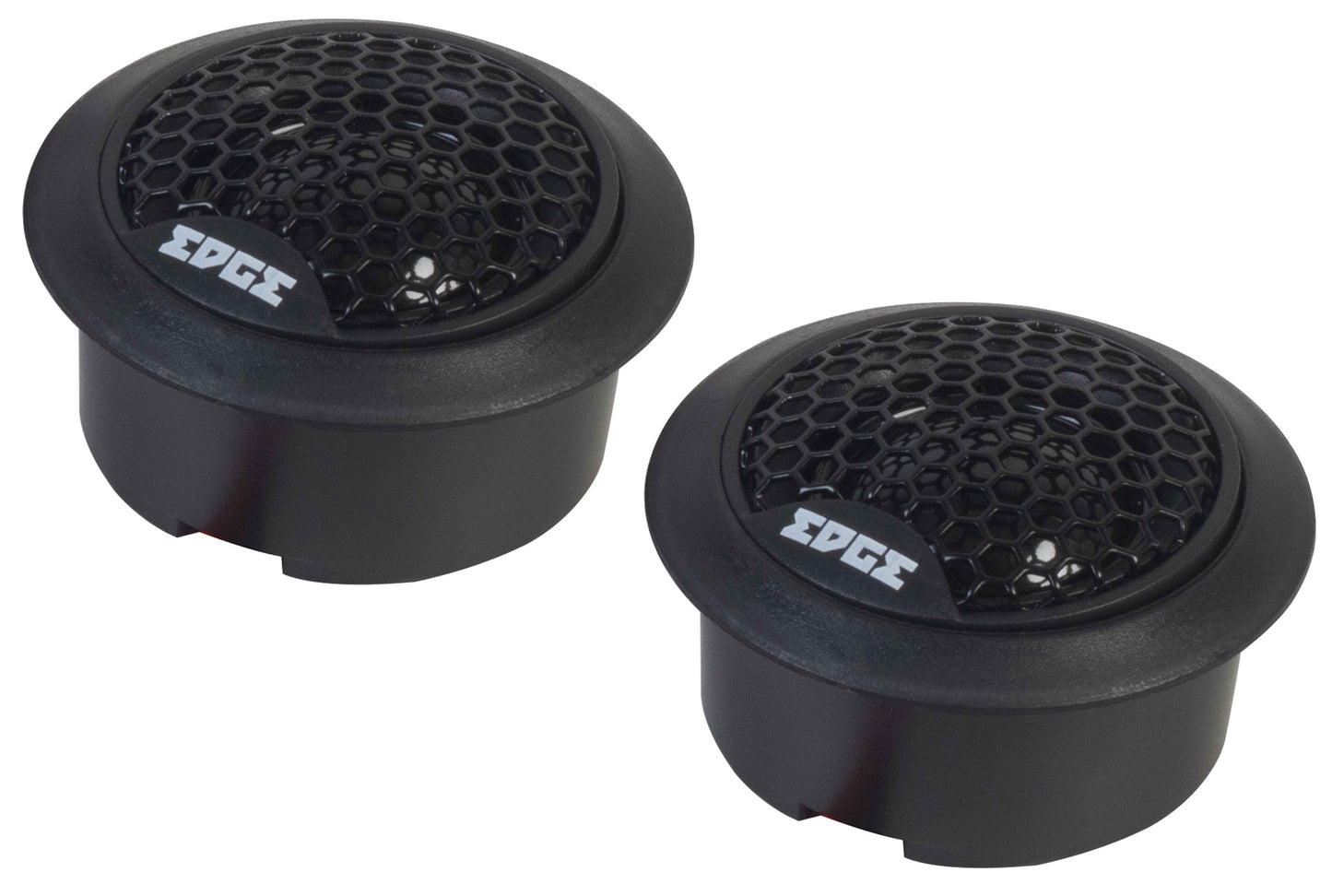

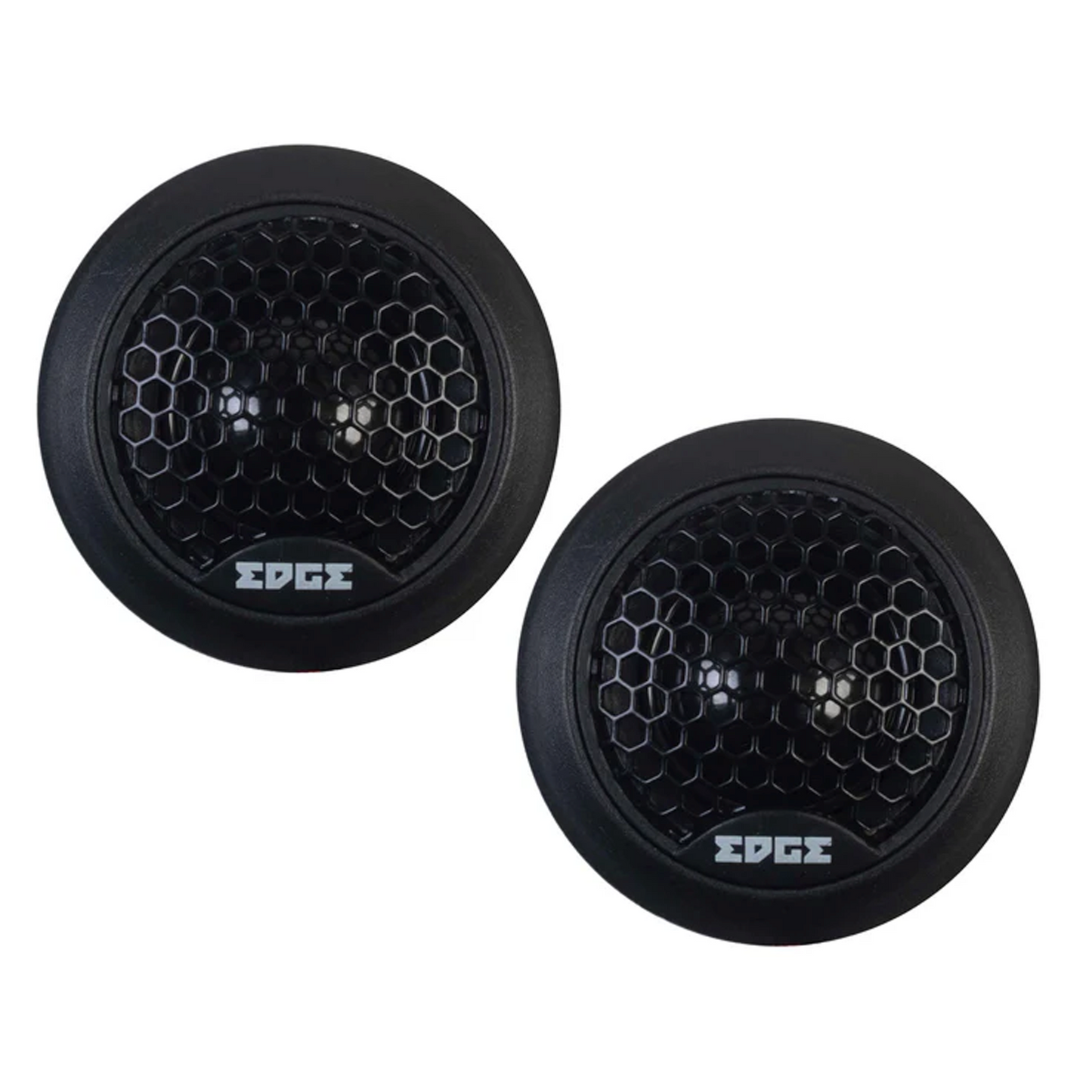

EDB1TN-E1 | EDGE DB Series 1.8 inch 50 watts Component Tweeters - Pair

The all-new EDGE DB Series tweeter provides the perfect tune up solution for your factory audio system that lacks high frequency output.

The DB Series tweeter features a Black Mylar dome diaphragm which delivers enhanced high frequencies and vocal reproduction and has a large Hexagon mesh grille for protection. Installation is made simple with the option to flush mount or surface mount the tweeter and the wiring has a filter capacitor inline so there is no need to find space for an external crossover housing.

When enhanced sound is required as an upgrade to your system, an EDGE tweeter is the perfect place to start.

Features

• 1 way component tweeters
• Neodymium motor
• Black Mylar dome diaphragm

• 20mm voice coil

• Flush and surface mounting options

• Inline passive crossover filter

Specification

• Model: EDB1TN-E1
• Type: Tweeter
• Configuration: 1 way
• Speaker Size: 1.8" (45mm)
• RMS Power: 25 watts
• Peak Power: 50 watts
• Frequency Response: 2kHz - 20kHz
• Impedance: 4 Ohms

Installation

• Mounting Depth: 17mm
• Mounting Diameter: 39mm

Downloads

• EDGE 2024 Catalogue
